Basic Info

Model No. KR1-1-102
Brand Name KARA
Usage Electrical Appliance
Standard Standard
Lamp Without Lamp
Color Black
Certification RoHS
Condition New
Dimenstion 21×15
Show More

Product description

  • ON ON Power Switch
  • Power Switch On ON
  • Power Switch Minature
  • Material should be FR Grade
  • Part should be free from surface defects
  • The part should not contain prohibited substance (Pb,Cr,Cd,Hg,PBB,PBDE) and details as per TUV standards
  • [C] marked dimensions.If any should be carefully handled as are assembly dimensions.



Specification

Rating 6A 250VAC
Operating
temperature 		-25~85oC
Contact resistance 100mΩ Max
Insulation resistance  100mΩ Min
Electrical life 10000cycles(10A 250VAC)
Applicable standard IEC61058-1

Material list

Contact leg Brass T=0.8mm
Contact Silver alloy
Terminals Brass T=0.8mm
Case PA66

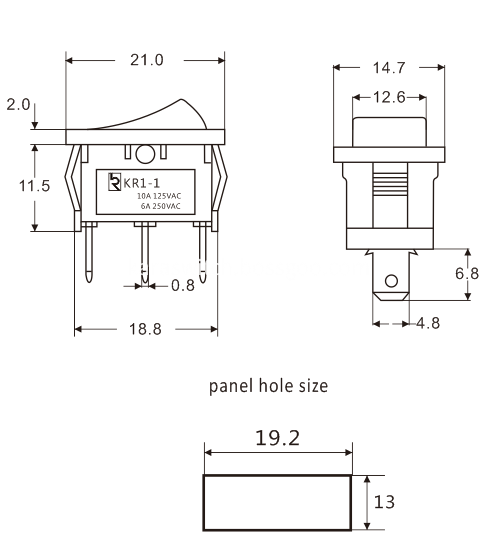

Drawing


rocker switch


Product display


rocker switch KR1-1   rocker switch KR1-1


rocker switch KR1-1   rocker switch KR1-1
