Prefab Temporary Cabin for Workman

For quoting, please provide

Draft Drawing

Floor plans

Structure drawing

Finishing drawing

Construction & Installation drawing

Load required (if available, will be helpful)

Floor plan, Wind load, Snow load, aseismic load or similar data.

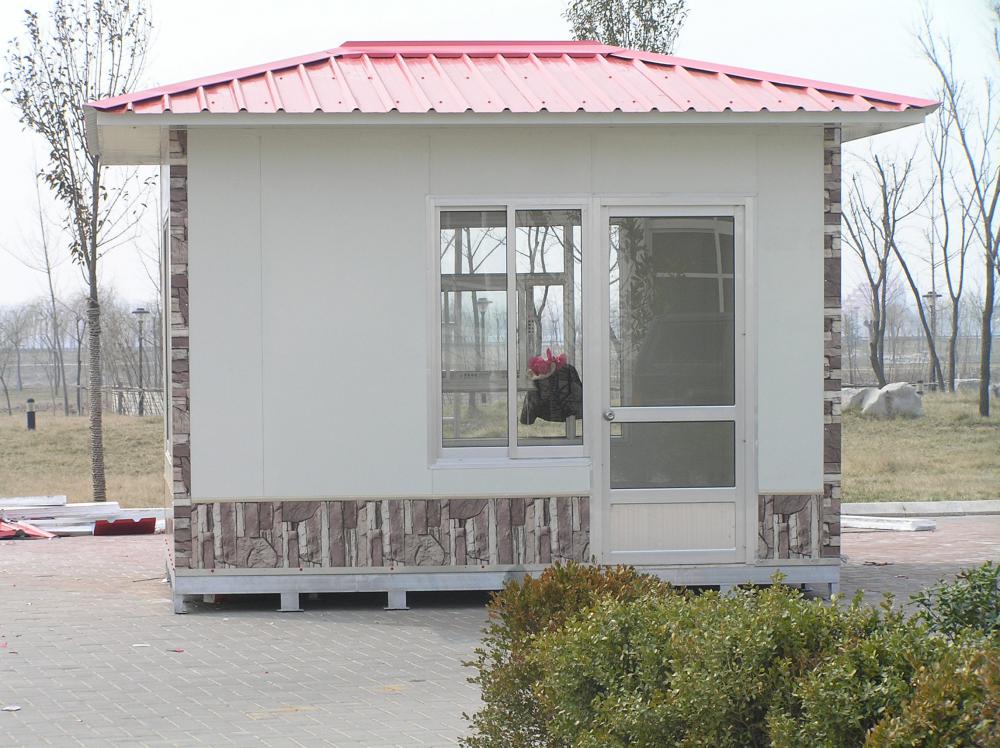

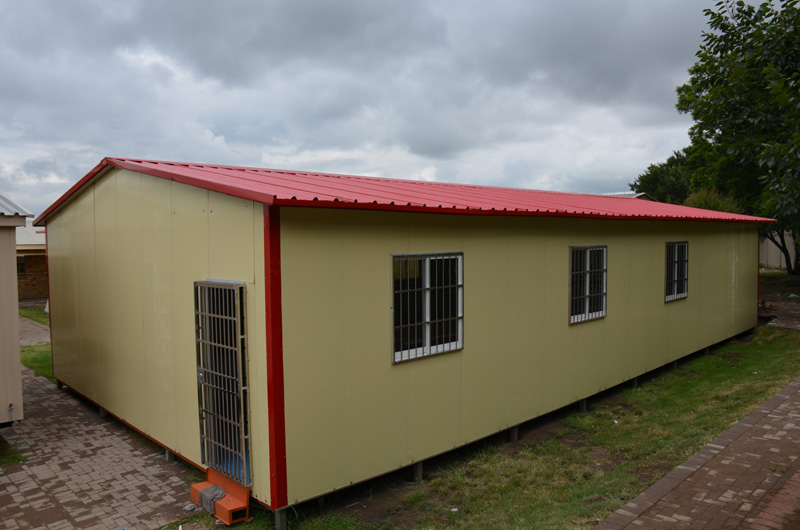

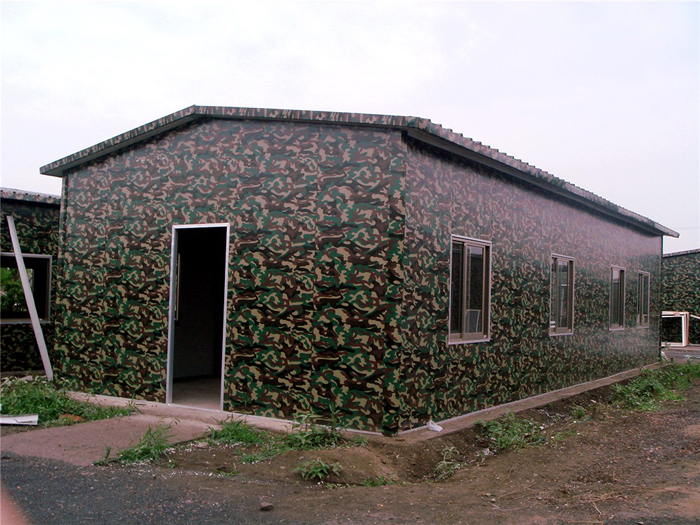

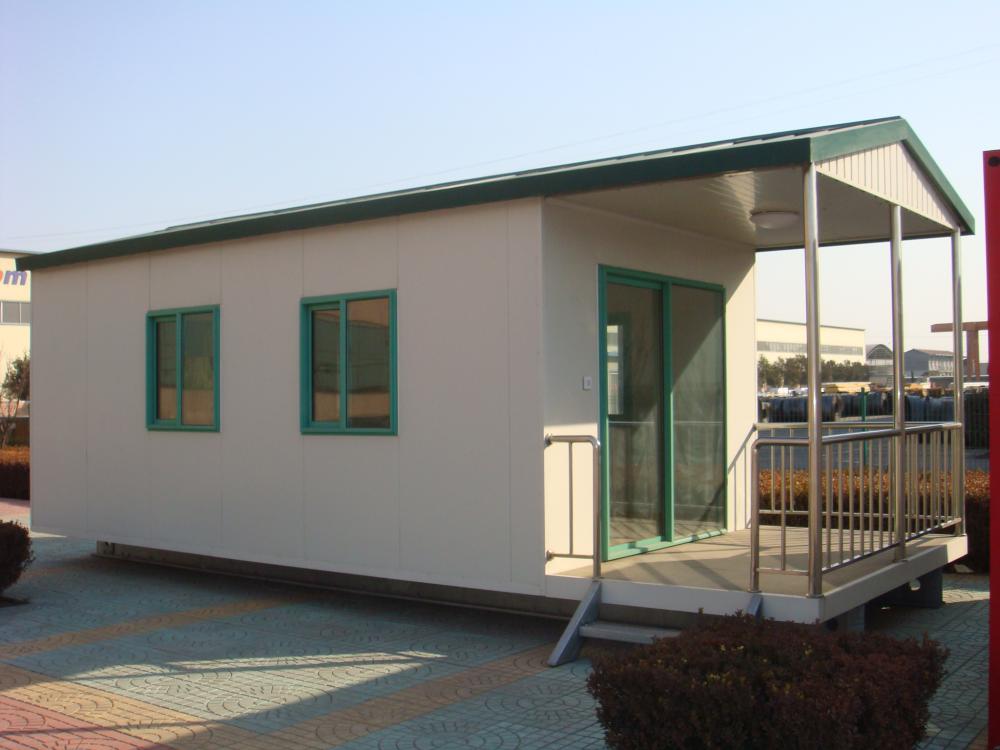

Prefabricated camp building

Light steel as frame, sandwich panel as envelop system material, standard modular as spatial organization, color steel prefabricated house is connected by bolt and environmental friendly.

1. Dimension

Choose A: The size and layout can be designed as per  customers' requirements  for its flexible dimension

Choose B: width and length can be extended by adding number of 1820mm

2. Foundation

Choose A: It was made by the welded steel frame, connected with bolts

Choose B: It was made by concrete foundation

3. Floor

Choose A: For Elevated Floor, First we should put on the plywood. The specification is: 2440mm*1220mm*15mm Then putted on 1.5mm PVC plastic flooring. Surrounded by PVC skirting

Choose B: For concrete foundation, it can be ceramic tiles or composite floor board

4. Wall and roof panel: heat insulated material can be EPS,PU or Rock wool

Choose A: can be modular as multiple of 1820mm*1150mm/950mm

Choose B: The dimension of wall panel is :1000mm*75mm plain end panel.

The dimension of roof panel is: 950mm*75mm jack

5. Windows and door

The door adopts sandwich panel or aluminum alloy sliding door. The window adopts aluminum alloy with screen and burglar mesh

6. Roofing decoration: decorated by aluminum alloy sheet

7. Advantage of structure: Waterproof design of galvanized structure, fireproof and heat insulation material ensure the house to resist heavy wind load of 0.5KN/m2 and 7 degree seismic intensity.

8. Lifetime: The life span of the house is 15-20 years.
