1.?Product Overview

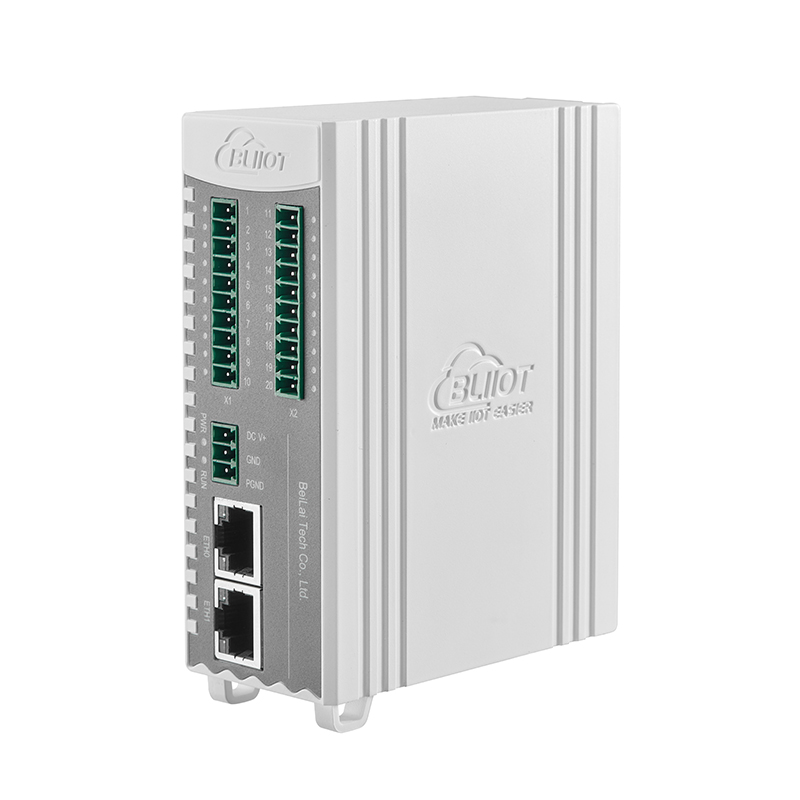

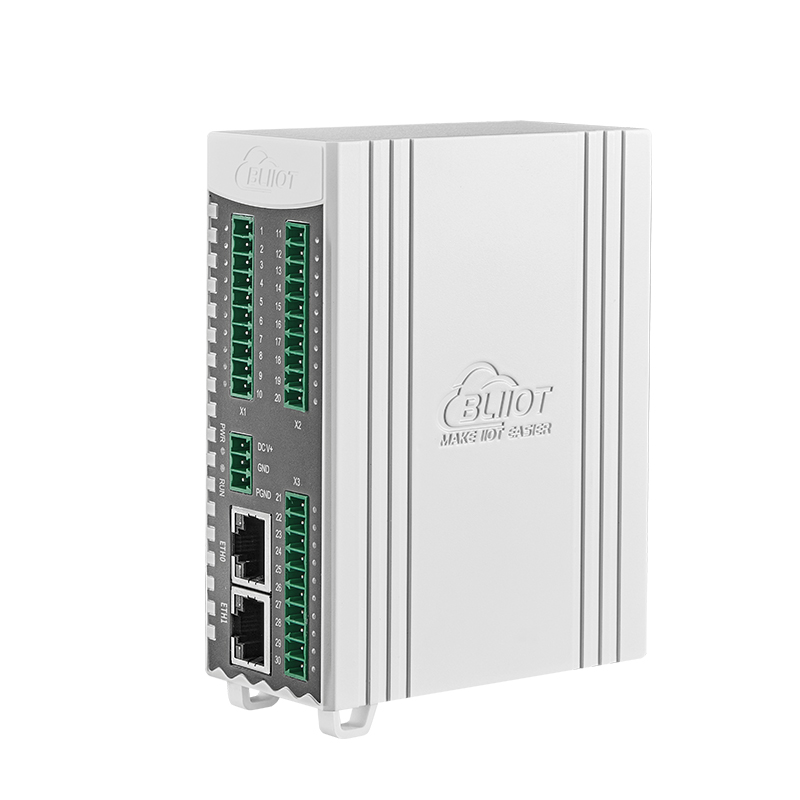

The BA190 is an IOy series industrial-grade multifunction programmable BACnet/IP remote I/O module — a high-performance industrial device specially designed for building automation and intelligent building systems. It adopts electrical isolation technology, has passed EMC/EMI tests and -45 to 80°C high and low temperature verification, and features a built-in independent hardware watchdog to ensure long-term stable operation in harsh environments.

Through the BACnet/IP protocol, it enables seamless integration with other building control systems, supporting monitoring and control of various field devices, fully meeting the demands of modern building management.

Key Features

l?Communication Interface: Equipped with two 10/100M adaptive Ethernet ports, supporting?standard BACnet/IP?protocol and cascading.

l?Data Acquisition: One isolated RS485 port supports Modbus RTU master mode, enabling data collection from smart meters and conversion to?BACnet/IP.

l?Logic Control: Supports quick implementation of register operations and logic control via a built-in web server, enabling intelligent regulation of systems such as lighting, air conditioning, and ventilation, serving as an alternative to traditional PLC control devices.

l?Remote Configuration: Supports quick configuration and programming via web interface for efficient data acquisition and control.

l?Remote Maintenance: Integrated with BLRAT (Beilai Remote Access Tool), allowing remote firmware upgrades and parameter configuration.

l?Flexible Expansion: Provides 1 to 3 I/O expansion slots for flexible combination of I/O boards, adaptable to various industrial applications.

BA190, with its high reliability, flexible expansion, and convenient maintenance, supports the efficient operation and maintenance of Industrial IoT and industrial automation systems.

2.?Typical Application Areas

??Smart Manufacturing and Industrial Automation: The Ethernet I/O module is used as an extension of the PLC, connecting to sensors and actuators on the production line for data acquisition and equipment control.

??Building Automation and Smart Home Management: Connects to devices such as lighting, air conditioning, security systems, access control, and electric doors, enabling device monitoring and remote control. Through the BACnet/IP protocol, users can easily manage various devices within the building, enhancing the comfort and security of residential and office environments.

??Agriculture and Environmental Management: Monitors temperature and humidity data, controls equipment such as blowers and curtain motors to optimize crop growth conditions; manages ventilation fans, lighting systems, water supply equipment, and other devices for effective livestock environment management.

??IoT Environmental Monitoring System: Serves as an IoT node, connecting to various sensors such as temperature, humidity, and gas sensors to upload data to the cloud platform.

??Industrial Network Communication and Data Acquisition: As a BACnet/IP remote expansion I/O module, it communicates with industrial equipment to enable data acquisition and control.

??Energy Storage System Monitoring: Monitors parameters such as battery status, current and voltage, temperature, and alarms in energy storage systems, enabling remote monitoring and intelligent management of the system.

??Robotic Arm Control and I/O Signal Acquisition: Serves as the I/O module for the robotic arm, used to collect and control the arm's movements and operations.

??Subway Station Equipment Monitoring: Applied in subway stations, connecting to sensors of various devices to enable real-time monitoring of equipment operating status, supporting the operation and maintenance of subway station equipment.

??Wind Power Generation Monitoring: Monitors signals such as the status, speed, wind speed, wind direction, temperature, and alarms of wind turbines for remote monitoring and maintenance of wind farms.
