1.Introduce:

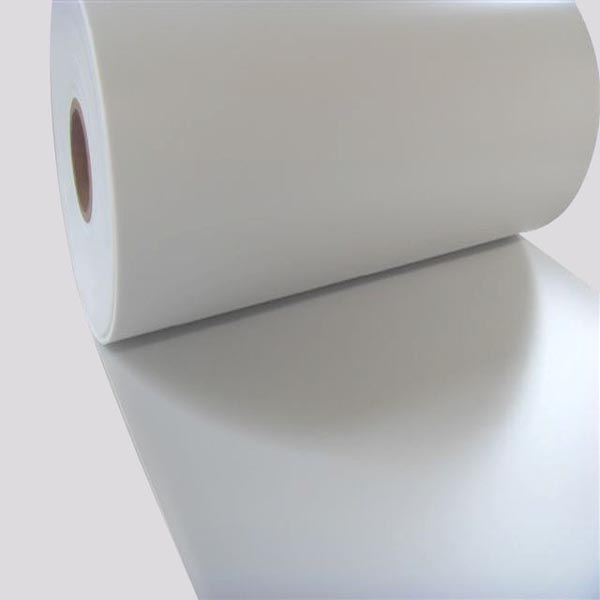

PS White Conductive Sheet is HIPS sheet with Coating finish,the surface resistance value is from 10e5 to10e8,Thickness can be from 0.2mm to 3.0mm.The coated conductive sheet with stable conductivity, supersonic cleaning, material environmental protection, high cleanliness.They are used in many areas of industry, such as the electronics and semi-conductor industry, ventilation, ventilator and pump construction, medical technology.

2.Description of Products:

1. Width: 200mm~750mm  (Tolerance:  ± 1mm) ;

2. Thickness: 0.2mm~2.5mm   (Tolerance:  ± 0.02mm) ;

3. Length is customized. it can be roll or cut size packed.

4. Color: White,

5. Surface resistivity:10e4~10e6

6. 3 layers co-extrustion

7.One side is glossy another side is matte

8.Certificates: ISO9001,REACH,CTI RoHS.

3.Features

1.Stable surface resistance

2.Good thermoforming characteristic Rigid,

3.Stable performance, not influenced by humidity.

4.Excellent conduction properties,Superior processing property.

5.High impact resistance,Excellent light transmittance.

6.Eco-friendly: odorless, tastic, non pollution, easy to be recycled.

7.No burrs, no powdering or particle shedding  observed on the tray

4.Production Preocess:

5.Application of Product:

6.Certificate of Product

7.Delivery and Shipment

    Delivery time:7~10days based on 2~5tons

                         10~15days based on 10~12tons (1*20GP)

    Shipment: we will choose the best transportation plan based on your requirements: Air transportation,                                       ocean-shipping, Express or other ways.
