1, usage

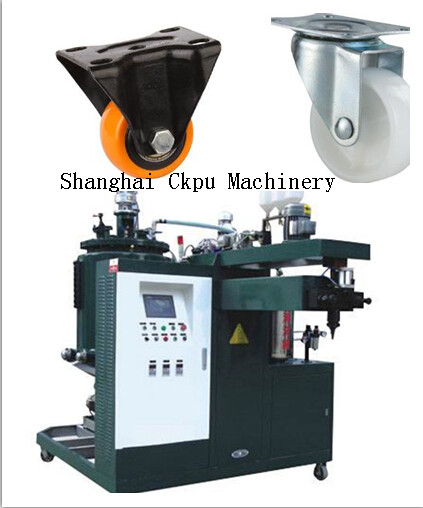

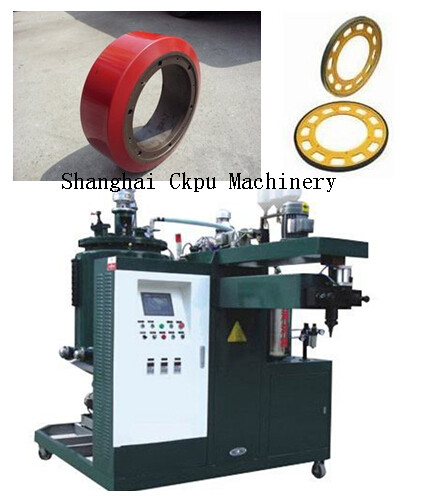

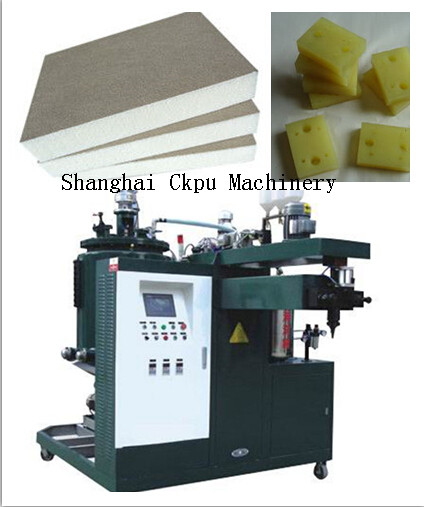

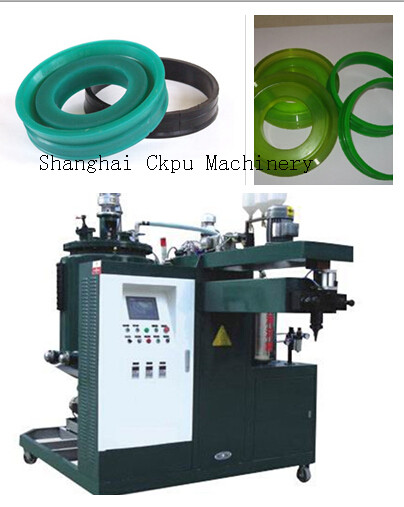

It is used in producing casting PU elastomer with chain extender of MOCA or BDO, such as printing roller, screen plate, impeller, universal castor, lifting weight, hydraulic seal ring, etc.

2, feature

It has advantage of accurate measure, PLC control, touch screen, fast heat and vacuum and de-foam, and easy operation, etc.

3. specification

output: 0.2-0.8kg/min; 1-3kg/min; 2-5kg/min; 3-8kg/min; 5-15kg/min

power: 27kw; 30kw; 33kw; 33kw; 45kw

range of proportion: 100:5-20

temperature: 60-125℃

dimension: 2500L×1750W×2500H(mm)with arm

weight: 1000-1350kg
