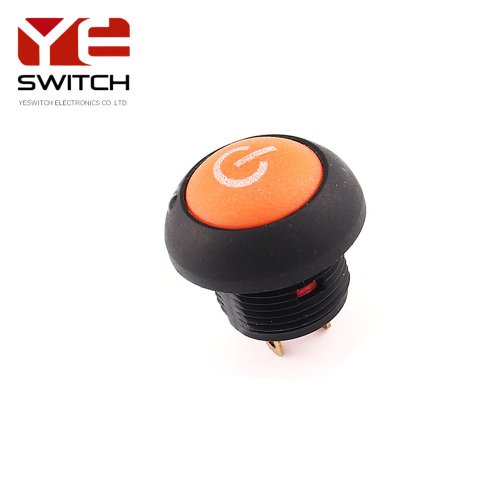

Push Button Switch with Power Logo IP67 Waterproof
$0.01
≥1000 Piece/Pieces
Options:
- Momentary
Basic Info
| Model No. | PA Series |
|---|---|
| Brand Name | Yeswitch |
| place of origin | China |
| Whether smart | Yes |
| Rating: | 400mA 32VAC-100 mA 50VDC-125 mA 125VAC |
| Initial contact resistance: | 50 mQ max. |
| INSULATION RESISTANCE: | 1 GΩmin. at 500VD |
Product description

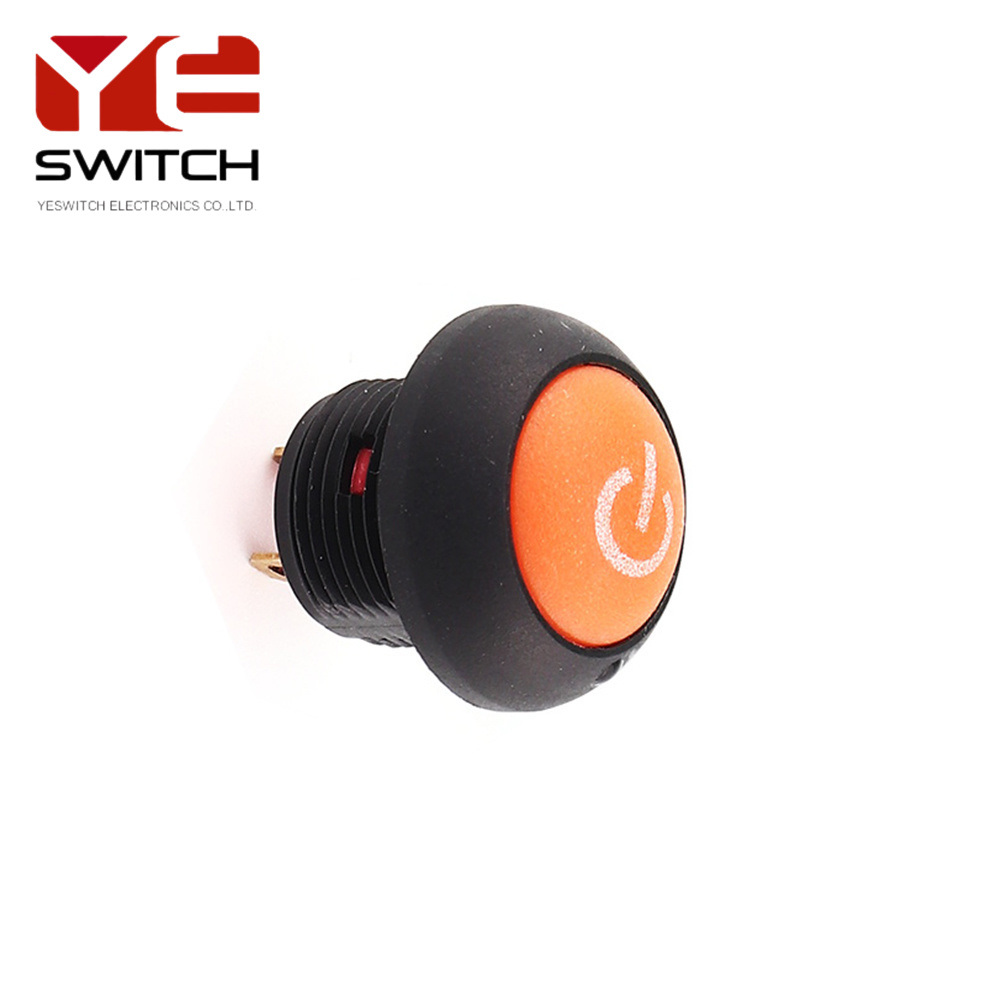

Push Button Switch With Power LOGO Hot Selling IP 67 Waterproof
The 12mm Miniature Waterproof Push Button Switches momentary function allows for quick and easy activation, perfect for situations where you only need temporary power.The versatile Momentary Push Button Switch offers a reliable and convenient solution for your electrical needs.The Waterproof Push Button Switchessuitable for a variety of application,such as electronic handle, cross-country transportation, operating rod, crane, agricultural equipment, computer equipment and so on.
| Specifications | |
| Rating | Depends on the modal |
| Insulation Resistance | 50m Ωmax. |
| Dielectric Strength | 1,000 VAC rms/1,500 VAC rms |
| Electrical Life | 500,000 cycles. |
| Mechanical Life | 1,000,000 cycles |
| Operating Temperature | -30degree±85degree |
| Total Travel | 1.5 mm(.059) |
| Operating Force | 2N~5N |
| Contact Bounce | 10 ms. |
| Travel | 0.5 Nm/1.5 Nm |
| Operating Pressure | About 4.5N±0.5N |
| Protction Degree | IP67 |
| Soldering | 350oC max.for 5 seconds. |
| Materials | |
| Bushing | Aluminum alloy/Plastic |
| CAP | PA66 |
| Spring | Steel |
| Sealing | Sillicone(Translucent) |
| O-ring | Sillicone(Translucent) |
| Terminal | Bass,, silver, gold |
| LED Color | White/Red/Yellow/Green/Blue/ |
Push Button Switch with Power Logo IP67 Waterproof
$0.01
≥1000 Piece/Pieces
Options:
- Momentary
