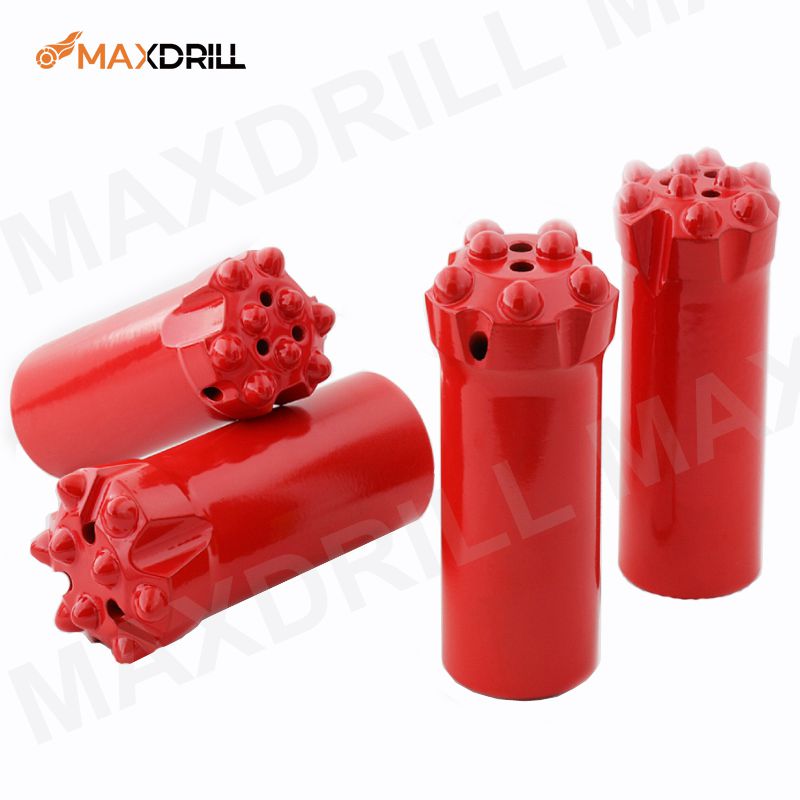

R32 Thread button bit
Get Latest Price
You might also like
Basic Info
| Model No. | R32 64MM |
|---|
Product description
Product Despcription
| Dimensions D | Flushing hole(mm) | Buttons(mm) | Angle | Class | Part no. | |||
| mm | in | Front No Size | Gauge No Size | Front No Size | Gauge No Size | |||
| 45 | 1 3/4 | 1*5.5 | 2*5.5 | 2*9 | 5*11 | 30° | H | 3045R3207 |
| 48 | 1 7/8 | 2*6 | 1*5 | 2*9 | 5*11 | 30° | H | 3048R3207 |
| 51 | 2 | 2*6 | 1*5.5 | 2*10 | 5*11 | 30° | H | 3051R3207 |
| 43 | 1 11/16 | 2*5 | 2*5 | 2*8 | 6*9 | 30° | S | 3043R3208 |
| 45 | 1 3/4 | 2*5 | 2*5 | 2*9 | 6*10 | 30° | S | 3045R3208 |
| 48 | 1 7/8 | 2*5.5 | 2*5 | 2*9 | 6*10 | 30° | S | 3045R3208 |
| 43 | 1 11/16 | 3*4 | 2*5 | 3*8 | 6*10 | 30° | M | 3043R3209 |
| 45 | 1 3/4 | 3*5 | 1*5 | 3*8 | 6*10 | 30° | M | 3045R3209 |
| 48 | 1 7/8 | 3*5 | 1*5 | 3*9 | 6*10 | 30° | M | 3048R3209 |
| 54 | 2 1/8 | 3*6 | 1*5.5 | 3*10 | 6*11 | 35° | M | 3054R3209 |
| 45 | 1 3/4 | 3*5 | 1*5 | 3*8 | 6*10 | 30° | M | 3045R32F09 |
| 48 | 1 7/8 | 3*5 | 1*5 | 3*9 | 6*10 | 30° | M | 3048R32F09 |
| 51 | 2 | 3*5.5 | 1*5.5 | 3*9 | 6*10 | 35° | M | 3051R32F09 |
| 54 | 2 1/8 | 3*6 | 1*5.5 | 3*10 | 6*11 | 35° | M | 3054R32F09 |
| 57 | 2 1/4 | 3*6 | 1*6 | 3*10 | 6*11 | 35° | M | 3057R32F09 |
| 64 | 2 1/2 | 3*7 | 1*6 | 4*10 | 6*11 | 35° | M | 3064R3210D |
Remarks:
Hemispherical-66(Usually for very hard rocks)
Ballistic-65(Ususally for medium hard rocks)
Semiballistic-64(Usually for medium hard rocks)
Conical-67(Usually for soft rocks)
