Rain gutter down pipe making machine

Description

 Our Rain gutter down pipe making machine mainly consists of uncoiler, roll forming system, cutting equipment, protective guard, hydraulic system, control system and out table. It can make curve for down pipe to meet the requirement of practical engineering projects. Take the following half round gutter pipe drawing for example to show how the gutter pipe machine is composed:

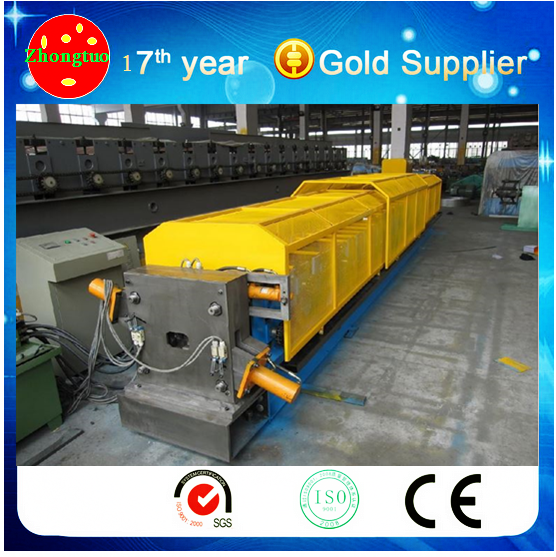

The Rain gutter down pipe making machine is composed by manual decoiler, leveling beach, roll forming machine, shearing system and runout out table, PLC control sysyem, and hydraulic system.

1-Manual decoiler of Rain gutter down pipe making machine

Feeding type: Automatic feeding

Structure: Cantilever

If you need the hydraulic version, that is also avaiable.

2-Entry Beach

Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.

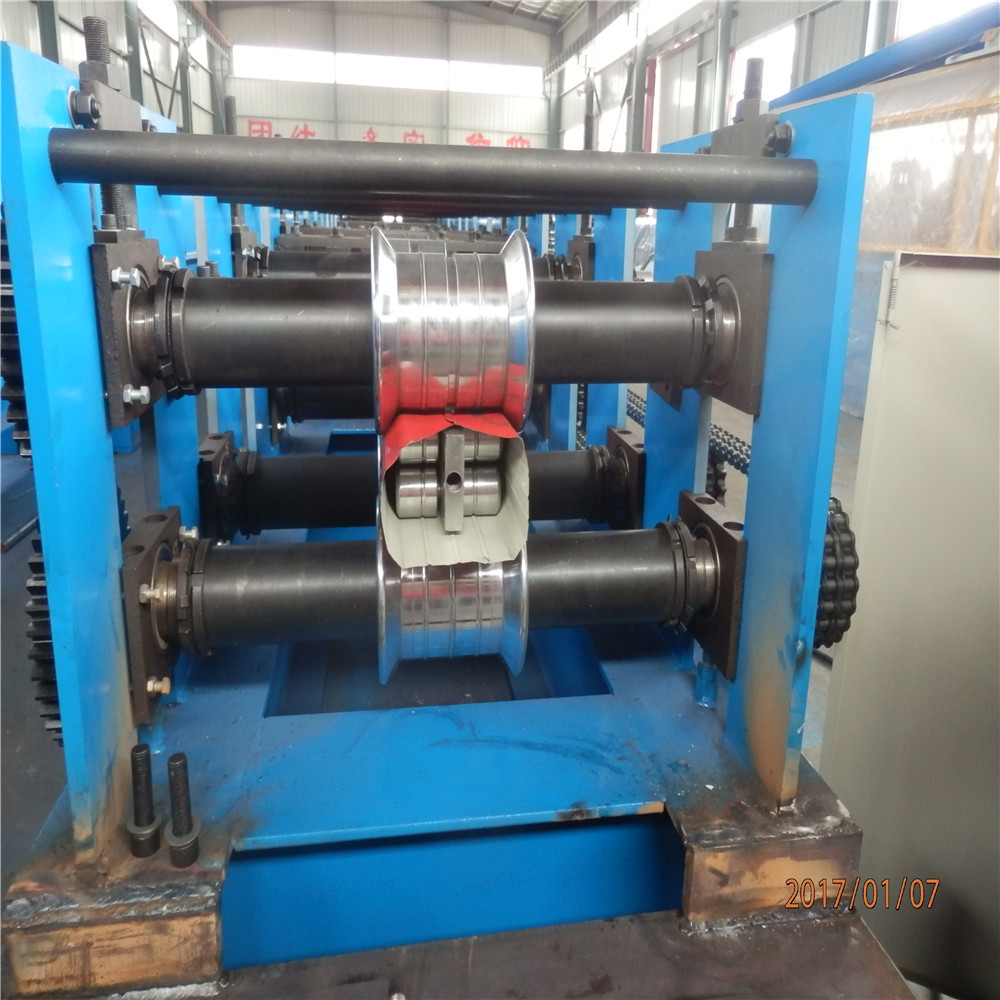

3-Main Rain gutter down pipe making machine

Frame: Longmen wallboard type

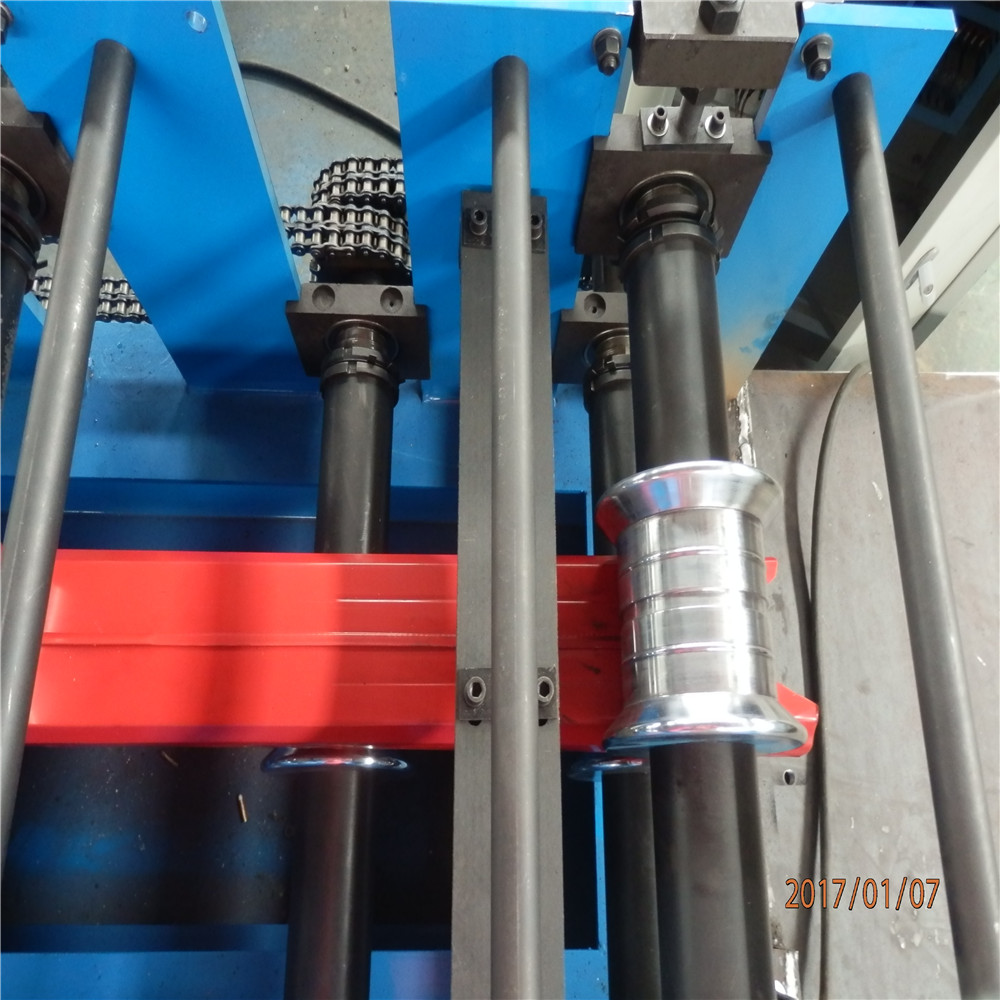

The roller number: 18 rollers

Roller material: Cr12

Shaft diameter: 60mm, 45# steel

Roller heat treatment: Quenching, HRC58-62

Material thickness: 1.5 mm to 2.0 mm

The standard cutting size: 198 mm (According to customer request design of blade shape)

Voltage: 380V/50HZ/3Phase (As customer`s request)

4-Hydraulic cutting
Cutting type:Hydraulic cutting                    Blade material: Cr12MoV

Blade quantity: 1 set                            Cutting frame: 1 set

Mould material: Cr12MoV                       Motor power: 3 kw

5-Products receiving table

It adopts welded steel and supported roller to transmit the products.

Table length : 1.5m/per set

Table quantity: 1 sets

Where the gutter pipes will be used:
