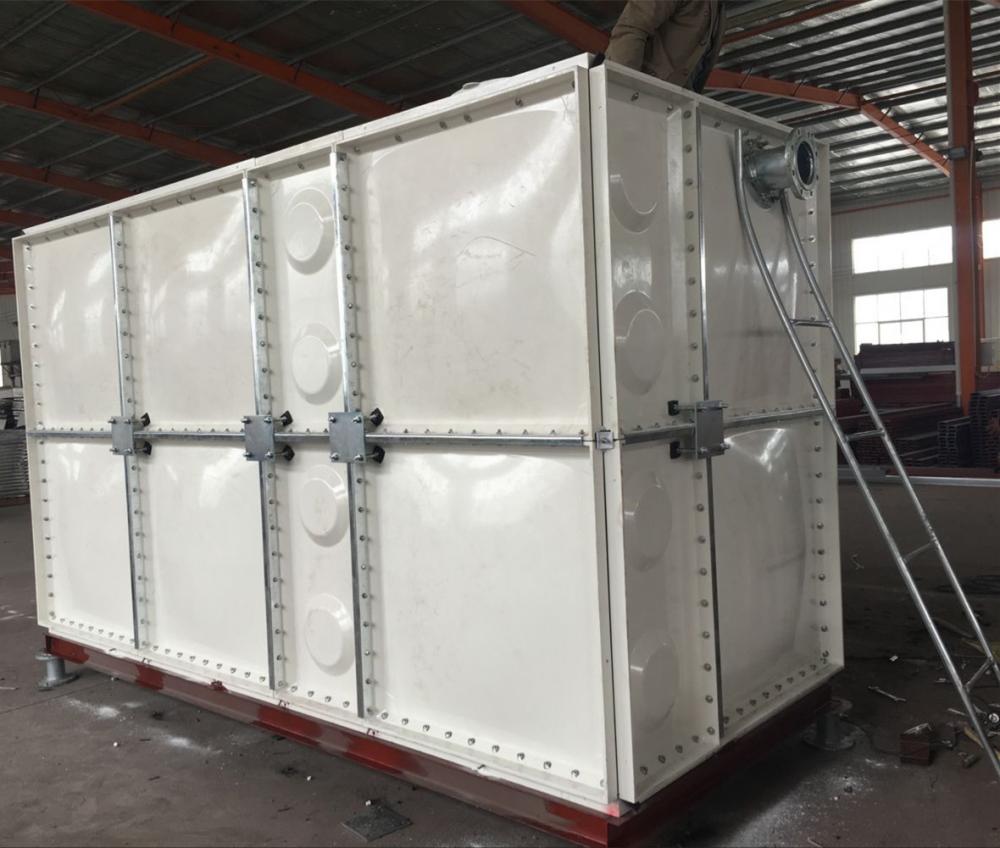

Rectangular GRP modular Panel FRP WATER TANK

GRP Water Tank combined type is by SMC moulded plate, sealing materials,  metal structure and piping system assembly at the scene and into. To design and construction bring great convenience. General water tank according to the standard design, special water tank need special design. Based on user needs 0.5 ~ 1500 cubic meters of assembly tank. If the original water tank need modification, strong adaptability to the house. Specialized research and finalize the design product seal belt, this seal belt non-toxic, water resistant, flexibility, permanent deformation small, strong seal. The overall strength, high water tank no leakage, no deformation, maintenance, maintenance is convenient.



GRP Water Tank Accessories

1. Support for Panels: The panels shall be supported externally or internally by an adequate support system.

External Reinforcement - Hot Dipped Galvanized Steel.

Internal Reinforcement - Hot Dipped Galvanized or Stainless Steel 304 rod support and tie-rod.

2. Sealing Materials: Non toxic Rubber foam to be used for all jointing, it is especially developed with long experience and technology on SMC products. It maintains soft itself and adhesives even at low temperatures

3. Bolts, nuts and washers for the assembly of panels: Exposed externally are hot dipped galvanized steel and in contact with water internally are hot dipped galvanized steel or stainless steel 304.

4. Flange: the flanges for inlet, outlet, drainage, overflow are hot dipped galvanized steel or stainless steel 304.

5. Ladders: SMC sectional tank of 1.5m depth or more shall be provided with internal ladder made up of materials same with the supports. The external ladders shall be galvanized mild steel or equivalent.

6. Drainage: The dome shaped bottom panel with a concave drain panel facilitates complete and fast drainage. The concave drain panel has been designed to ensure the periodic cleaning and inspection of tank

7. Overflow Screens: it can be supplied with a screen overflow having a micro mesh filter.

8. Man-hole opening & Inspection Hatches: the size can be customized; normally it is supplied with a standard size of: 600 x 600mm. the opening can be designs of bolt, seal-tight locking arrangement.

9. ABS roof vent with PE insect screen.

10. Float level indicator, optional SS304 for internal and external support structure are available on request.



GRP Water Tank Range Applications

1).  Potable Water Storage (drinking water)

2). Rainwater Harvesting & Storage

3). Emergency Water Storage

4). Pump Chambers

5). Effluent/Acid and alkali solution treatment & Storage

6). Hospital,buildings,building site, school and other place

GRP Water Tank Production Process

GRP Water Tank Packing and Shipping
