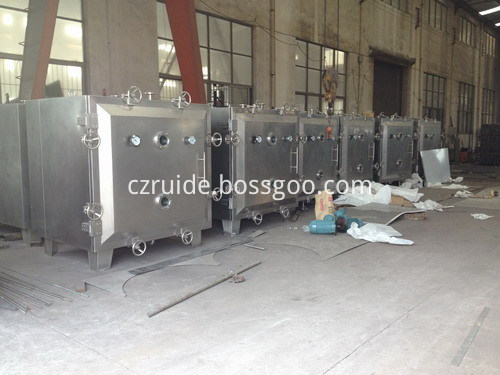

Rectangular Vacuum Drying machine,FZG/ YZG industrial vacuum dryer,High quality Industrial Square Vacuum Dryer, Square Type Static Vacuum Dryer,Vacuum Dryer,Vacuum Drying Oven

Working Principle

Tt is well known that vacuum drying is to put raw material under the state of vacuum for heating and drying If use vacuum to pump air and humidity out,the dry speed will be faster.

Nole:if use condense 5 the solvent in raw material can be recovered If the solvent is wate r,condenser might be canceled and the investment and every could be saved.

Vacuum Tray Drying Machine Characteristics
◎Under the condition of vacuum,the boiling point of raw material will decrease and make the evaporation efficiency highen Therefore for a certain amount of heat transfer,the conducting area of dryer can be saved.
◎The heat sou rce for evaporation may be low pressure steam or surplus heat steam.
◎The heat loss ls Iess.
◎Before drying,the treatment of disinfection may be carried Out During the period of drying,there is no impurity material mixed. It is in conformity.
It belongs to static dryer.So the shape of raw material to be d ried should not be destroyed.
Material to be dried

It is suitable for drying heat sensitive raw materials that can decompose or polymerize or deteriorate at high temperature. It is widely used in pharmaceutical,chemical,foodstuff and electronic industries.

Technical Parameter

model name	YZG-600	YZG-800	YZG-1000	YZG-1400A	FZG-10	FZG-15	FZG-20
inter size of drying chamber,mm	Φ600×976	Φ800×1247	Φ1000×1527	Φ1400×2054	1500×1060 ×1220	1500×1400 ×1220	1500×1800 ×1220
outer size of drying chamber,mm	1135×810 ×1024	1700×1045 ×1335	1693×1190 ×150	2386×1675 ×1920	1513×1924 ×1720	1513×1924 ×2060	1513×1924 ×2500
layers of baking support	4	4	6	8	5	8	12
interval,mm	82	82	102	102	122	122	122
size of barking tray,mm	310×600 ×45	520×410 ×45	520×410 ×45	460×640 ×45	460×640 ×45	460×640 ×45	460×640 ×45
quantity of baking tray	4	8	12	32	20	32	48
working pressure inside the pipe of baking support,Mpa	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784
operation temperature of baking support, oC	35-150	35-150	35-150	35-150	35-150	35-150	35-150
degree of vacuum inside the chamber when operation in the,Mpa	-0.09~0.096
under the condition of -0.1Mpa and 110oC,evaporation rate of water,kg/m2.hr	7.2	7.2	7.2	7.2	7.2	7.2	7.2
When condensor is used,Model,and power of vacuum pump,kw	2X-15A 2KW	2X-30A 3KW	2X-30A 3KW	2X-70A 5.5KW	2X-70A 5.5KW	2X-70A 5.5KW	2X-90A 2KW
When condensor is not used,Model,and power of vacuum pump,kw	SK-0.8 2.2KW	SK-2.7 4KW	SK-3 5.5KW	SK-6 11KW	SK-3 5.5KW	SK-6 11KW	SK-6 11KW
Weight of drying chamber,kg	250	600	800	1400	1400	2100	3200

Note:SZ water ring vacuum pump can be used together with mechanical pressure increasing pump in order to increase vacuum.

Instruction to ordering
◎When order, please choose suitable vacuum drier in accordance with lhe physical. When order,please choose suitable vacuum drier in accordance with the physicaI property, primary moisture and final moisture of raw material to be dried and factors such as temperature vacuum drying amount and time and soon Vacuum drier with same model has four heating ways i.e steam,hot water,heat conduction oil and electric heat For example order to Increase the output of product the drying Iayer can be ncreased suitably,Please telI our factory in time.The auxiliary parts of vacuum drying systemIndicatedIn User's Manual can be supplied andlnstalled
◎by our factory, Please ln dicstelhem when order If having speciaI requirements our factory can also design manufacture and instal as request.
◎For the equipment our factory will carry out guarantee of repair,replacement and refund of.
◎substandard products. All subassembly can be supplied In a long time. Please put your mind al rest
