Rectangular Ventilation Duct Auto Line Machine

Video

1 / 7

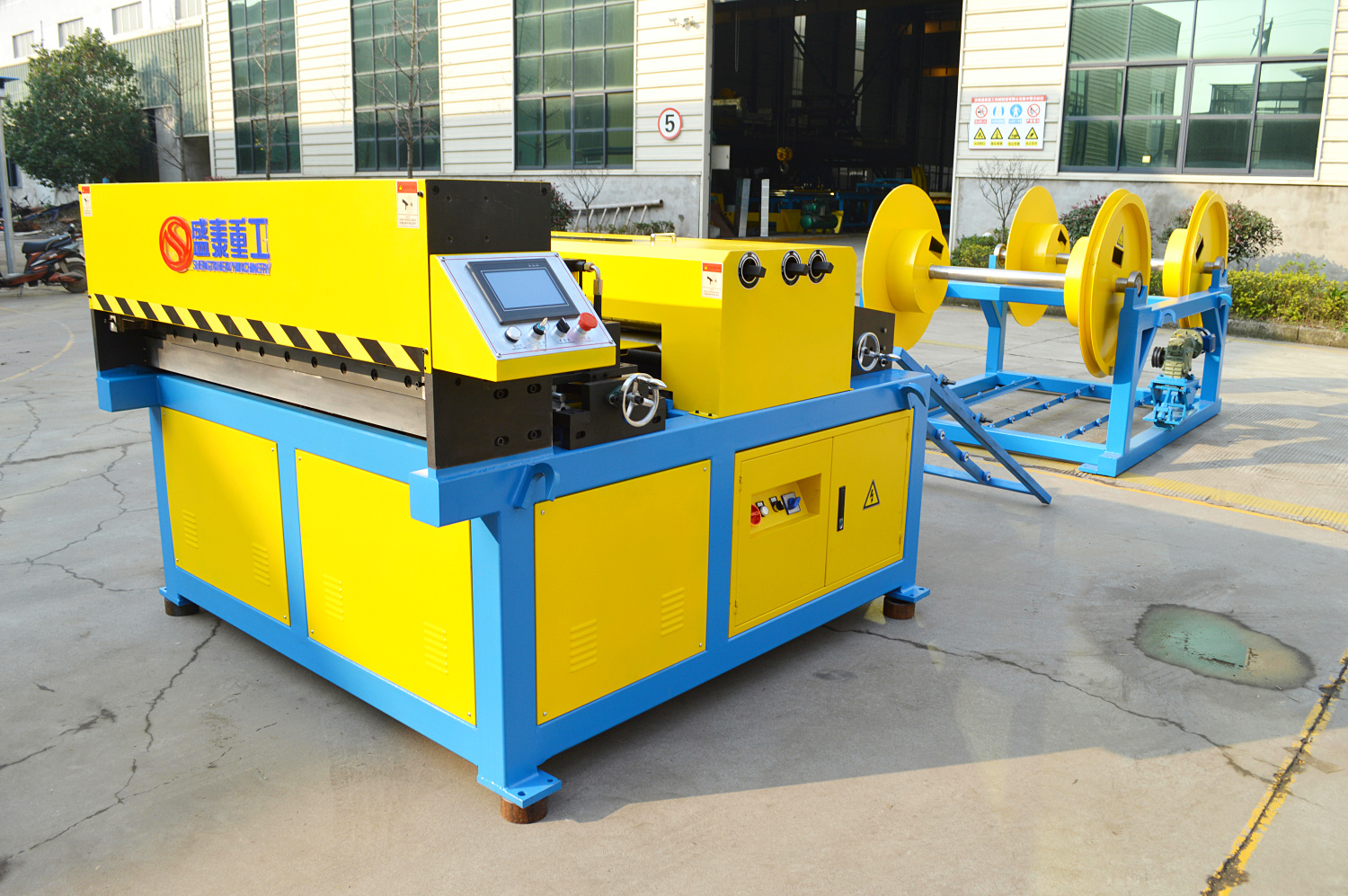

Rectangular Ventilation Duct Auto Line Machine

$9000.00

≥1 set
$8000.00

≥3 set

Options:

ADL-2-1250

Get Latest Price

You might also like

Basic Info

Model No.
Brand Name
Video Outgoing-inspection	Provided
Machinery Test Report	Provided
Core components	Plc
Brand Name	SUNTAY
Weight	3.2 kg
Place of Origin	Anhui, China
Power	8KW
Dimension(LWH)	1900X1950X1500MM
warranty	1 Year
Sheet Thickness (mm)	0.5-1.2mm
production capacity	10-15m/Min
Key Selling Points	Automatic
Type	Pipe Production Line
Condition	New, New
Application	Energy Supply Pipe
Name	Auto Duct Make Machine Line 2
Voltage	380v/240v Customized
Material width	1250/1500mm
Suitable material	Galvanzied/Stainess Steel
Control System	Siemens
After Warranty Service	Video Technical Support, Online Support
Local Service?Location	Pakistan, India, Japan
Certification	ISO
Showroom Location	Canada, France, Germany, Pakistan, India
Marketing type	Hot Product 2019
Warranty Of Core Components	2 years
Applicable Industries	Building Material Shops, Manufacturing Plant, Construction works

Product description

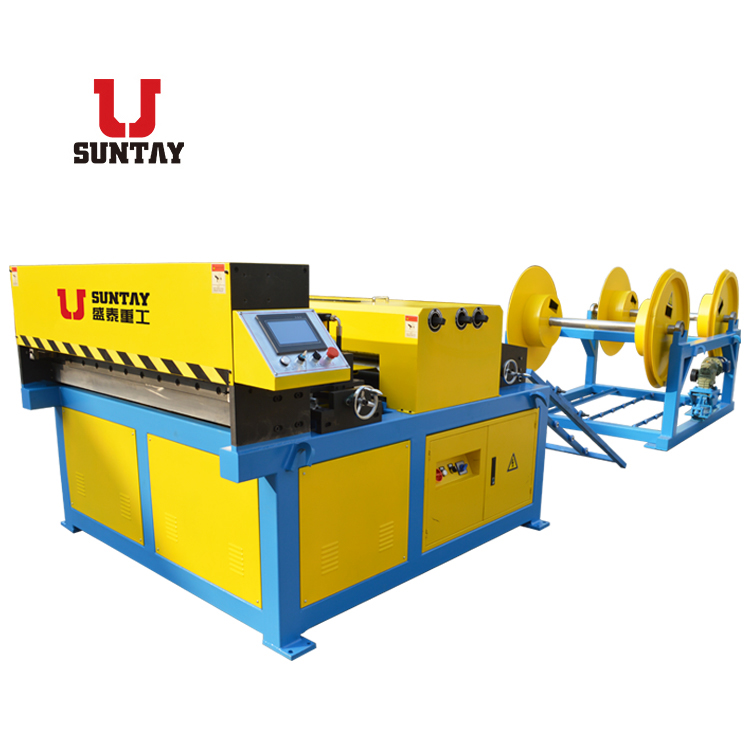

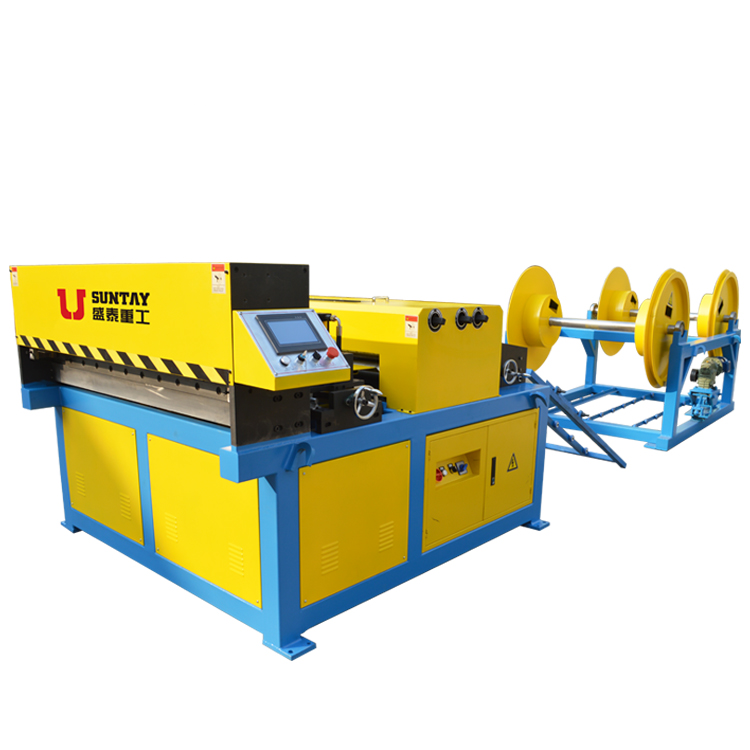

Auto Duct Production Line 2

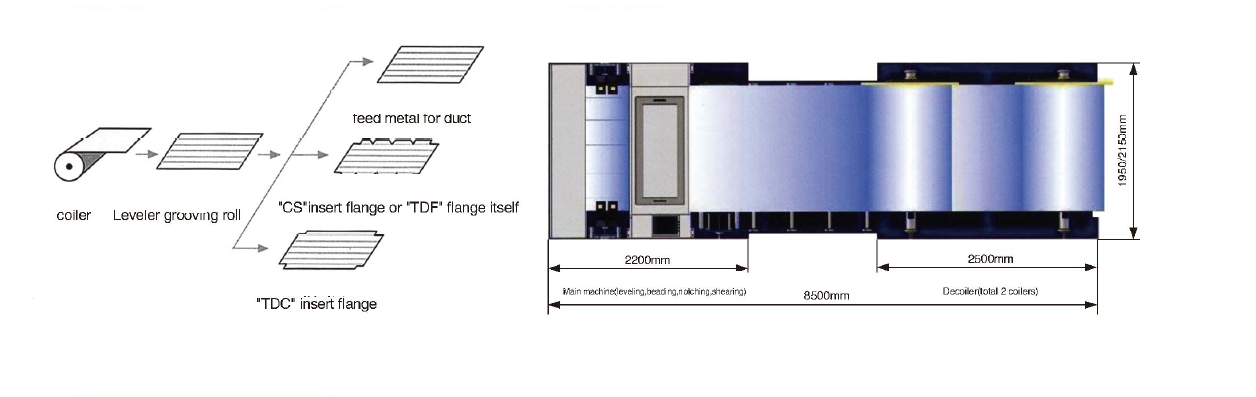

Working Schematic Diagram

Function

Duct production line 2 can drive blanking for duct and TDF flange forming machine at the same time. Combined with TDF flange forming machine, rolling reel machine, crimping machine and relevant corner code, duct production line 2 can produce high-quality products.

Performance Features

* Aluminium alloy suspension arm makes the machine easy to operate.
* The build-in control cabinet reduces wiring as a whole structure and makes it easy to move.
* The imported configuration is very stable and comfortable to use.

Main Import Configuration

*Germany Siemens CNC system +Schneider electrical system

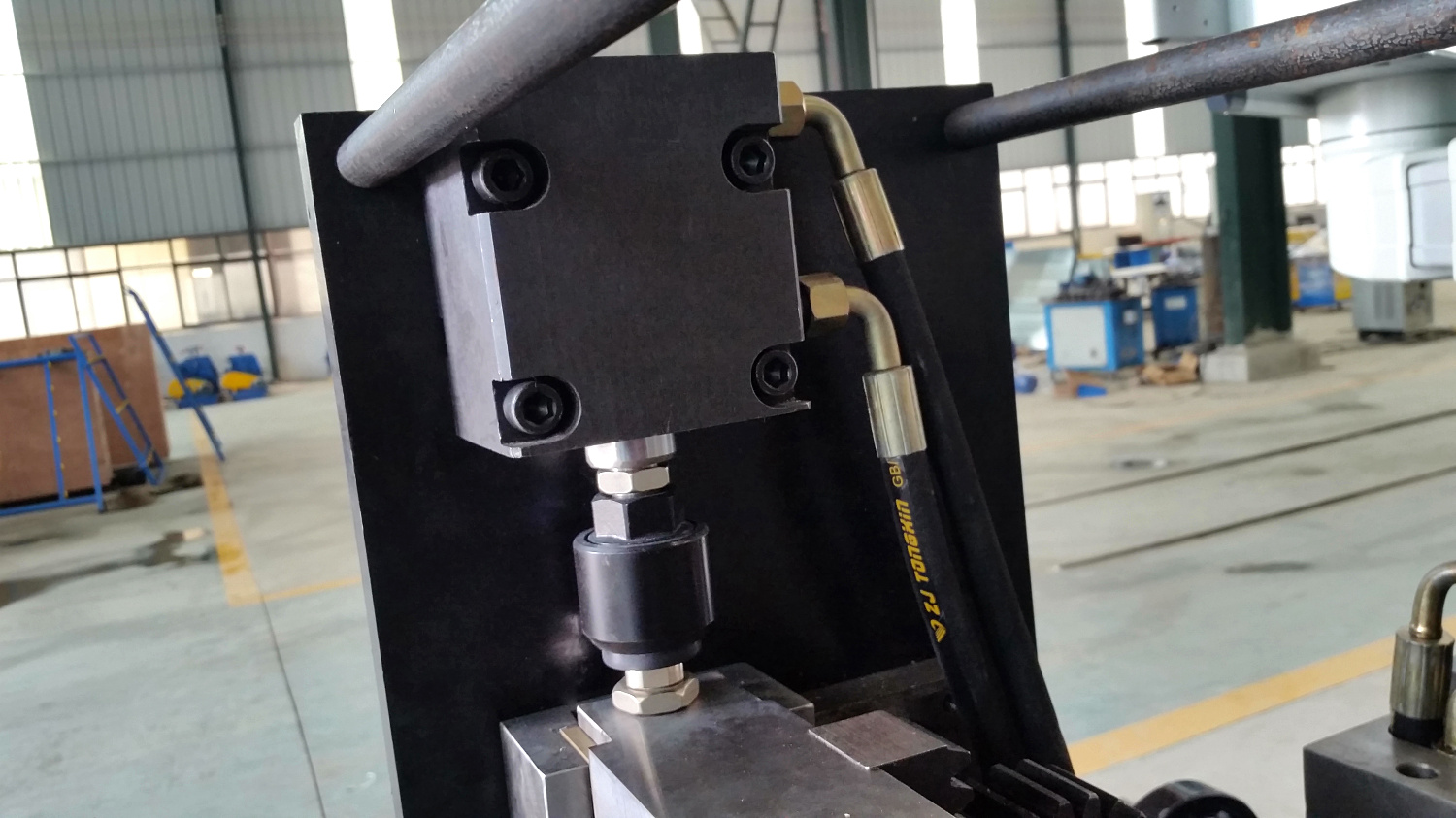

* Beijing Huade or hydraulic system from Taiwa

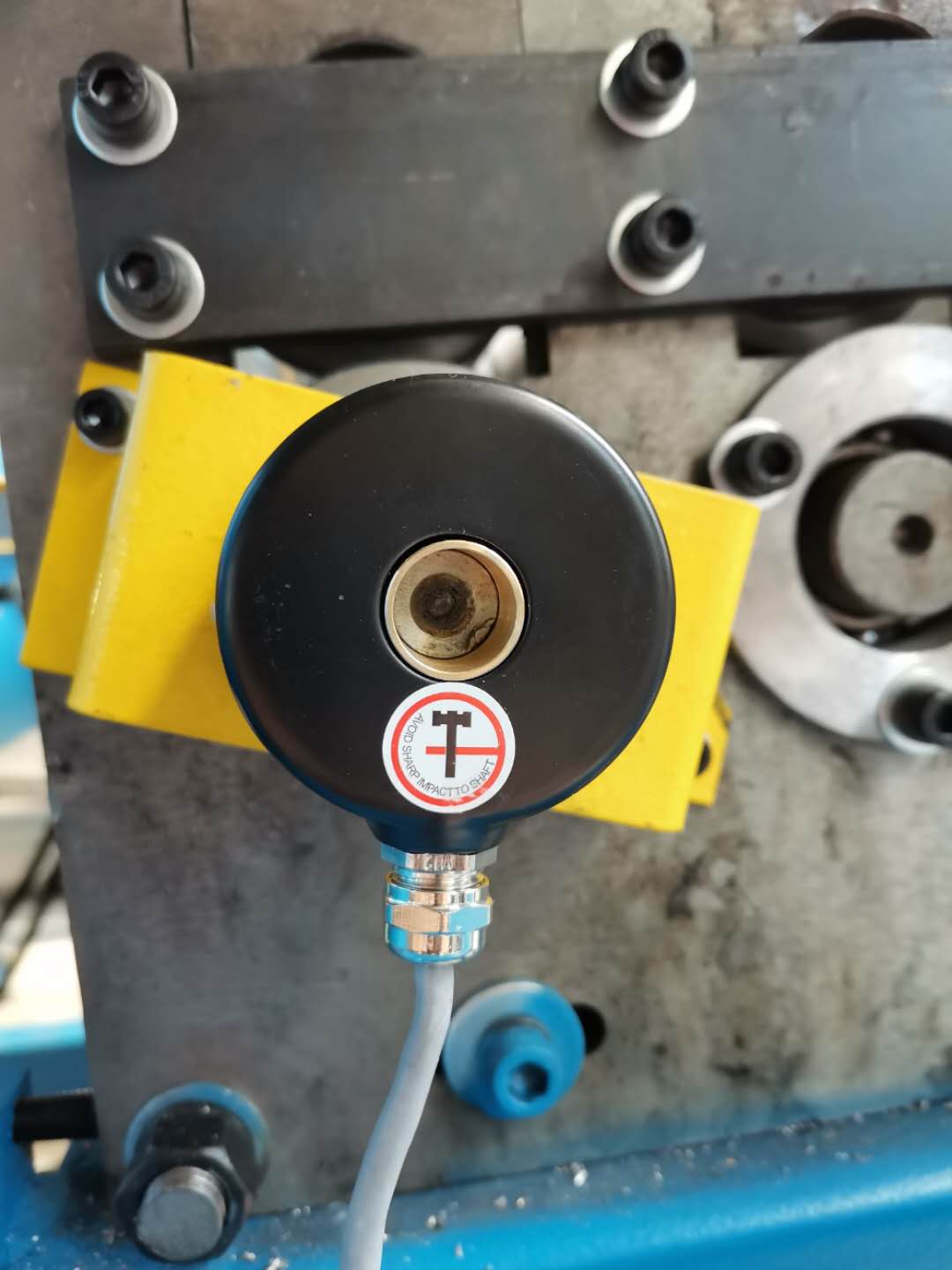

* Japan Omron encoder

*Japan Mitsubishi Control system

Basic Configuration

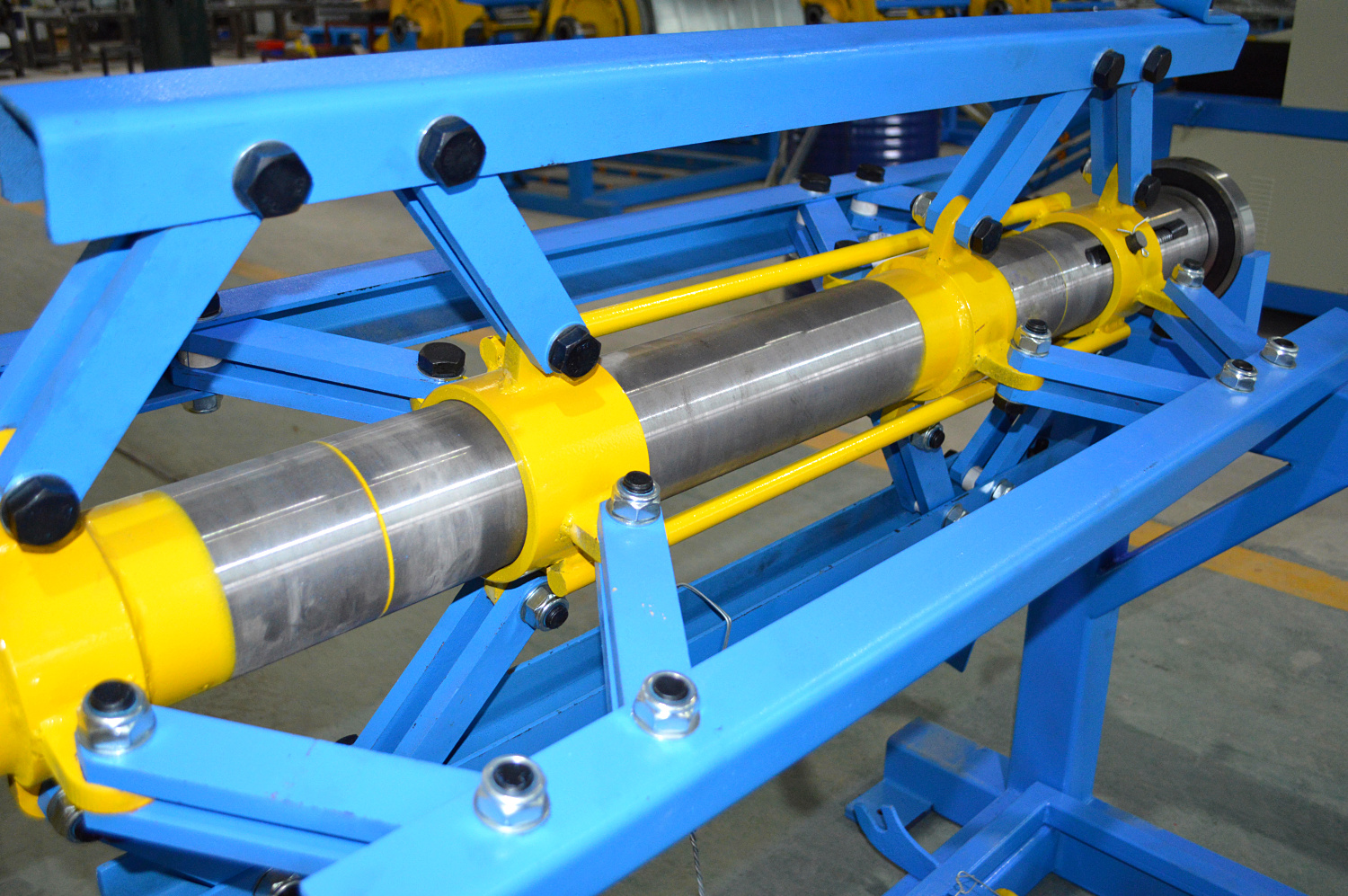

*One electric coil cradle (two material trays)

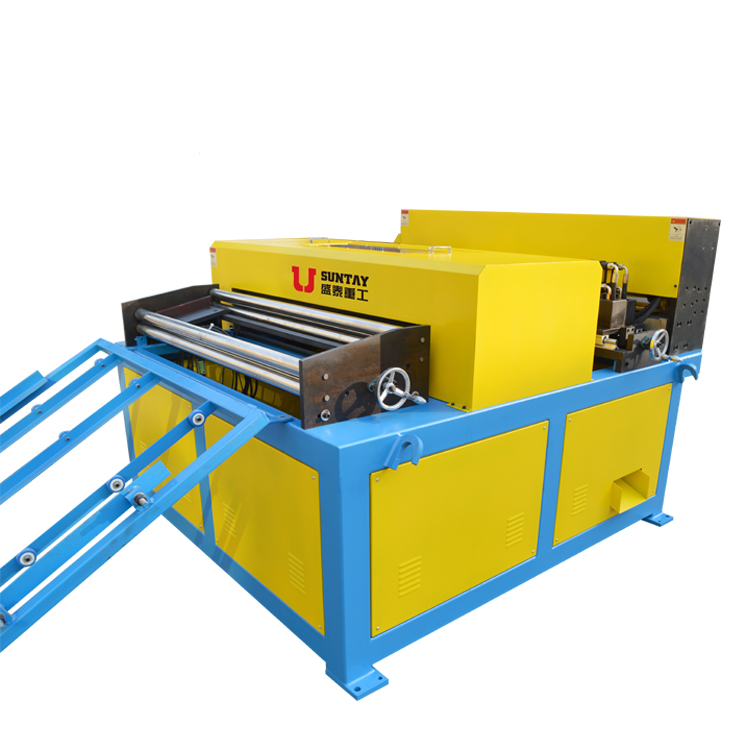

*One set of leveling and beading equipment

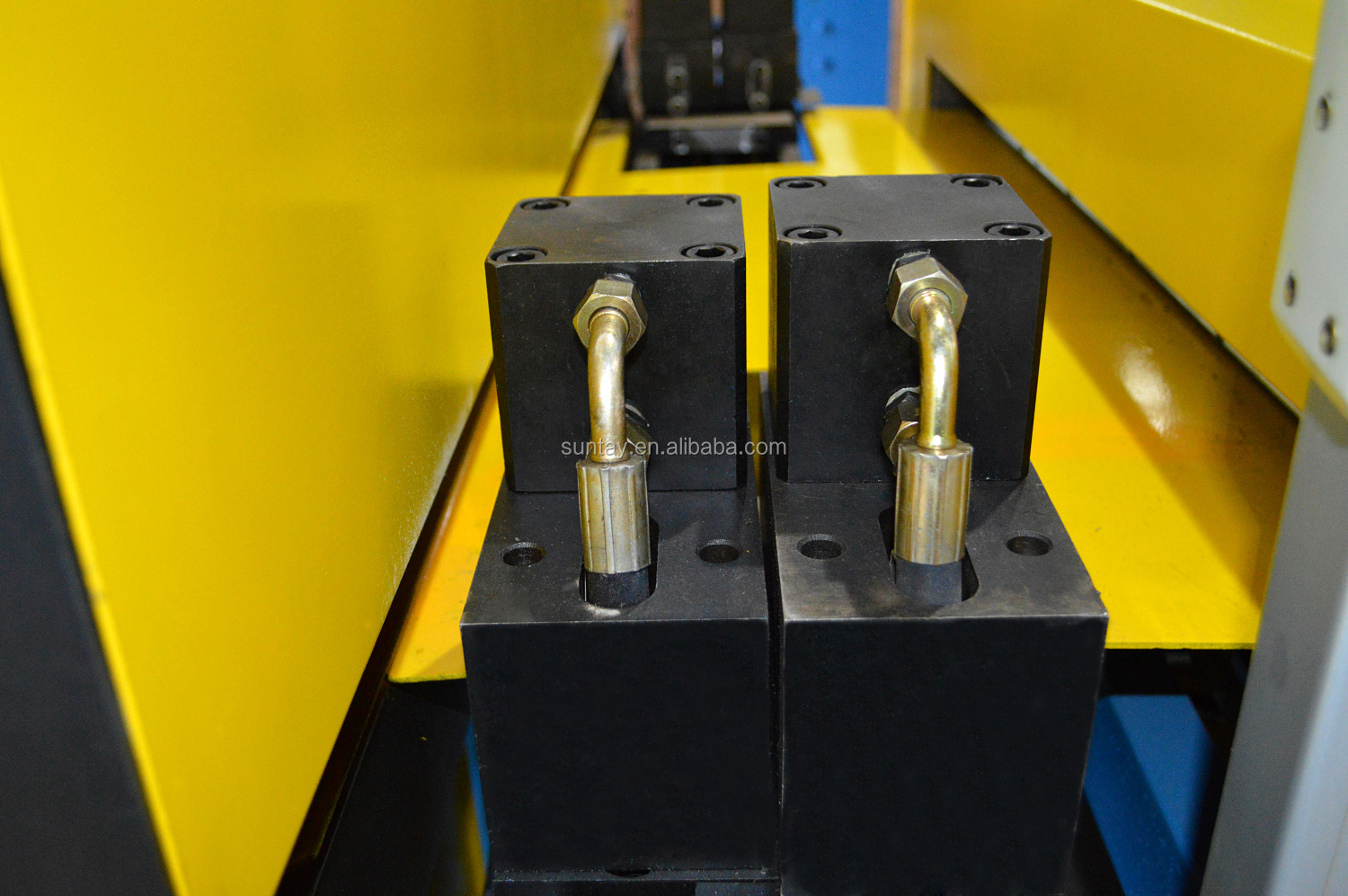

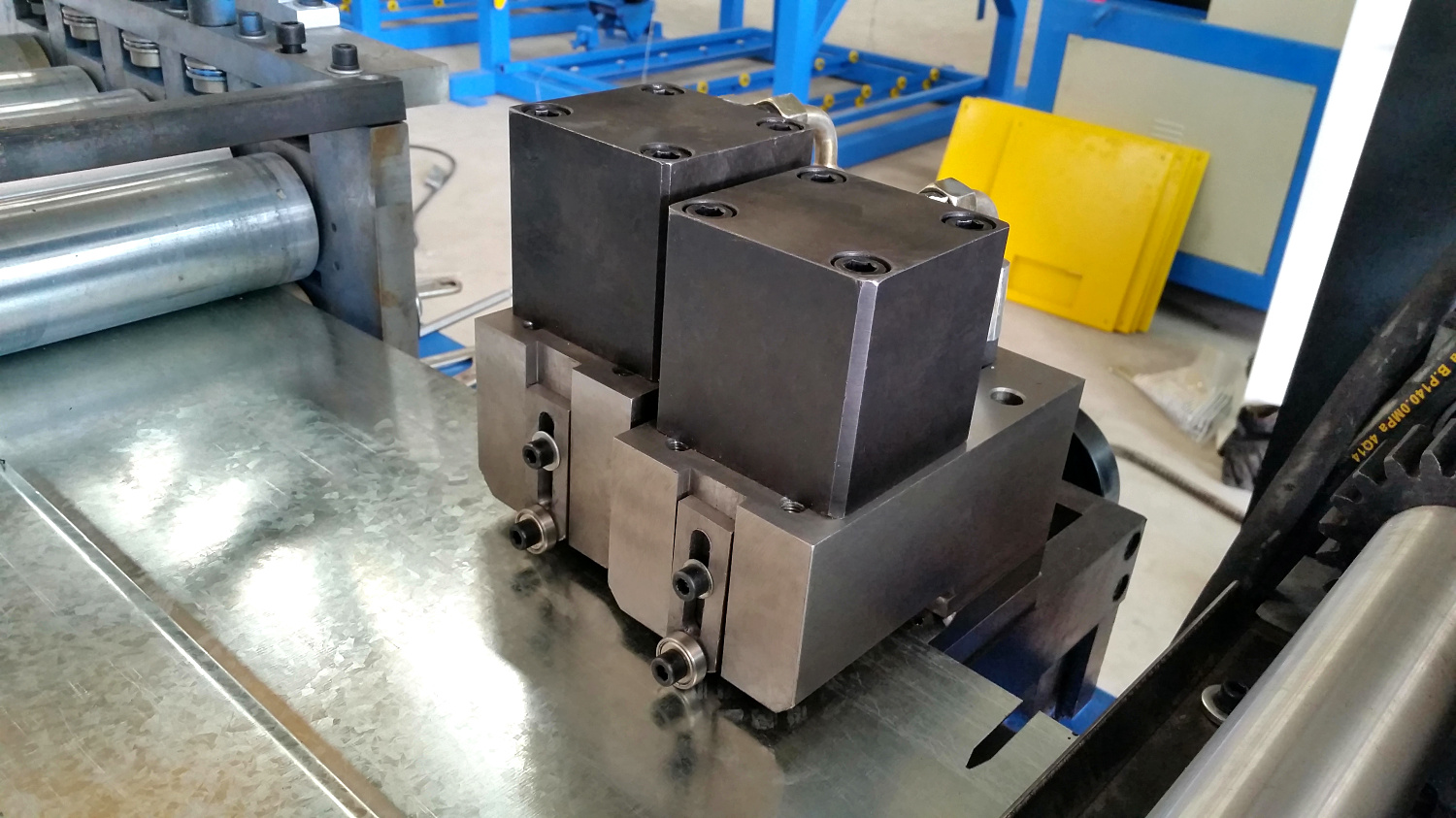

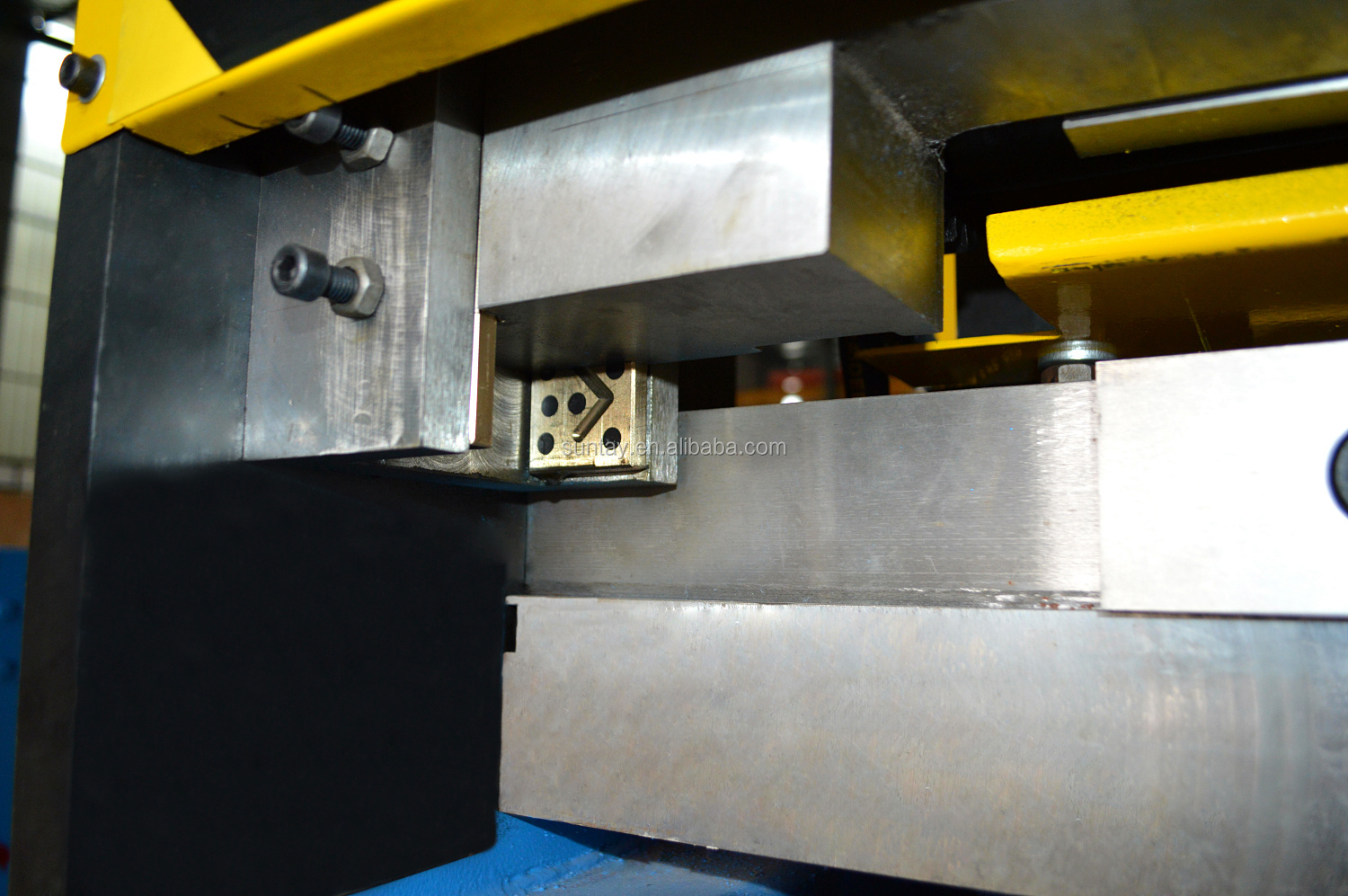

*Hydraulic angle-shearing machine with four sets of die

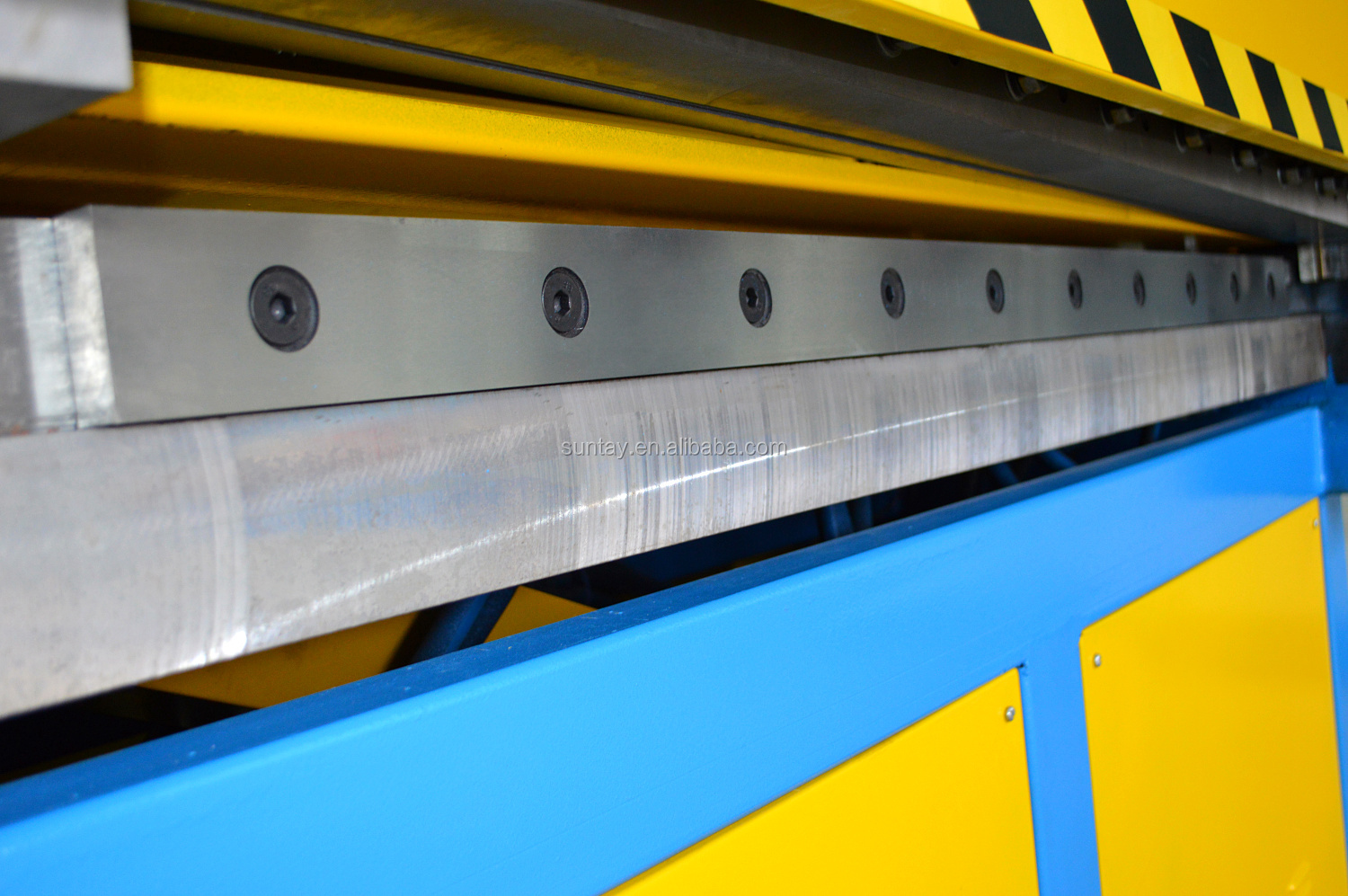

*Hydraulic sheet-shearing machine
*A set of CNC computer control system and production software

Main Technical Parameters

Model

Sheet thickness(mm)

Max width(mm)

Max working speed(m/min)

Coiler max weight(T)

Dimensions(m)

Power(kw)

?Weight

(T)

ADL-2-1250

0.5-1.2

1250

?1900

?2500

?1950
?1950

?1500
1600

3.2

ADL-2-1500

0.5-1.2

1500

?1900

?2500

?2150
?2150

?1500
?1600

3.7

Main Import Configuration

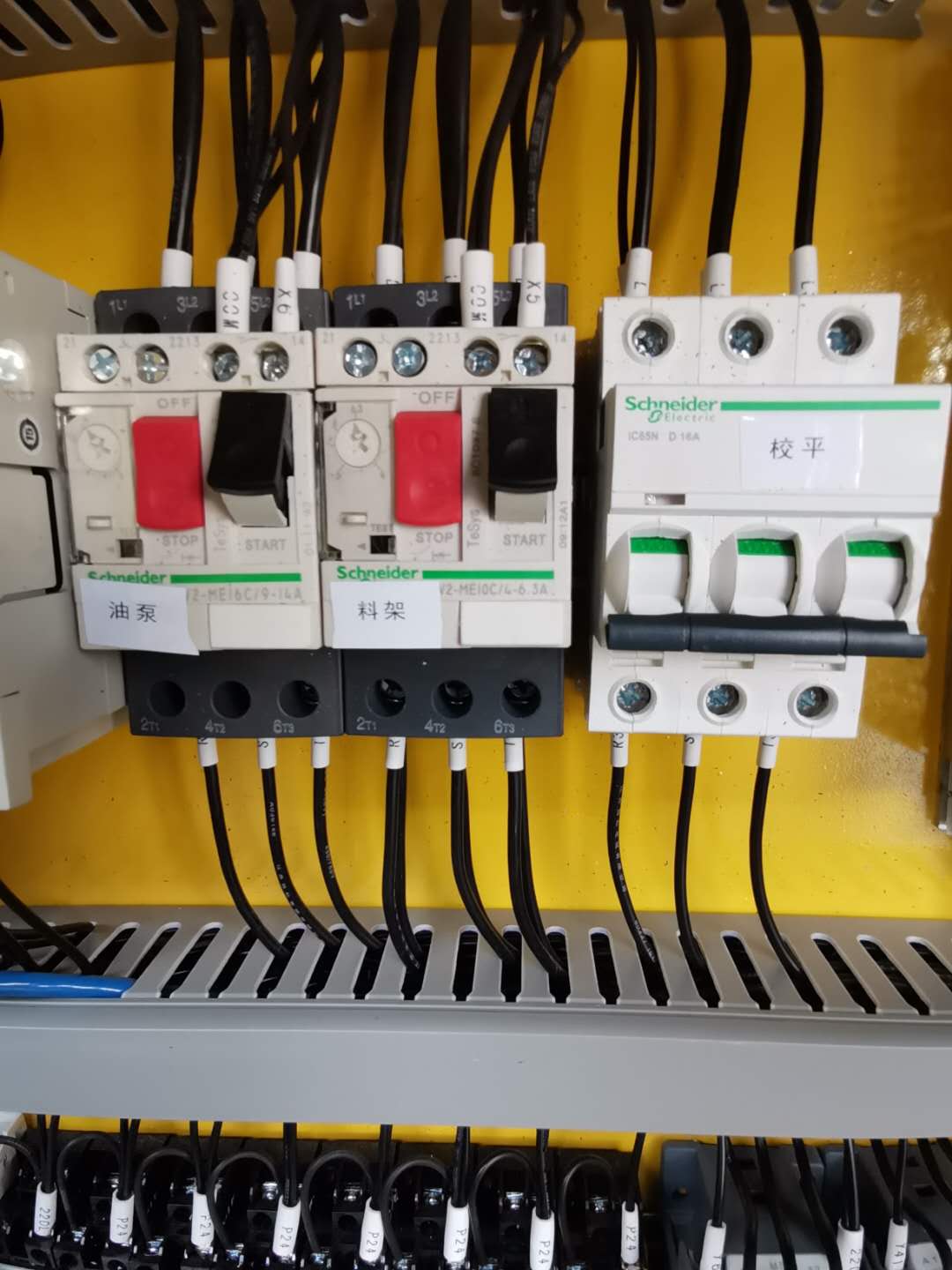

Electronic Parts
Brand: Schneider from Germany
Suntay offer Schneider electric of Germany on the duct production line for customer choose.

PLC / Driver / Inverter
Brand: Mitsubishi from Japan
Our standard of all duct line machines use china brand PLC, Driver and Inverter, Japan- Mitsubishi and Schneider brand also can be choosed.

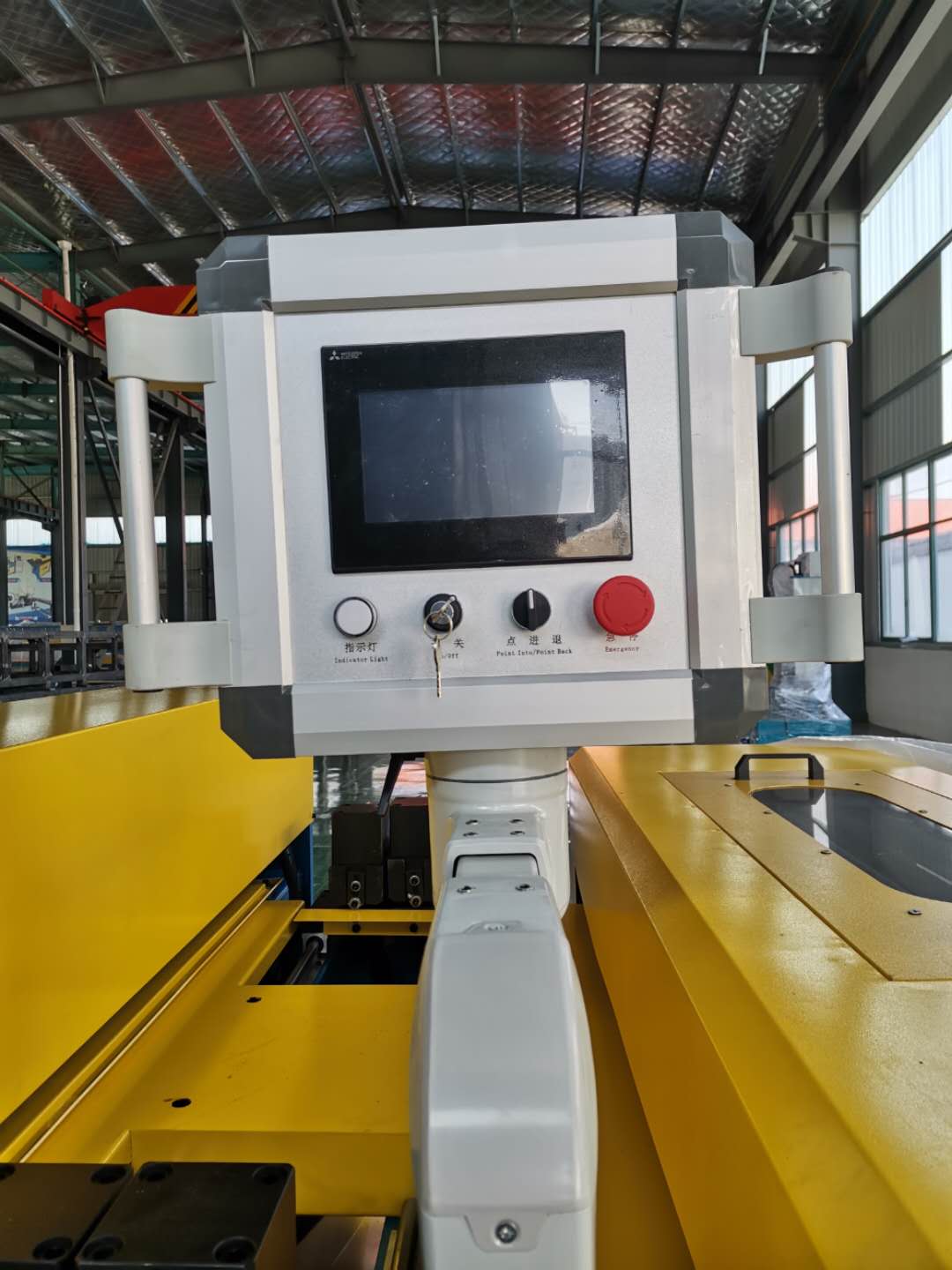

Control system
Brand: Mitsubishi from Japan
Usually we use China brand control system. Mitsubishi display screen and overall set of Mitsubishi Control system also can be
choosed.
