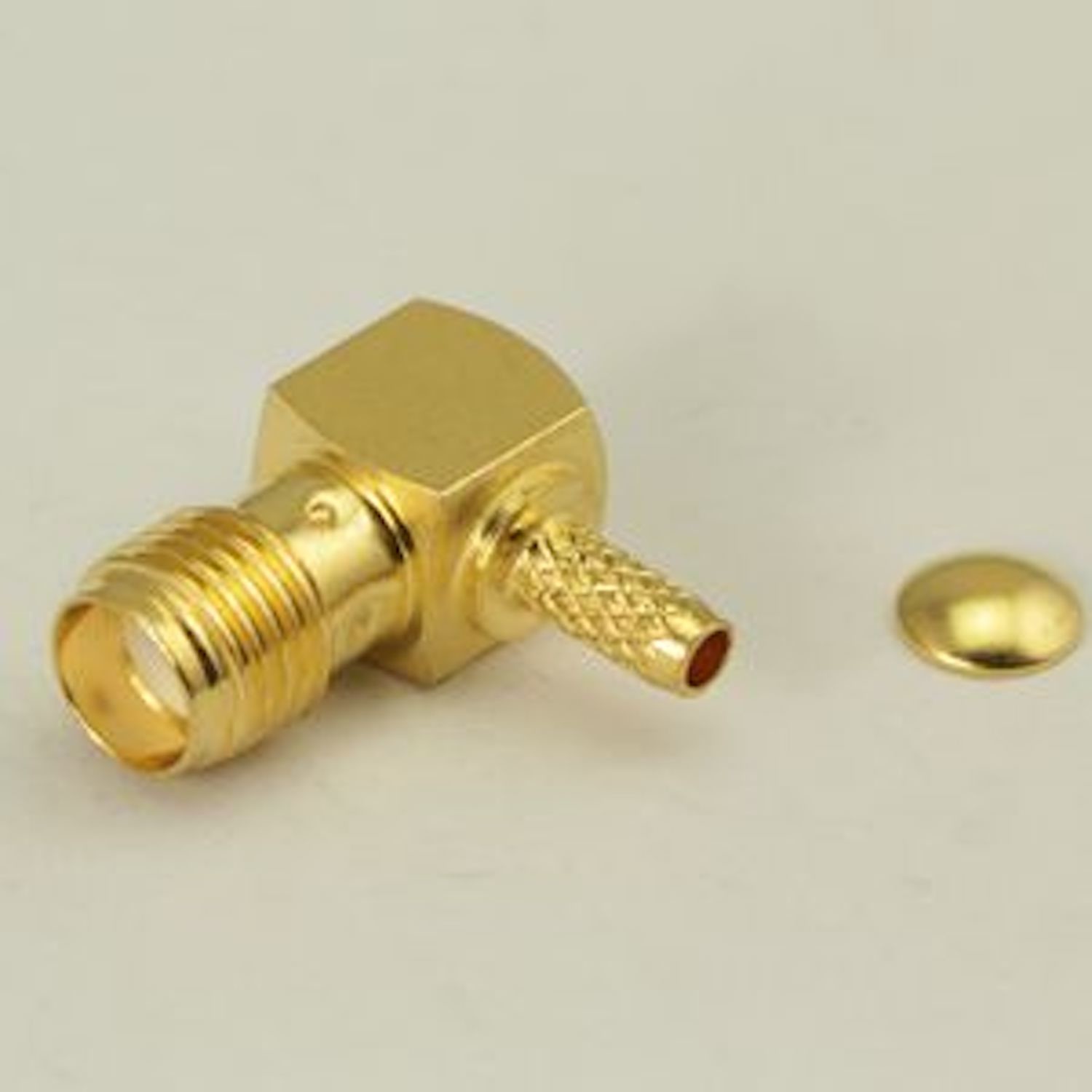

RG316 SMA Jack Connector right angle
Basic Info
| Model No. | SMA-KW3 |
|---|---|
| Brand Name | HONOR |
| species | Terminal Connectors, Rf Connector, Other |
| package | Other |
| Supply Type | Odm, Original Manufacturer |
| Pin or socket | Pin, Coax, Pin Center, Assembly, Female Blade Sockets, Socket, Inner Contact, Not Applicable |
| impedance | 50ohm |
Product description
RG316 SMA Jack Connector right angle Sma Cable Mount Connectors
SMA connectors

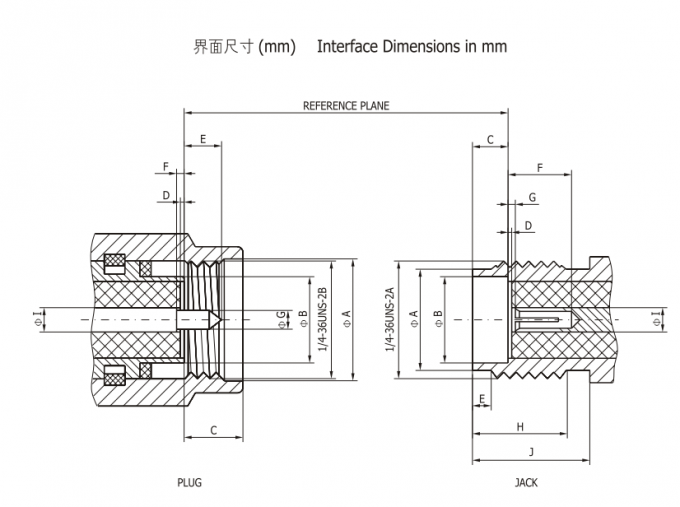

Series SMA are very popular thread coupling miniature coaxial connectors, which have the excellent performances of high reliability, high mechanical strength, high durability, and optimum electrical properties, are widely used to connect RF coaxial cables for mobile communication equipment and electronic communication instruments. The interface dimensions and technical characteristics are in accord with the specifications of MIL-C-39012, IEC169-15 and CECC22110. Characteristic impedance 50 Ohm.
Key Performance
Characteristic Impedance: 50 Ohm
Frequency Range
With semi-rigid/flexible cable: 0~18GHz
With flexible cable: 0~12.4GHz
VSWR
With semi-rigid/flexible cable: ≤1.05+0.02F
With flexible cable: ≤1.15+0.02F
Dielectric Withstanding Voltage: 1000V
Insulation Resistance: ≥5000MΩ
Contact Resistance
Center Conductor: ≤ 3mΩ
Out Conductor: ≤ 2mΩ
Temperature Range: -65~+165°C
Durability: 500 cycles
We are a professional manufacturer of radio frequency connectors, in addition to SMA series of products, we can also produce MCX type, Mmcx Flange Mount Connectors and Smc Flange Mount Connectors, Sma Cable Assemblies . factory could accept OEM service, welcome to consult.
RG316 SMA Jack Connector right angle
