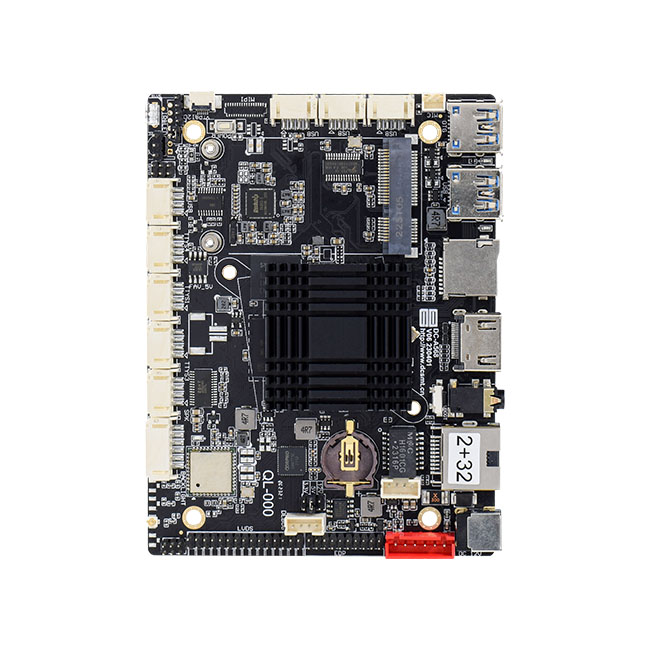

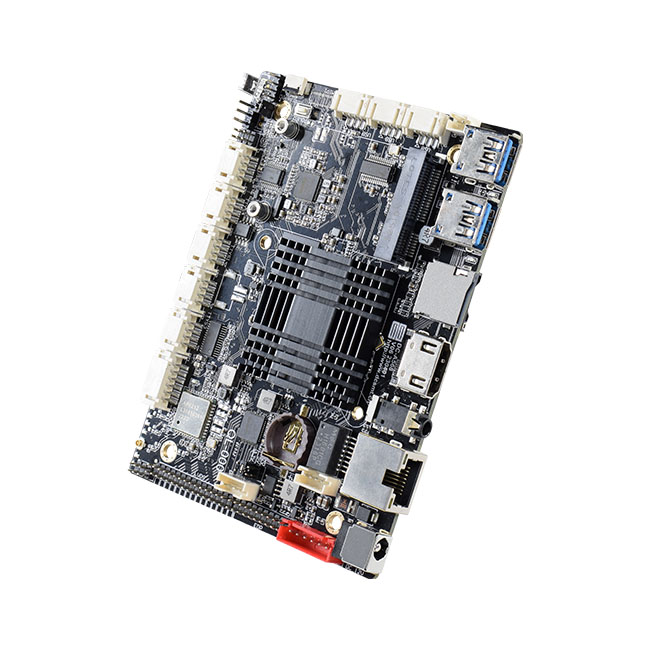

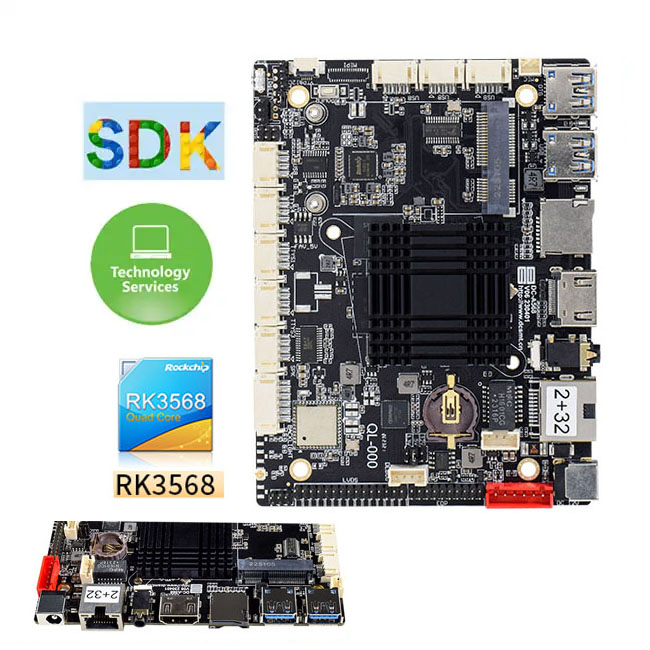

RK3568 Development Board: An Advanced Embedded Smart Industrial Computing Box with Artificial Intelligence Capabilities

Video

1 / 7

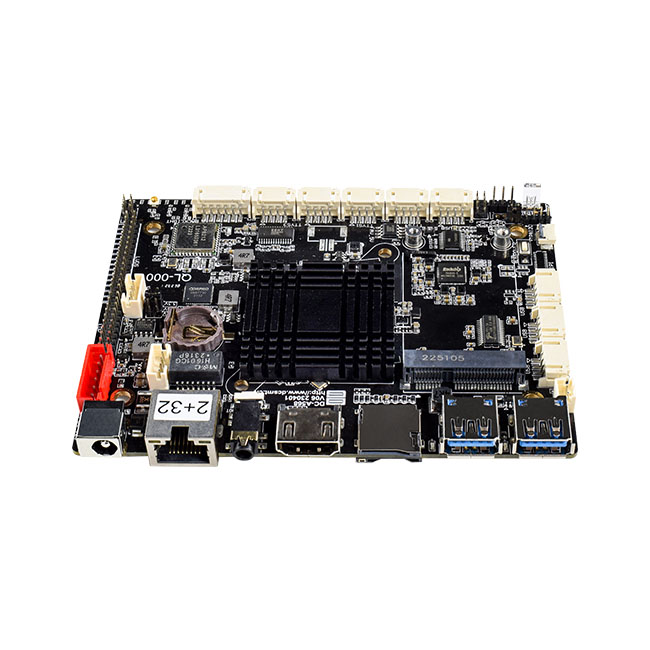

RK3568 Development Board: An Advanced Embedded Smart Industrial Computing Box with Artificial Intelligence Capabilities

$58.00 ~ $80.00 / piece

Options:

DC_A568 (2+16G)
DC_A399 (2+16G)

Get Latest Price

You might also like

RK3568 Industrial Board: Advanced Solution for 4K Digital Signage Display and LCD Screen Advertising

$60.00

1 piece (MOQ)

Rockchip RK3568 AI Development Board with 4G WIFI, LCD LVDS, and Cortex-A55 NPU: Android/Linux Compatible

$63.00

2 piece (MOQ)

Rockchip RK3568 ARM Embedded Motherboard for Digital Signage with V-by-One Output and Android Control Board

$68.00

2 piece (MOQ)

RockChip RK3568 Development Motherboards: Configurations with 2GB, 4GB, and 8GB DDR RAM, Supporting Android 11, Ubuntu 20.04, and Debian 10 - Capable of Up to 64GB RAM for Server Use

$98.00

2 piece (MOQ)

ARM Motherboard with Rockchip Processors: Configurations and New Android 4K Products

$68.00

2 piece (MOQ)

RK3568 Development Board: Supporting Debian, Ubuntu, Linux, Android 11 - Features PCIE3.0, SATA, and Dual Motherboard Compatibility

$105.00

2 piece (MOQ)

Rockchip P568 Quad-Core Android 11 Tablet Motherboard with 2GB RAM and 16GB ROM: A Comprehensive Guide to Smart Electronics PCBA

$47.00

2 piece (MOQ)

High-Performance RK3568 Mini ITX Motherboard with LVDS/EDP Display and DDR3 Memory for Industrial Use

$104.00

2 piece (MOQ)

Rockchip ARM Board: Quad-core to Octa-core Processors with 2G to 4G RAM for 4K Digital Signage and Server Applications

$68.00

2 piece (MOQ)

High Performance RK3568 Quad Core AI Wi-Fi Bluetooth Industrial Board for IoT, Smart NVR Equipment

$60.00

1 piece (MOQ)

Basic Info

Model No.
Brand Name
Model Number	DC-A568
Type	Motherboard Pcba
Place Of Origin	GUANGZHOU
Brand Name	DINGCHANG
Copper Thickness	1 Oz
Product Name	Rockchip Rk3568 Motherboard
Application	Electronics Device
MOQ	1 Pcs
Color	Black Base
Package	Standard Package
Warranty	1 Year
CPU	Quad-core 64-bit Cortex-A55
Operating System	Android 11(default)/debian/ubuntu18.04/ubuntu20.04/buildroot
GPU	ARM G52 2EE
Ethernet	1*standard RJ 45 interfaces 10 / 100M adaptive Ethernet

Product description

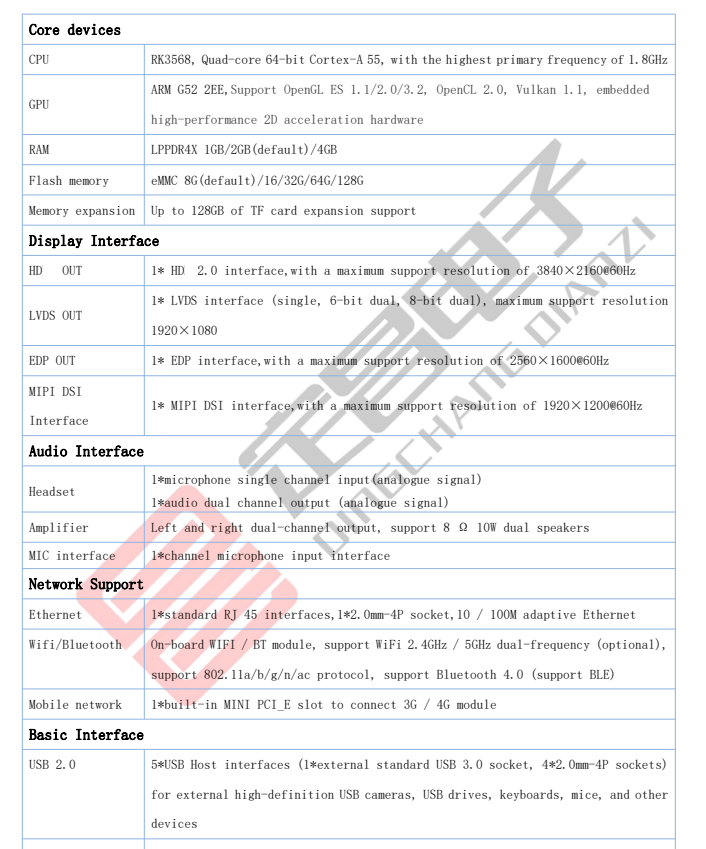

List of Basic Functions

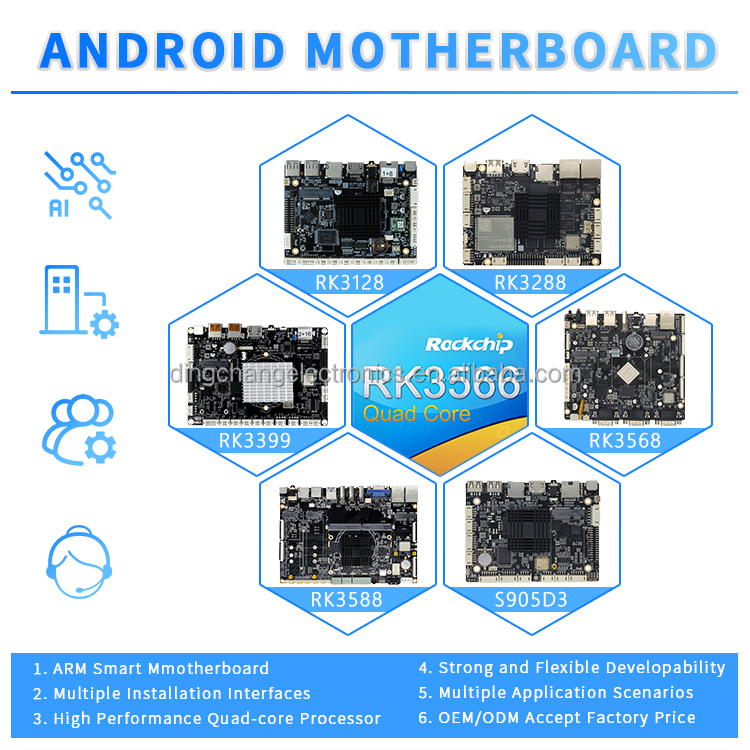

CPU	RK3128, RK3288, RK3566, RK3568, RK3399, RK3588
RAM	LPDR4X 1GB / 2GB (Default) / 4GB /8GB / 16GB
Flash Memory	eMMC? 8G (Default) /16G / 32G / 64G / 128G /256G

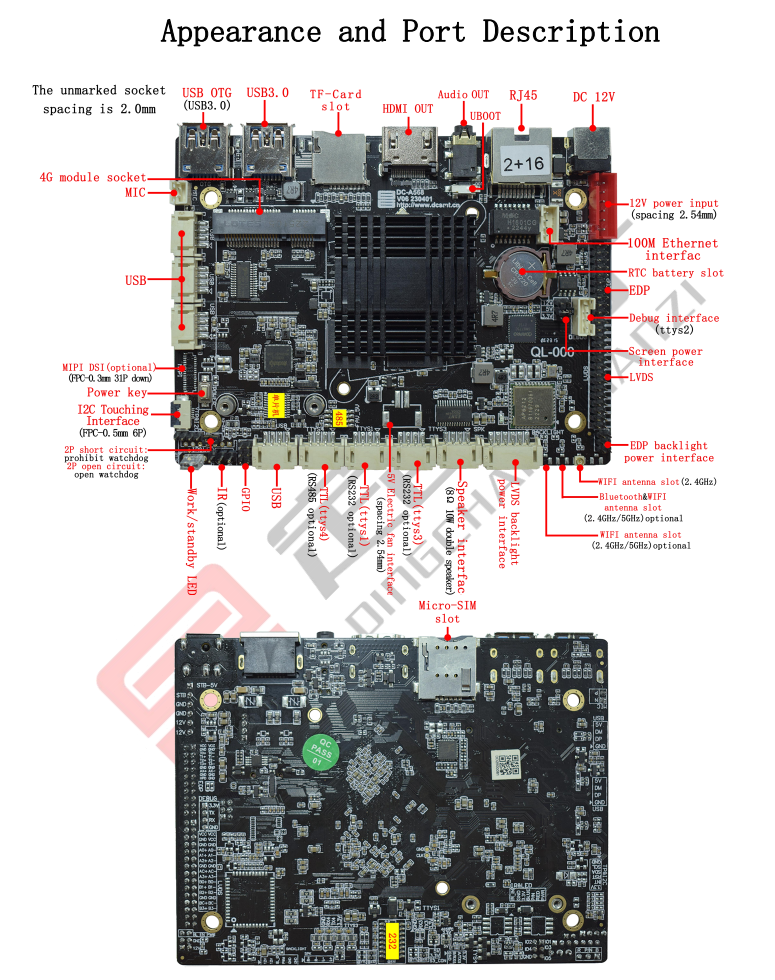

Display Interface
H*MI OUT	H*MI 2.0,?maximum support resolution of 3840×2160@60Hz 4k 8k
LVDS?	maximum support resolution 1920×1080 4k?
EDP	maximum support resolution of 2560×1600@60Hz 4k
MIPI	maximum support resolution of 1920×1200@60Hz? 4k
Audio Interface:? Headset, Amplifier, MIC
Network Support:?Ethernet,?Wifi/Bluetooth,?Mobile network (3G / 4G module)
Basic Interface: USB, GPIO,? RTC, Serial
Operating system	Android 5.1/7.1/ 11/12 /debian/ubuntu18.04/ubuntu20.04/buildroot
Power socket	1* DC 12V Input (DC-5.52.5MM ), 16P Input (2.54mm-6P）
Adaptive	12V 2-5A
Working Environment
working temperature	0℃～70℃，recommended 5℃～35℃
working humidity	10％～90％，with no condensation
Storage Temperature	-30℃～75℃，recommended storage at room temperature

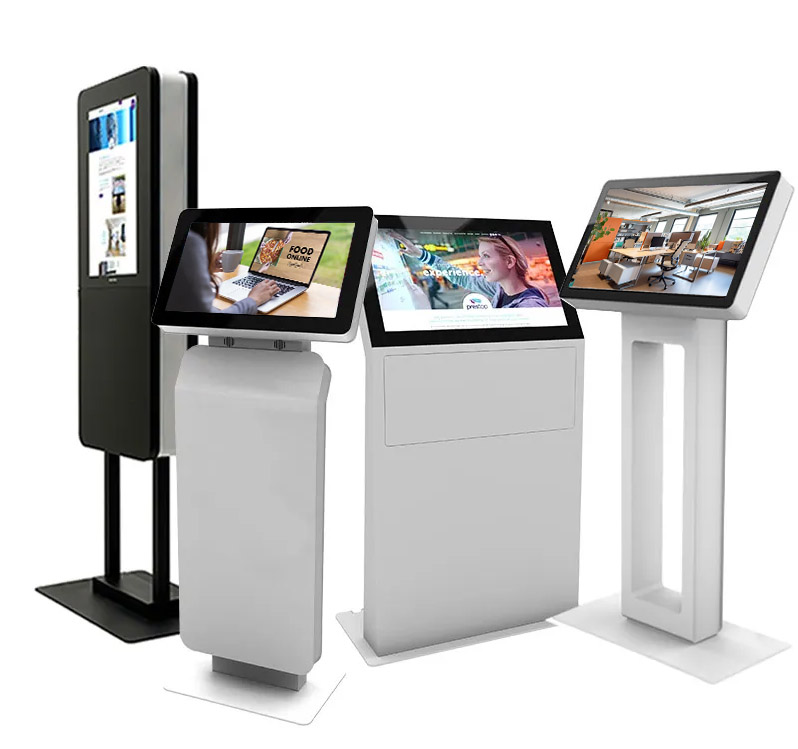

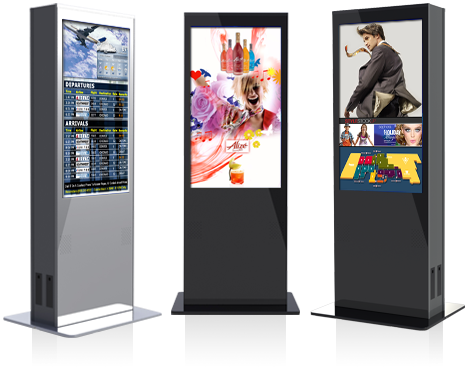

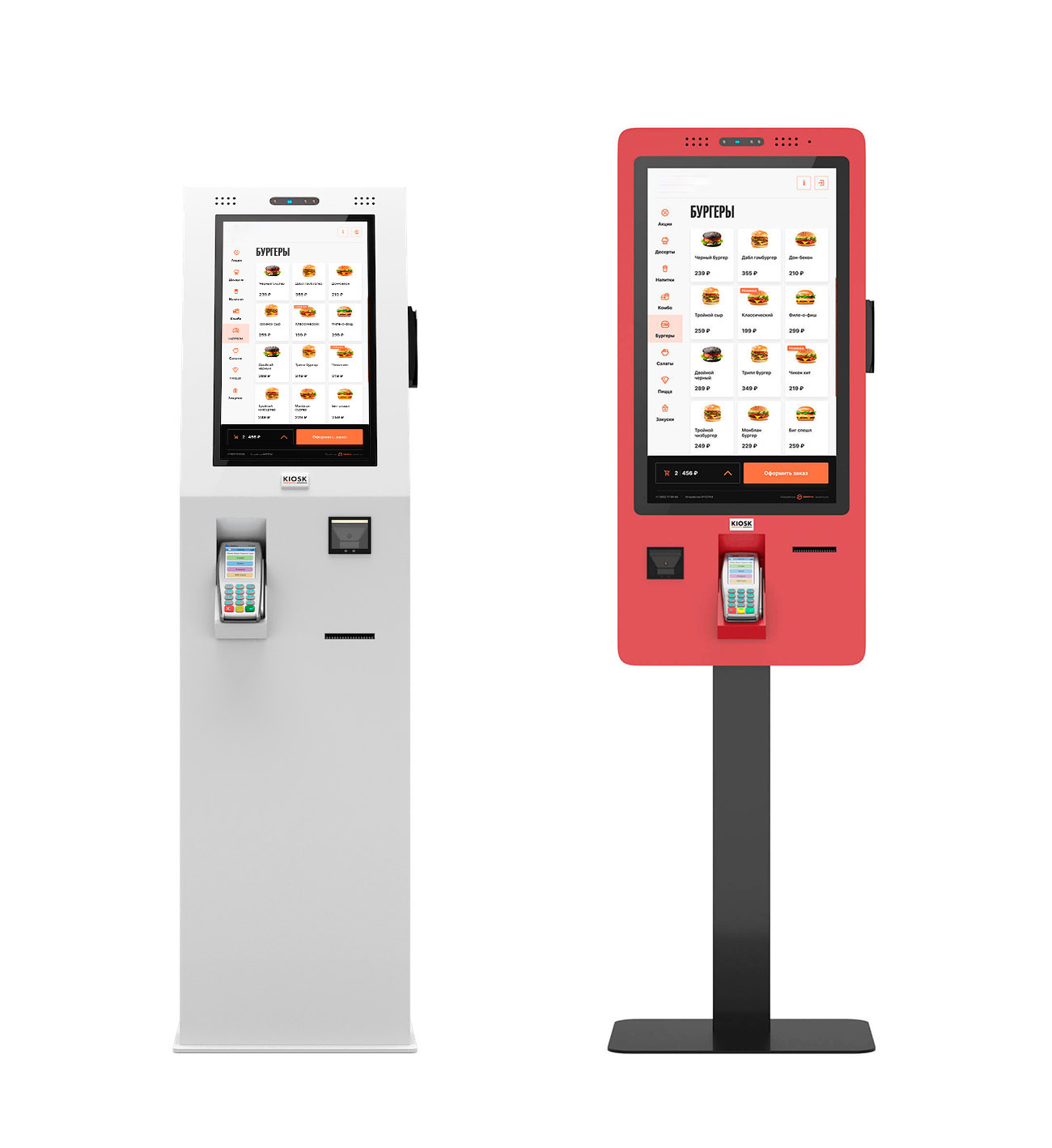

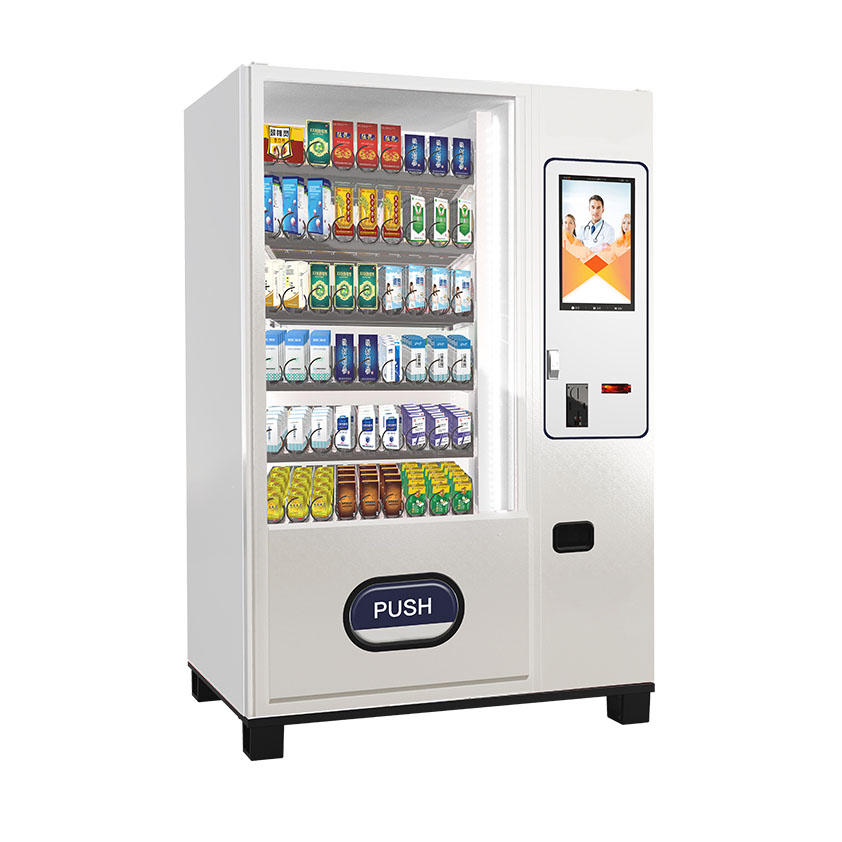

Motherboard Application?

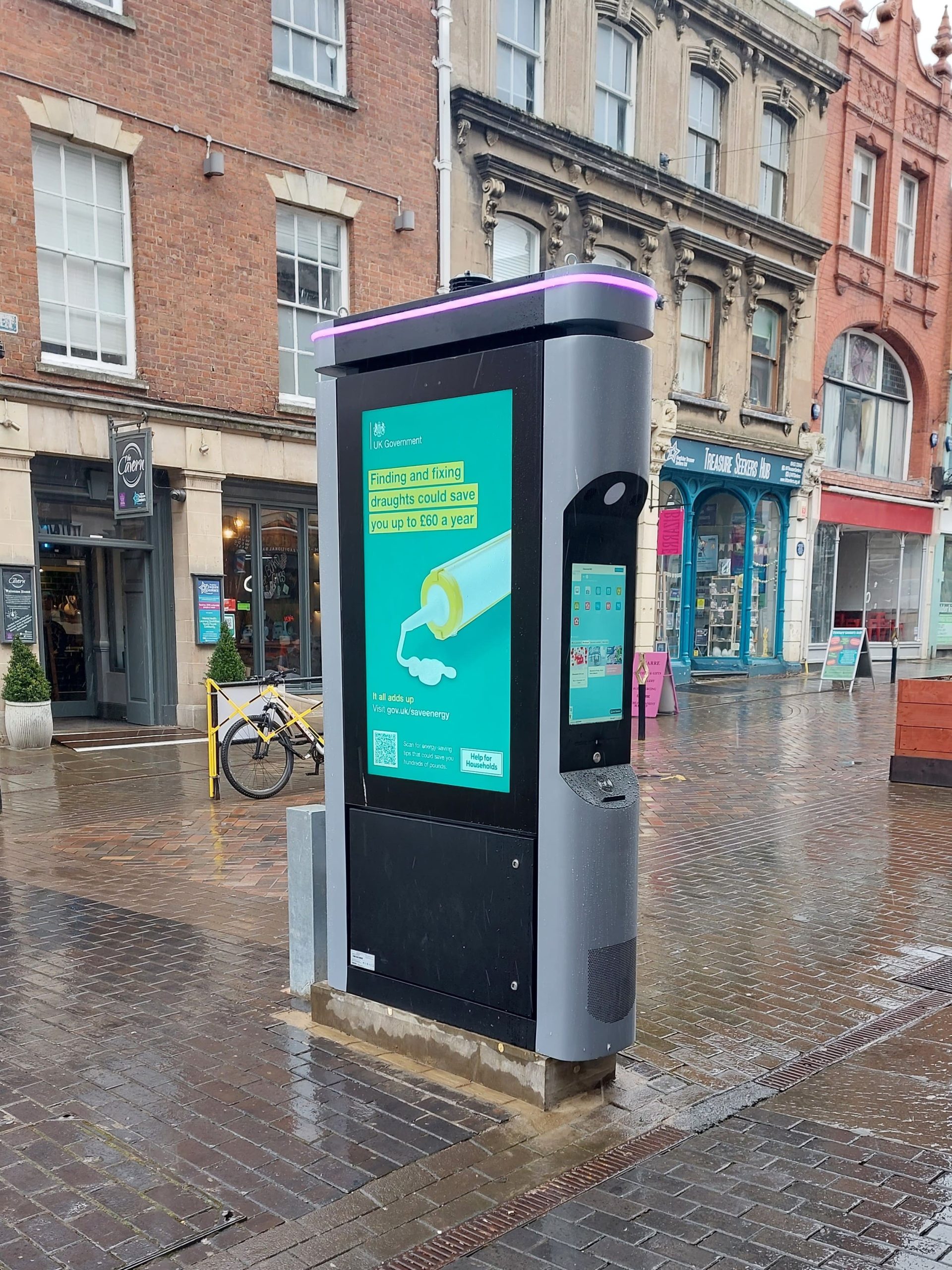

1. Information Inquiry Kiosk

2. Interactive Touch Inquiry Kiosk

3. Self -service Information Kiosk

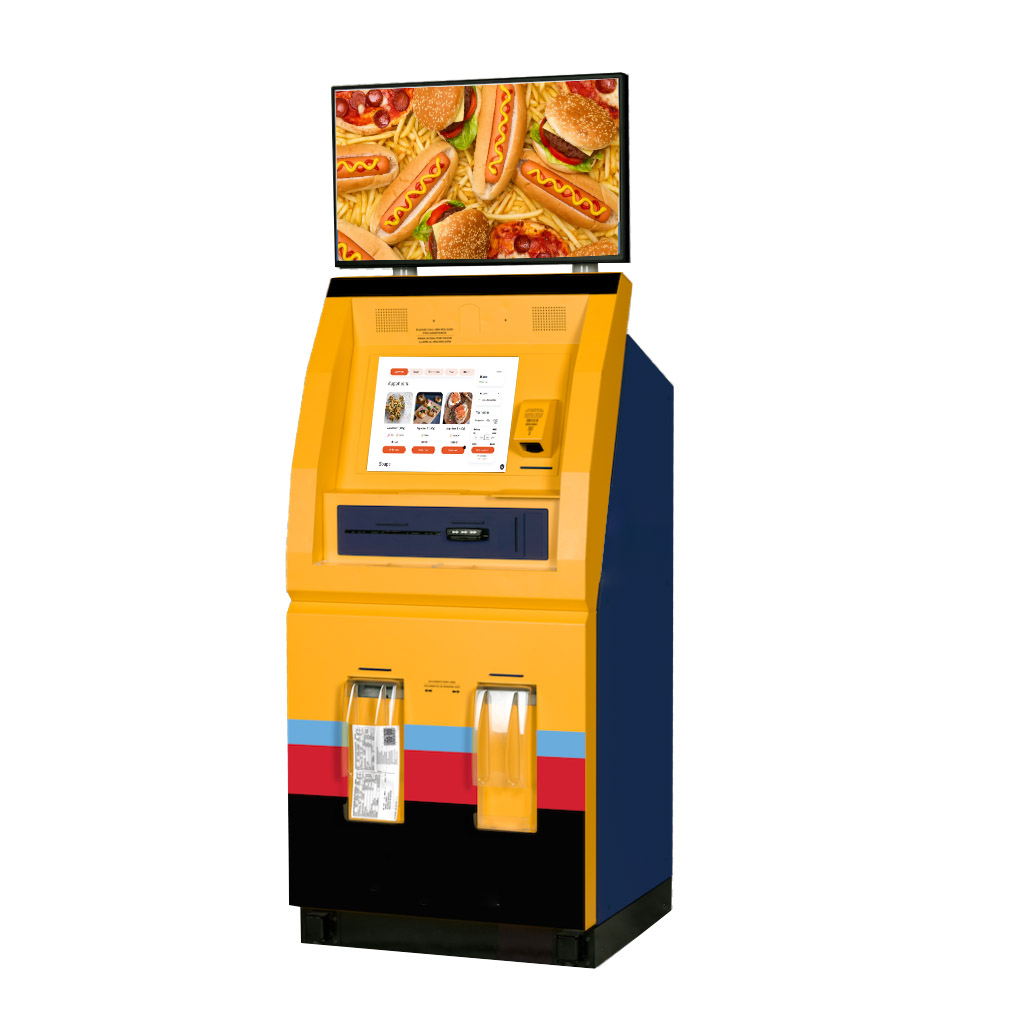

4. Self-service Ordering Payment Machine

5. Visitor Registration Kiosk

6. Self Check in/ Checkout Kiosk

7. Parking Payment Kiosk

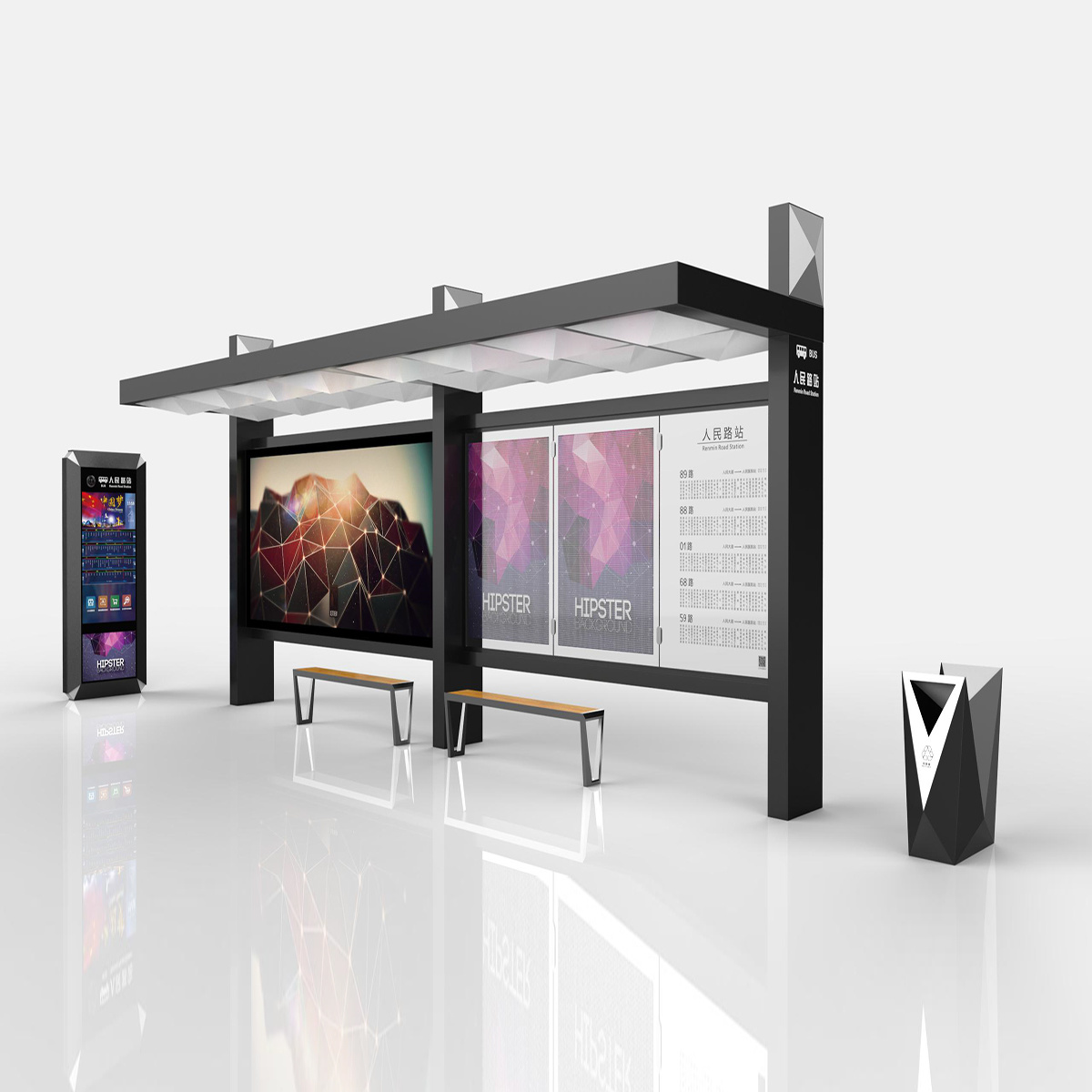

8. Bus Station Advertising

9. Others LCD Kiosk

Open source
1.the SDK
2. the System Firmware (Android 5.1/ Android 7.1/ Android 11/ Android 12 Linux/ Ubuntu/ Debian)
3. the API, APK, Demo
4. Firmware programming material and tools
5. others motherboards information

Technology service
?1. Professional motherboard recommendation
?2. After-sales engineer team
?3. Motherboard customization (display port, serial, PCBA )
?4. System customization
?5.? More than 40 types of rockchip motherboard solutions.?MOQ: 1 PC
? 6. Fast delivery?

1. What is the company's main product?
Android motherboard, SMT patch processing, PCBA agent processing.
2. How about the company scale? Do we have own factory?
Dingchang has 3 factories, the factory in Guangzhou has 6000m2，280+ employees, 30+ technical engineers.

3. How to make sure the Android motherboard quality?
① We will make orders according to the needs of customers.
② Data analysis and quality control by engineers.

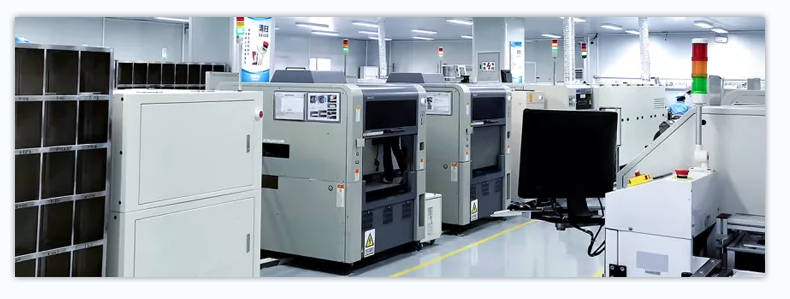

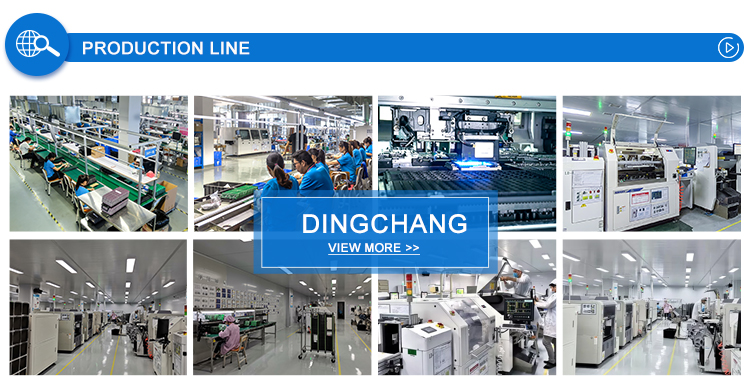

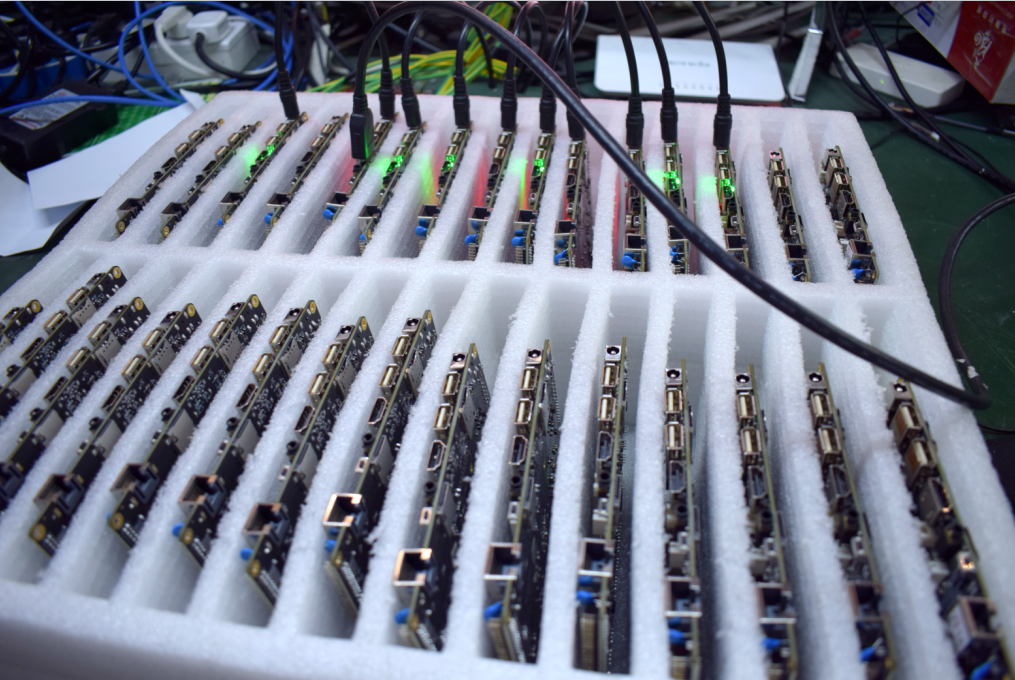

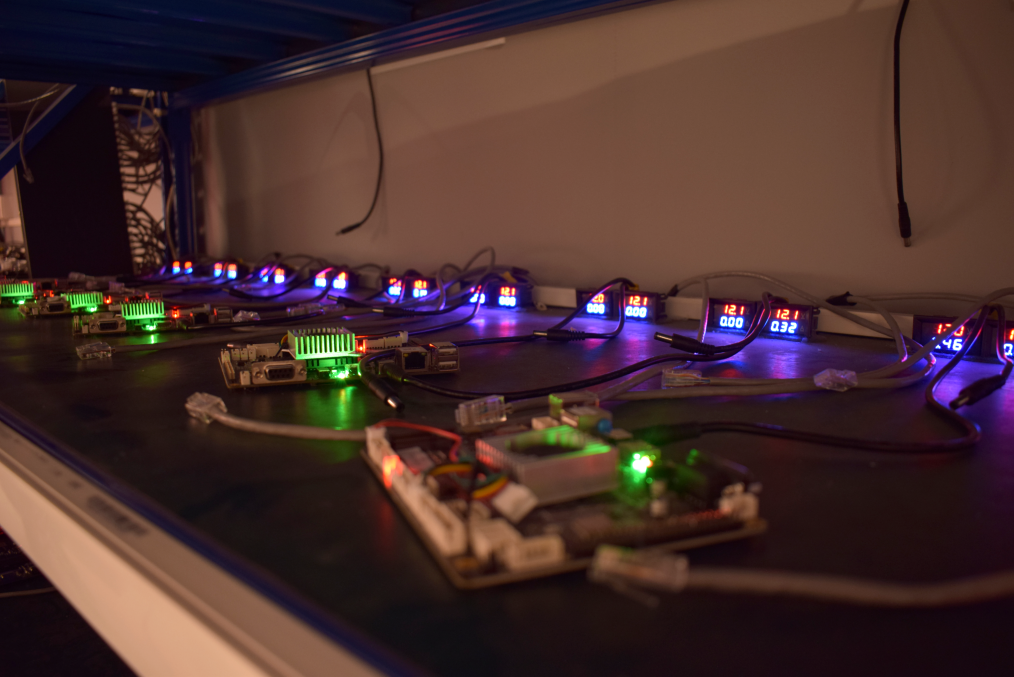

③ The production of motherboards in a fully automatic production line, professional production equipment and multiple motherboard
quality inspections ensure the homogeneity and stability of motherboards.
④ After the customer received the board, there will be professional engineers to answer the technical problems that arise during
the installation of the motherboard.

4. If we want to buy a motherboard, what is the main process?
① Knowing about the customer's board requirements
② Determine the type and specification of the motherboard
③ Check the motherboard inventory and deliver
④ Follow up and feedback the use of the motherboard.

5. Why choose our factory?
We factory accept OEM/ODM, complete production and sales process, able to undertake large demand orders from customers.
Our motherboards are highly sticky, variety system and service system to solve possible problems on the motherboard.
Obtained a number of national certificates and product certifications.
