Roller Shutter Door Roll Forming Machine
Basic Info
| Brand Name | YY |
|---|---|
| Applicable industry | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Other, Construction Works |
| Out-of-warranty service | Online Support, Video Technical Support |
| Where to provide local services (in which countries are there overseas service outlets) | None |
| Showroom location (in which countries are there sample rooms overseas) | None |
| Old and new | New |
Product description
Roller Shutter Door Roll Forming Machine
This door frame machine is designed according to cutstomer require. One machine can produce same profile but different sizes. It saves lots of cost, and get customers great satification
Working Flow:
Decoiler - Feeding Guide - Main Roll Forming Machine - PLC Contol System - Hydraulic Cutting - Output Table
Technical parameters:
Raw material
Pre-painted coils, Galvanized coils, Aluminum coils
Material thickness range
0.3-1.0mm
Rollers
10+5 groups
Material of rollers
45# steel with chromed
Shaft material and diameter
40mm, material is 40Cr
Forming speed
10-15m/min
Main motor power
5.5KW
Hydraulic power
3.0KW
Cutting type
Hydraulic flying saw
Controlling system
PLC
Voltage
380V/3Phase/50Hz
Way of driven
1.0 inch single chain transmission
Total weight
2 tons
Size of the machine
L*W*H 6*0.8*1m

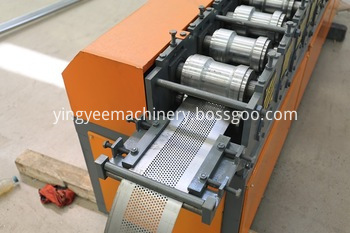

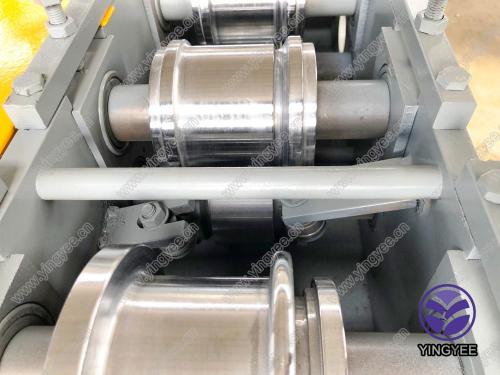

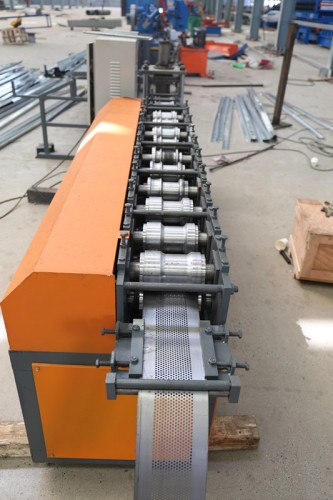

Pictures of machine:
Company information:
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment.
Our products were sold to more than 20 countries already. Also included US and Germany.
Main product :
- Roof roll forming machine
- Roller shutter door roll forming machine
- C and Z purlin roll forming machine
- Downpipe roll forming machine
- Light keel roll forming machine
- Shearing machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
