rolling shutter panel making machine

Basic informaion of rolling shutter panel making machine:

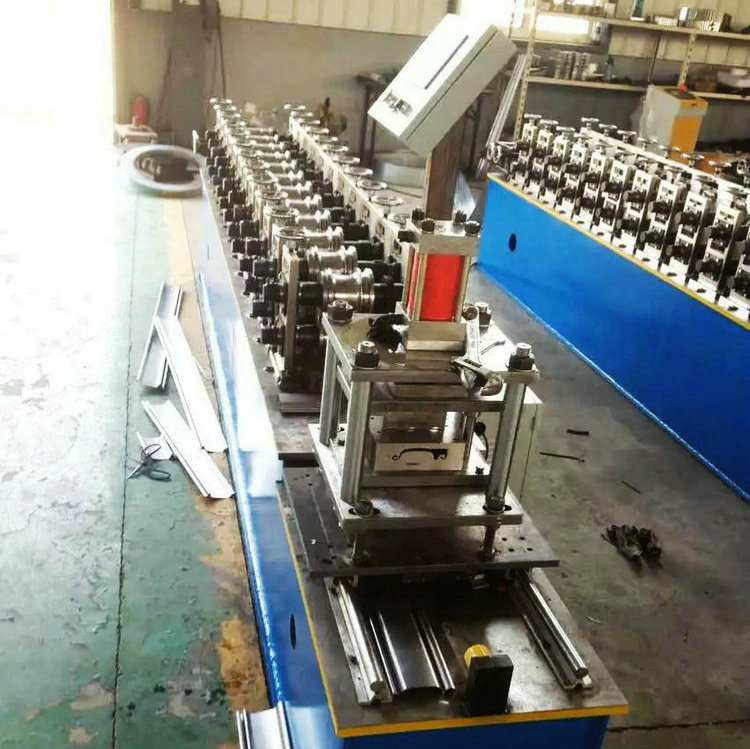

rolling shutter panel making machine is made up of uncoiler,feeding part,main roll forming system ,cutting system and receive table.

rolling shutter panel making machine feature:

1.Take continuous production,there is no need to change the rollers in rough-forming section.

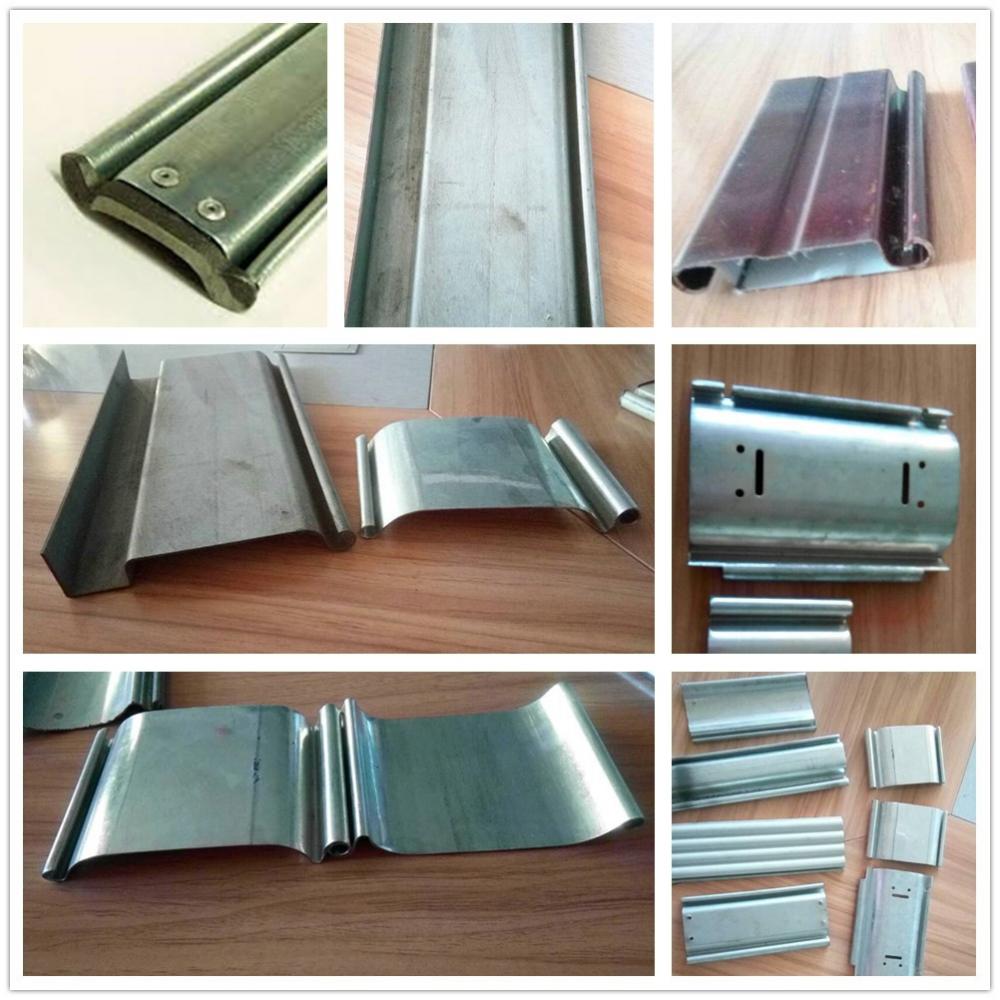

2.rolling shutter panel making machine production of pressure plate,stately elegance,beautiful novel,appearance smooth,  corrugated uniform, high utilization, high strength, high degree of automation, low cost and  durable.





Specifications of rolling shutter panel making machine

Decoiler

a. Coil inner diameter: 450-550mm

b. Coil max width: 300mm

c. Max carrying capacity: 3T

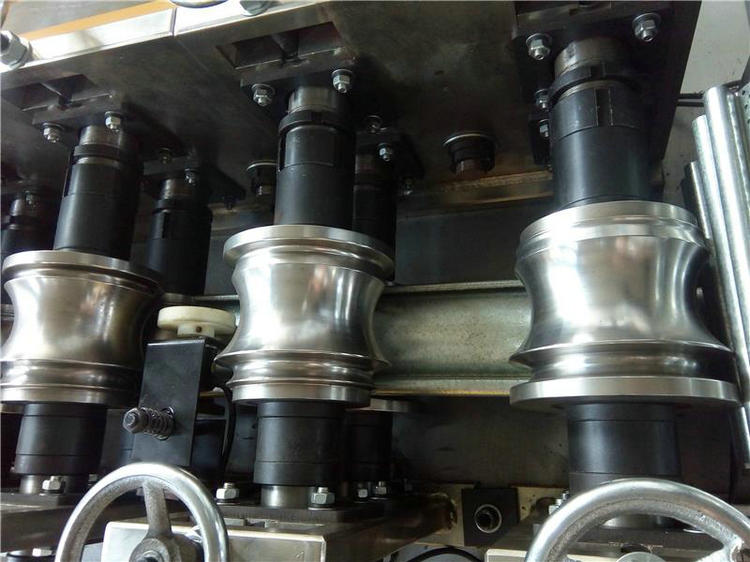

Roll forming machine

a. Number of forming steps: 12 stations

b. Shaft material: Gcr12MoV quenched

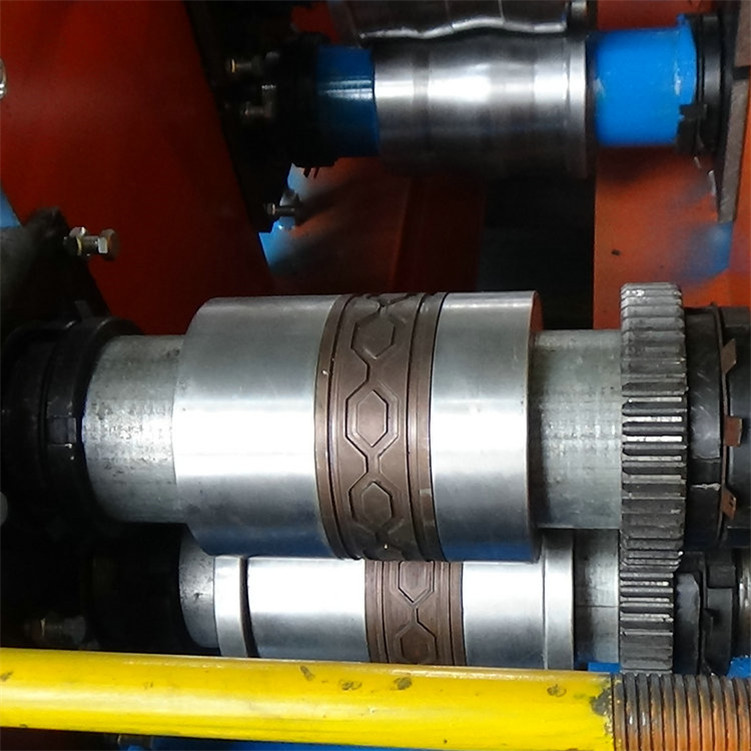

c. Roller material: Gcr12MoV quenched

d. Transport: by gear

e. Forming speed: 15-20m/min (normal speed)

f. Motor:4kw

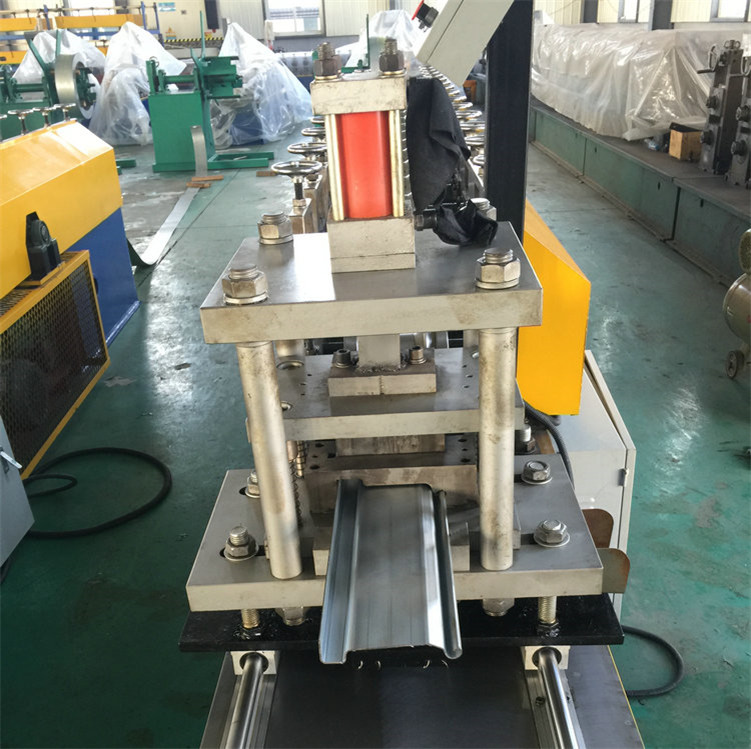

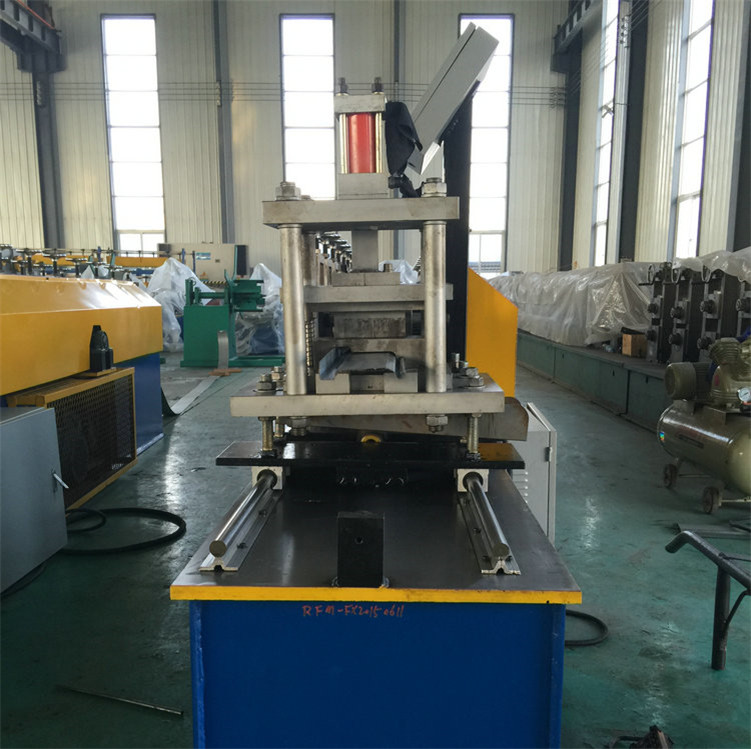

Shearing system

a.The material of blade: Cr12Mov,Hardening HRC 58-62℃

b.length Tolerance:3m±1.0mm

C. Power supply: Hydraulic station

Hydraulic station

a. Hydraulic motor Power:3kw

b.Hydraulic oil: 46#

c.Hydraulic pressure : 12Mpa

PLC station

PLC control system, we will take Delta .

You can set the cutting length in the PLC.



  1.How to get a quotation of rolling shutter panel making machine?

1. Normally we give the accurate quotation based on the drawing profile, so if you want to get the accurate quotation, please show us the drawing profile first.

2.Machine could be designed in many type and methods, for the machine frame, PLC brand, motor brand all will effect the price.

2. Terms of payment:
30% T/T, Balance to be paid before shipping after inspection.Also we accept the payment L/C, O/A , D/P.

Why choose us ?
1. As a professional manufacturer,we can offer better price and after-sale service and on-time delivery.
2. Our senior engineers are waiting to design and manufacture roll forming machines as your requirements.
3. With CE certificate,we have got excellent feedback from 90 countries.
