Rotary Encoder Optical Push Pull Glass Disks 38mm

$23.00

≥1 Set/Sets

Get Latest Price

Model No.	38S
Brand Name	LANDER
place of origin	China
Outer Diameter	38mm
Shaft Diameter	6mm
Supply Voltage	5vdc, 8-26vdc, 10-30vdc
Output Type	Voltage, Npn, Pnp, Push Pull, Line Driver
Output Signal	A,B,Z / A,B,Z,-A,-B,-Z
Cable Length	Standard 1 Meter
Warranty	12 Months

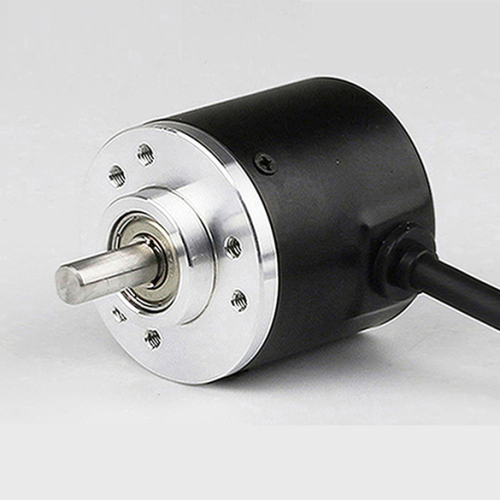

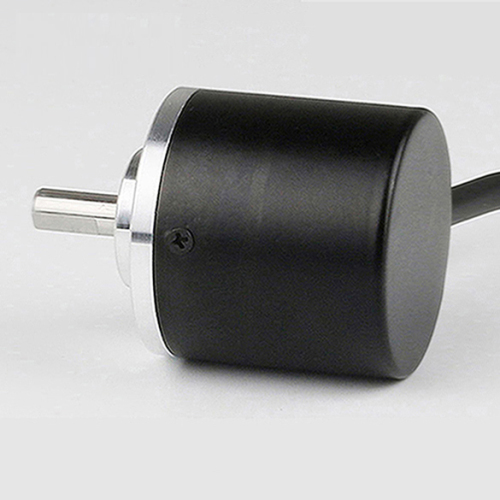

Rotary Encoder Optical Push Pull Glass Disks 38mm

38S series shaft type incremental encoder adopts 38mm size shell, which can be installed in a small space. At the same time, the moment of inertia of the shaft is very small, Minimize the rotational inertia imposed on the device. Encoders can be divided into shaft type, hollow shaft type and embedded type, and various control output options. Except solid shaft encoder, hollow rotary encoder and through hollow encoder are also supplied.

Easy to install in narrow or limited spaces

Low axis moment of inertia Shaft type,

38mm housing optical rotary sensor,

Resolution up to 5000 pulses, 6mm solid shaft encoder

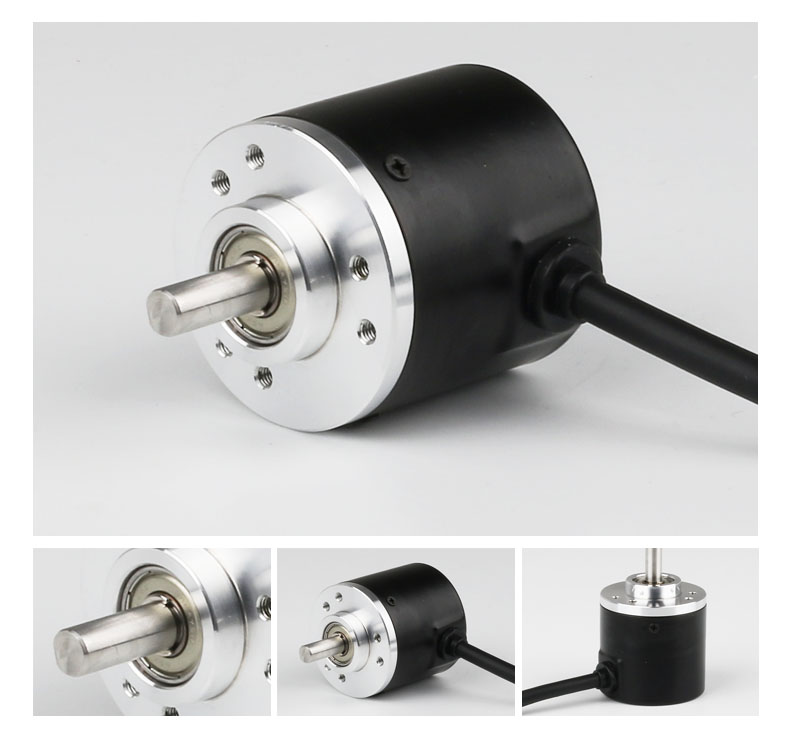

Solid Shaft Encoder

WHY CHOOSE LANDER?

* Quick response once received customer’s quotation query
* Professional engineer team, to solve your problems at any time
* Strictly inspection before shipment
* Various encoder models to be selected
* Short lead time

* High quality standard

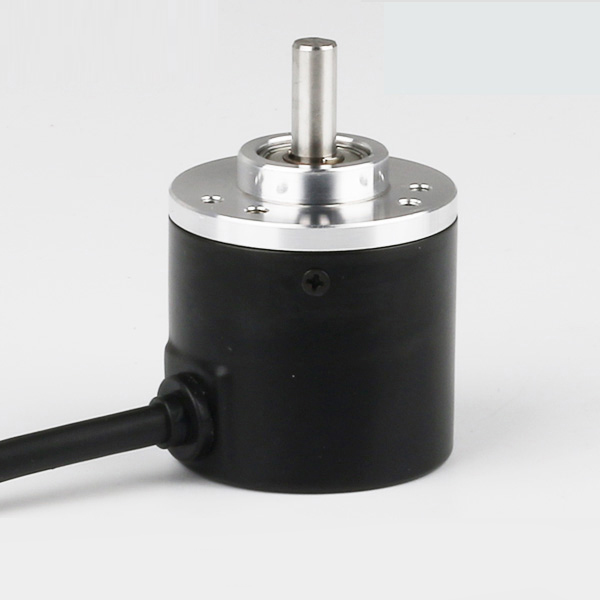

Incremental Encoder Optical Encoder Rotary Encoder

Product parameter：

ITEM	PARAMTERS
Brand	LANDER
Encoder type	Incremental encoder
External diameter	38mm
Thickness	28mm
Shaft length	13mm
Solid Shaft diameter	6mm(D shape)
Resolution	50;100;200;250;256;300;360;400;450;500;512;
	600;700;720;800;900;1000;1024;1200;2000;2048;
	2500;3000;3600;4096;5000；
Output mode	NPN&PNP
	Voltage output
	Push-pull output
	Line driver (TTL,HTL,RS422)
Output phase	Phase A,B,Z,A-,B-,Z-
Outlet type	Cable out from side
Protection grade	IP50 & IP65
Cable length	1m
package	Carton box
Net weight	About 120g (with package)
Certification	CE/ ISO9001
Consumption current	100mA MAX
Top response frenquency	300KHZ
Allowable ripple	≤3%rms
Load Voltage	≤DC30V
starting torque	less than 4.4X10-3 N.m
Intertia moment	less than 1.5x 10-6kg.m2
Shaft load	Radial 40N; Axial 20N
Top REV	5000RPM ;IP65≤3000r rpm
Environmental temperature	Operating:-20 ～+85℃；storage:-25 ～+90℃
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)	49m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material	Stainless steel
Shell Material	Dia cast aluminium
Cable length	1000mm(cable with shielding)
Certification	CE

Model Selection Guide

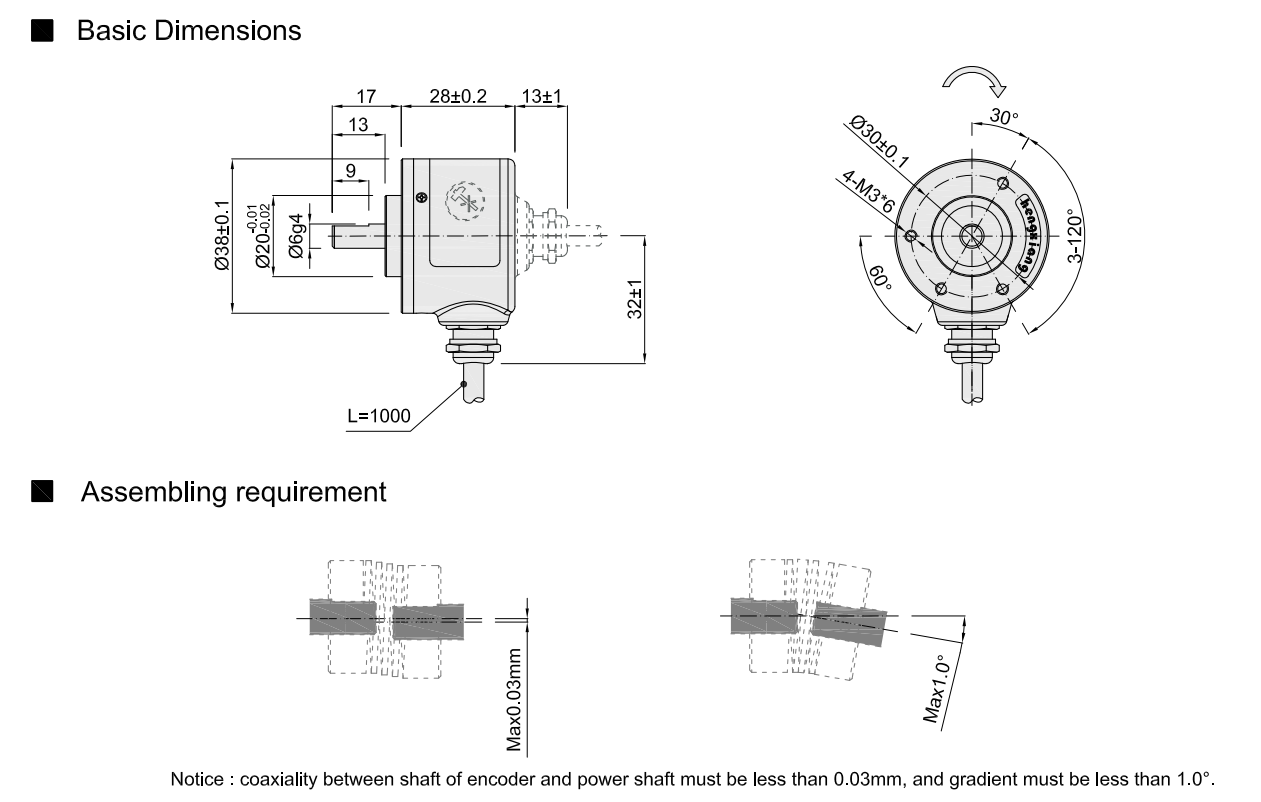

Manufacturing Dimensions

Company Overview
