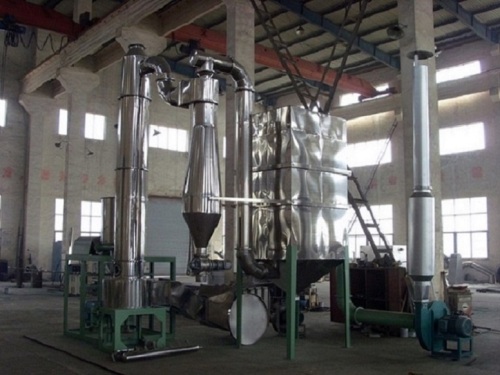

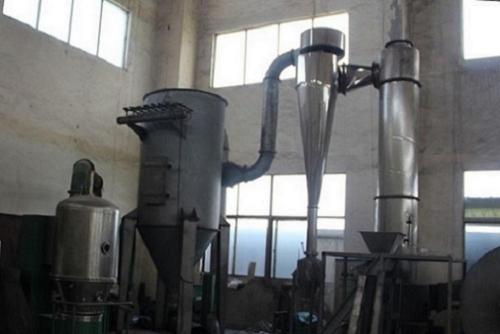

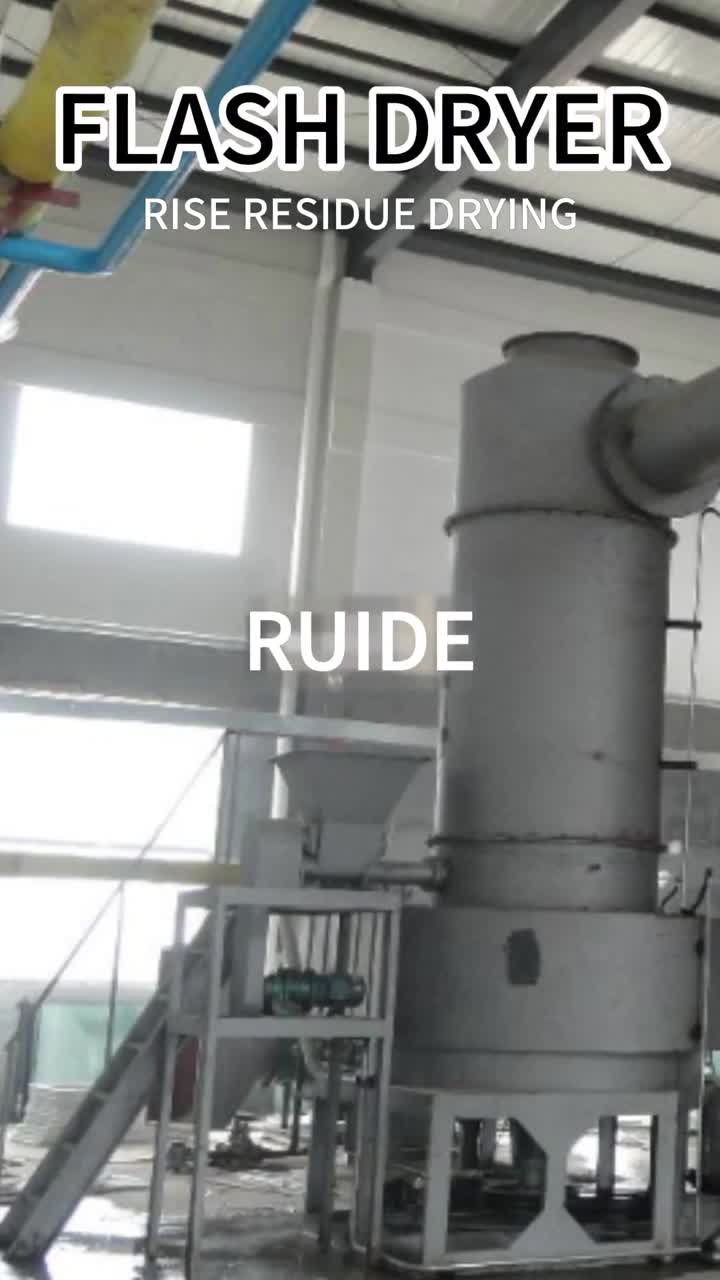

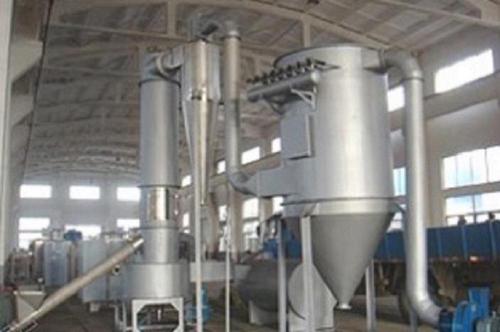

Xsg Series High-Speed Rotating Dryer Boric Acid Flash Dryer Machine, Xsg Antimony Trioxide Flash Dryer Machine, Sodium Metabisulfite Flash Dryer Machine, Flash Drying Machine, Spin Flash Dryer, Flash Drying Equipment The XSG series high-speed rotating dryer is a state-of-the-art drying solution designed for efficient and effective removal of moisture from a wide range of materials. This advanced equipment is ideal for continuous processing of cohesive and non-cohesive pastes, high-viscosity liquids, and filter cakes. The machine utilizes a double shaft screw system, ensuring uniform mixing and optimal heat transfer. Available at competitive prices, the XSG series offers various specifications to meet different industrial needs.

?

?

Manufactured with cutting-edge technology, these dryers are heated using air, either directly or indirectly, depending on the application. They are engineered for precision and performance, making them suitable for both fluidized conditions and size reduction processes. Key features of the XSG series include a rotor located at the conical base of the drying chamber, which creates an efficient hot air flow pattern that fluidizes product particles and rapidly disintegrates wet lumps. The material dries as it is conveyed through the system, while product separation is achieved using cyclones and/or bag filters. Final cleaning of exhaust gases is ensured through scrubbers or additional filtration systems. Airborne fine particles pass through a classifier at the top of the drying chamber, while larger particles remain in the airflow for further drying and powdering.

?

This process results in a more energy-efficient alternative to traditional spray drying methods. The advantages of the XSG series include high drying efficiency, low energy consumption, direct drying without the need for initial dilution, continuous processing with short drying times, and minimal operator overheads and maintenance costs. These dryers are widely used across various industries such as agrochemicals, ceramics, food and feed products, inorganic and organic chemicals, pharmaceuticals, and pigments and dyestuffs. The equipment can handle a broad range of feed materials including powders, cakes, granules, flakes, pastes, gels, and slurries. For sticky or difficult-to-process materials, back mixing of the wet feed with a portion of dry product is often necessary to achieve optimal results. Additionally, this technology can be adapted for cooling applications.

?

Technical parameters vary by model, with options ranging from XSG-2 to XSG-16. Each model has specific dimensions, air flow rates, moisture evaporation capacities, and power requirements. The barrel diameter ranges from 200mm to 1600mm, while the main machine dimensions are proportionally scaled. Air flow capacity varies from 300-800 m3/hr to 18700-36000 m3/hr, with moisture evaporation rates between 10-20 kg/h and 250-2000 kg/h. Power consumption per model ranges from 5-9 kW up to 70-135 kW, ensuring flexibility for different production scales. The XSG series is particularly well-suited for drying high-viscosity products, pastes, and filter cakes, making it a preferred choice in many global industries. Its mechanical agitator ensures even dispersion of the wet cake without the need for back mixing, streamlining the drying process. This innovation not only enhances efficiency but also reduces energy costs and operational complexity. With numerous installations worldwide, the XSG series represents a reliable and technologically advanced solution for modern drying applications. This flash drying equipment is an essential tool for businesses seeking to improve their drying processes. Whether it's for boric acid, antimony trioxide, sodium metabisulfite, or other similar materials, the XSG series delivers consistent quality and performance. Its design allows for seamless integration into existing production lines, offering scalability and adaptability.

?

The use of air heating, combined with precise engineering, ensures that the drying process is both fast and effective. In terms of usage scenarios, the XSG series is ideal for industries where rapid and efficient drying is critical. From food processing to chemical manufacturing, the machine's versatility makes it a valuable asset. It can handle materials that are challenging to dry due to their viscosity or stickiness, providing a reliable alternative to conventional methods. The ability to adjust the drying parameters based on the material type and desired outcome adds to its appeal. User feedback highlights the reliability and effectiveness of the XSG series. Many users report significant improvements in drying time, energy efficiency, and product quality. The ease of operation and low maintenance requirements make it a popular choice among operators. Additionally, the machine's durability and long service life contribute to its overall value proposition.

?

Frequently asked questions about the XSG series often revolve around installation, maintenance, and performance optimization. Users typically inquire about the best practices for handling different types of feed materials and how to maximize the machine's efficiency. The manufacturer provides detailed guidance and support to ensure that customers can fully utilize the capabilities of the equipment. Regular maintenance and proper operation are key to achieving optimal results and extending the lifespan of the machine. Overall, the XSG series high-speed rotating dryer is a robust and versatile solution for industrial drying applications. Its combination of advanced technology, energy efficiency, and user-friendly design makes it a top choice for businesses looking to enhance their production processes. Whether for small-scale operations or large industrial settings, the XSG series offers a reliable and cost-effective way to achieve high-quality drying outcomes.
