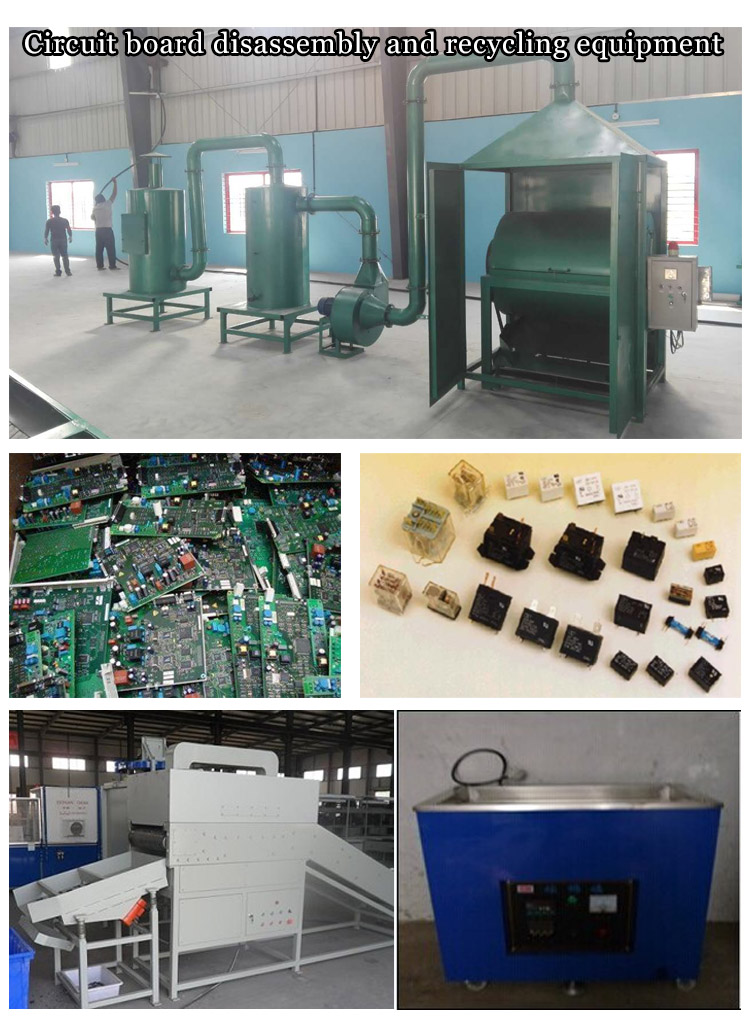

Scrap E Waste Components Disassembling Machine PCB mother board Circuit board disassembly and recycling equipment

?

?

?

Brief Introduction

?

Disassembly recycling plant system from FTL Machinery :

Production model: 500, 1000
Production capacity: 200-500kg/H
Overall weight; 450-1100kg

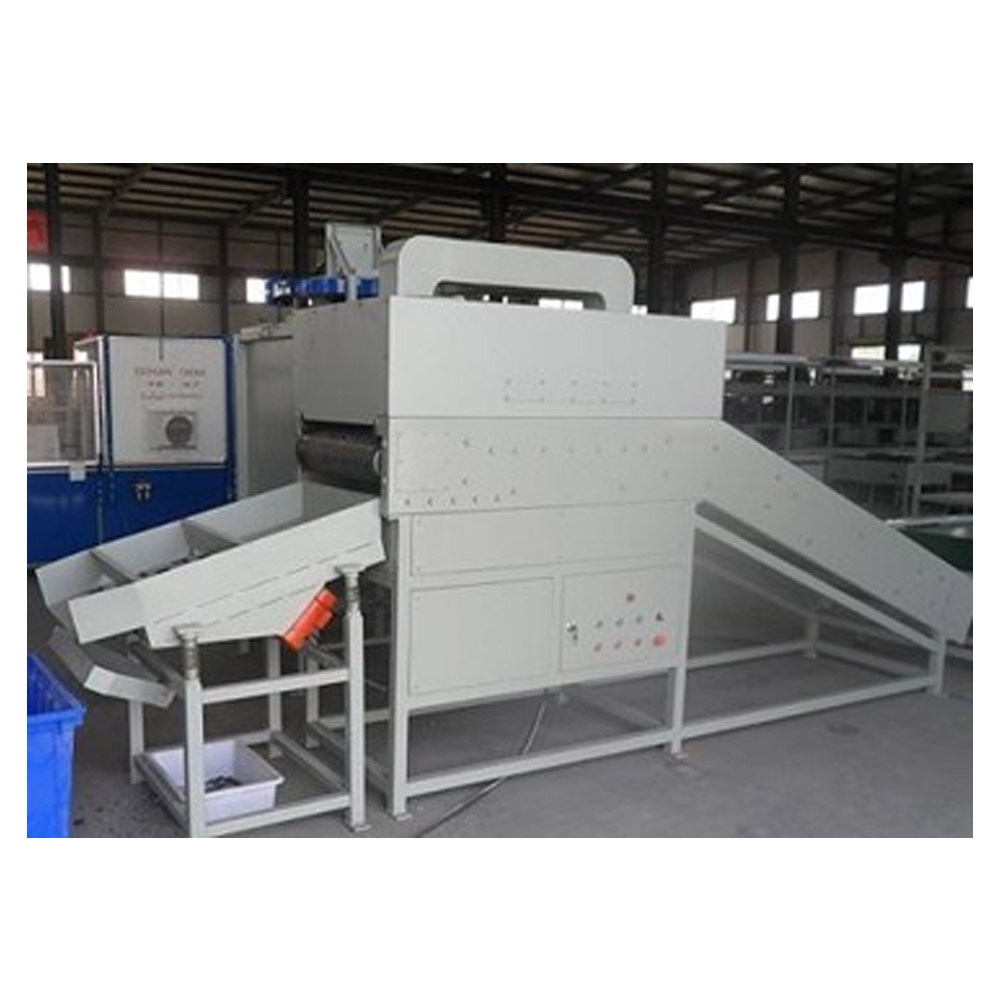

Application: The fully automatic circuit board disassembling machine is a device for disassembling electronic components from waste circuit boards.

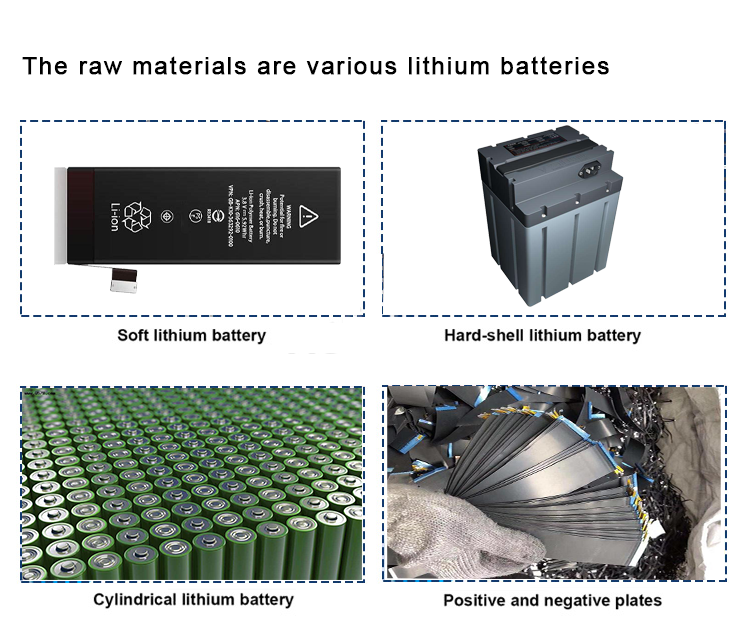

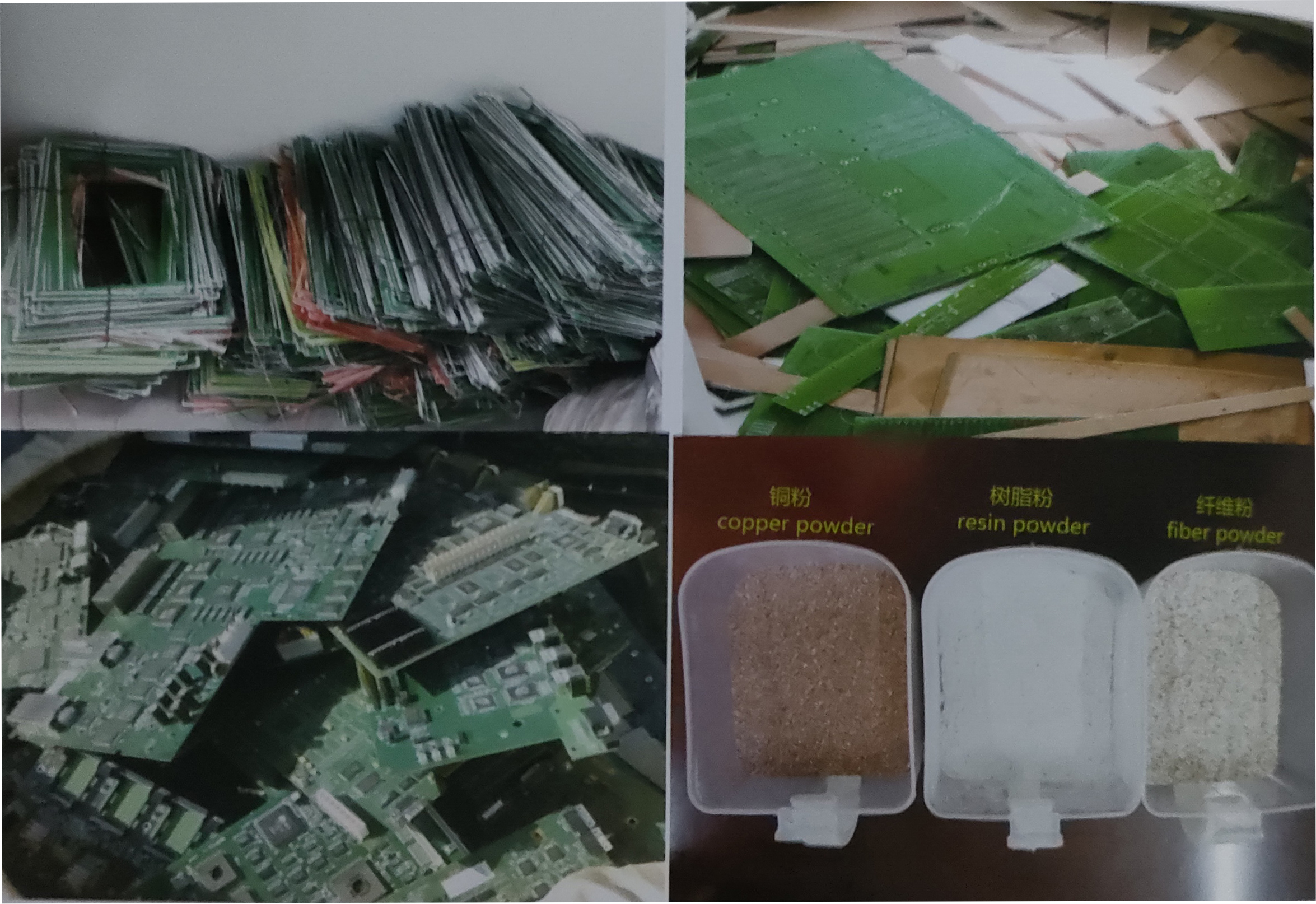

Applicable materials: Suitable for various circuit boards such as waste computer boards, mobile phone boards, household electrical circuit boards, etc.

Name	Type	Power	Quantity	size

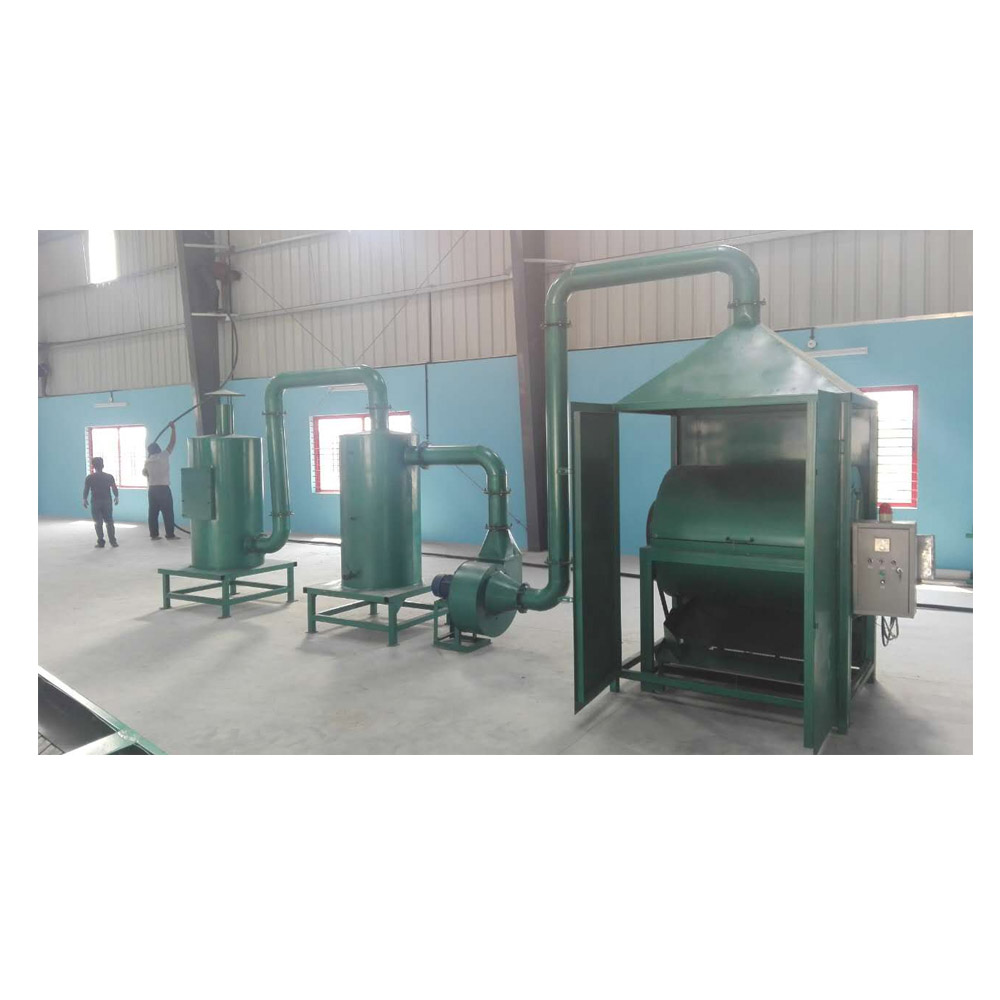

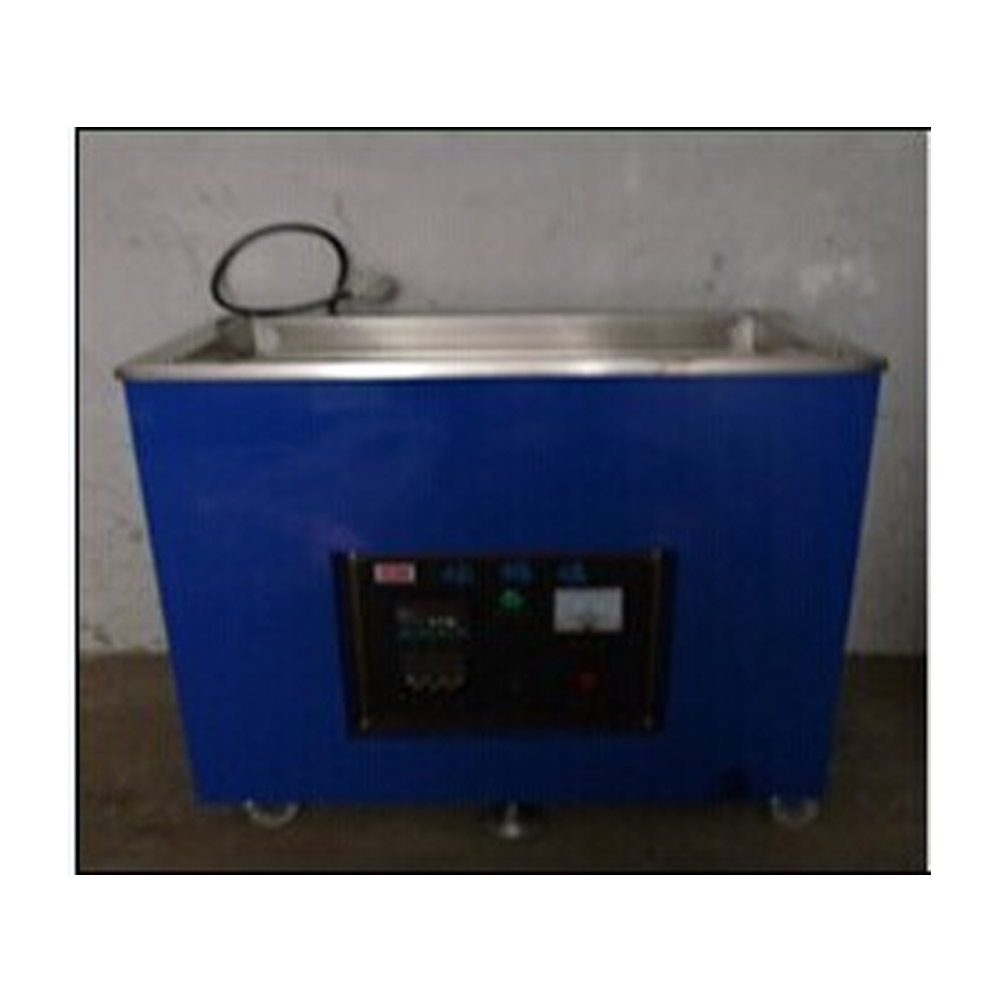

Tin removal furnace	SX-300	3000W/AC220V	2 sets	0.65 * 0.43 * 0.75m
Automatic disassembling machine	SX-600	1.1KW	1?sets	6 *0

?

?

?

Waste lithium battery recycling and processing production line

?

?

Waste lithium battery recycling and processing production line lithium battery pole piece crushing separation sorting machine ,positive electrode and negative electrode plate of waste lithium battery have certain value of recycling. Recycling these batteries can not only reduce the pollution of waste batteries to the environment, but also bring significant social and environmental benefits. In addition, the valuable components of waste lithium-ion batteries can be fully recycled and utilized, which brings huge economic benefits.

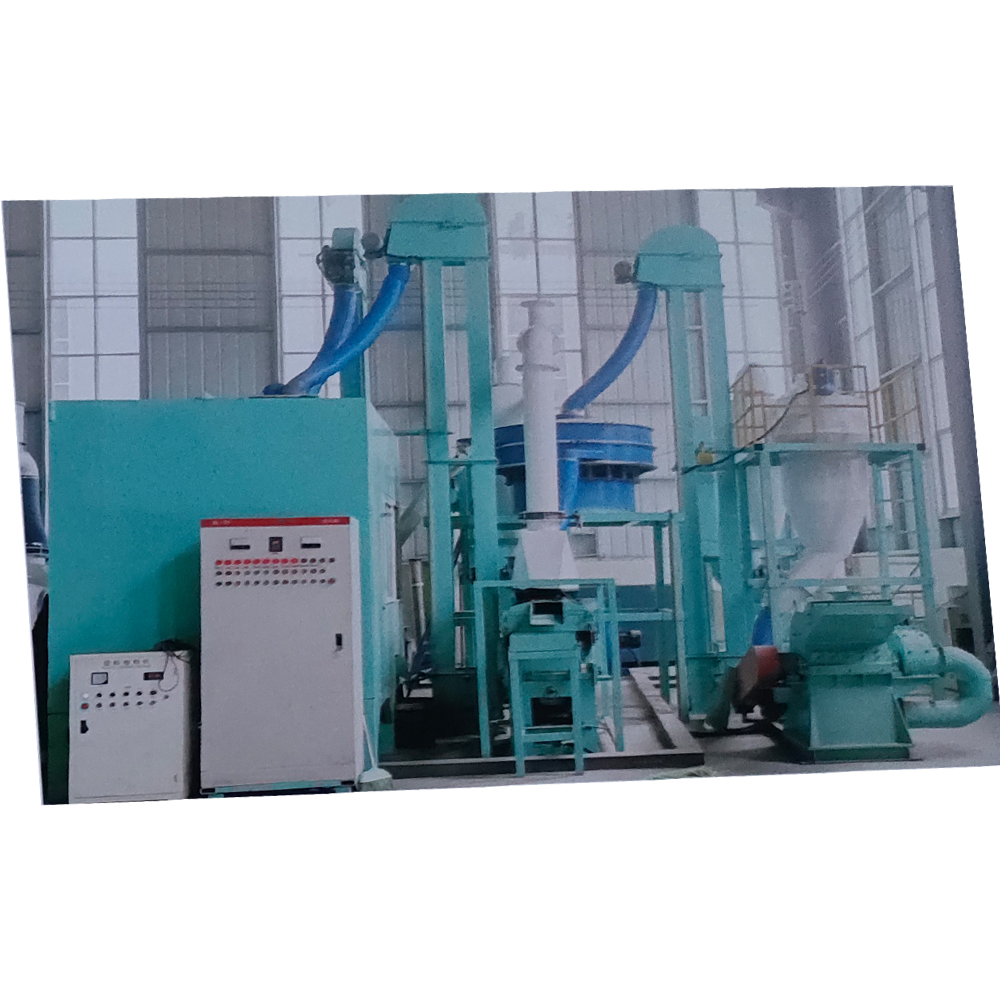

According to the structure of anode and cathode and the characteristics of component materials (copper, aluminum, cobalt powder,etc.), our company's waste lithium battery recycling plant adopts hammer vibration crushing, screening, air separation . The whole process is carried out in a sealed vacuum environment to ensure maximum recovery and no pollution. With the increase of electric vehicles and digital products, the recycling business of used lithium batteries will get better and better.

?

?

?

?

How does a lithium battery recycling plant work?

?

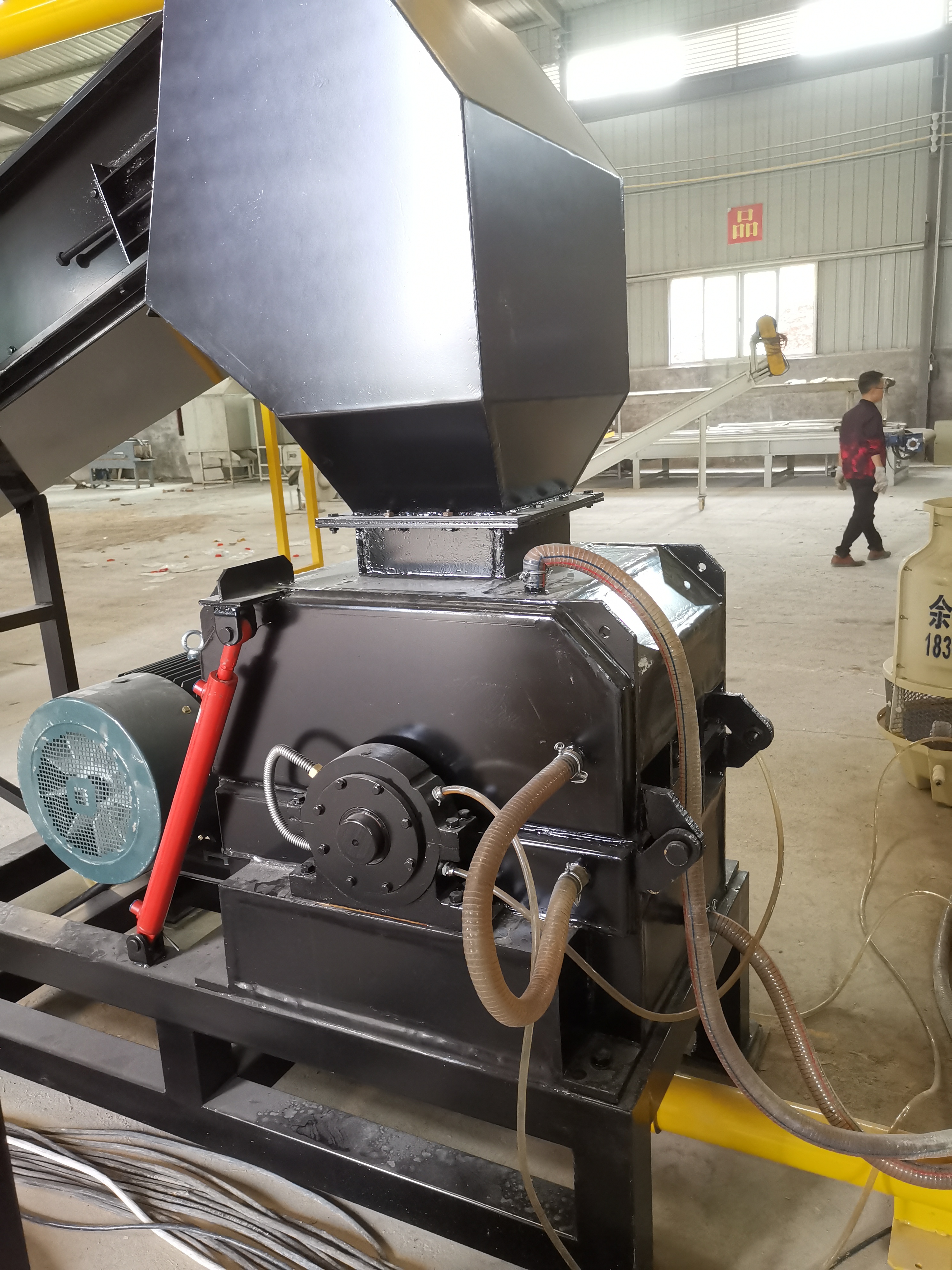

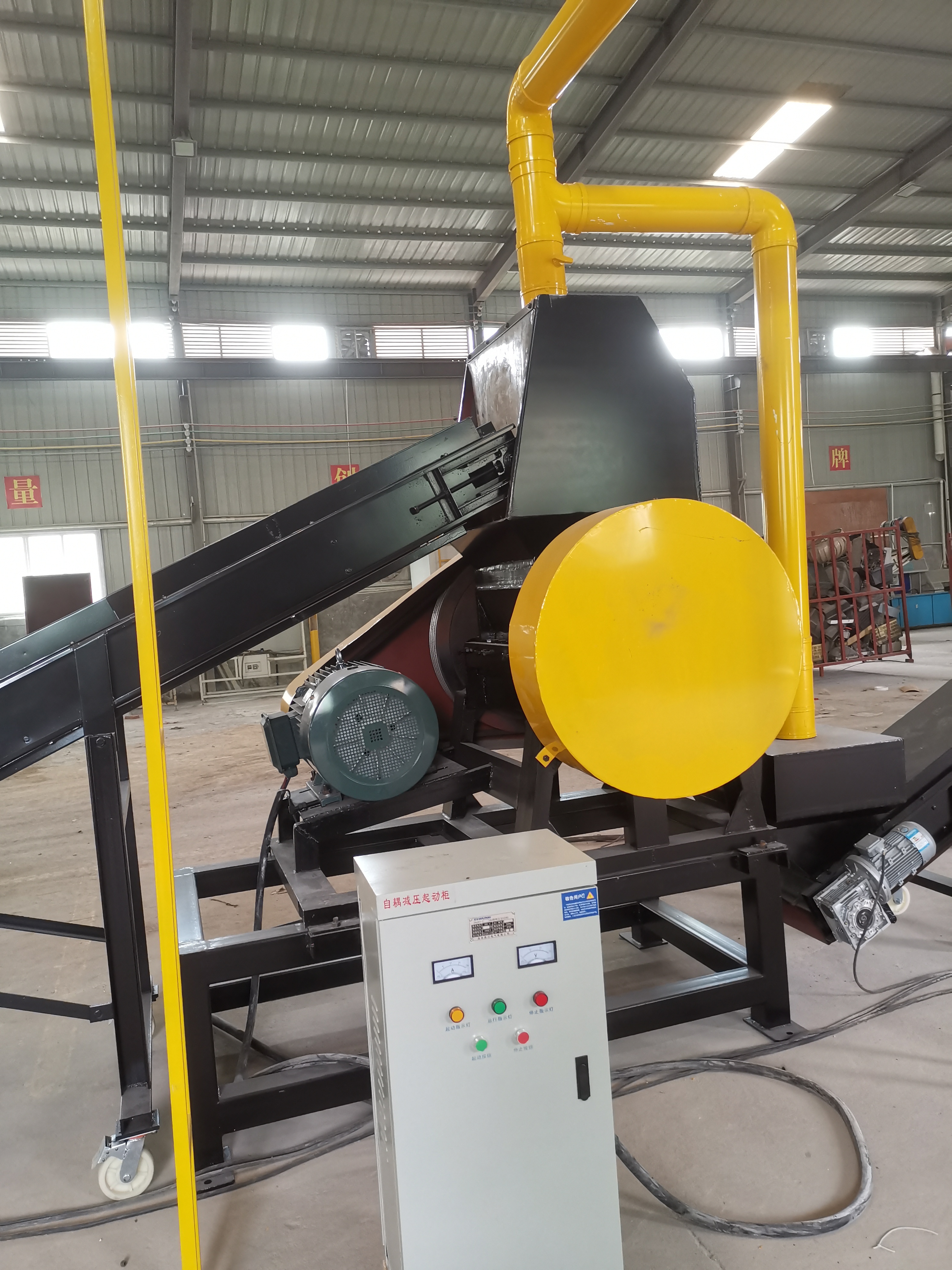

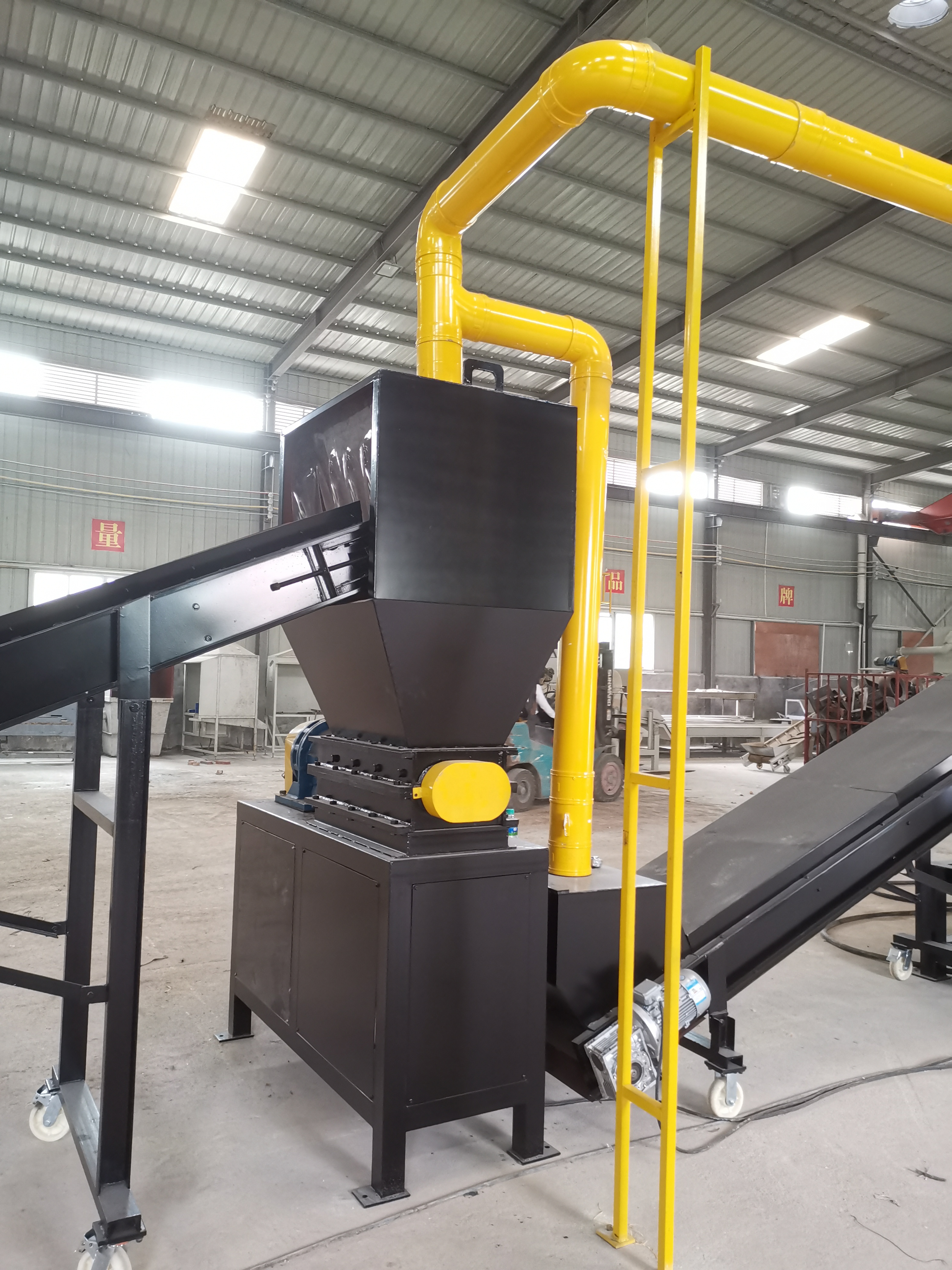

(1) Raw materials are crushed by the first crusher. (30 ~ 100 mm)
(2) By the sealing conveyor to the second crusher. (2 ~ 5 mm)
(3) The crushed material is transported into the air separator by high pressure air flow and separated into coarse powder, small powder and diaphragm. Small powder into the cyclone unloading device, coarse powder into the vibrating screen. (Air speed and pressure are precisely controlled by transducers)

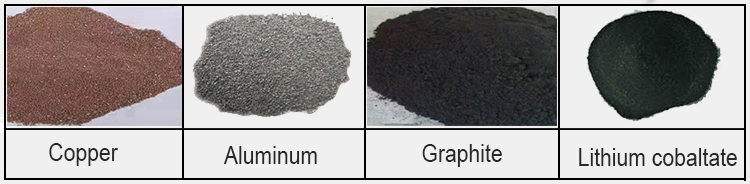

(4) The material entering the rotary outflow material system is transported to the vibrating screen through the air duct, and the copper particles, aluminum particles, lithium cobalt powder and diaphragm powder separation.
(5) Coarse powder containing more metal, by high pressure air supply system transported to the vibrating screen, lithium cobalt mixed powder and copper/aluminum powder separated.
(6) The final separation system is our air gravity separator, which can completely separate lithium cobalt and copper and aluminum.
(7) The whole plant is operated under vacuum to avoid dust pollution and cobalt and lithium leakage.

?

?
