Shutter Side Guide Machine Rolling Shutter Guide Machine Guide Forming Machine
Basic Info
| Model No. | ZT-009 |
|---|---|
| Brand Name | ZHONGTUO |
| Material | Steel |
| Style | Modern |
| Open Style | Automatic |
| Thickness of door leaf | 90mm |
| Infilling Material | Aluminium Silicate |
Product description

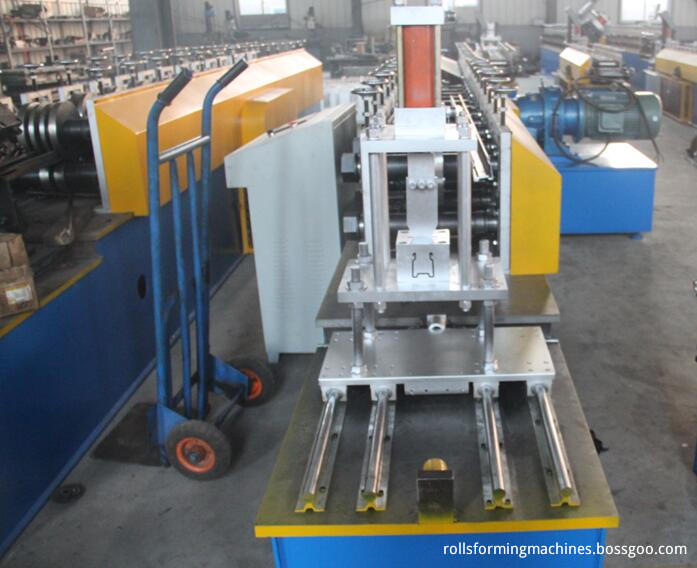

Shutter Side Guide Machine Rolling Shutter Guide Machine Guide Forming Machine

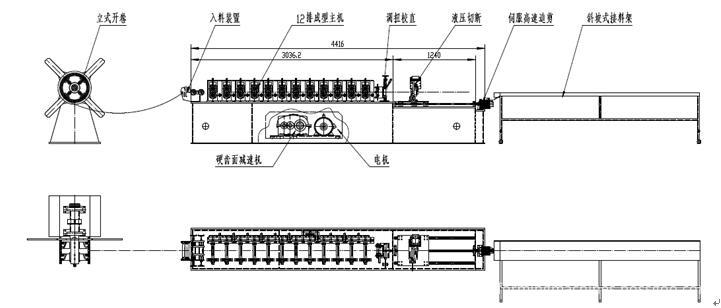

3.Processing flow diagram of machine
Standing decoiler →Feeding material system → Roller Station Roll forming machine →Measure length →Straightening→holes punching→Finished Products Receiving Table
configurations
Standing decoiler/Feeding material system /12 Roller Station
Roll forming machine /Measure length/Straightening/Servo High Speed Cutting/Finished
Products Receiving Table

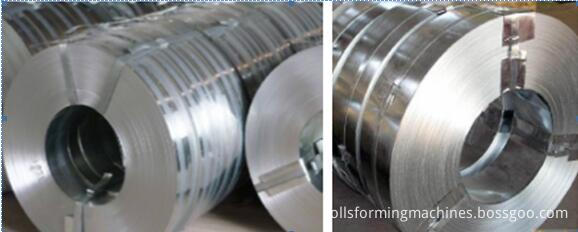

Material
Steel strips
Galvanized sheet
Max Thickness
2.5 mm
Hydraulic Uncoiler
Inner Diameter
450-550 mm
Max coil out diameter
max 1500mm
Max coil width
300mm
Carrying capacity
2 T
Below is the main machine specification:

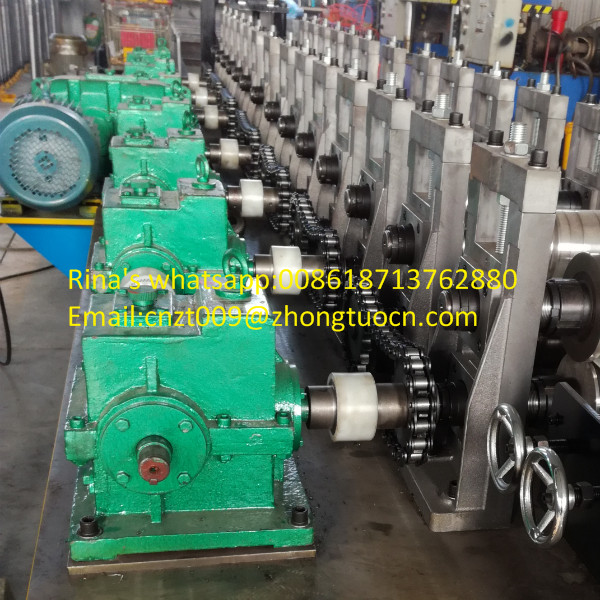

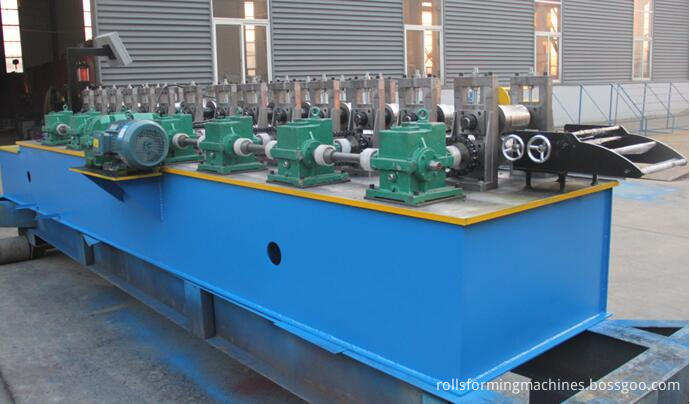

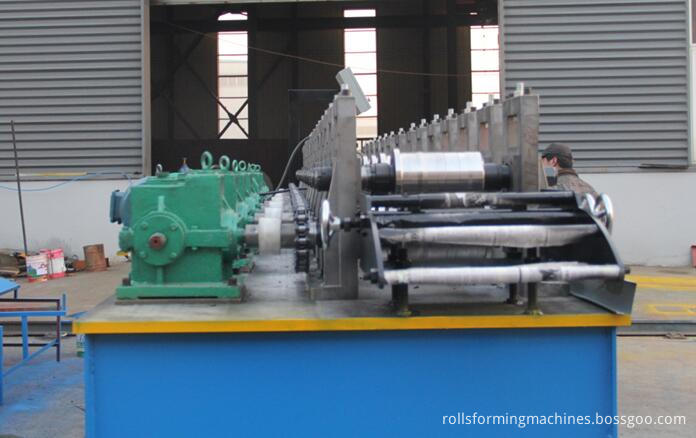

Main forming machine
Specifications
Production U
Forming steps
11
Memorial arch Frame Thickness
30 mm
Shaft diameter
40mm
roller material
Cr12Mov
shaft material
# 45
steel
Work speed
5-15 meters/min
Transport
Gear box reducer transmission
Cutting tolerance
±1mm
Main Power
5.5 kw
Cutter
Cr12Mov
Voltage
380 V(As
customer's requirements)

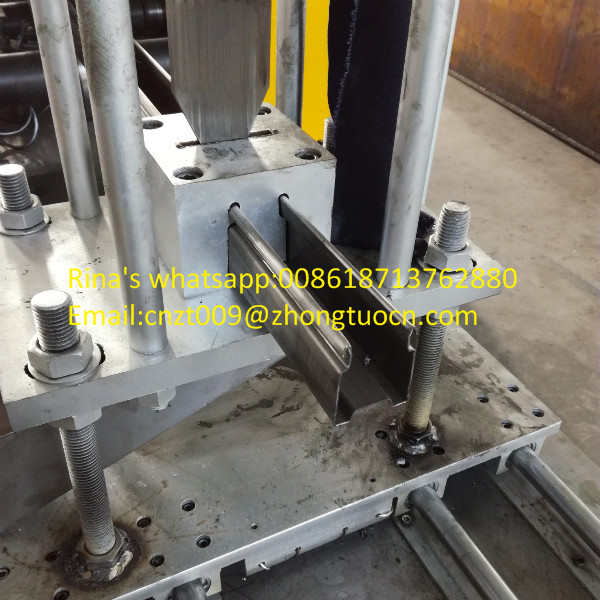

If you need this shutter door U size guide channel roll forming machine, please kindly feel free contact with me, please!
