Single-Axis Robot Linear Module with Steeping Motor
$20.00
~ $200.00
/ Bag/Bags
Rail width / diameter:
- Diameter customerized
Rail length:
- Length customized
Get Latest Price
You might also like
Basic Info
| Model No. | Customized |
|---|---|
| Brand Name | WKT |
| status | New |
| warranty period | 1.5 Years |
| Applicable industry | Manufacturing Plant, Construction Works |
| Out-of-warranty service | Online Support |
| Where to provide local services (in which countries are there overseas service outlets) | Kenya, Egypt |
Show More
Product description
Product Description

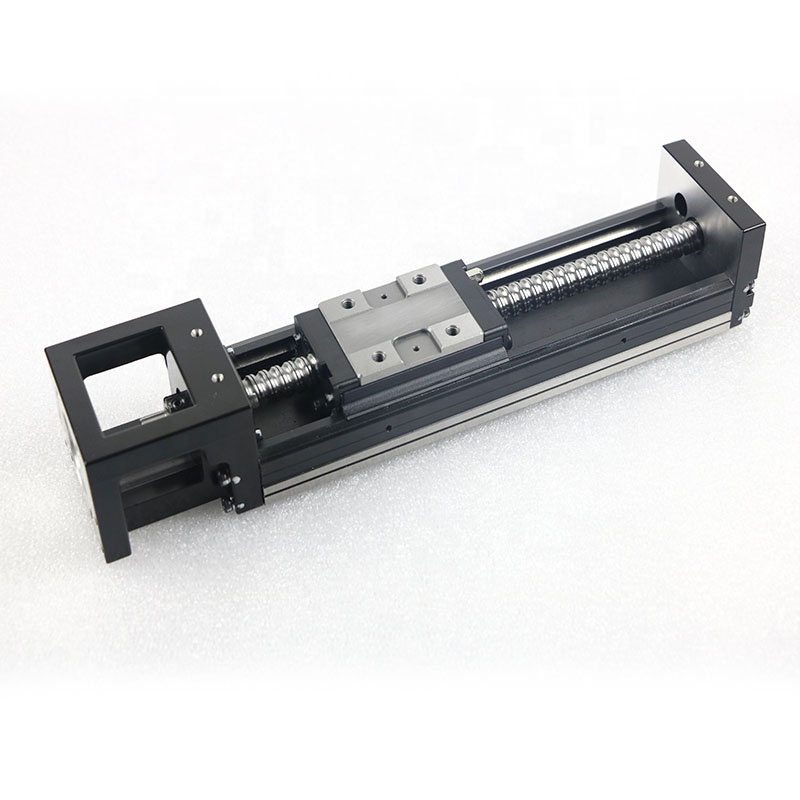

The KK single axis robot combines both ballscrew and guideway to achieve better performance on accuracy, stiffness, rapid installation, and space saving. The optimized U-rail not only guides the movement of the slider being driven by the ballscrew, butalso can be used as a structural component when assembled into a multi-axis motion system.
Features
Easy for system design, installation and maintenance
- Accessories of KK Robot
Accessories of KK single-axis robot are also supported for specifc demands, such as an aluminum cover, bellows, motor adaptor flange and limit switchs.
Aluminum cover and bellow: contamination protection
Motor adapter flange: connecttion for different types of motors
Limit switchs: starting point, positioning and other safety matter
Limit switchs: starting point, positioning and other safety matter
Stroke and Load
|
Model
|
Stroke(mm)
|
Load(kg)
|
|
|
|
|
|
Horizontal
|
Vertical
|
|
|
KK40
|
136
|
15
|
2
|
|
|
KK50
|
220
|
30
|
3
|
|
|
KK60
|
510
|
45
|
6
|
|
|
KK86
|
810
|
100
|
15
|
|
|
KK100
|
1228
|
120
|
22
|
|
|
KK130
|
1511
|
150
|
25
|
|
Testing

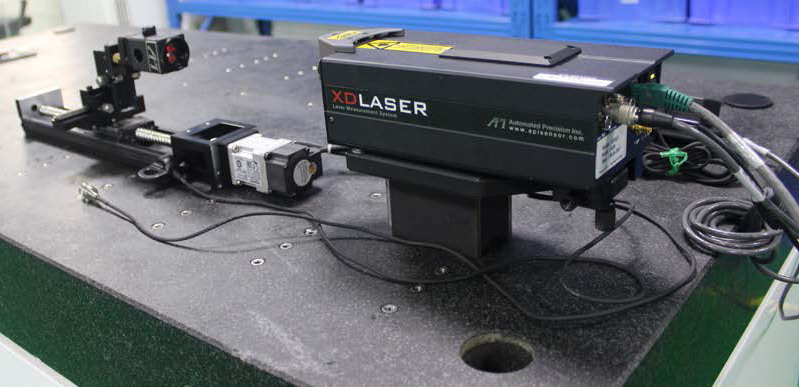

KK Accuracy Test by Laser Interferometer

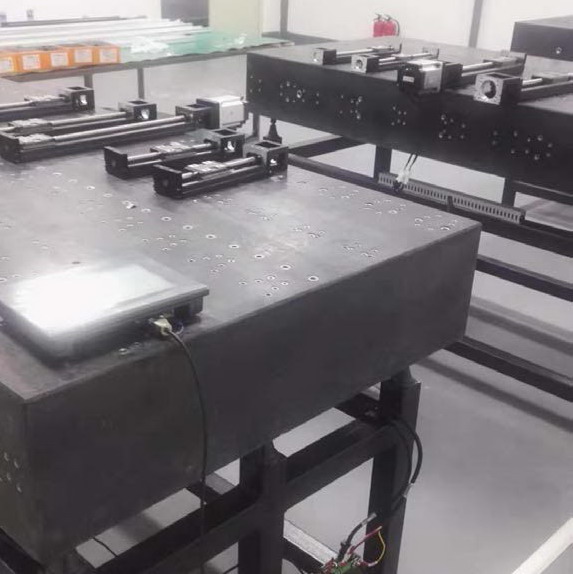

Life Test of KK Robot
