Quick Detail:

1. SC simplex adapter

2. No flange / Short Flange

3. Singlemode PC, singlemode APC and multimode PC available

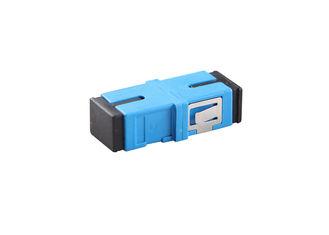

Single Mode / Multimode / OM3 SC Simplex Fiber Optic Adapter without Flange

Description:

Fiber optic adapters allow users to couple from one connector type to another same type. These adaptors are comprised of a polymer/metal outer body and inner assembly fitted with a precision alignment mechanism. These adaptors are precision made and manufactured to demanding specifications. The combination of a ceramic alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.

FOCONEC offers SC Simplex adapters in plastic housing. All adapters have the type with or without flanges available for different installation requirement, and come with a choice of zirconia split sleeves to keep perfect contaction of two connectors. Our simplex adapters no flange suitable for high density cabling system, and include SM blue, SM green, MM beige, and OM3 Aqua types.

Features:

1. Telcordia, ANSI, TIA/EIA standard compliance

2. High precision alignment

3. Precision Zirconia split sleeve

4. Low insertion and return loss

5. High-dense type with short flange

Order Guide:

Product Description	Part Number	Housing Color
SC Simplex Single-mode Without Flange	AD-SCSNF-SM	Blue
SC/APC Simplex Single-mode Without Flange	AD-SCSNF-SMA	Green
SC Simplex Multimode Without Flange	AD-SCSNF-MM	Beige
SC Simplex OM3 Without Flange	AD-SCSNF-OM3	Aqua

Applications:

1. Fiber optic transmission system

2. CATV networks

3. Local Area Network

4. FTTH and FTTX

5. Testing equipment

Specifications:

Connector Type	LC, SC, FC, MU, ST, MTRJ, Hybrid
Fiber Type	Singlemode	Multimode
Insertion Loss	≤0.2dB
Return Loss	PC≤-45dB; UPC≤-50dB; APC≤-60dB	≤-30dB
Durability	≤0.2dB, after 1000 times
Operation Temperature	-40℃~+75℃
Storage Temperature	-40℃~+85℃

Competitive Advantage:

1. Full range of adaptors available

2. Fast delivery time

3. Custom colors available
