“Bealead” is an innovation company and committed to helping factories provide intelligent solutions.

Our company can provide all kind of logistic sorting machine. Such as crossbelt logistic sorting machine, ring sorter, linear

sorter and z type sorter...

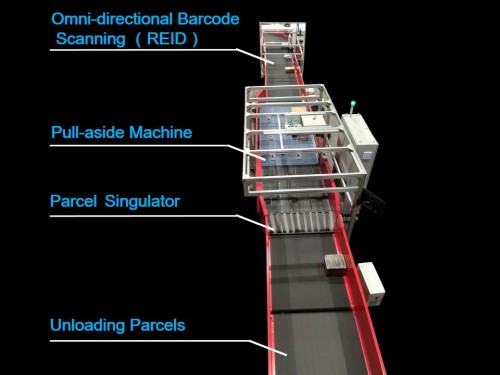

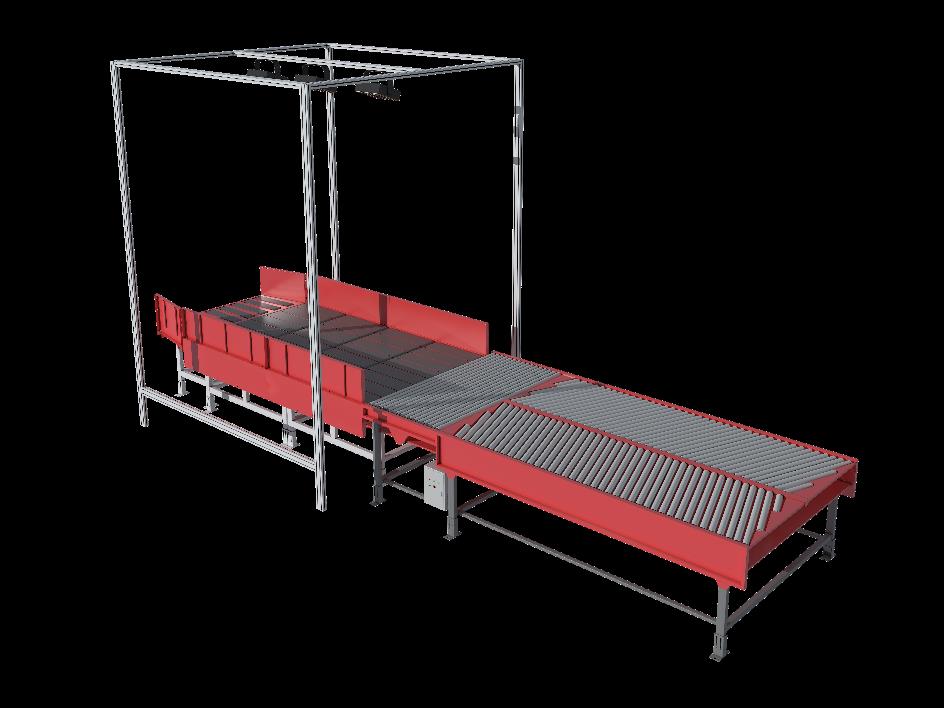

With a single piece separation system, sorting is more accurate. This machine has a modular structure, easy

assembly and strong versatility. The sort is fast and accurate, which can be applied to the sorting fragile goods.

It’s an industrial design, reliable structure and convenient maintenance. It can realize two-way and multi angle

sorting with higher sorting efficiency. It has strong applicability, especially suitable for sorting small pieces and

soft bags and flexible layout can be used with different types of conveyor docking.

Details

VISUAL SYSTEM：3D INDUSTRIAL CAMERA

SOFTWARE: SINGEL-PIECE SEPARATOR SYSTEM

PACKAGE MAX SIZE: 1000*700*700MM

PACKAGE MIN SIZE: 100*100*50MM

PACKAGE MAX WEIGHT: 30KG

PACKAGE MIN WEIGHT: 100G

OUTPUT NUMBER: 32

SPEED OF MAIN LINE: 0.5-2(CUSTOMIZABLE)

OPERATING TEMPERATURE: -10-50℃

EFFICIENCY: 6000PCS/H

SEPERATION SUCCESS RATE: ≥99%

VOLTAGE：380V

MAX POWER：18KW

Company Information

ChangShu Bealead Automatic Machine Co.,LTD. located in changshu, Jiangsu ,China. Close to ShangHai Port, driving for

1.5 hours, transportation is convenient.

Our company is a R&D manufacturer of intelligent devices for clothing production.

We are leadingpositions in down feather filling area, covered most of the Chinese market. Bosideng, Luo Lai, UNI QLO, are

our customers.

We also have agents overseas, and more than 20 technicians for after sales service. They could answer you and service

you at the first time you need.

Our Factory

]

Exhibitions
