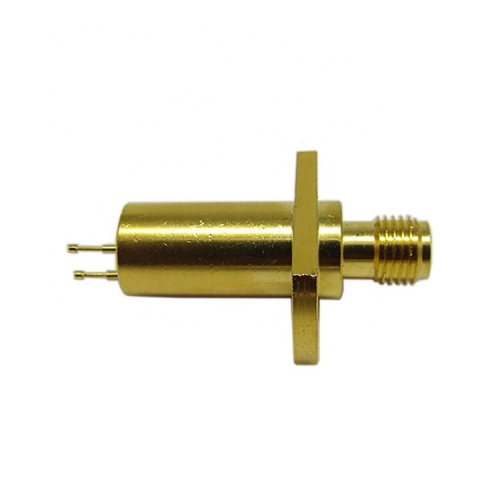

SMA RF Connector 50 Ohm microstrip connector

SMA connectors

Series SMA are very popular thread coupling miniature coaxial connectors, which have the excellent performances of high reliability, high mechanical strength, high durability, and optimum electrical properties, are widely used to connect RF coaxial cables for mobile communication equipment and electronic communication instruments. The interface dimensions and technical characteristics are in accord with the specifications of MIL-C-39012, IEC169-15 and CECC22110. Characteristic impedance 50 Ohm.

Smb Antenna Conector ,SSMA RF Connector

Key Performance

Characteristic Impedance: 50 Ohm

Frequency Range

With semi-rigid/flexible cable: 0~18GHz

With flexible cable: 0~12.4GHz

VSWR

With semi-rigid/flexible cable: ≤1.05+0.02F

With flexible cable: ≤1.15+0.02F

Dielectric Withstanding Voltage: 1000V

Insulation Resistance: ≥5000MΩ

Contact Resistance

Center Conductor: ≤ 3mΩ
Out Conductor: ≤ 2mΩ

Temperature Range: -65~+165°C

Durability: 500 cycles

We are a professional manufacturer of radio frequency connectors, in addition to SMA series of products, we can also produce N type, MCX connectors and RF adaptor ,cable assembly  , Smb Antenna Conector ,Crimp Smz Bulkhead Connectors ,Tnc Cable Mount Connectors .factory could accept OEM service, welcome to consult.
