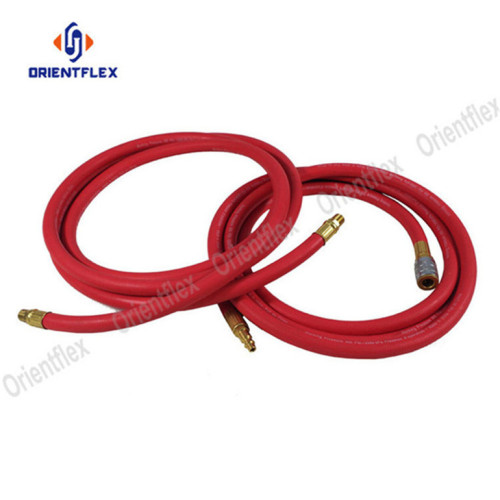

Smooth multi function air tools hose assembly
Basic Info
| Model No. | RAS |
|---|---|
| Brand Name | Orientflex |
| Material | Synthetic Rubber |
| Capability | Rubber Air Hose |
| Color | Black/Red/Yellow Etc. |
| Sample | Available |
| W.P. | 20 Bar |
Product description
Application
Oil mist resistant Air hose for versatile general industries and construction sites NOT suitable for transfer of petroleum products
Temperature
-20℃(-4°F)to +70℃(+158°F)
Tube
Black, smooth, synthetic rubber oil mist resistant
Reinforcement
High strength synthetic yarn
Cover
Yellow ( Red / Blue / Blck ) smooth, synthetic rubber, weathering and ozone resistant
Optional request
ISO2398,Type1,Class A
Specifications
| Item Code. | I.D. | O.D. | Work Pressure | Burst Pressure | Max.Length | ||||
| inch | mm | mm | bar | psi | bar | psi | m | ft | |
| RAS-04 | 3/16" | 4.8 | 12 | 20 | 300 | 60 | 900 | 120 | 400 |
| RAS-06 | 1/4" | 6.4 | 13 | 20 | 300 | 60 | 900 | 120 | 400 |
| RAS-07 | 5/16" | 7.9 | 15 | 20 | 300 | 60 | 900 | 100 | 330 |
| RAS-09 | 3/8" | 9.5 | 17 | 20 | 300 | 60 | 900 | 100 | 330 |
| RAS-12 | 1/2" | 12.7 | 21 | 20 | 300 | 60 | 900 | 100 | 330 |
| RAS-15 | 5/8" | 15.9 | 26 | 20 | 300 | 60 | 900 | 100 | 330 |
| RAS-19 | 3/4" | 19.1 | 29 | 20 | 300 | 60 | 900 | 100 | 330 |
| RAS-25 | 1" | 25.4 | 36 | 20 | 300 | 60 | 900 | 100 | 330 |
| RAS-31 | 1-1/4" | 31.8 | 44 | 15 | 225 | 45 | 675 | 60 | 200 |
| RAS-38 | 1-1/2" | 38.1 | 54 | 15 | 225 | 45 | 675 | 60 | 200 |
| RAS-50 | 2" | 50.8 | 66 | 15 | 225 | 45 | 675 | 60 | 200 |
ORIENTFLEX
Factory History: Established in 2006
Business Type: Manufacturer and exporter
Main Products: Small machinery such as hydraulic hose crimping machine, industrial hose, hydraulic hose, PVC hose and hose coupling.
Fast Delivery
INTERNATIONAL AIR MAIL
Payment
Shipping
Different amount of time will be required for different
Can you produce the hose with my own brand ?
Yes, we have been offering OEM service for 10 years.
Can you send us a sample to test quality before ordering ?
Yes, we can provide sample by free but the freight and other charges is payed by the customers.
Could we pay a visit to your factory ?
Yes, you are always welcome to visit our factory.
Can you help us do the custom clearance ?
Yes, we can. We can help you find a professional custom clearance company to do it.
Can we get the goods without your company name to export ?
Yes, we can. We are allowed to use your designated agent's name if you have one.
Can you produce goods with special specification ?
First of all, we need to know the specification in details, and then we need to check with our technology department.
