soil testing machine
Basic Info
| Model No. | QTZ-3D |
|---|---|
| Brand Name | huaxiamaster |
| Usage | Ore |
| Power Type | Gasoline |
| Type | Core Drilling Rig |
| Condition | New |
Product description
QTZ-3D electric soil sampling drilling rig
1. Brief introductions of QTZ-3D electric soil sampling drilling rig
QTZ-3D electric soil sampling drilling rig is an electric version of the QTZ-3 soil drilling rig (gasoline engine).
The improvement of QTZ-3D electric soil sampling drilling rig is mainly engine system. While QTZ-3 soil sampling drilling rig is equipped with gasoline engine, QTZ-3D is powered by electric. The QTZ-3D electric soil sampling drilling rig selects pure copper winding two phase electric motor as a power source. The advantage of using the electric engine as the power source is its stability, and it can continuously improve the working efficiency with a certain kind of power operation equipment. It greatly improves the feed speed. In addition, QTZ-3D electric soil sampling drilling rig is easy to operate, safe and stable, and can greatly reduce the labor force during the drilling operations.
2. Applications of QTZ-3D electric soil sampling drilling rig
· geotechnical investigation
· environmental soil survey
· gricultural soil survey
· groundwater survey
· coastal geological survey
· wetland environmental investigation
· tailing pond investigation
· archaeological investigation
· physical chemistry exploration secondary halo sampling
· the description of soil structure
3. Technical parameter s of QTZ-3D electric soil sampling drilling rig
|
QTZ-3D electric soil sampling drilling rig |
|
|
Voltage |
220v |
|
Power |
3.6kw |
|
Lighter way |
switch mode |
|
Energy dissipation |
low power consumption |
|
Impact times |
2600min/m |
|
Impact energy |
60j-79j |
|
Core depth |
15m-20m |
|
Host weight |
22kg |

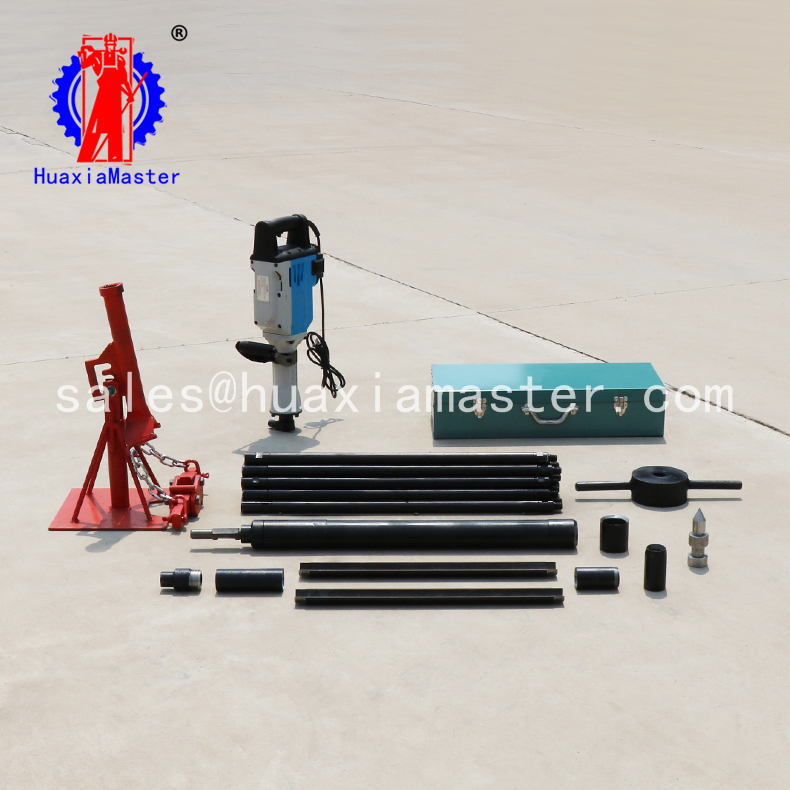

4. Configuration list of QTZ-3D electric soil sampling drilling rig
|
Item |
Parameter |
Unit |
Quantity |
|
Electric soil sampling drilling rig |
QTZ-3D |
Platform |
1 |
|
Shock reception |
32*150 |
pc |
1 |
|
Cones |
32*80 |
pc |
19 |
|
Drill pipe |
32*700 |
pc |
19 |
|
Taper wire |
32*100 |
pc |
19 |
|
Reducing nipple |
32*50 |
pc |
1 |
|
Hoop |
50*150 |
pc |
1 |
|
Open tube |
50*600 |
pc |
1 |
|
The blade tube boots |
50*100 |
pc |
2 |
|
Reducing nipple |
32*70 |
pc |
1 |
|
Hoop |
70*150 |
pc |
1 |
|
Open tube |
70*600 |
pc |
1 |
|
Inner edge pipe boots |
70*100 |
pc |
1 |
|
Outer edge pipe boots |
70*100 |
pc |
1 |
|
Portable sounding hammer |
10kg |
pc |
1 |
|
Sounding the reducing nipple |
32 |
pc |
1 |
|
Double sided hand |
32 |
pc |
1 |
|
Touch probe |
32 |
pc |
1 |
|
Puller |
Three force arm |
set |
1 |
|
Pipe wrench |
80mm |
hold |
1 |
|
Hold-all |
|
pc |
1 |
soil testing machine
