Solar Panel Welding System Technical Solution

Get Latest Price

Basic Info

Model No.
Brand Name

Product description

Product Description

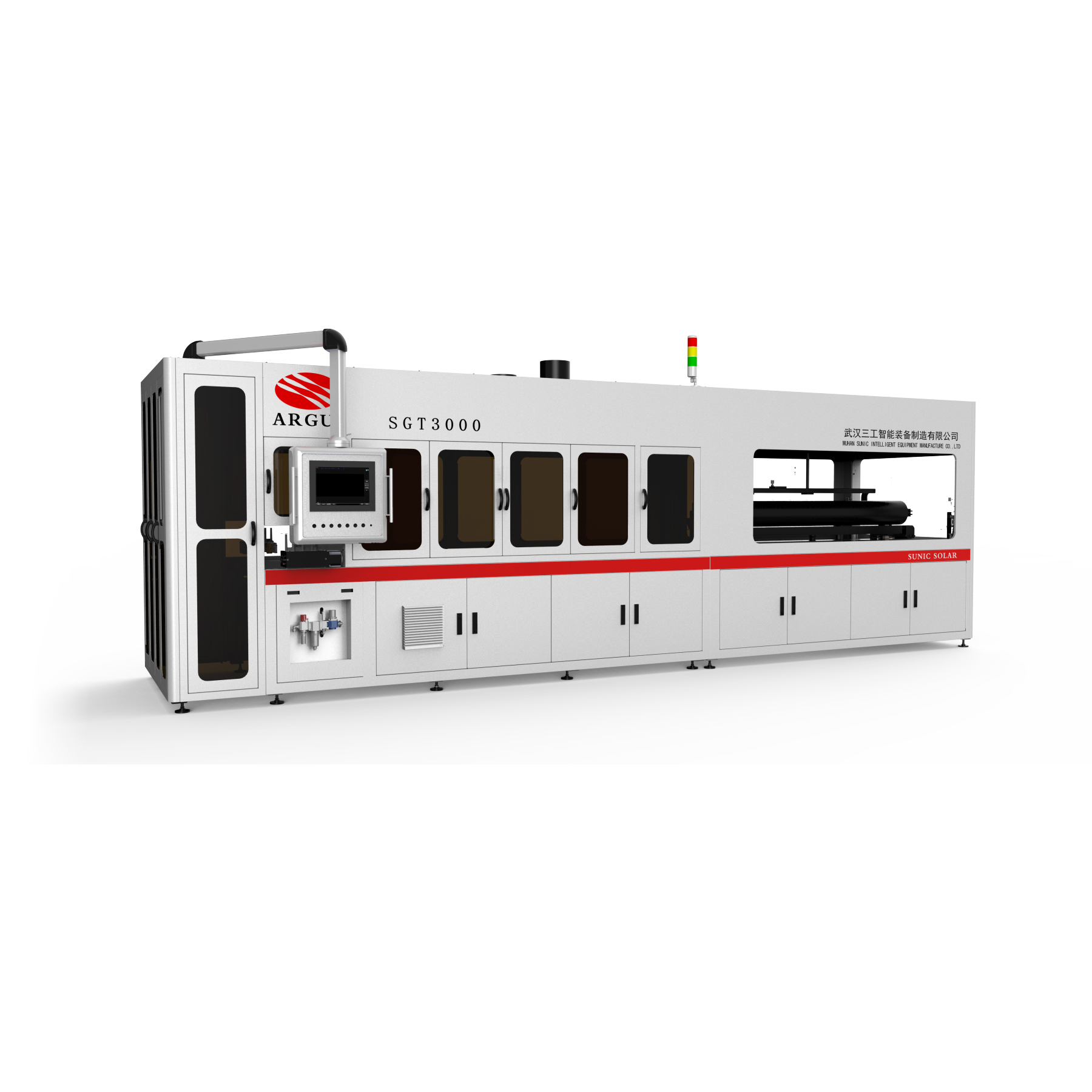

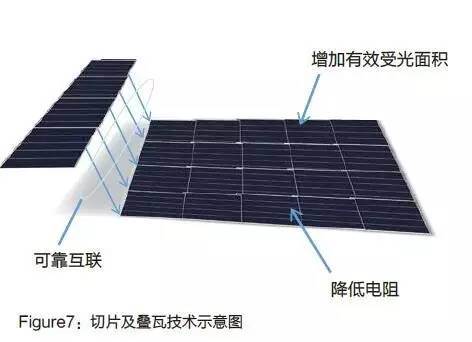

Automatic Control System Shingled Solar Cell Tabber&Stringer

Producing Efficiency	≥4000 cells/hour
Breakage Rate	≤2‰
Soldering Way	IR Soldering
Ribbon Requirement	Thickness:0.10～0.23mm，Width:0.9～1.2mm
Reduplication Of Solar Cell	1～2mm（set according to customer’s requirement）
Solar String Length	5～40 cells(set according to customer’s requirement）
Solar String Length Error	±0.5mm
Solar Cell Straightness Error	±0.5mm
Ribbon Laying Precision	（leaky white control）Front ±0.2mm、Back ±0.2mm
Power Supply	AC380V±5%、40A、50Hz
Air Supply	Air Pressure 0.5～0.8MPa Clean Compressed Air，Air Flow 40L/min pipe diameter of air path Φ12mm
Power Consumption	Total 27KW
Temperature Required	20～30℃
Equipment Dimention	2250x1650x2000mm
Weight	1500kg

Package

Standard Fumigation Wooden Packing for photovoltaic module test machine

port

Any domestic port in China or solar panel tester shipment

Lead Time :

Lead Time about 7 working days

Warranty & Service

1, Service Aim
As the High-tech manufacturer supported by China local government, we are always committed to supply customers with best Solar
module tester quality and operation experience. With the service aim Customer Always First, we continuously improve and keep
innovation with solar cell panel equipment and bring new technology and standard for the whole market and Solar industry. The
requirements of Environmental, stable, Humane are the constant pursuit with the manufacture of Solar panel testing machines.

2, Customized Design
As the specialized manufacturer of Solar equipment, we have powerful and experienced R&D Department which can do Personalized
designs according to different requirement in different industries and application. To satisfy customers, not only can we provide
various kinds solar equipment with standard configuration, but also would like to supply customized designing and manufacture
according to requirements, to ensure our products always present the best operation experience to Customers all over the world.

3,Quality Control
1) Configuration Confirmation before manufacture: During the communication process with customers, our sales engineers would like
to confirm the configuration according to customers' requirements one by one, and keep smooth negotiation with our R&D Department
to supply customers the best solutions for solar module teser. After confirmation, our R&D Department will provide the Solar Panel
Flash Tester Equipment production drawings to our Production line for manufacture.

2) Quality Control During manufacture: Subjected to the Equipemt production drawings supplied by R&D Department, our Production
line will strictly arrange the raw material BOM sheet and do spare parts processing and assembling, on the meanwhile, they would
keep Sales Department and R&D department noticed with newest production feedback. Every procss of production is finished by
skilled worker, and is under responsibility by special Inspecation workers to set up complete Traceability system. After
production, our professional engineers will do debugging to each Solar module testing machine to ensure that the performance and
running condition is stable enough to satisfy customers' requirements.

3) After debugging, our QC Department,which is fully independent from our Production line will check the equipment conditions with
appearance, configuration, running performance, and submit the QC Inspection Report. Every equipment will be born with exclusive
serial number for future tracking and maintenance record.

4,After Sales Service
1) We supply at least one year warranty for all of our solar module tester equipment(except consumption parts), and provide
lifelong After sales and consultant service for all of our customers.

2) Installation and Debugging: We supply free installation and debugging service for our customers, as well as full sets Operation
Mannual for guiding. To save customers' cost, generally we suggest the Internet Remote training and debugging of parameter
settings. Meanwhile, we welcome that customers can come to our company for face-to-face training. And on basis that customers
supply the accommodation and tickets fees, we can also send our professional engineers to customers' workshop for installation and
training.

3) As Solar Stimulator manufacturer, we have professional and powerful After-sales Team, which are promoted from workshop
directly. They are full of experience in after sales and sort out rich solution for different problem and improvement to supply
the soonest service for all of our customers. If your machines happens to any problem, please contact our Sales Engineers in the
first time, and they will arrangement the solution plan by their utmost.

4) After Sales Responding Time: Responding time within 8 hours on working days; Within 24 hours on holidays.

Company Profile

Wuhan Sunic Photoelectricity Equipment Manufacture CO., LTD, located at Eastern Lake high-tech district(Optics Valley), is a high technology innovation enterprise recognized by the Chinese government. It is authorized by the government to be in charge of the "863 Project" with privilege in importing and exporting. The company is dedicated to the R&D, production, selling and service in Laser processing equipment and solar energy equipment sets.It provides the customers with complete practical solutions in this field. Today, Sunic is China's leading professional photoelectricity equipment manufacturer in Laser processing equipment with the most complete product line, widest application.

In 2005, the newly found company has filled the blank of solar Laser scribing machine in the Chinese market with its YAG series which became the assigned product of the foreign aiding project of National Foreign Trading Committee. It replaced the imported counterparts and occupied the leading position in the domestic market while being competitive world-wide. It was the product that terminated the reliance of importing in Laser scribing machine of China. Its end-surface pump Laser of infra-red(1064nm),green(532nm) and ultra-violet(355nm) met internationally recognized standards. Meanwhile, the company had acquired recognitions by CE, IS09001 quality control system, National Laboratory Electromagnetic Compatibility and 3A. It is the holder of more than 10 national patents and two province level Prize of Advances in Technology.

Sunic's company moral is "Focus on industry, focus on products." The company's has more than 30 various products:

- non crystalline silicon cell production equipment series;

- crystalline silicon cell packaging equipment series:

- Laser scribing machines, automatic welding machine series, automatic typesetting machine, cell selector, component tester, EL defect detector;

- dynamic CO2 Laser marking machines, Laser light guide plate RBI machine, fiber Laser marking machine, semi-conductor Laser marking
