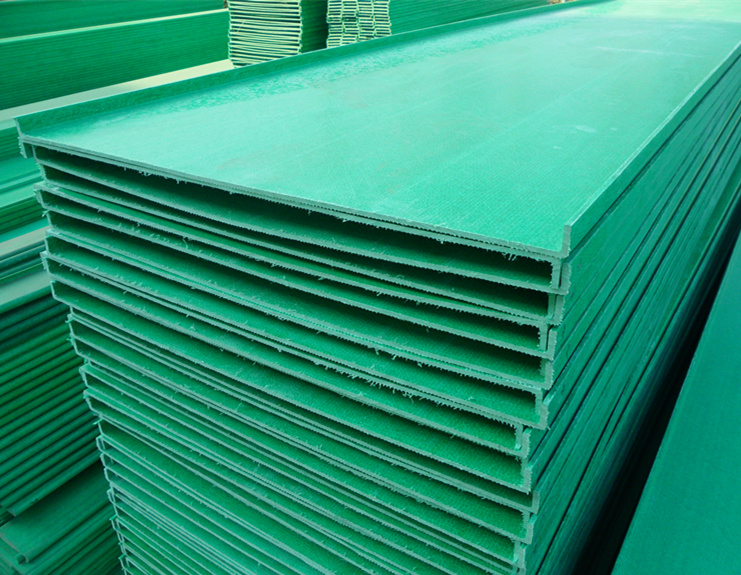

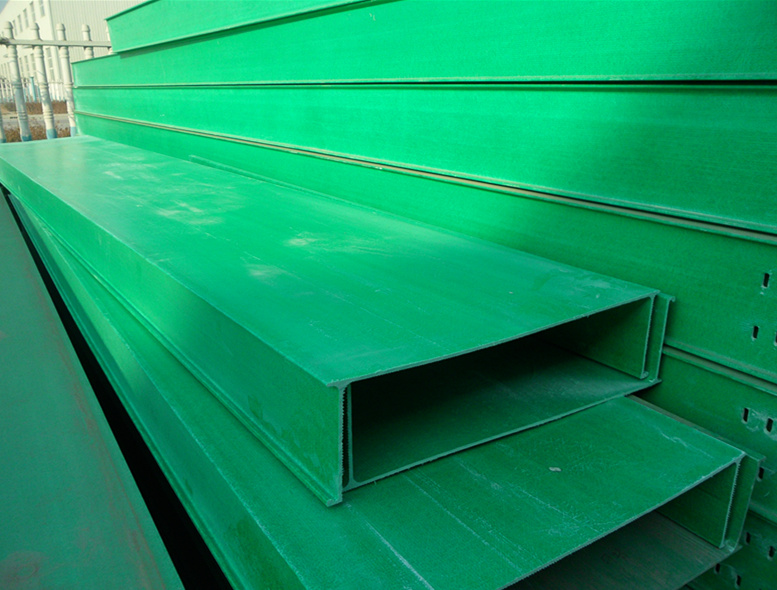

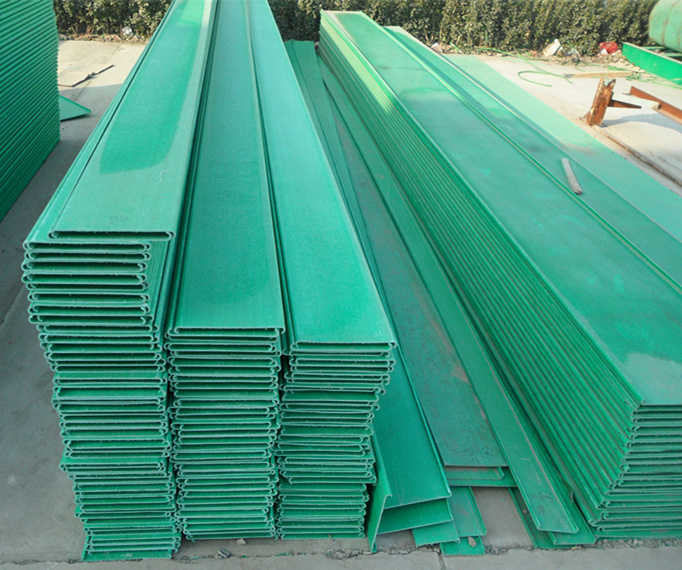

Solid Bottom Cable Tray

Cable tray is assembled by pultruded FRP profiles; suitable for electrical cable,control cables, lightening cable and fittings.

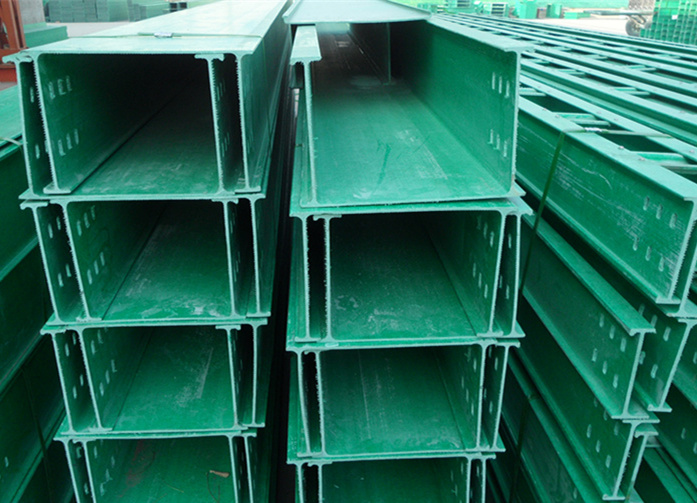

Trough cable tray is consists of a ventilated or solid bottom contained within longitudinal side members. Provides moderate ventilation with added cable support frequency and with the bottom configuration providing cable support every 4 inches.

Available in metal and nonmetallic materials. Generally used with control and instrumentation cables in moderate heat generating applications with short to intermediate support spans of 5 feet to 12 feet. Trough cable tray bottom is available in flat sheet or corrugation that is 3 times stronger and 21 times stiffer than flat sheet bottoms. Corrugated seams between jointing sections eliminate need for bottom seam splices. Materials available: Aluminum, hot-dipped galvanized steel, stainless steel or figerglass.

1. Low cost, significant cost savings compared to standard traditional tray products.

2. Light in weight, wide range of sizes.

3. Fast heat dispersion.

4. Strong enough to withstand short circuits. Provides strength, rigidity without

    additional hardware.

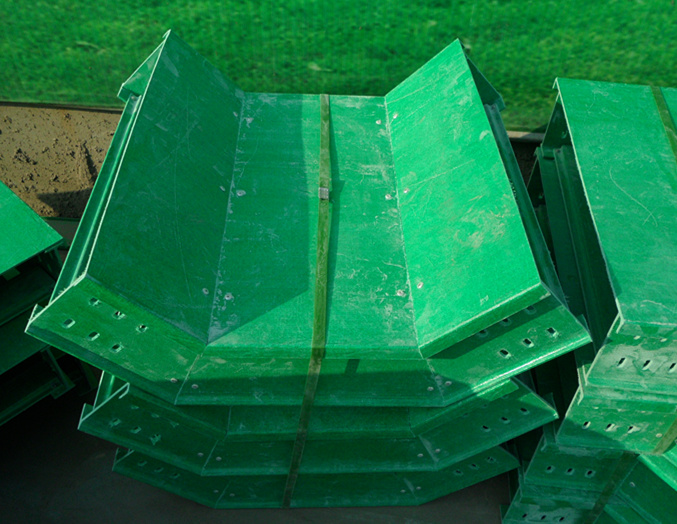

5. Adapts to difficult architectural designs to accommodate changes in direction

   and elevation of cable runs.

6. Flexible, easy and fast installation. Design allows cable exit or entry at any point.

7. Cables can be secured to clamps or ties.

8. Various hardware accessories available to fix, support and install.

9. Safe smooth edge design to protect cable.

10. Easy for line check and cleaning , easy maintained.

The electric cable tray system  are widely used for construction projects, such as layingelectrical wire and cable.

Making the lay of the electric wire, electric cable andpipeline achieved the universalized level.
