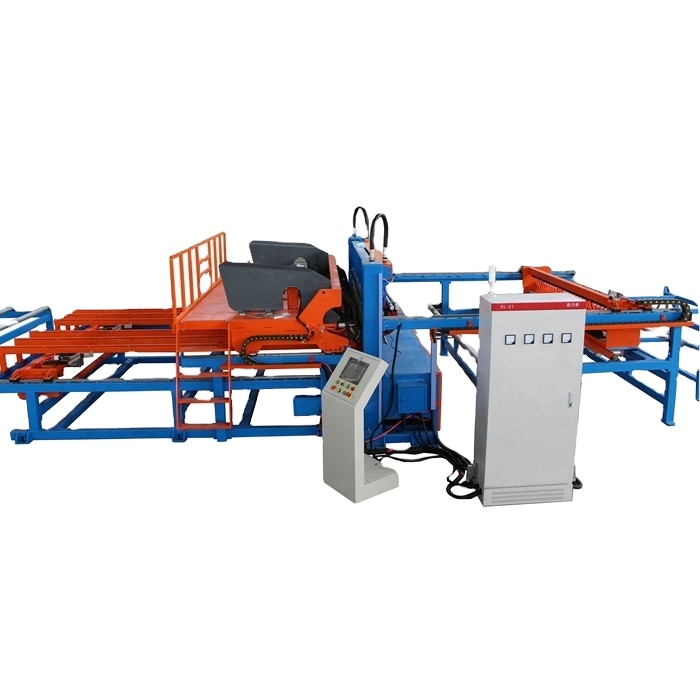

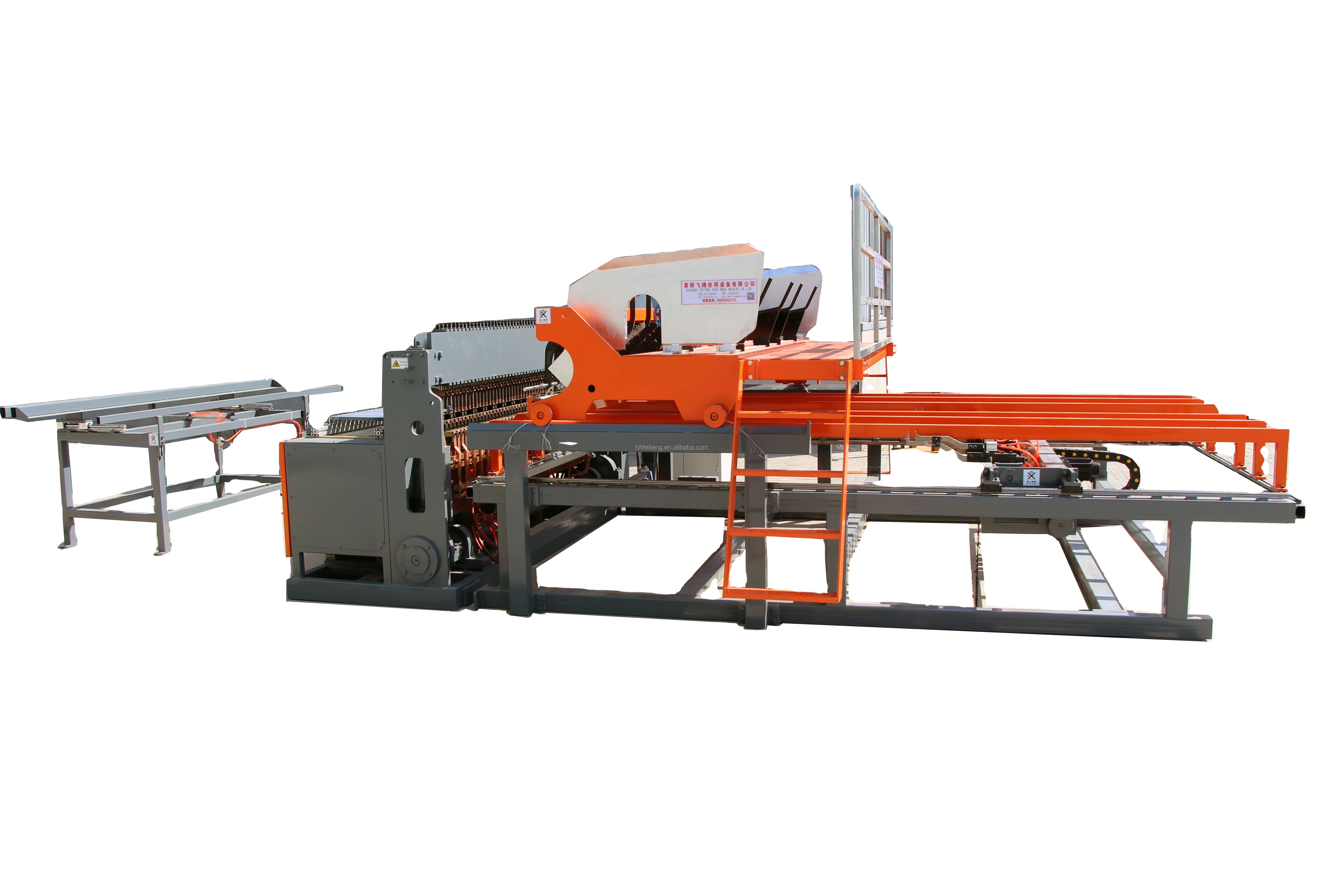

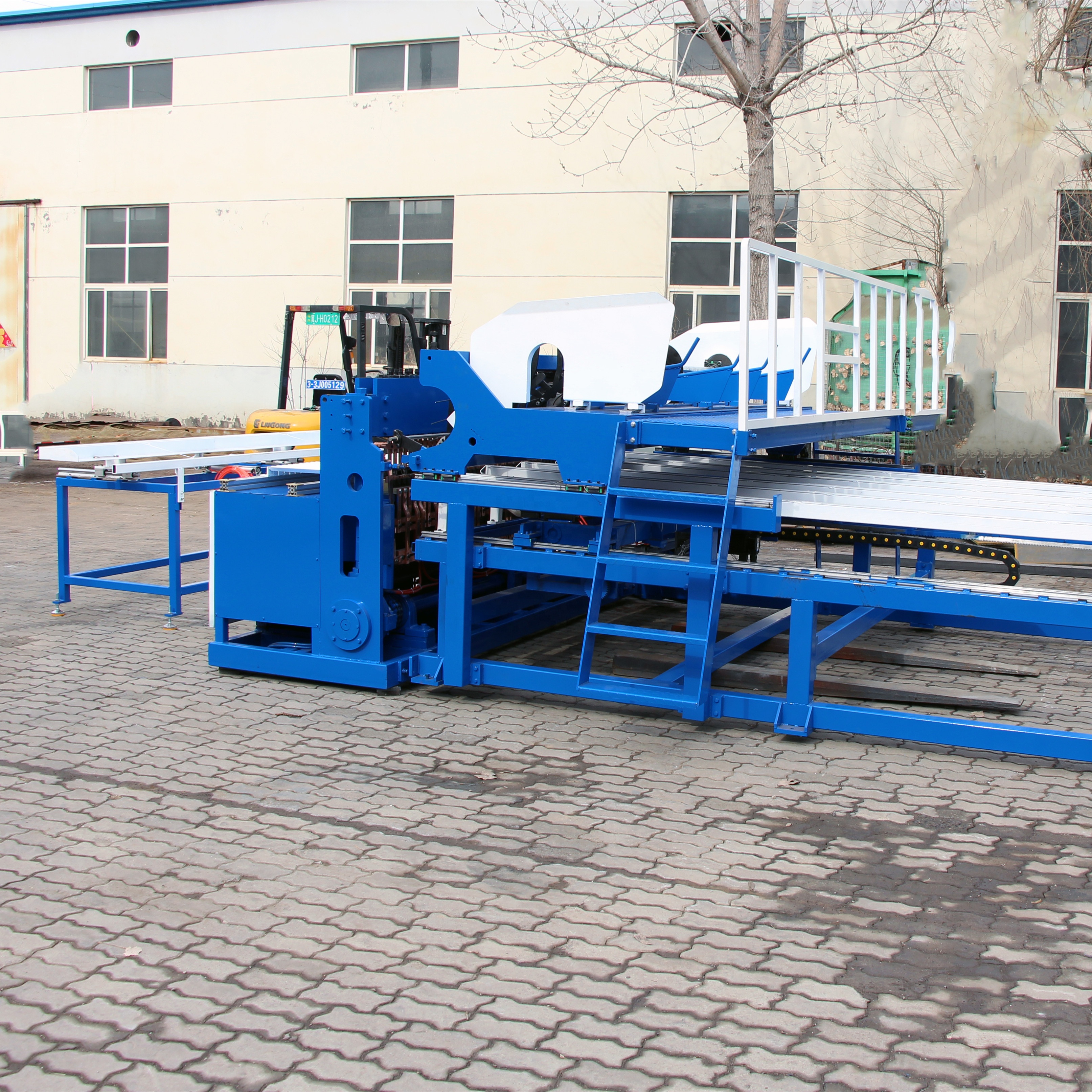

Solid Construction Mesh Welding Machine for High Quality Heating Facilities
$25800.00
≥1 set
$24000.00
≥2 set
$22000.00
≥3 set
Mesh width:
- max2100mm
Wire diameter:
- 3-6mm
Basic Info
| Condition | New, New |
|---|---|
| Machine type | Wire Mesh Welding Machine |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Not Available |
| Marketing type | Ordinary Product |
Product description
Fence Mesh Panel Welding Machine?
? ? ??The machine adopts synchronous control technique, both welding time and cent-control welding is composed of PLC program system. The input front-panel has two forms, touch screen and keyboard, it makes the machine more intelligent and reasonable. The weft wire supply is automatic. The greatest advantage is that it can be adjusted the distance of weft random on the same one piece of mesh sheet. Welding machine adopts new type high-efficiency transformer, shifting gear can be divided into eight level, expand the scope of welding wire diameter. Easily operation, high flexibility, the production is several times than the artificial single spot welding machine.
? ? It mainly used for fence netting (highway, railway and mountain fence mesh, construction mesh etc.)?
?
| Cross wire diameter | 3-6mm |
| Line wire diameter | 3-6mm |
| Width of mesh | ≤2500mm |
| Line wire spacing | 300≥X≥50mm mechanical adjustment |
| Cross wire spacing | ≥50mm freely programming adjustment |
| Line?wire feeding method | pre-cut/feeding by robot |
| Cross wire feeding method | pre-cut/auto feeding |
| Number of max.welding spot | 51pcs/row |
| Welding speed | 60-70times/min |
| Control method | PLC programming control, servo stepper system |
| Main power | 5.5kw(inverter braking) |
| Transformer power | 100KVA*8(water cooling) |
| Rated frequency | 50HZ(can be customized to the practical environment ) |
| Supply voltage | 380V(can be customized to the practical environment) |
| Weight | 6.5T |
| Overall dimension | 6500*3600*1800mm |
?
?
?
?
|
WIRE DIA 1.5-3.0MM MESH CELL :MIN 25MM ADJUSTABLE WIDTH :MAX 2500MM ? |
 ? |
|
? ? ? ? ? ? ? ? ? WIRE DIA 1.4-3.0MM MESH WIDTH 75-320MM MESH CELL:75-300MM ? ? ? ? ? ? ? ? ? ? ? |
 |
|
WIRE DIA :1.5-3.5MM MESH CELL:25-300MM MAX WIDTH OF MESH :2500MM |
 |
|
WIRE DIA 3-12MM MESH CELL:MIN 100MM MAX WIDTH OF MESH :3300MM |
 |
Pre-sale service
1. Select equipment model.
2. Design and manufacture products according to clients' special requirement.
Services during the sale
1. Pre-check and accept products ahead of delivery.
2. Help clients to draft solving plans.
After-sale service
1. We will reply you for your inquiry in 24 hours.

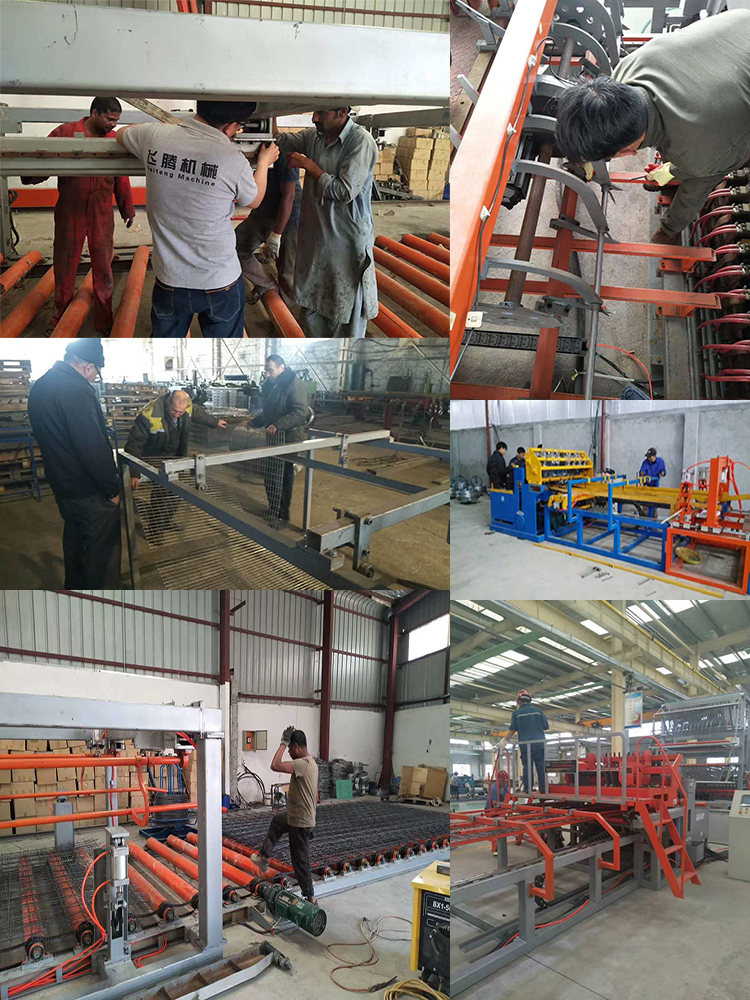

2.?After you get the products, we'll send technicians to your factory. Then they will guide your workers to install and debug the machine patiently untill the machine can work normally. Since our factory established, our after-sale team had been to many contries and received customers' critical acclaim.
? ???Established in 1997, Huanghua Feiteng Wire Mesh Welding Machine Co.,Ltd. is a professional manufacture and exporter which is concerned with the design, development ?and sale of wire mesh welding equipment. We are located in Huanghua, Hebei province with convenient transportation access. Our products comply with international quality standards and they're greatly appreciated in a variety of different markets throughout the world. With huge R&D team, excellent sales staff and professional after-sale service, our company can solve all the worries for customers.
?
