Solid Drink Granule Drying Machine

The Solid Drink Granule Drying Machine often use to dry the wet granules, so Drink Granule Dryer often use to dry the wet granules that made by ZL Revolving Granule Making Machine, ZL Series Granulator, Revolving Extruder Granulating Machine, YK Series Swaying Granulator, Swaying Granulation Machine.



Solid Drink Dryer Introduce

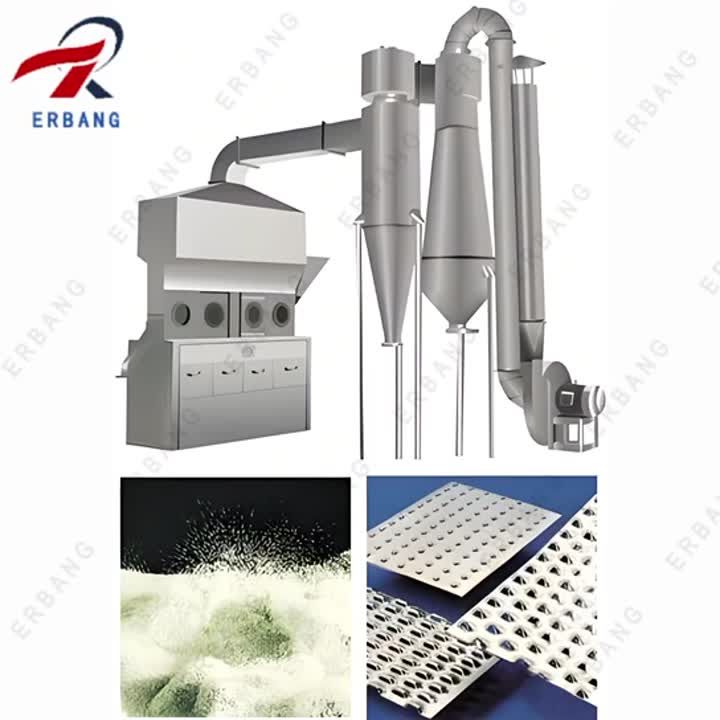

Solid Drink Dryer is also called as fluidized-bed. Solid Drink Granule Dryer consists of air filter , heater ,fluidized-bed main machine, feeder , cyclone separator , cloth bag duster ,high-pressure centrifuge fan and operation table. Because the properties of raw materials exist difference, when equip the dust removing equipment, it should consider the practical need. It can select cyclone separator and cloth bag duster at the same time or one of them. In general speaking, it needs to select cyclone
separator only for raw material that is large in specific gravity and cloth bag duster for powder and small granule raw materials that is light in specific gravity .Meanwhile there is air feeding device and belt conveyor for selection.
Separated granule solid raw material is fed into fluidized-bed drier through feeder. Fresh air through filtering and heating is sent to the bottom of fluidized-bed by fan and contacts with solid raw material on distributing plate. In this way the fluidized state is formed and the heat exchange between air and solid is carried out. The dried raw material is discharged from outlet and wasted gas is exhausted from the top of fluidized-bed where catches solid powder through cyclone separator , cloth bag duster, Steam, electricity or hot air furnace can be used (it can be supplied as request).



Solid Drink Granule Dryer Principle

The Solid Drink Granule Drier is heated by means of steam or electric power, and also heated with hot air directly from fuel-& coal-burning hot air furnace.



Solid Drink Granule Drying Machine Features:

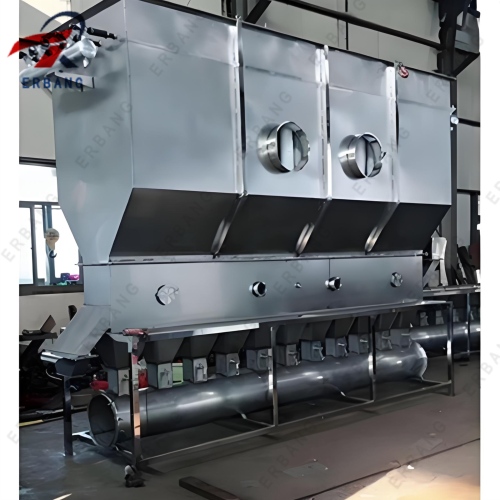

1. Horizontal Fluid Bed Dryer made by all stainless steel

2. Horizontal Fluid Bed Dryer is Solid Drink Granule Dryers

3. Horizontal Fluid Bed Dryer is Solid Drink Granule Dryer Machine



Solid Drink Granule Drying Equipment Application

Solid Drink Granule Drier Machine is also called fluidization bed. Through continuously improvement over 30 years, fluidizing dryer has widely applied in the fields of pharmaceutics, chemicals, foodstuff, processing grain etc. For example, the dehumidification and drying of powder and granular materials such as bulk pharmaceuticals, granular patent medicines, preparations, feed, plastic resin etc. The granular diameter shall be within the range from 0.1 to 6mm and the best from 0.5 to 3mm.



The main technical parameter datum of fluidizing dryer is for reference. We also produce and design product as per customers' requirement.

Type	Capacity(water kg/h)	Dimensions(mm)	fan power(kw)	Inlet temp (ºC)	material temp (ºC)	steam(kg/h)	electrical(kw)
XF-20	20-25	2600X800X2800	7.5	60-140	40-80	100	60
XF-30	30-45	2600X1000X2800	15	60-140	40-80	200	120
XF-50	50-80	5000X1200X3300	22	60-140	40-80	400	240
XF-80	120-150	6000X1200X3600	45	60-140	40-80	600	360
XF-150	160-200	6000X1200X4200	55	60-140	40-80	800	480
