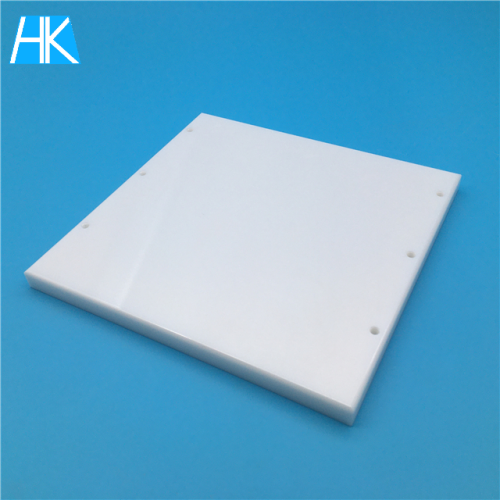

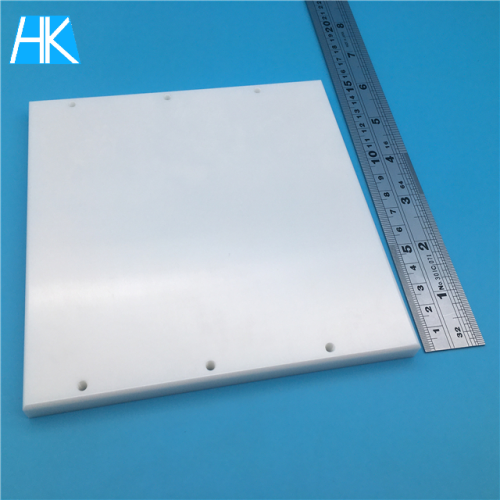

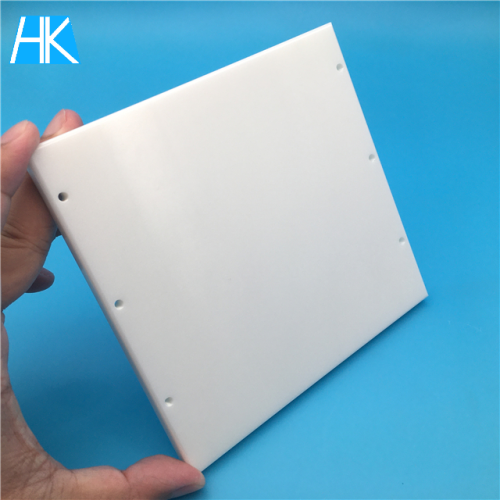

solid engineering zirconium oxide ceramic blank sheet plate

Reputation depends on quality,  quality comes from Hard!

Zirconia Ceramics:

The tonnage of the zirconia ceramic machine tool-whether the punching force of this mold is suitable for this machine tool, otherwise, the structure of the mold must be changed or other processing methods must be selected;
Whether there is a rotating station-if the machine tool station is a non-rotating station, the guide sleeve or lower die must consider the double-key groove structure;
The distance between the upper and lower turntables of the machine tool-in order to determine the height of the lower mold (forming mold);
Processing plate information-the material and thickness of the Zirconia ceramic plate processed by the customer must be determined to determine the material and gap selected for the mold;
Mould positioning direction-the direction of the positioning pin (groove) of the mold (especially the special-shaped mold) should be determined according to the customer's processing requirements. In addition, in addition to the square blade mold, the guide sleeve or lower mold of the other molds must consider two keyways;
Mold type-There are many types of molds, and the type of mold ordered by the customer must be clarified.
Thick turret type: Ø AMADA series A, B, C, D, E stations, Wilson80 (integral) and 90 (split) structure;
Book turret type Ø Strippt series 5/8 stations, large station with gold square and round station imported, domestic structure; small station integral structure (mold D = Ф31.75mm, Ф32mm two); small station split structure (imported Thread and domestic thread); Ø Murata series A, B, C, D, E, F and other stations; Ø TRUMPF series 0 type, 1, 2, 3 type, heavy duty Type 1 and Type 2.

Data Sheet↓

Color: Customized
Density: 6.0g/cm3
Zirconia Content: 94.4%
Gas permeability: 0
Water Absorption: 0
Crystal Size: 0.5um
Rockwell Hardness(45N): 78R45N
Vickers Hardness (Load 500g): 11.5(1175)Gpa(Kg/mm2)
Flexural Strength(20°C): 800Mpa

Compressive Strength(20°C): 2000Mpa

Modulus of Elasticity(20°C): ＞200Gpa

Fracture Toughness(20°C): 9.0 MPam1/2
Thermal Conductivity(20°C-400°C): 2.5W(m.K)
Thermal Expansion Coefficient: 9.6 10-6/°C
Thermal Shock Resistance: 250 △T°C

Application industry:

Machinery, fiber optic, knife, medical, food, petroleum etc.

Specific application:

plunger, ceramic shaft, fiber optic bushing, stub, grinding, ceramic knife, ceramic slide guide, machined plunger, mobile phone shell, watch case, haircut razor blade etc.

Why Choose Us?
1.12 years of professional production industrial ceramics factory
2.High quality products with low price
3.High precision parts with lowest tolerance
4.Short time for production
5.Has a group of experienced, professional and efficient R&D team
6.Has a good reputation in China and abroad.

7.MOQ is not limited, small quantity is welcome.

8.Vigorous team and good after-sales service

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
