Spur helical gears in car hob cutter

Get Latest Price

You might also like

TOMAN medium gear cutting machine

1 Set/Sets (MOQ)

y3120 cnc gear hobbing machine

1 Set/Sets (MOQ)

TOMAN gear cutting hobbing machine

1 Set/Sets (MOQ)

y3120 gear hobbing cnc machine

1 Set/Sets (MOQ)

gear hobbing machine Y3120

1 Set/Sets (MOQ)

cnc gear hobbing machine of gear transmission Y3135

1 Set/Sets (MOQ)

Hot sale and good price gear cutting machine

1 Set/Sets (MOQ)

CNC Gear Hobbing Machine for Sale Near Me

1 Set/Sets (MOQ)

CNC Automobile engine gear cutting machine for sale

1 Set/Sets (MOQ)

cnc gear hobbing machine for transmission gear series

1 Set/Sets (MOQ)

Basic Info

Model No.	Y3120CNC7
Brand Name
place of origin	China
Whether CNC machine tool	Cnc
status	New
Types of	Gear Hobbing Machine
Video factory inspection	Provided
Mechanical test report	Provided
Marketing type	New Product 2020
Core component warranty period	1 Year
Core components	Engine, Gearbox, Motor, Gear, Pump
warranty period	1 Year
Core selling point	Automatic
Applicable industry	Manufacturing Plant, Farms, Energy &Amp; Mining
Out-of-warranty service	Video Technical Support, Online Support, Spare Parts
Where to provide local services (in which countries are there overseas service outlets)	India, Malaysia
Showroom location (in which countries are there sample rooms overseas)	None

Product description

TOMAN is known as a supplier of top-quality gear hobbing technology for high-efficiency gear production. TOMAN has the right solutions for gear production: cutting-edge gear hobbing technology and the complimentary machines for chamfering and deburring.

TOMAN is systematically expanding its scope of technology by adding a range of gear production methods: shaving, shaping, tooth flank grinding, profile grinding and generating grinding.

Automatic Gear Cutting Machine For Automobile Y3120cnc7 Png

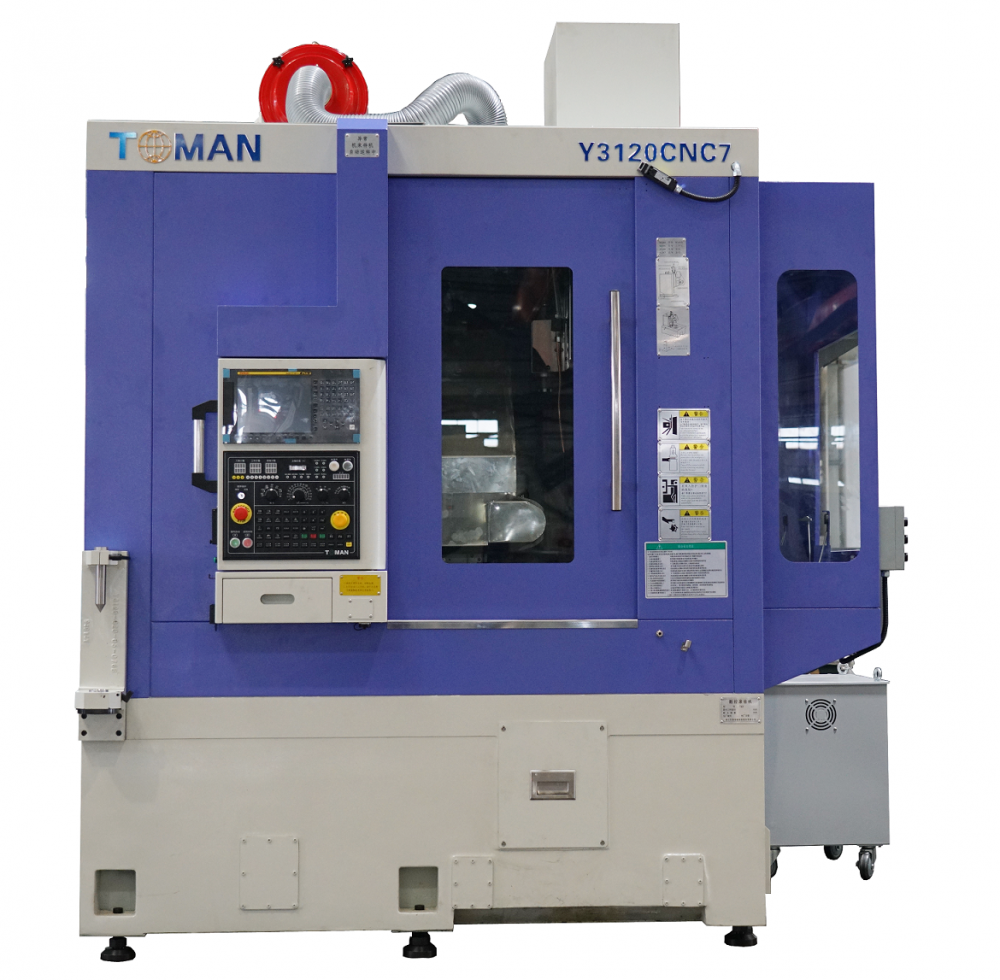

Y3120 CNC7

7 Axis-CNC Hobbing Machine

Medium-sized Gear Hobbing Machines

An Engery Saving and Complete Hobbing Machine

Automatic loading/unloading material device

FANUC numerical control system and servo drive, system reliability, simple operation

Dry Cutting Hobbing Machine or Wet/Dry Cut Hobbing Machine is optionally available.

Max. Workpiece Diameter: Φ200 mm

Max. Module: 6

Main Technology Parameter

CNC hobbing machine	Unit	TMY3120
		Wet/Dry hobbing
Maximum workpiece diameter	mm	Φ200
Maximum module	mm	6
Worktable surface diameter	mm	Φ200
Hob maximum assemble diameterx length	mm	Φ130x230
Horizontal distance between hob center and worktable center	mm	30-230
Maximum hob axial movement amount	mm	180
Hob head slide travel （Z axis displacement）	mm	200-500
Max. swiveling angle of the hob head	Deg	±45°
Hob spindle motor power	KW	11
Maximum hob spindle rotate speed（B axis）	rpm	1200/1500
Maximum worktable rotate speed（C axis）	rpm	200/250
Radial feed speed(X axis)(stepless)	mm/min	1-2000
Radial maximum rapid moving speed（X axis）	mm/min	8000
Axial feed speed(Z axis)(stepless)	mm/min	1-2000
Axial maximum rapid moving speed（Z axis）	mm/min	8000
Tangential travel feed speed（Y axis）（stepless）	mm/min	1-1000
Tangential maximum rapid travel speed（Y axis）	mm/min	3000

Standard Configuration

Hob arbor assembly （ Φ32）	hydraulic system
Hob arbor automatic clamping device	NC controller system
Workpiece automatic clamping device	NC data memory card
Spindle positioning	Operational software
Fully-enclosed safeguards	Residual-current circuit breaker
Woking light	Hands action button
Three colour lights indicate machine status	RS232C connector
Workpieces counter	Air conditioner for electric cabinet
Main spindle ampere meter	Chip conveyor
Chip cart	Automatic lubrication system
Cutting oil tank （Wet hobbing ）	Mist collector
Cold spray gun （Wet hobbing ）	The sizing block for machine adjustment

Optional Configuration

Automatic loading/unloading material device	Workpiece clamping
Automatic material storage	Workpiece rough locator device
Deburring device	Automatic tooth align device
Independent hob adjustment device	Oil cooling device
Hob arbor assembly:（metric system：Φ10, Φ13, Φ22, Φ27, Φ40）,（Inch system： Φ16, Φ22.225, Φ26.988, Φ38.1)

Workpiece Spindle C Axis Jpg

Main Features

1. With the full CNC system 7 axis and 4 axis linkage, using the generating method principle, to achieve indexing and differential compensation movement by the CNC system electronic gearbox function, and produce Cylindrical Spur Gear, Helical Gear, Small Tcone Tooth, Drum Tooth, S

pline, Worm Gear, Sprocket and other teeth processing.

2. Adopted modular design, each functional components can be quickly combined into models with different functions, to meet the customer personalized, fast delivery requirements.

3. Easy to access and maintenance components with combining the hydraulic, lubricating and pneumatic components onto the machine tool.

4. Has fault self-diagnosis, spindle overload automatic monitoring and alarm protection functions etc.

5. Customers can purchase automatic loading and unloading device, automatic bin, deburring device and rough positioning device according to the processing needs.

6. The dual-station loading and unloading manipulator design of the processing position and the replacement position, compact and reliable structure, which saves the loading and unloading time to the greatest extent, and realizes less and unmanned processing, to improve the processing efficiency of the machine tool.

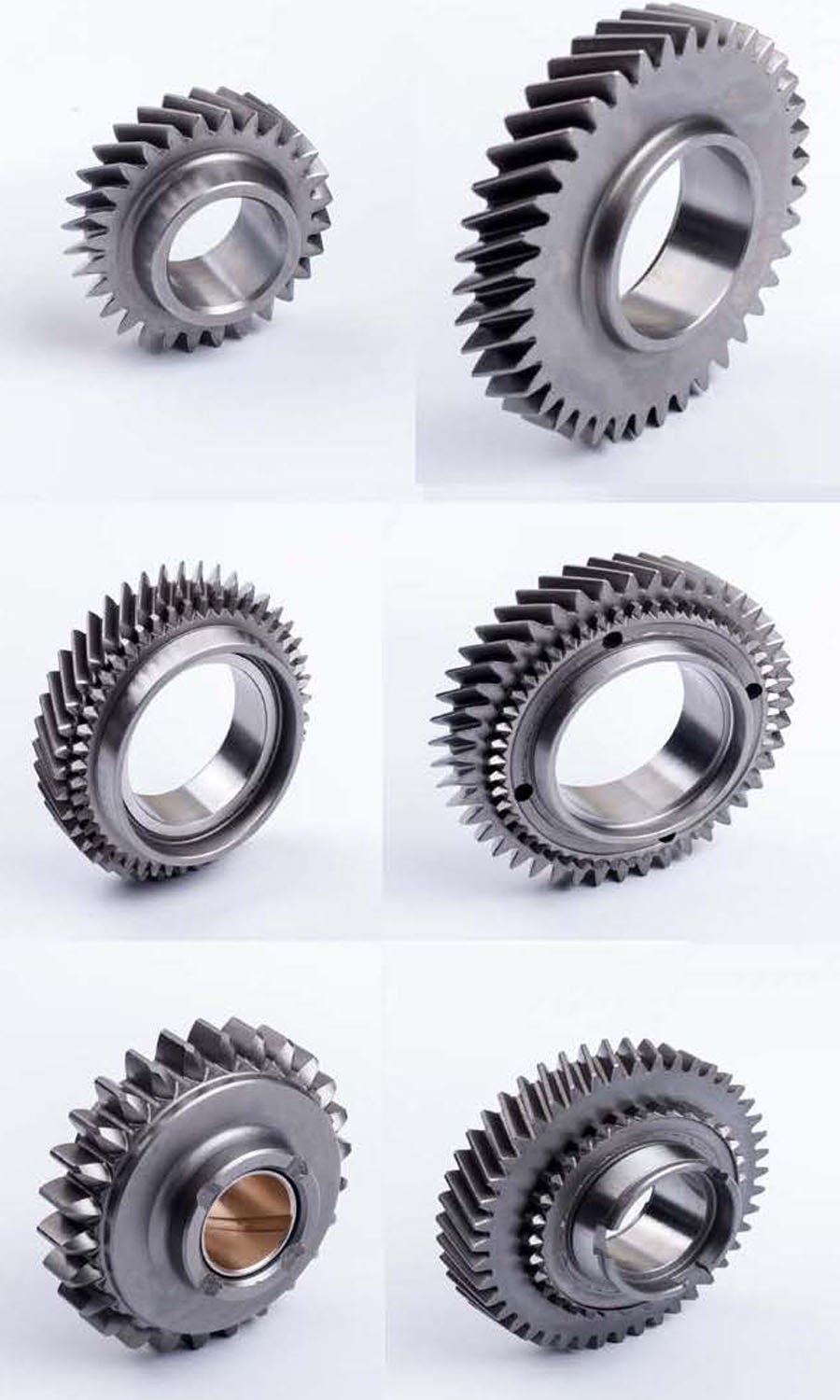

Spur helical gears

This kinds of gears are commonly used in gearboxes of various models, PTU of SUV models and EDU of electric drive.
TOMAN’s high efficiency CNC gear machine series products meet the higher precision, high speed automatic gear manufacturing requirements. According to the requirement of the gear product processing, TOMAN will provide all kinds of automation customized service. At the same time, TOMAN can provide the comprehensive processing solutions of the whole line and unit automation of gear processing.
TOMAN has been the core suppliers of SAIC, Great Wall, Changan, JAC, Geely and other gearbox and Weichai, Faster etc.

Sedan gear
