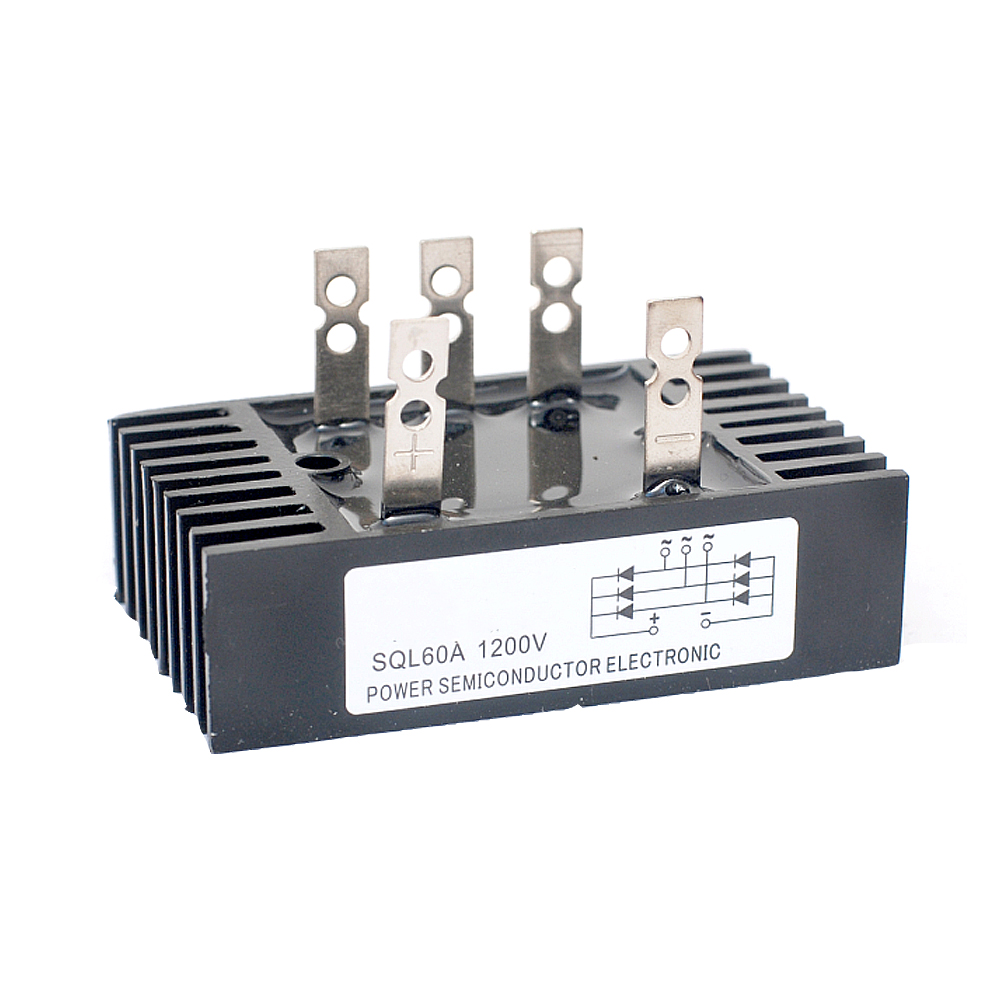

SQL60A Three-Phase Rectifier Inverter & Converter
Output Power:
- SQL60A
Input voltage:
- 380V
Options:
- 1000V
Basic Info
| Network | None |
|---|---|
| Place of Origin | Zhejiang, China |
| Model Number | SQL60A |
| Type | Dc/Ac Inverters |
| Output type | Single |
Product description

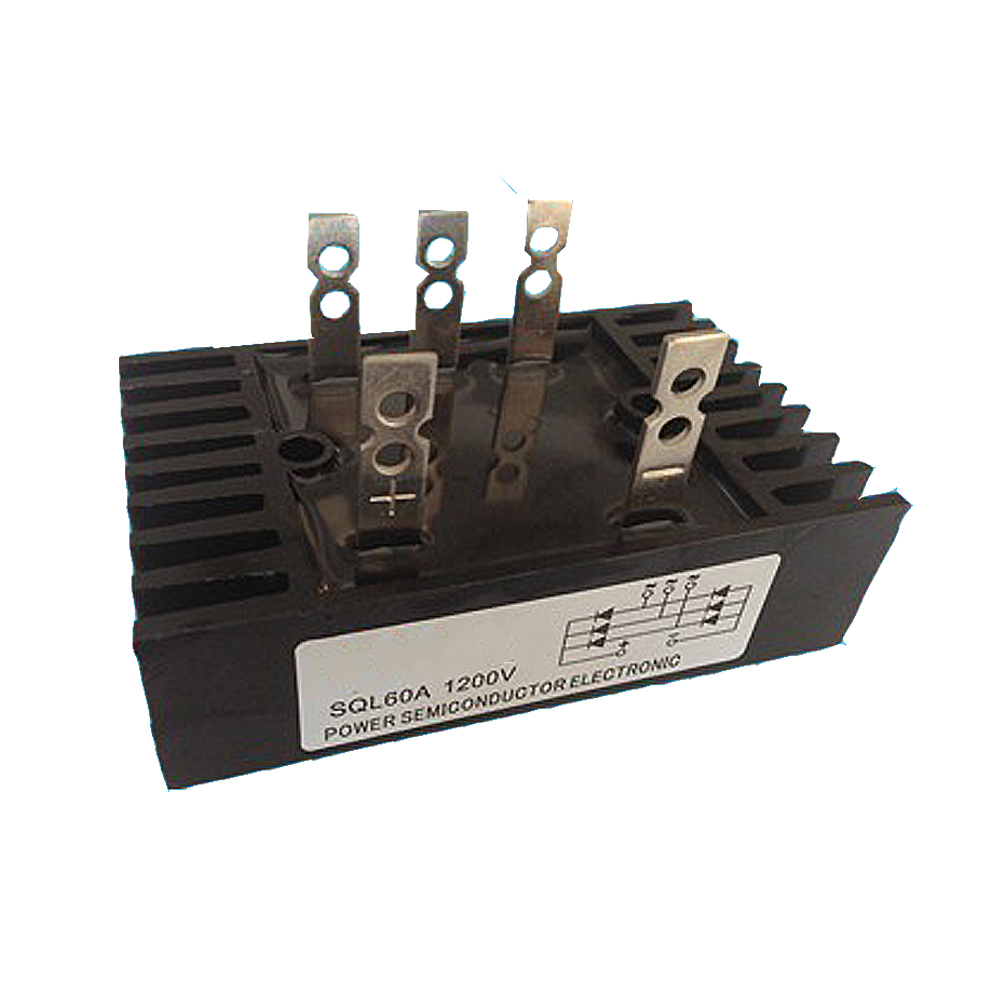

Three-Phase Rectifier SQL Diesel Generator Bridge 3 Phase SQL60A Inverter & Converter
-
Type
Resistive load output DC current?
Equipped with radiator resistive load to output DC current?
Reverse repetitive peak voltage
Insulation voltage
A
A
V
V
SQL 40A
28
Integrated radiator
600-2500
2500
SQL 60A
32
Integrated radiator
600-2500
2500
SQL 100A
45
Integrated radiator
600-2500
2500
SQL 150A
70
Integrated radiator
600-2500
2500
SQL 200A
90
Integrated radiator
600-2500
2500
SQL 300A
105
Integrated radiator
100-1600
2500
-
Calculation method for single-phase current:
?
Power (W) ÷ Voltage (V)=Load DC Current (A)
?
(Example: 1000W ÷ 24V=41.6A)
?
?
Calculation method for single-phase output DC voltage
?
Output DC voltage=Input AC voltage x 0.9
?
(Example: Input AC voltage 100VAC=Output DC voltage 90VDC)
?
?
Resistive load series:
?
Battery, incandescent lamp, resistance wire, heating rod, electric iron, resistance furnace, electric water heater,
-
hot oil lamp, electric heater
?
?
Inductive load series:
?
Transformers, coils, electric motors, cutting machines, generators, frequency converters, mercury lamps,
-
voltage sodium lamps, metal halide lamps, charging stations, electric vehicle charging
?
?
?
?
?
?
