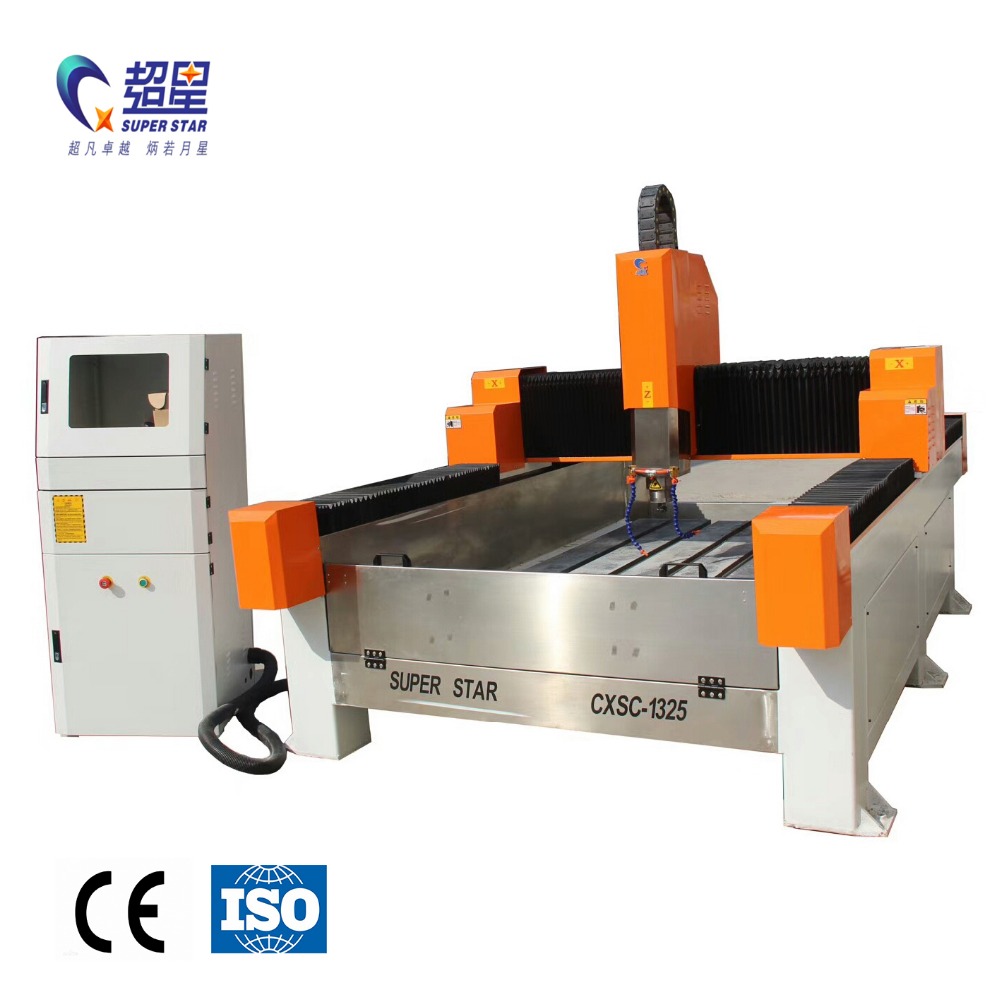

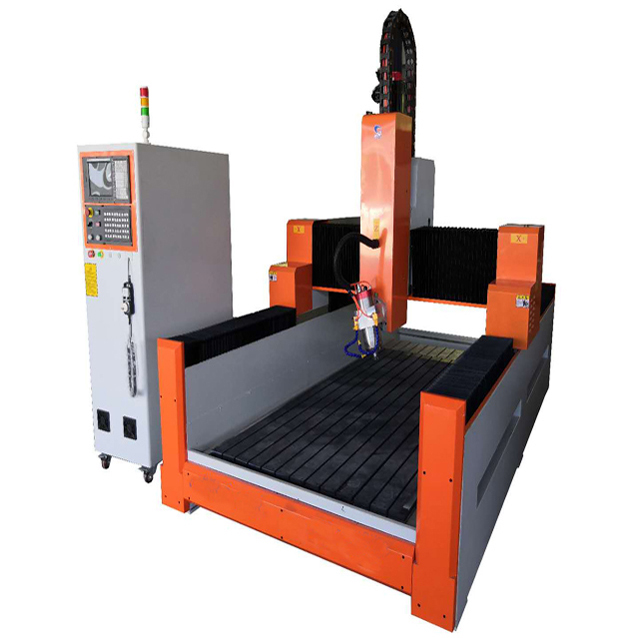

Stone Marble CNC Carving Router

Stone cnc router features:

1.Granite engraving machine use I steel frame table, and put pvc on I frame, heavy duty, can bear 5000kgs weight stone.

2.Thick PVC is put on I frame table, more professional, suitable for heavy duty stone material.

3. Y axis motor installed over guide rail, professional stone gantry, more stable.

4.Professional bits, used for granite, marble engraving (including letter writing bits, cutting bits, engraving bits)

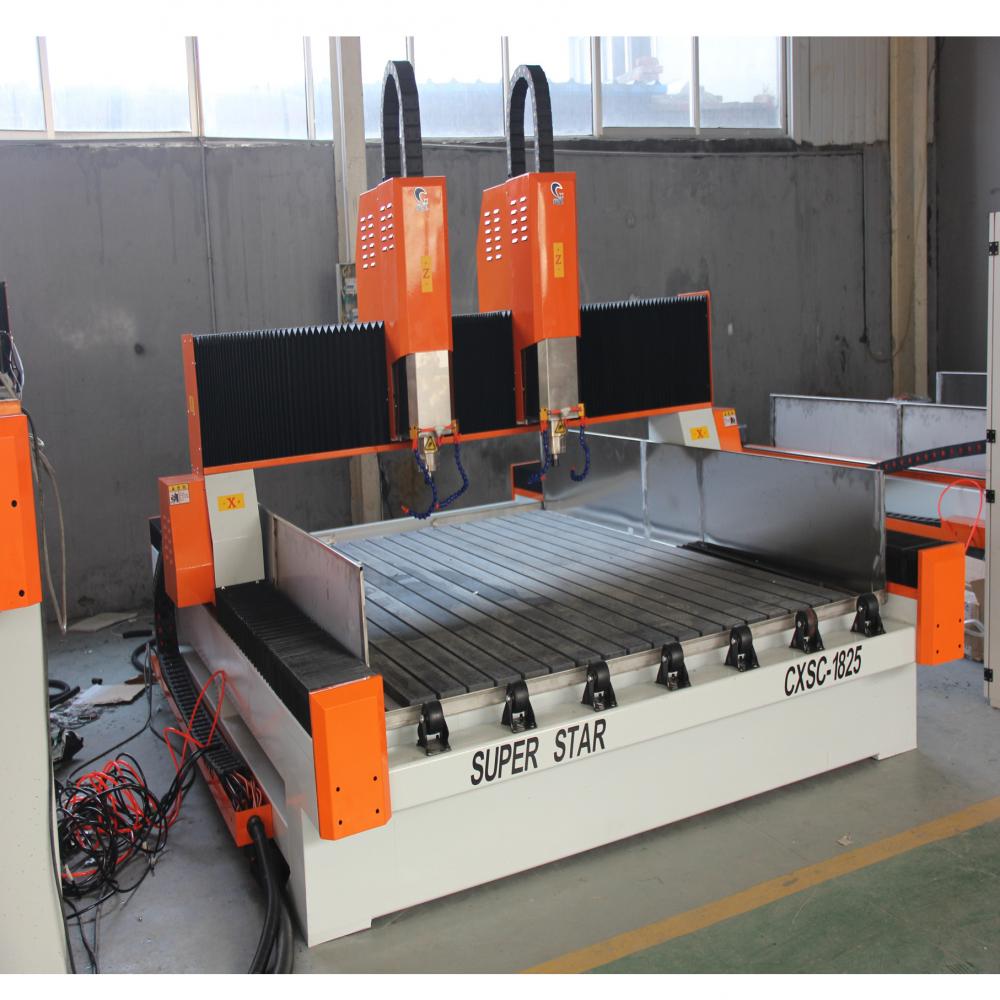

Stone cnc carving machine belongs to stone cutting and engraving machine, it can be made into single head stone cnc router, can also be made into double head stone router.

Applicable industry:

It can be used for engraving and carving of granite, marble, blue stone, crystal stone, microcrystalline stone, all kinds of artificial stone, glass, mural, village monument, tombstone, milestone, decorative skirting and so on. It can carry out art carvings such as yin carving, yang carving, line carving and embossing. The engraving depth can reach 200mm. It can be used for arc bottom, pointed bottom, flat bottom word, shaped cutting, inverted edge, chamfering, curved line and so on. Three-dimensional relief and line carving, cutting, chamfering, drilling, and two-dimensional engraving of natural marble, granite, artificial stone, tombstone, milestone, tile, glass and other materials.

Description & Specifications of marble granite carving stone machinery for sale
X Working Area	1300mm
Y Working Area	2500mm
Z Working Area	450mm
Machine frame	Thick Steel frame (8mm thickness)
Traveling Positioning Accuracy	±0.05mm
Repositioning Positioning Accuracy	±0.05mm
X,Y ,Z Structure	XY gear wheel, Z ball screw. All Axis use Square Guide
Working table	Professional design for stone materials
Max. Rapid Travel Rate	50000mm/min
Max. Working Speed	25000mm/min
Spindle	4.5kw water cooled spindle with constant power ( higher efficiency than ordinary spindle)
Spindle Speed	0-24000rpm
Drive Motor	Stepper driving
Command	G-code*.u00*.mmg*.plt
Working voltage	3PH AC380V/50Hz
Control System	DSP control
Guide rail	Square rail
Control cabinet	Independent cabinet
The machine standard parts	stepper motor and driver DSP control system water cooling spindle Square guide rail oil lubricating system inverter  water pump user manual /CD video/soft dog/ water flume water spray cooling system



Samples:

Guarantee and After-sale service:

1. 12 months warranty for the  machine.

2. Technical support by phone, email or WhatsApp/Skype within 24 hours

3. Friendly teach you how to operate the machine

4. Engineer available to service machinery installation and assembly overseas.
