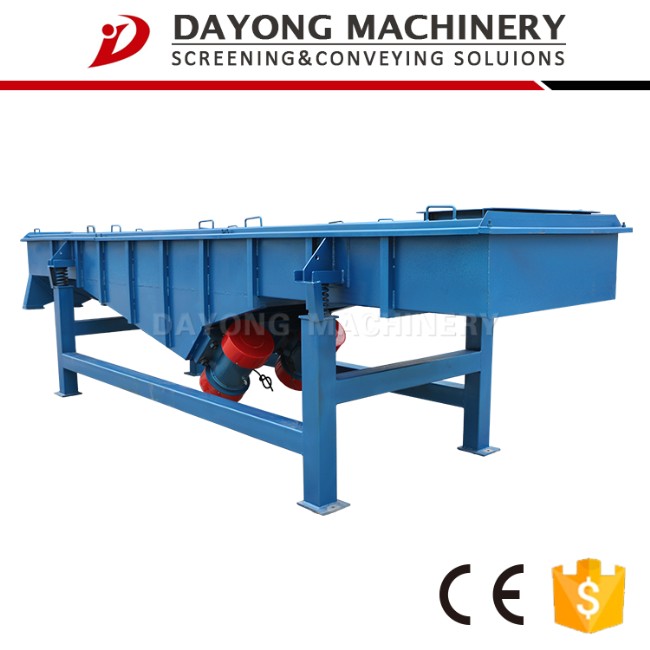

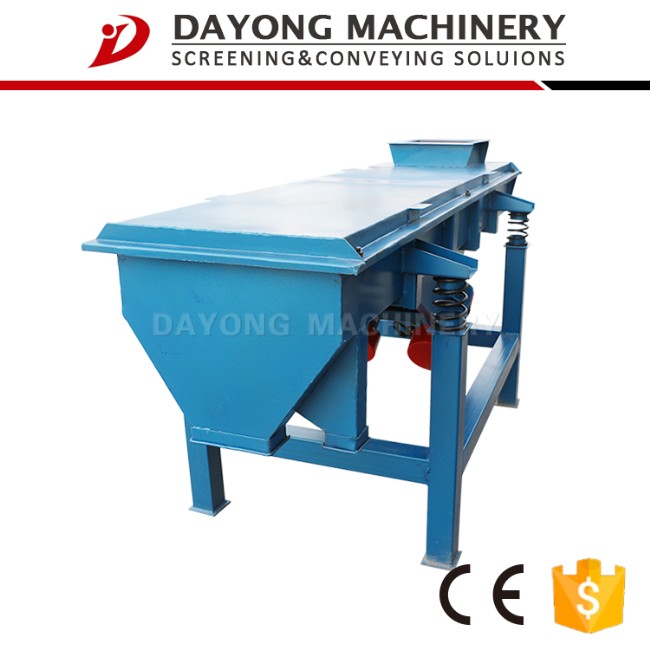

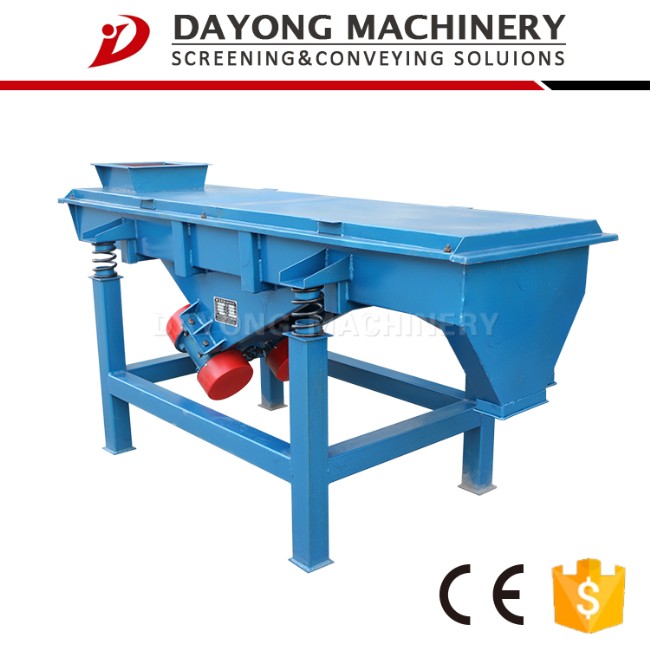

Stone Sorting Machine Linear Vibrating Screen

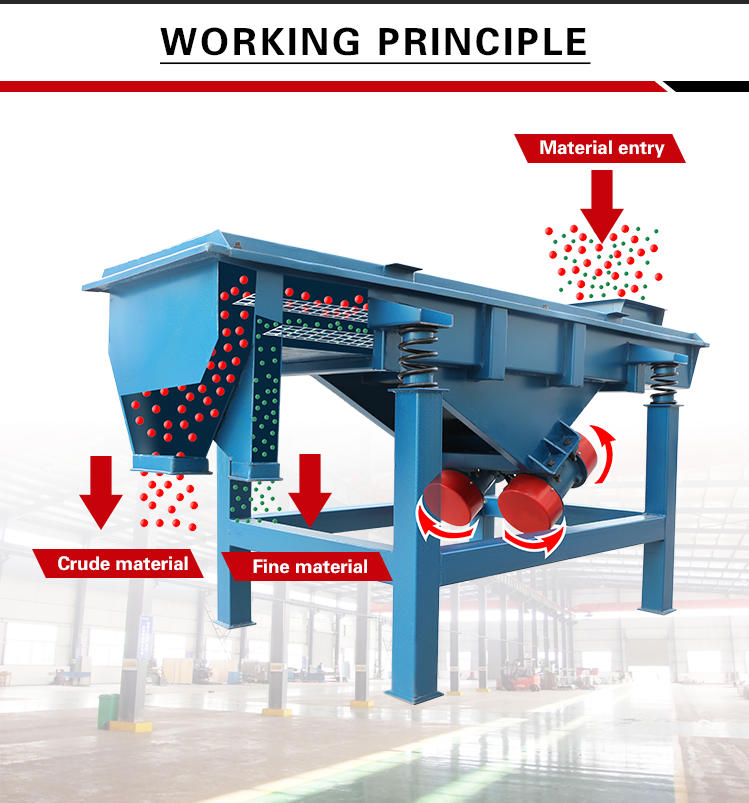

Working Principle

Linear vibrating screen uses double vibrating motors to drive,when two motors rotate synchronously and reversely, exciting forces generated by eccentric block are resolved in parallel to the direction of motor axis and then united as one across the motor axis direction,so its movement track is linear.There is an angle of inclination between the two motor axises relative to the screen deck. Under the influence of the resultant force of exciting force and materiels itself weight,materiels are thrown up to make leapfrog and linear movement forward on the screen deck in order to screen and grade the materiel .Applied in flowing line to achieve automatical operation.

Main Features

1.Refined and durable design,easy to be operated.
2.Convenient and rapid net changing and cleaning.
3.All contact parts of this kind of linear vibrating screen are made of stainless steel to ensure the purity.
4.Less malfunction,easy maintenance and convenient repairing.
5.Except standard configuration,diameter of sieve holes may be tailored according to customers' requirements.

Using Scope

Linear vibration particle sieving machine is the efficient new screening equipment widely used in mining, coal, metallurgy, building materials, refractory materials, light industry, chemical industry.

Company Profile

Xinxiang Dayong Vibratory Equipment Co., Ltd. was founded in 2003, after 14 years efforts, and with the help of colleagues and customers, the company has developed quickly, step by step, which has become one of the leading enterprises in fine screening field in China.
The company has domestic first-class production equipment, robot welding system, 3000 tons hydraulic forming, machining center, 3000 square meters special testing room, modern resin floor plant etc.
