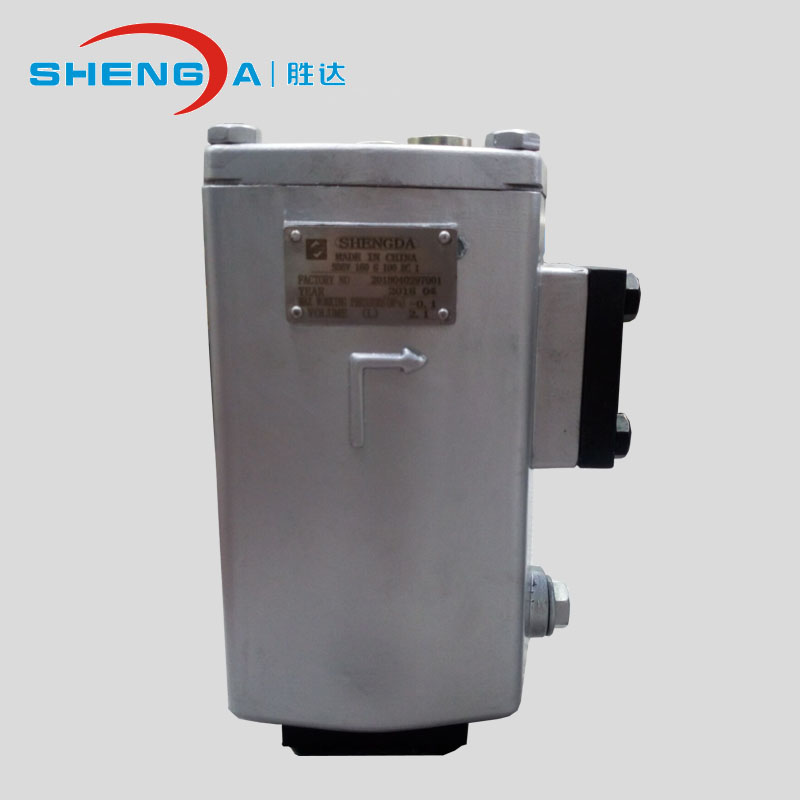

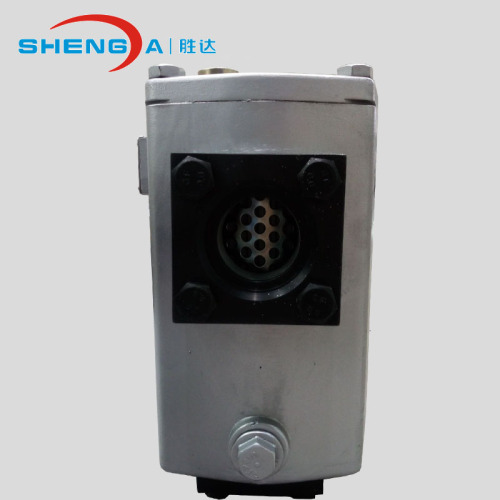

• Inline Suction Oil Filter (SDSV)

•


  ---up to 1000l/min




  1. Introduction

  SDSV inline Suction Oil Filter consists of a aluminum housing, Filter Element, bypass valve and clogging indicator, with small weight and firm performance. It can be installed vertically in the inline pipe, no any interference with any pipeline layout. Meanwhile, the oil tank size won’t be limited by the filter. With SDSV inline suction oil filter, the pipeline can be protected from pollution effectively, and the cleanness of the hydraulic system can be improved greatly.




  2. Description

  Mounting As tank-top or Inline Filter

  Temperature range - 10 ℃ ~ + 100 ℃

  Cracking pressure of bypass valve △ Po= -0.2 bar (others on request)

  Seals NBR (=Perbunan)




  3. Notes:

  * Filter Housing must be earthed;

  * When using electrical clogging indicators, the electrical power supply to the system must be switched off before removing the clogging indicator connector

  4. Application

  It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.
