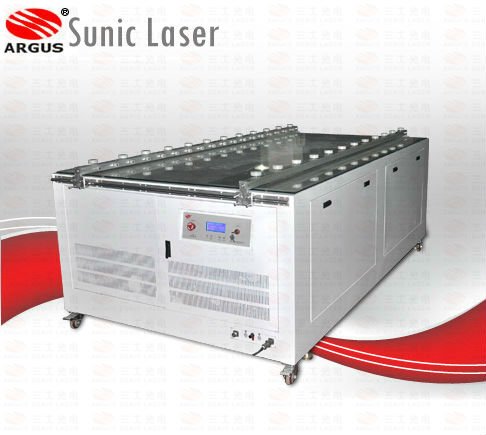

Sun Simulator for testing solar panel

Equipment?Performance

?

·?The?equipment?is?specially?used?for?testing?of?solar?energy?mono-crystalline?silicon?and?the?poly-crystalline?silicon?cell?module.?

·?Through?stimulates?the?solar?spectrum?lamp-house,?carries?on?the?testing?and?surveys?to?the?cell?module?related?electrical?parameter.?

·?It?has?unique?apparatus?of?modifying,?to?input?the?compensate?parameter,?it?will?carries?on?automatically/manual?temperature?compensation?and?compensate?with?the?light?intensity,?and?automatically?measures?and?modifies?the?temperature.?

·?Based?on?the?Windows?operation?contact?surface,?and?humanized-design?testing?software,?it?records?and?displays?test?curve?(I-V?curve,?P?curve)?and?the?test?parameter?(Isc,Voc,?Pm,?Vm,?Im,?FF,?EFF,?Temp),?the?test?of?sequence?number?is?automatically?produced?and?preserved?to?the?assigned?folder.

?

Main?parameters

?

Model	SMT-AAA	SMT-A
Spectrum?Range	?Meet?IEC60904-9?Requirements?(Class?A)
Radiation?Intensity	?100mW/Cm2?(Adjustment?Range?70~120?mW/Cm2)
Irradiation?Uniformity	?≤±2%	≤±3%
Irradiation?Instability	?≤±2%	≤±3%
Test?Results?Consistency	?≤±0.5%	≤±1%
Electrical?Performance?Measurement?Error	?≤±1%	≤±2%
Single?Flash?Time	10ms
Effective?Measure?Area	?1200mm*2200mm
Effective?Measure?Range	10W~300W?
Measure?Voltage	?0V~150V?(Resolution?1mV)
Measure?Current	0A~20A?(Resolution?1mA)
Test?Parameters	Isc,Voc,?Pm,?Vm,?Im,?FF,?EFF,?Temp,?Rs,?Rsh?
Data?Acquisition?	?2M,?4-channel?synchronous?high-speed?acquisition?card?and?more?than?8,000?Points?to?Collect?Datas

?

?

?

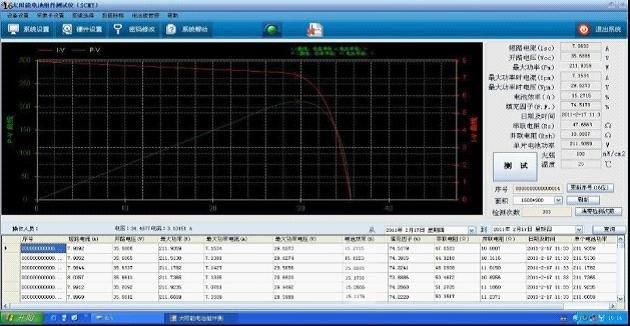

Software

?

?

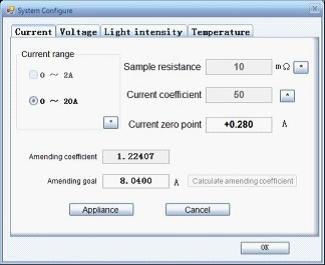

System Config
