DGR-SLP Introduction

     A lifting platform is a lifting machinery that vertically transports people or objects. It also refers to equipment used for vertical conveying in logistics systems such as factories and automatic warehouses. The lifting platform often also has various flat conveying equipment as connecting devices for conveying lines of different heights.

    DGR Synchronization lifting platform consists of a reduction motor, motor, commutator, transmission shaft, coupling, brake, electric cylinder, etc. This device only has one motor to provide power, and the power is transmitted through a commutator to change direction.



Synchronization Lifting Platform Features

1. Because it is a mechanical structure that achieves synchronization, the platform always maintains the same state;

2. The telescopic rod and cylinder barrel have their own guiding function, so no additional guiding mechanism is required;

3. The ball screw has high transmission accuracy and supports frequent lifting. It is matched with servo motors for more accurate positioning, and can achieve synchronous lifting of two, four, eight, and multiple machines;

4. It can be configured with self-locking function to keep the platform in any position; The telescopic arm stroke has upper and lower limits, so there is no need to worry about mechanical impact.

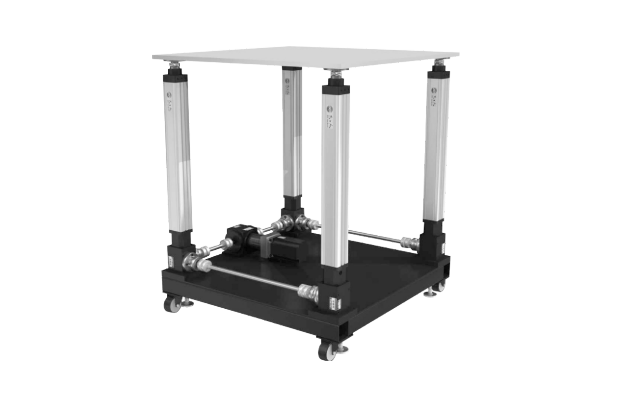

Appearance

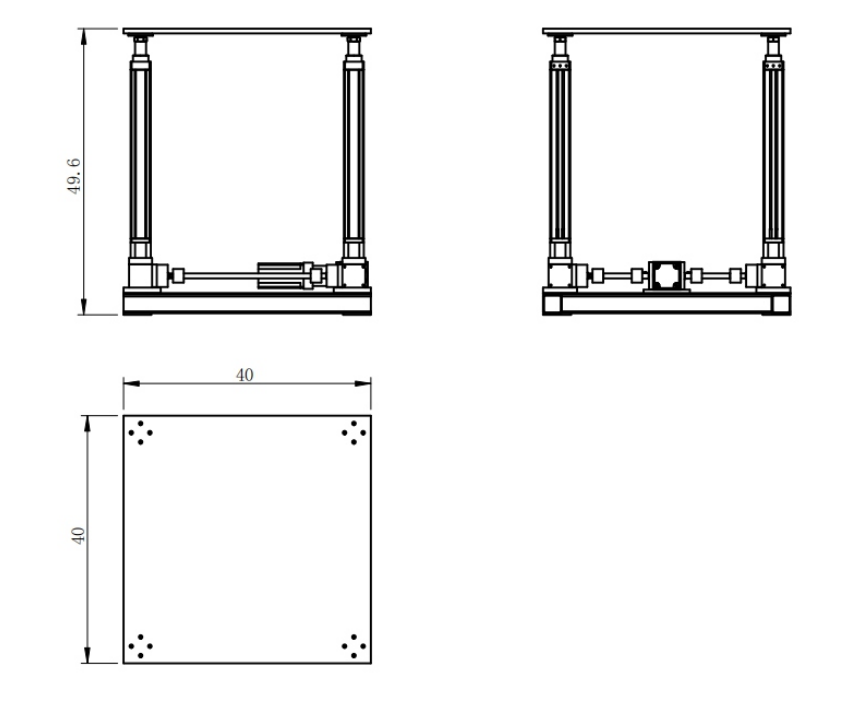

Dimensions

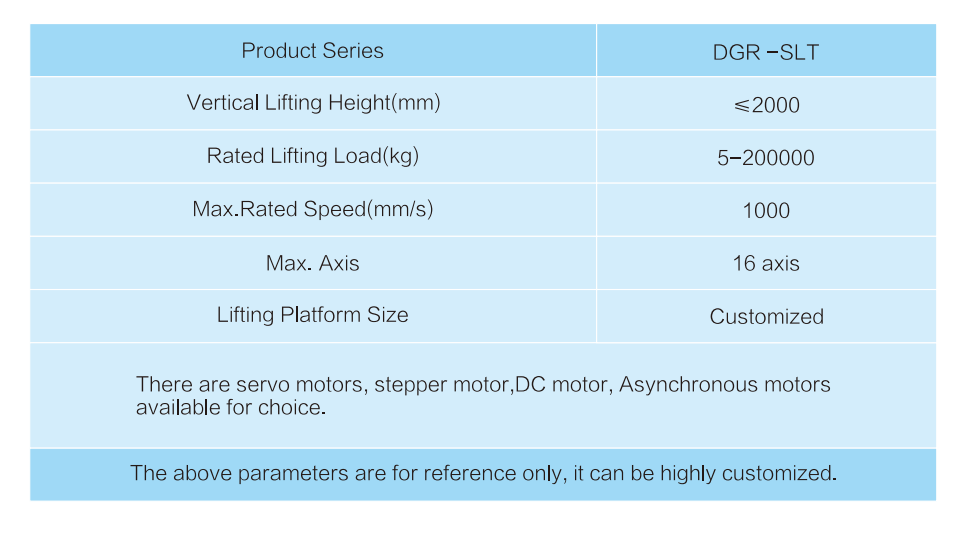

Technical Specifications















Application

High precision linear actuator: All scenarios that require vertical lifting, such as lifting the box, lifting the screen, and platform lifting.
