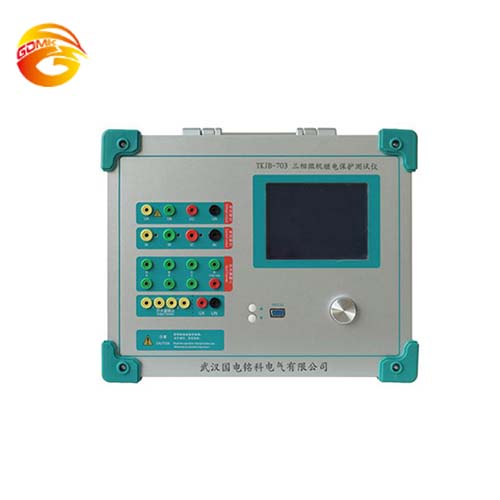

Three-phas e Micro computer R elay Protection Tester
Basic Info
| Brand Name | gdmk |
|---|---|
| place of origin | China |
Product description
Overview：
The three-phase microcomputer relay control tester has a 4-phase voltage 3 phase current output, which is suitable for various types of relay protection devices. The microcomputer relay control tester uses a high-speed high-performance digital signal processor comparative speed, transmission frequency bandwidth, and software application bifurcation algorithm produces each of the respective high-precision waveforms. Due to the integrated structure, each part is closely coupled, the data transmission distance is short, and the structure is compact.
Technical parameter:
AC current output
Output accuracy
Level 0.5
Phase current output (effective value)
0～40A
Three merge current output (effective value)
0～120A
Phase electric length time allows work value (effective value)
10A
Phase current maximum output power
420VA
Maximum output power at the maximum output of three
1000VA
Working time is allowed when the maximum output of the three mesh is output
10s
Frequency range (foundation)
20～1000Hz
Harmonic number
1 ~ 20 times
DC current output
Output accuracy
Level 0.5
Current output
0 ~ ± 10A / each phase, 0 ~ 20A / two superimposed
Maximum output load voltage
20V
AC voltage output
Output accuracy
Level 0.5
Phase voltage output (effective value)
0～120V
Line voltage output (effective value)
0～210V
Maximum voltage output value
0～240V
Phase voltage / line voltage output power
80VA /100VA
Frequency range (fundamental)
20～1000Hz
Harmonics
1 ~ 20 times
DC voltage output
Output accuracy
Level 0.5
Phase voltage output amplitude
0～±160V
Line voltage output amplitude
0～320V
Phase voltage / line voltage output power
70VA /140VA
Switching amount and time measurement
Remark
Switch input
7 road
Air access point: 1 ~ 20mA, 24V
Potential contact access: "0": 0 ~ + 6V; "1": + 11 V ~ + 250V
Switch output
2 pairs
Time measurement
Measuring range 0.1ms ~ 9999s measurement accuracy 0.1ms
volume and weight
Dimensions
365 * 300 * 165mm
Stand-alone weight
15.5KG
Power supply
AC 220V±10%，50／60Hz
Ambient temperature
-10℃ ～ +50℃
Three-phas e Micro computer R elay Protection Tester
