Electrical testing and meausrement equipment



CE,ISO9001:2008,IEC approved,with english version display





Three Phase Multi-function portable reference standard meter

Application



It is suitable for Grid Corporation measurement test center, the power company and power plant measurement department, national levels of measurement mechanism, quality inspection departments, research institutes, tertiary institutions, industrial and mining enterprises, electric energy meter and electrical instrument production enterprises etc.



Introduction

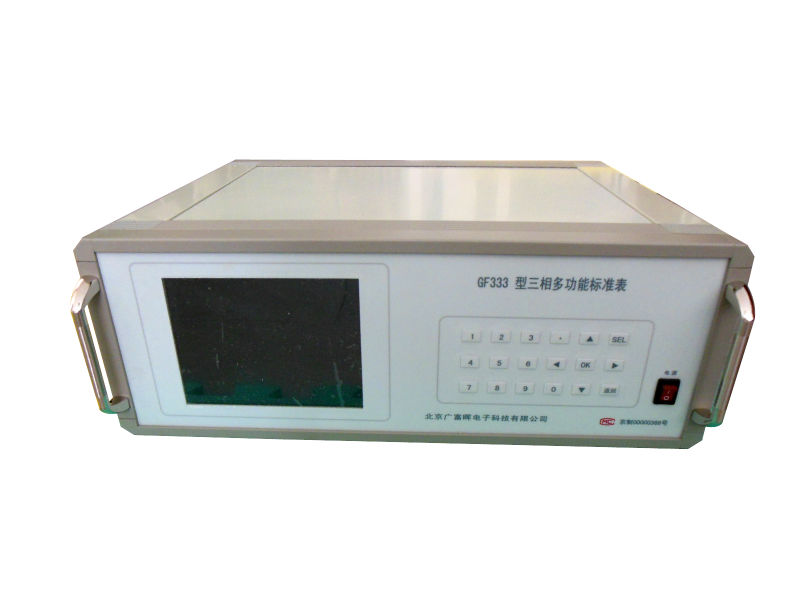

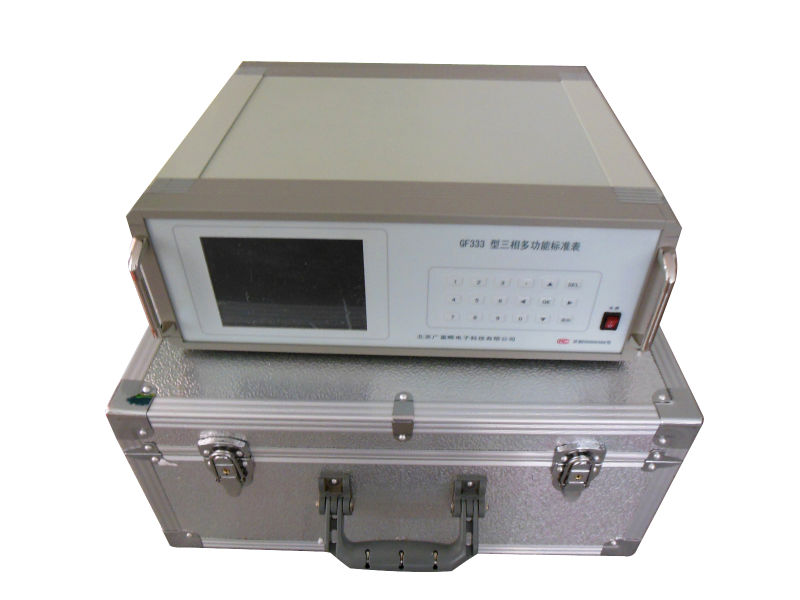

GF333 three phase multi-function standard meter, its core part uses the DSP 32 bit and16 bit low power and high speed DAC consists of high accuracy AC collector. Not only it can be used as a calibration device standard meter, but also it can be used as a testing calibrator. Using 6.5 inch TFT color LCD screen, character display clear chart. Have the advantages of wide measuring range, high precision, stable and reliable operation, simple operation etc.



Functions and Features



1. Measure the AC voltage, current, active power, reactive power, frequency, phase angle and power factor etc;

2. Measure the AC voltage, current 2-31 harmonic content and waveform distortion degree;

3. Measure active power energy error, reactive power energy error, the maximum output pulse frequency is to 2 MHZ;

4. Measure calibration device of voltage, current, power stability;

5. Measure calibration device the standard deviation of estimate;

6. Measure the voltage of the calibration device three-phase symmetric degrees, the current of three three-phase

     symmetric degree;

7. Measure calibration device of the magnetic induction;

8. Measure DC voltage and DC current;

9. Transmitter measurement;

10. With RS232 interface, it can be controlled by PC operation;



Technical Data



AC measurement



L1/L2/L3 three phase voltage range (V) : 6.25, 12.5, 25, 50, 100, 200, 400, 800 V, Automatic switching, maximum 1000 V;

I1/I2/I3 three phase current range (A) : 0.25, 0.5, 1, 2.5, 5, 10, 25, 50, 100 A, Automatic switching;

Voltage, current, power measurement accuracy class ± (0.012% RD + 0.008% RG);

Power energy measurement accuracy class 0.02%;

Standard pulse output ≤2 MHz;

Frequency measurement range 45-65 Hz;

Frequency measurement accuracy 5 x 10^-5;

Phase angle measurement error ±0.02 °;

Power factor measurement error ±0.0001;

Harmonic and distortion degree of measurement voltage/current

Harmonic number      2-31;

Harmonic error       ±0.05%;

Distortion degree error ±0.05%;



DC measurements (optional)



Voltage range (V): 50, 100, 200, 400, 800, automatic switching, maximum 1000 V;

Current range (A): 0.1, 0.3, 1, 3, 10, 30, automatic switching;

Voltage, current measurement accuracy class

± (0.012% RD + 0.008% RG);



Transmitter measurement (optional)



DC voltage range:± 1, ± 5, ± 10, ± 20 V; Accuracy class 0.01%;

DC current range:± 1, ± 2.5, ± 5, ± 10, ± 20mA; Accuracy class 0.01%;

Ripple measurement error 1%;



Work power



                    Single phase AC 220 V±10%, frequency 50Hz/60Hz±5%



Use of the environment



                     Temperature 20 °C±10 °C, relative humidity ≤85% RH.



Volume



                     440 mm x 360 mm x 160 mm.



Weight



                     About 10 kg.
