Fine Bubble Tube Diffuser

Product Description

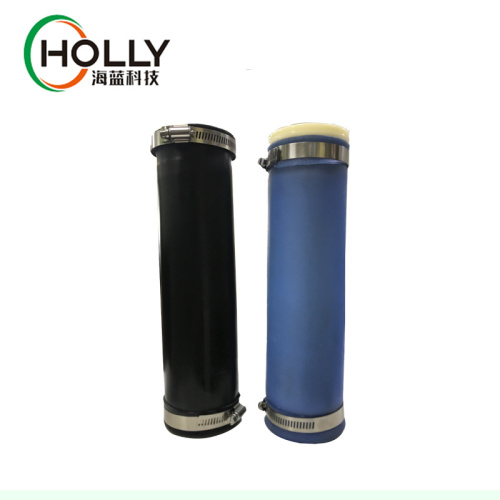

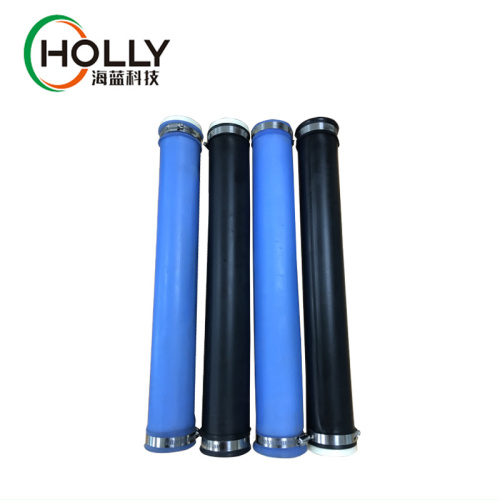

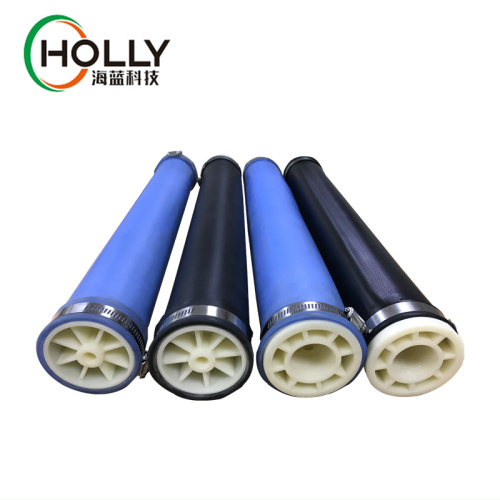

Fine Bubble Tube Diffuser can be connected on one side or in pairs to different rectangular and round tubes (ABS material) with the appropriate adapter. The membranes are manufactured with premium quality EPDM material and are available with fine or coarse-bubble perforation. The support tubes(ABS or PVC material)can be reused when membranes are replaced. The units offer maximum performance with minimum cost and require minimum maintenance.

MOC:EPDM

Manufactured by compression molding with a standard cure,low plasticizer content, and 1mm or 2mm perforations.Compression molding

with modern equipment utilizing individual thermocouples and vacuum technology ensures a repeatable very high quality product.

Silicon membranes offer high temperture resistance ,and chemical resistance that differs from other products .Silicon is an inorganic ,and therefore offers excellent resistance tomany organic wastes.Our formulationn is designed to resist tearing and creep,while producing fine bubbles at a modest headloss.

Features

1.Low resistance loss
2.Highly tear resistant
3.Anti-clogging, anti-backflow
4.Ageing-resistant, anti-corrosion
5.High efficiency,energy-saving
6.Long service life,low maintance
7.Compact structure,strong support

Technical parameters

Type
Model	φ63	φ93	φ113
Length	500/750/1000mm	500/750/1000mm	500/750/1000mm
MOC	EPDM/Silicon membrane ABS tube	EPDM/Silicon membrane ABS tube	EPDM/Silicon membrane ABS tube
Connector	1''NPT male thread 3/4''NPT male thread	1''NPT male thread 3/4''NPT male thread	1''NPT male thread 3/4''NPT male thread
Bubble Size	1-2mm	1-2mm	1-2mm
Design Flow	1.7-6.8m3/h	3.4-13.6m3/h	3.4-17.0m3/h
Flow Range	2-14m3/h	5-20m3/h	6-28m3/h
SOTE	≥40%（6m submerged）	≥40%（6m submerged）	≥40%（6m submerged）
SOTR	≥0.90kg O2/h	≥1.40kg O2/h	≥1.52kg O2/h
SAE	≥8.6kg O2/kw.h	≥8.6kg O2/kw.h	≥8.6kg O2/kw.h
Headloss	2200-4800Pa	2200-4800Pa	2200-4800Pa
Service Area	0.75-2.5m2	1.0-3.0m2	1.5-2.5m2
Service Life	>5 year	>5 year	>5 year

Applications

1.Aeration of fishpond and other applications
2.Aeration of deep aeration basin
3.Aeration for excreta and animal waste water treatment plant
4.Aeration for denitrification/dephosphorization aerobic processes
5.Aeration for high concentration waste water aeration basin,and aeration for regulating pond of waste water treatment plant
6.Aeration for SBR,MBBR reaction basin,contact oxidation pond;activated sludge aeration basin in sewage disposal plant
