Two Layer Step Tile Corrugated Arc Machine
$20000.00
≥1 Set/Sets
Basic Info
| Brand Name | YY |
|---|---|
| Applicable industry | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works, Other |
| Out-of-warranty service | Video Technical Support, Online Support |
| Where to provide local services (in which countries are there overseas service outlets) | None |
| Showroom location (in which countries are there sample rooms overseas) | None |
| Old and new | New |
Product description
Two Layer Step Tile Corrugated Arc Machine
Roofing Sheet Roll Forming Machineproduction line consists of feeding unit, uncoiler, feeding guide, roll forming machine, cutter, automatic stacker, hydraulic system and electric control system
Working Flow:
Decoiler - Feeding Guide - Main Roll Forming Machine - PLC Contol System - Hydraulic Cutting - Output Table
Technical parameters:
Raw material
Color coated steel, Galvaznized steel, Aluminum steel
Material thickness range
0.3-1mm
Rolles
11-18 rows(according to drawings)
Material of rollers
45# steel with chromed
Forming speed
25-30m/min
Shaft material and diameter
75mm, material is 40Cr
Main motor power
5.5KW-7.5KW
Hydraulic station power
5.5KW
Material of cutting blade
Cr12 mould steel with quenched treatment
Uncoiler's loading capacity Max. Capacity
5tons(can be increased to be 10 tons)
Controlling system
Mitsubishi PLC & converter
Voltage
380V/3Phase/50Hz(or at buyer's requirements)

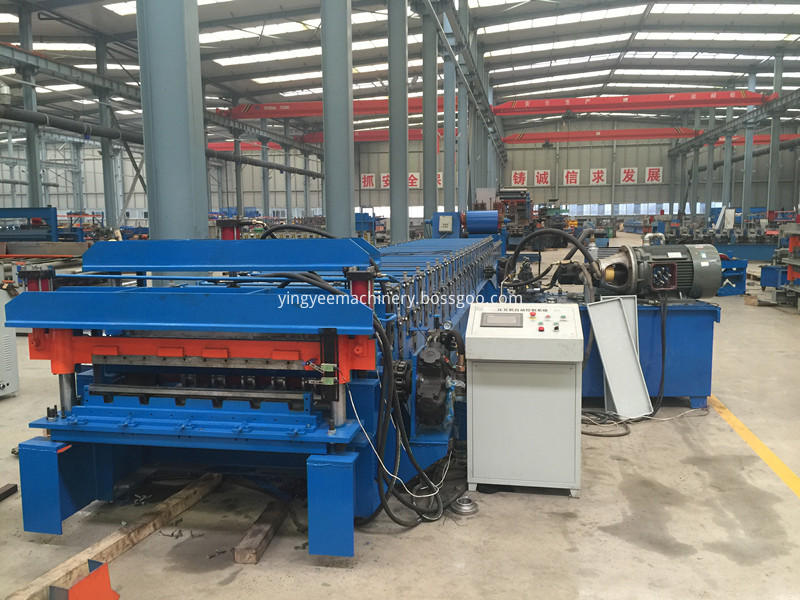

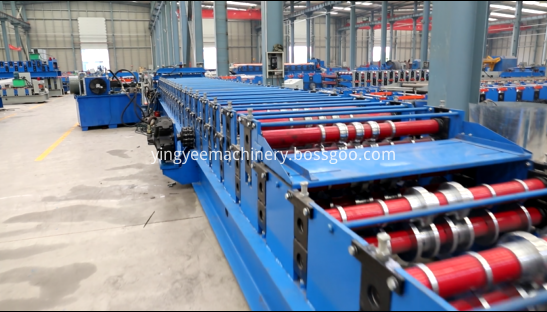

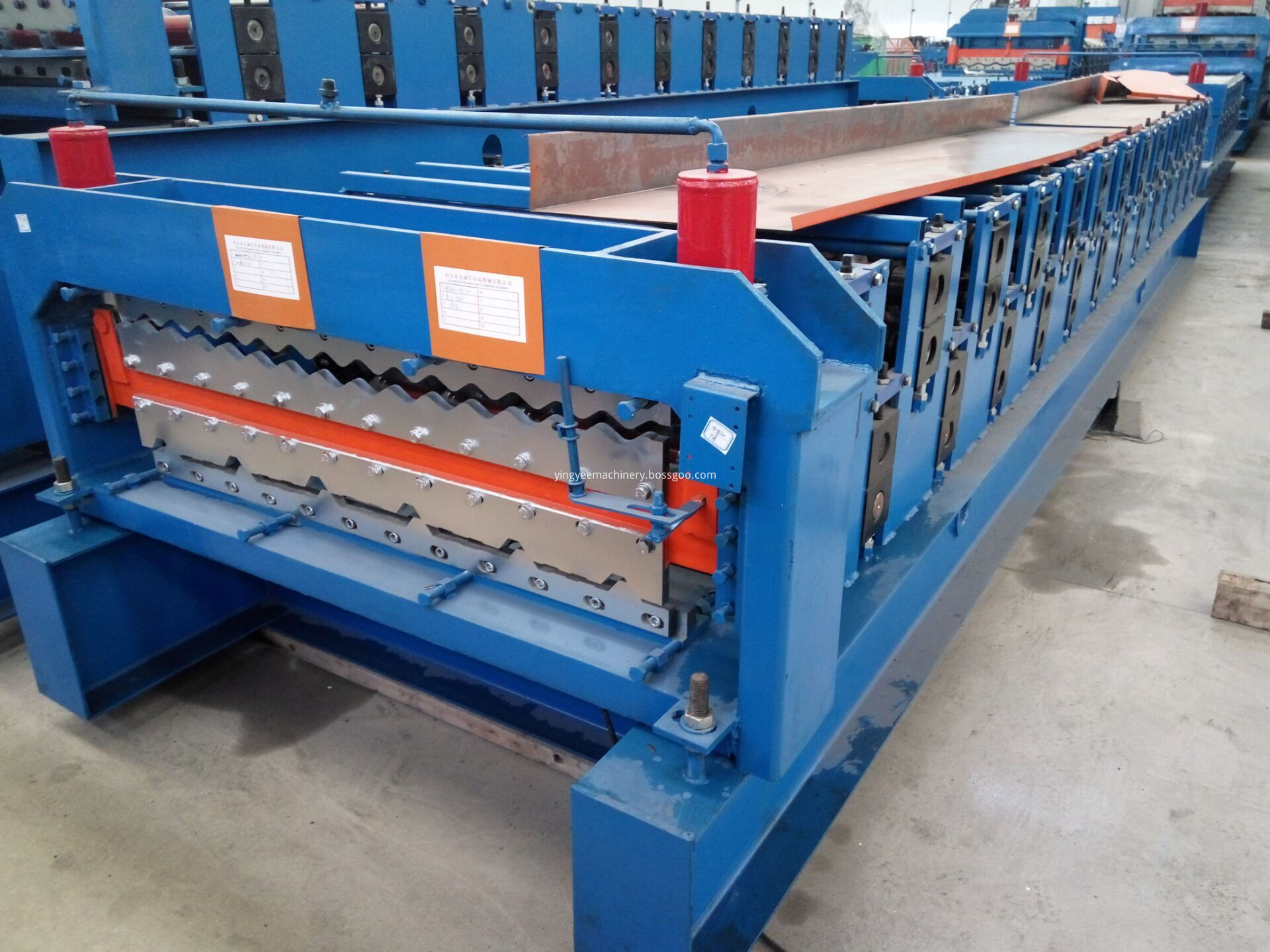

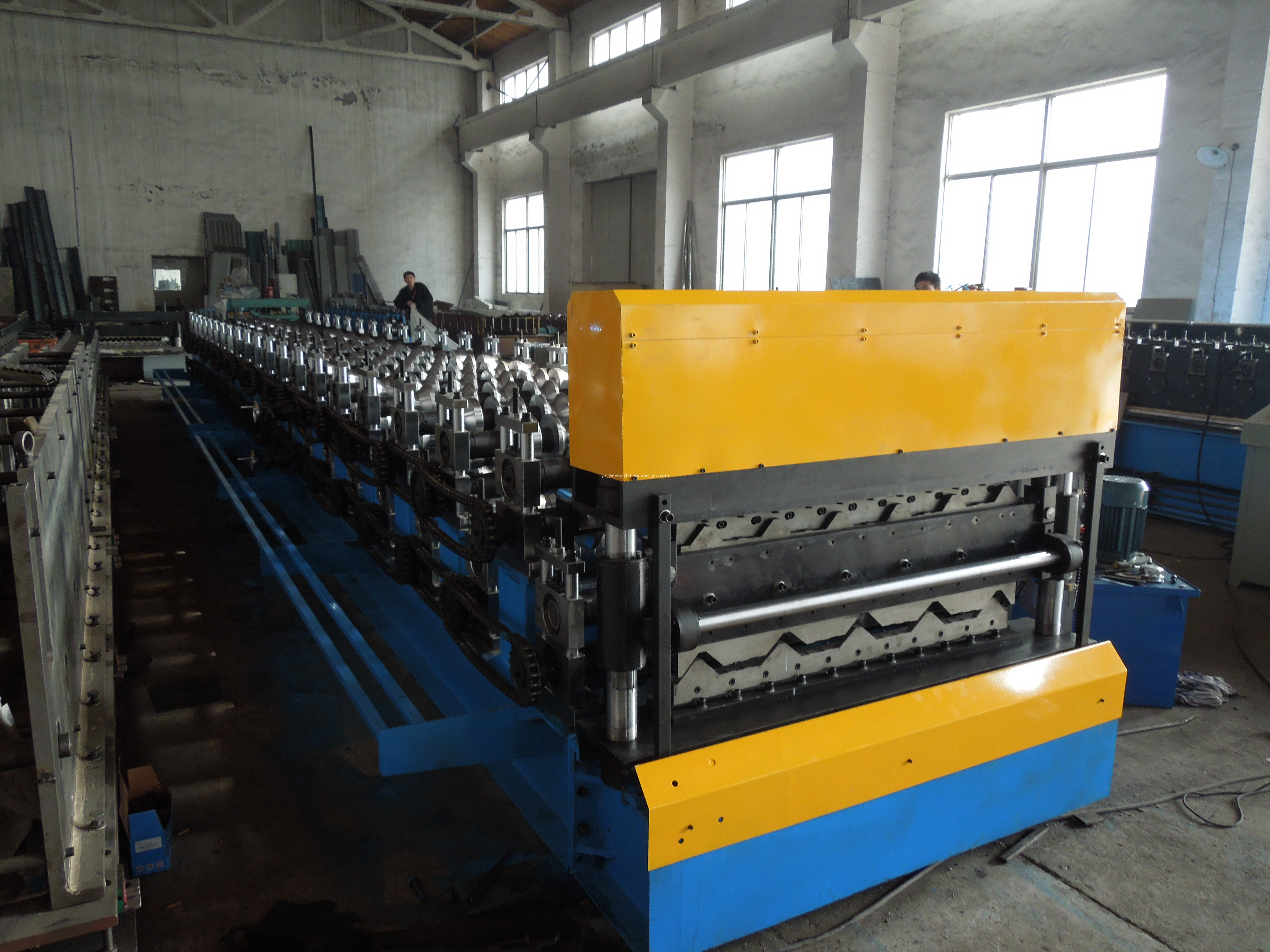

Pictures of machine:
Company information:
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment.
Our products were sold to more than 20 countries already. Also included US and Germany.
Main product :
- Roof roll forming machine
- Roller shutter door roll forming machine
- C and Z purlin roll forming machine
- Downpipe roll forming machine
- Light keel roll forming machine
- Shearing machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
- 10yrs
- Agent
- Distributor/Wholesaler
- Manufacturer
- Trade Company
- OEM service
