Vertical Fill Form Candy Packaging Machine
$20000.00
≥1 Set/Sets
$19000.00
≥5 Set/Sets
$18000.00
≥8 Set/Sets
power:
- AC 3Phase 380V/3Phase 220V, 50/60Hz, 5KW
Options:
- PVP2000
Get Latest Price
You might also like
Basic Info
| Type | Multi-Function Packaging Machine |
|---|---|
| Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Farms, Flour Industry, Snack Factory |
| After Warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service?Location | Philippines, Thailand, Malaysia, Uae |
| Showroom Location | Philippines, Uae |
Show More
Product description
Products Description
|
Model
|
PVP2000
|
|
Suitable Bag Type
|
Pillow Bag , Gusseted Bag , Quad Seal
|
|
Bag Sizes
|
(W)80-230mm
(L) 100-330mm
|
|
Film Width
|
Max480mm
|
|
Packing Speed
|
10-80bags/min
|
|
Packing Material
|
Laminated Film, PE Film for optional
|
|
Powder Supply
|
AC 3Phase 380V / 3Phase 220V, 50/60Hz,5KW
|
|
Compressed Air Cost
|
6-8kg/m3, 0.25m3/min
|
|
Application
|
Granular materials, such as candy, chips, snacks, biscuit, puffed food, nuts, dried fruit, frozen food, tea leaf etc.
Powder materials, such as flour, milk powder, milk tea powder, spice powder,coffee powder, chili powder etc.
|
|
Weight
|
500kg
|
|
Dimension
|
(L)1280 * (W)1080 * (H)1560
|
Main Features
1.Equipped with safety protection system, company with hygiene requirements.
2.Use intelligent temperature controller to ensure the artistic and neat seal.
3.With technical parameters storage function, no need to reset while products and packages changing.
4.Equipped with a fault display system to help timely troubleshooting.
5.Form into pillow bag, gusseted bag, linked bag, according to customer requirements.
6.Use PLC servo system, double vacuum belts with servo motor drive film pulling system, servo motor drive horizontal end seal, vacuum pump system, and touch screen as a core control unit, maximize the whole machine's control precision, reliability and intelligentized level.
7.Combine with weigher system, conveyor feeding and discharging, date printing equipment to be a complete packaging line.
8. According to the requirements of customers, different materials are equipped with different measuring equipment.Such as granular material will be provide to a multi-head weigher; powder material will be provide to a auger filler.
2.Use intelligent temperature controller to ensure the artistic and neat seal.
3.With technical parameters storage function, no need to reset while products and packages changing.
4.Equipped with a fault display system to help timely troubleshooting.
5.Form into pillow bag, gusseted bag, linked bag, according to customer requirements.
6.Use PLC servo system, double vacuum belts with servo motor drive film pulling system, servo motor drive horizontal end seal, vacuum pump system, and touch screen as a core control unit, maximize the whole machine's control precision, reliability and intelligentized level.
7.Combine with weigher system, conveyor feeding and discharging, date printing equipment to be a complete packaging line.
8. According to the requirements of customers, different materials are equipped with different measuring equipment.Such as granular material will be provide to a multi-head weigher; powder material will be provide to a auger filler.
Application
If the material you want to pack is not in the above picture, please contact us
Details Images

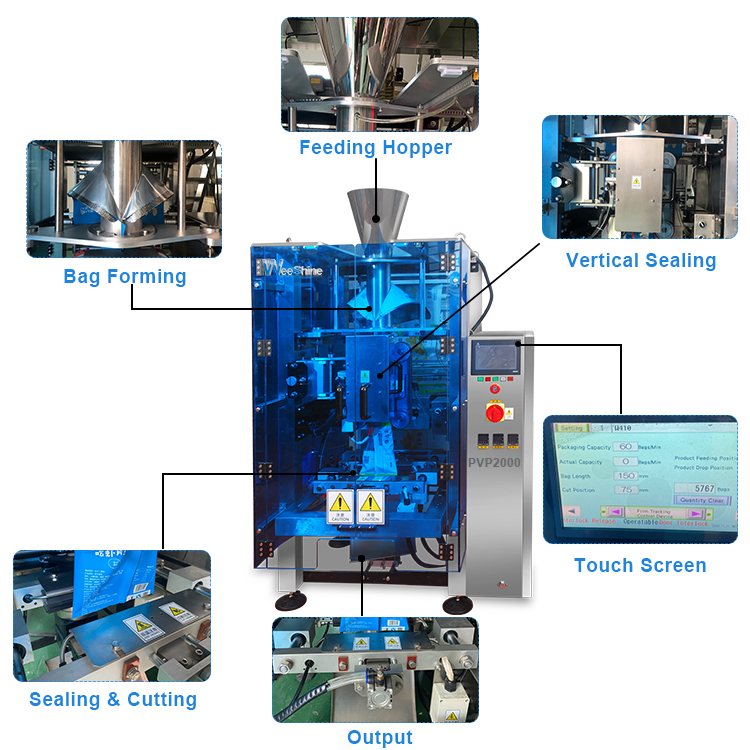

Structure
Bag Forming
Vertical Sealing
Sealing

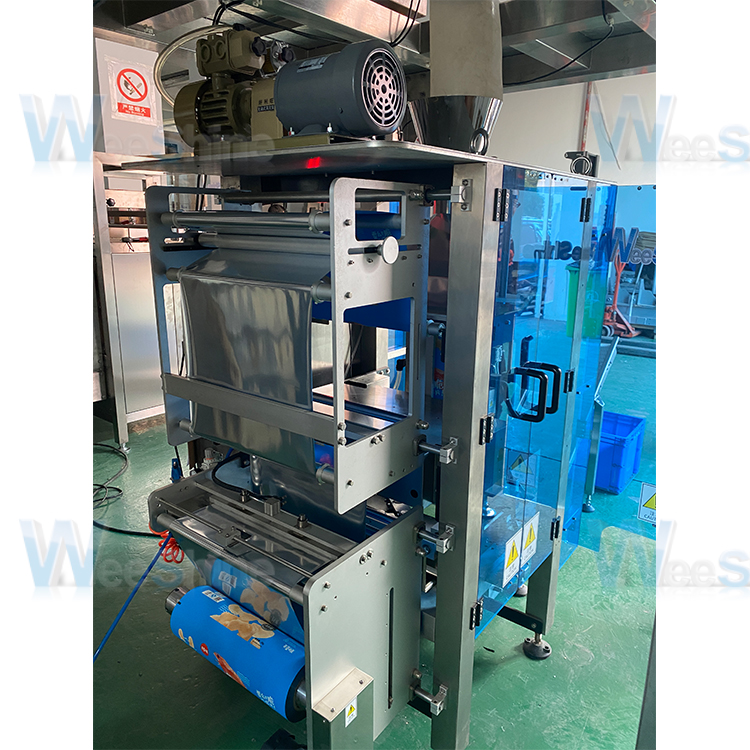

Film Inlet
Touch Screen

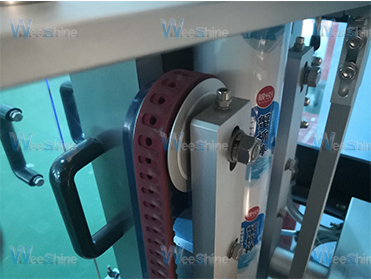

Vacuum Pulling Film
Vacuum Pump
Common Related Equipment
10/14/20 Multihead Weigher
Bucket Elevator
Platform
Auger Lifer
Auger Filler
Metal Detector
Check Weigher
Rotary Table
Related Products
Packing & Delivery
Company Profile
About Us
1.A manufacturer of automatic packaging machinery and packaging production line, also automatic conveying systems.
2.With a well-educated excellent technician team has more than 16+ years of experience.
3.With our own factory located in Shanghai, can provide OEM, ODM to our quality customers.
4.Workers have rich experience in comissioning and assembly at domestic and abroad.
5.Provide pre-sale and after-sale services for customers all over the world.
6.Our sales markets in Europe, Southeast Asia, Middle East and others more than 50+ countries.
7.Mainly focus on producing automatic packaging and conveyor system for different kinds of granule strip flaky materials.
8.Applications for nuts, chocolates, candies, biscuits, potato chips, dry fruits, seeds, puffed food, quick frozen products, pet food, baby snacks, medicine etc.
-and powder products, such as flour, milk, rice, coffee powder, spices, seasonings, detergent powder, sugar, salt etc.
9.Provide customized roll film, premade pouch and cans packaging solutions and all life support.
10.Weeshine's packaging solutions will bring you extraordinary experience, to reach win-win cooperation.
3.With our own factory located in Shanghai, can provide OEM, ODM to our quality customers.
4.Workers have rich experience in comissioning and assembly at domestic and abroad.
5.Provide pre-sale and after-sale services for customers all over the world.
6.Our sales markets in Europe, Southeast Asia, Middle East and others more than 50+ countries.
7.Mainly focus on producing automatic packaging and conveyor system for different kinds of granule strip flaky materials.
8.Applications for nuts, chocolates, candies, biscuits, potato chips, dry fruits, seeds, puffed food, quick frozen products, pet food, baby snacks, medicine etc.
-and powder products, such as flour, milk, rice, coffee powder, spices, seasonings, detergent powder, sugar, salt etc.
9.Provide customized roll film, premade pouch and cans packaging solutions and all life support.
10.Weeshine's packaging solutions will bring you extraordinary experience, to reach win-win cooperation.
FAQ
1.How do I know the packing machine model is suitable for my product?
Weeshine: Please advise all the below details of your product and we will check for you.
(1.)Product details
(2.).Bag shape
(3.) Bag size for each weight bag: Film width, bag width & bag length
(4.) Filling weight per bag
(5.)Packing film material
(6.) Production capacity per hour.
(7.) Other requirements
2. How about the delivery time?
Weeshine: All our machines are tailor-made as different customers have different requirements, delivery will be within 15 working days for the small packing machines. It takes longer time for the large-scale machine.
3. Can you offer some video or pictures of the packing machine?
Weeshine: Yes, of course. We also could help you to test your product on our packing machine and record a video for your reference if you could send some samples to us.
4. Are you factory or trading company?
Weeshine: We are the factory, and especially R&D, manufacture and sell various packing machines. We have engaged in the packing R&D and production over 16+years.
5. How can we make sure about the machine quality after we make the payment?
Weeshine: We will send you the pictures and videos for you to check the quality, you are welcome to check the quality by yourself before shipping as well.
Weeshine: Please advise all the below details of your product and we will check for you.
(1.)Product details
(2.).Bag shape
(3.) Bag size for each weight bag: Film width, bag width & bag length
(4.) Filling weight per bag
(5.)Packing film material
(6.) Production capacity per hour.
(7.) Other requirements
2. How about the delivery time?
Weeshine: All our machines are tailor-made as different customers have different requirements, delivery will be within 15 working days for the small packing machines. It takes longer time for the large-scale machine.
3. Can you offer some video or pictures of the packing machine?
Weeshine: Yes, of course. We also could help you to test your product on our packing machine and record a video for your reference if you could send some samples to us.
4. Are you factory or trading company?
Weeshine: We are the factory, and especially R&D, manufacture and sell various packing machines. We have engaged in the packing R&D and production over 16+years.
5. How can we make sure about the machine quality after we make the payment?
Weeshine: We will send you the pictures and videos for you to check the quality, you are welcome to check the quality by yourself before shipping as well.
