wall angle corner bead forming machine wall protection angle L roll forming machine

Get Latest Price

Model No.	ZT-009
Brand Name	zhongtuo
Punching Holes System	Hydraulic Punching Holes System
Cutting System	Fly Saw Non Stopping Cutting System

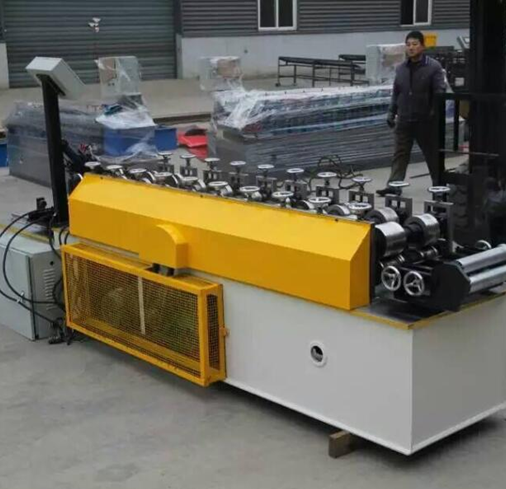

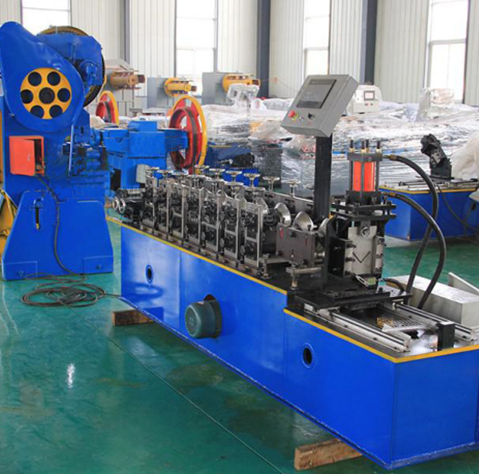

Full automatic high speed L Angle drywall channel roll forming machine with punching holes

Full automatic high speed L Angel drywall channel roll forming machine brief introduction:

This full automatic high speed L Angel drywall channel roll forming machine with punching Holes is one popular machine. It can be roll forming and punching as a whole. It is controlled by computer all the line. Put raw material into the line and get the final angle keel with holes. Angle profile roll forming machine is easy to operate.

Automatic Drywall wall angle Machine

Angle machine

Steel angle machine

Angle machine with holes

Size: From 30*25mm, thickness: 0.5-0.7 mm.

2.Processing flow diagram of machine

Manual decoiler→Feeding material into machine →Roll forming machine →Measure length →Hydraulic cutting →Finished Products

configurations	manual decoiler, guiding platform,main machine of roll forming, cutting device, electric motor,hydraulic station,Delta PLC control system, run out table
Material	Raw material	Galvanized
	Thickness	0.5-0.7 mm
Manual decoiler	Inner Diameter:450-550mm	Expand by manual
	Outer Diameter: max 1500mm
	Max Coil width:300mm
	Capacity: 1.5T
Main Forming machine	Forming steps	9 rollers
	Shaft diameter	40mm
	Design type	Guide column
	Machine frame	Memorial arch
	roller material	GCr12MoV steel
	shaft material	45# steel with tempering
	Work speed	10-25m/min
	Transport	By gear
	Power of main machine	3kw

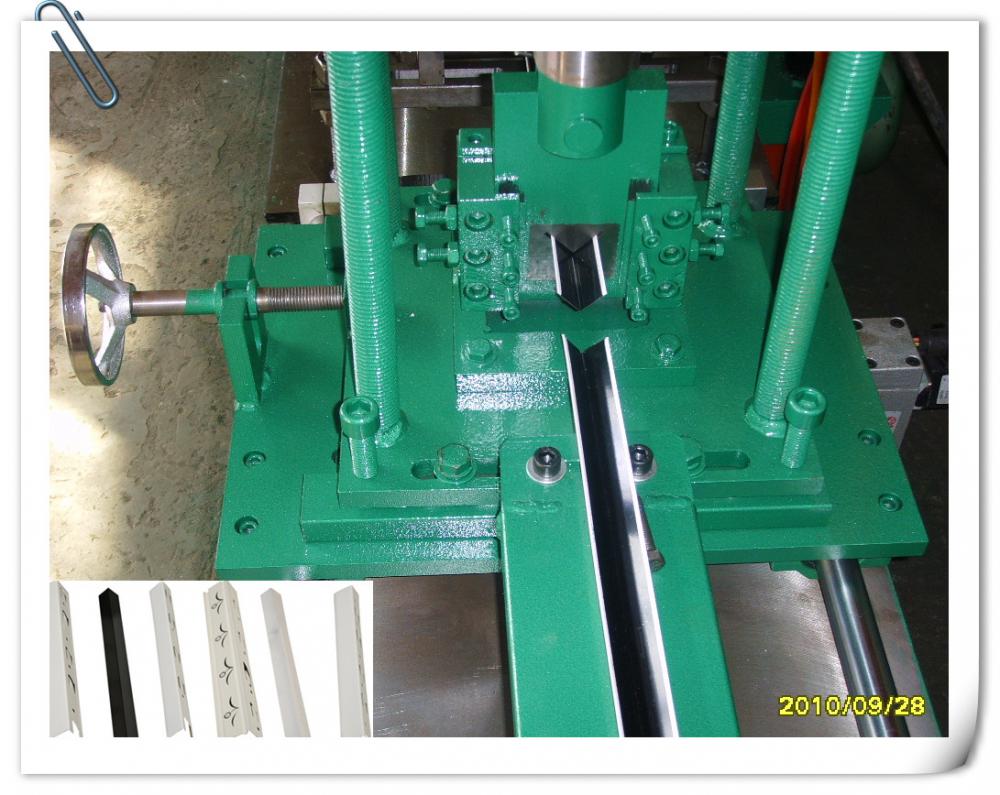

	Type of cutting	Hydraulic
	Cutting tolerance	±1mm
	Cutter	Gcr12
	Cutter quantity	1 set
	Working pressure	20MPA
Hydraulic system	Hydraulic oil	46#
	Hydraulic power	3kw
	Cutting length	As required
	No distorting or wasting. High level safety factor.
Control Device	control		By PLC
	PLC language		English and Chinese (or as required)
	Touch screen		Delta
	Function		Automatic length and quantity measurement
Other Spare part	Weight		About 3 ton
	Dimension		32008001400 (mm) L x W x H
	Main body color		Main body color
	Voltage		380v/50hz/3ph(or as required)
	Spare cutting blade		One piece for one size
	Fuse		2 pieces
	Relay		2 pieces
	Travel switch		2 pieces
	Solenoid valve		1 pieces
Terms of payment	1.Terms of payment: 30%T/T ,Balance to be paid before shipping after inspection. LC is accepted. 2.Deliver time: 30 working days.
Warranty and Training	1. Warranty: Support the technology all the life. And the machine broken because of quality, we can change the broken part for free within one year. 2. Training: If you come to our factory,we can teach you for free. If you need technician go foreign, the buyer need pay the cost for visa, hotel, ticket, food and others, and buyer need pay the technician USD50/day for salary. There need one technician. Training time will be one week.
