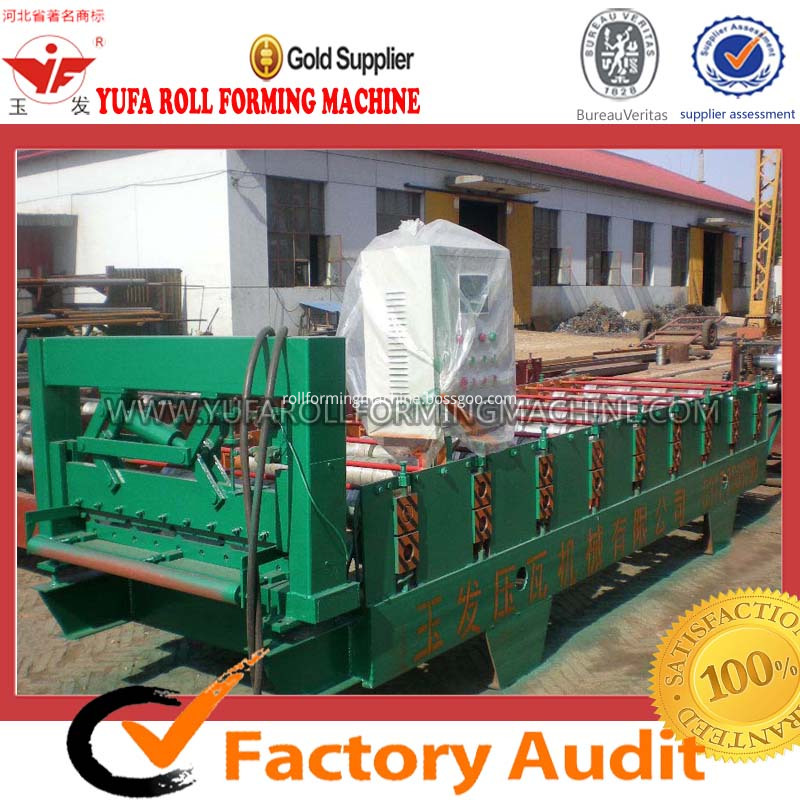

Wall Cladding Sheet Panel Forming Machine
Basic Info
| Model No. | YF15-225-900 |
|---|---|
| Brand Name | YF |
Product description
Quick Details
- Condition: New
- Type: Tile Forming Machine
- Tile Type: Steel
- Use: roof and wall
- Production Capacity: 8-10m/min
- Place of Origin: Hebei, China (Mainland)
- Brand Name: YF
- Model Number: YF15-225-900
- Power(W): 3kw
- Voltage: 380V
- Dimension(L*W*H):5500mm*1300mm*1400mm
- Weight: 2t
- Certification: BV
- Warranty: 1year
- After-sales Service Provided: Engineers available to service machinery overseas
- color: Green
Packaging & Delivery
| Packaging Details: | in container in naked |
|---|---|
| Delivery Detail: | 25-35 working days after receive the advance payment. |
Specifications
2) high-quality product
3) smooth operation
4) reasonable structure
5) steady performance

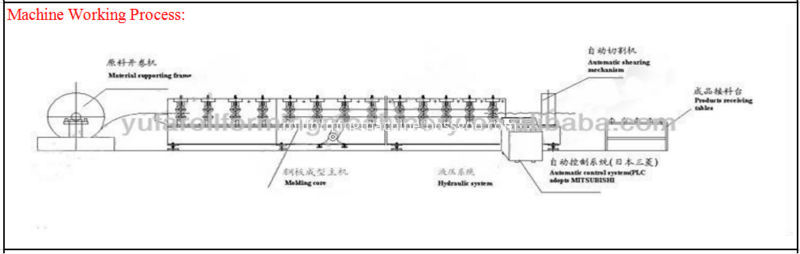

Working Flow :
Un-coiler ---Roll Forming Machine ---PLC Control System ---Hydraulic Cutting ---Exit Rack
Machine Components:
Machine Components:
|
De-coiler |
1 set |
|
Forming machine |
1 set |
|
Cutting device |
1 set |
|
PLC control box |
1 set |
|
Hydraulic pump station |
1 set |
|
Production support table |
1 set |
Parameters of the machine :
|
No. |
Spc. |
|
|
1 |
suitable material |
Color Steel plate, galvanized sheet |
|
2 |
Feeding width |
720mm |
|
3 |
Rows of rollers |
9 rows |
|
4 |
Main power |
3kw |
|
5 |
Hydraulic power |
3kw |
|
6 |
Main frame |
360 channel steel |
|
7 |
Thickness of raw material |
0.6-0.8mm |
|
8 |
Transportation system |
Chain transportation |
|
9 |
Thickness of chain |
0.6 inches |
|
10 |
Productivity |
8-10m/min |
|
11 |
Out diameter of shaft |
75mm (solid shaft) |
|
12 |
Material of shaft |
Material of shaft |
|
13 |
Roller material |
45# steel polished and coated with chrome HRC55-60° |
|
14 |
Shear mould |
Gr12 |
|
15 |
Voltage |
380V 50Hz 3phases |
|
16 |
Control system |
PLC Frequency Control System with touch screen |
Wall Cladding Sheet Panel Forming Machine
