Product Description

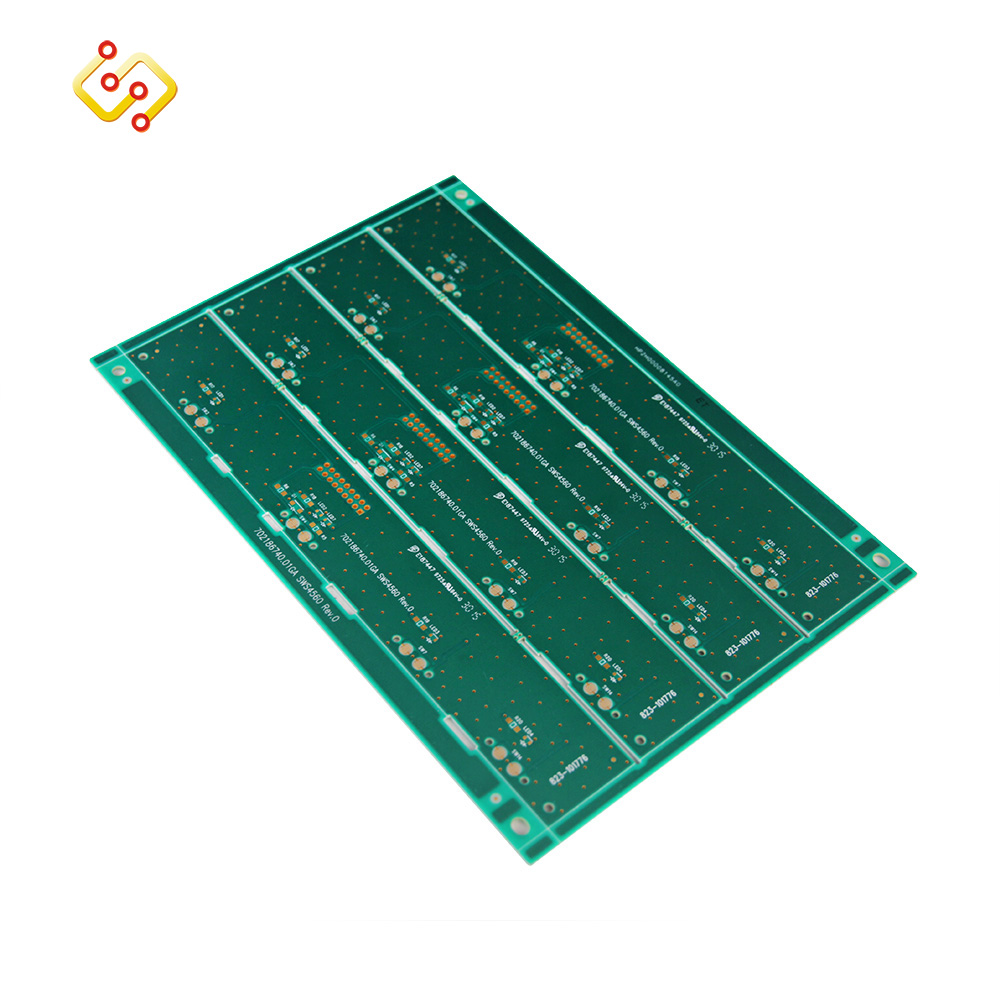

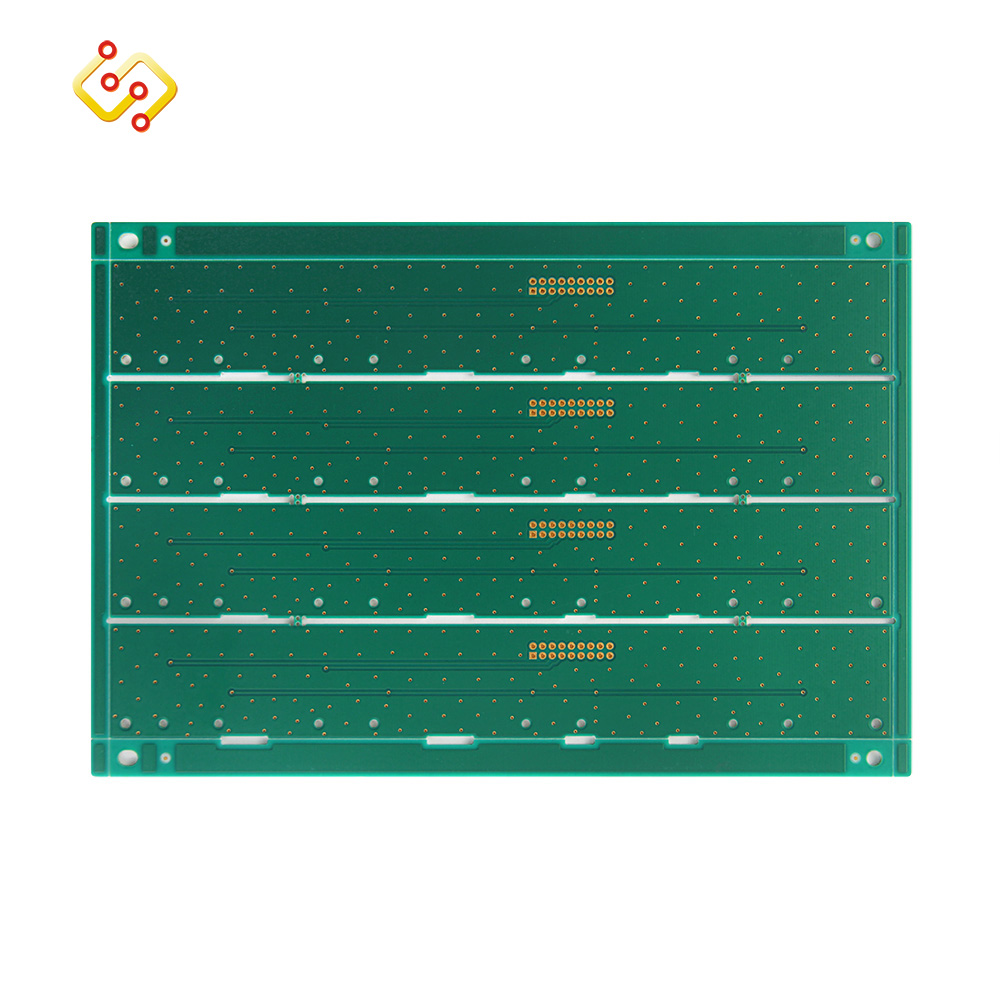

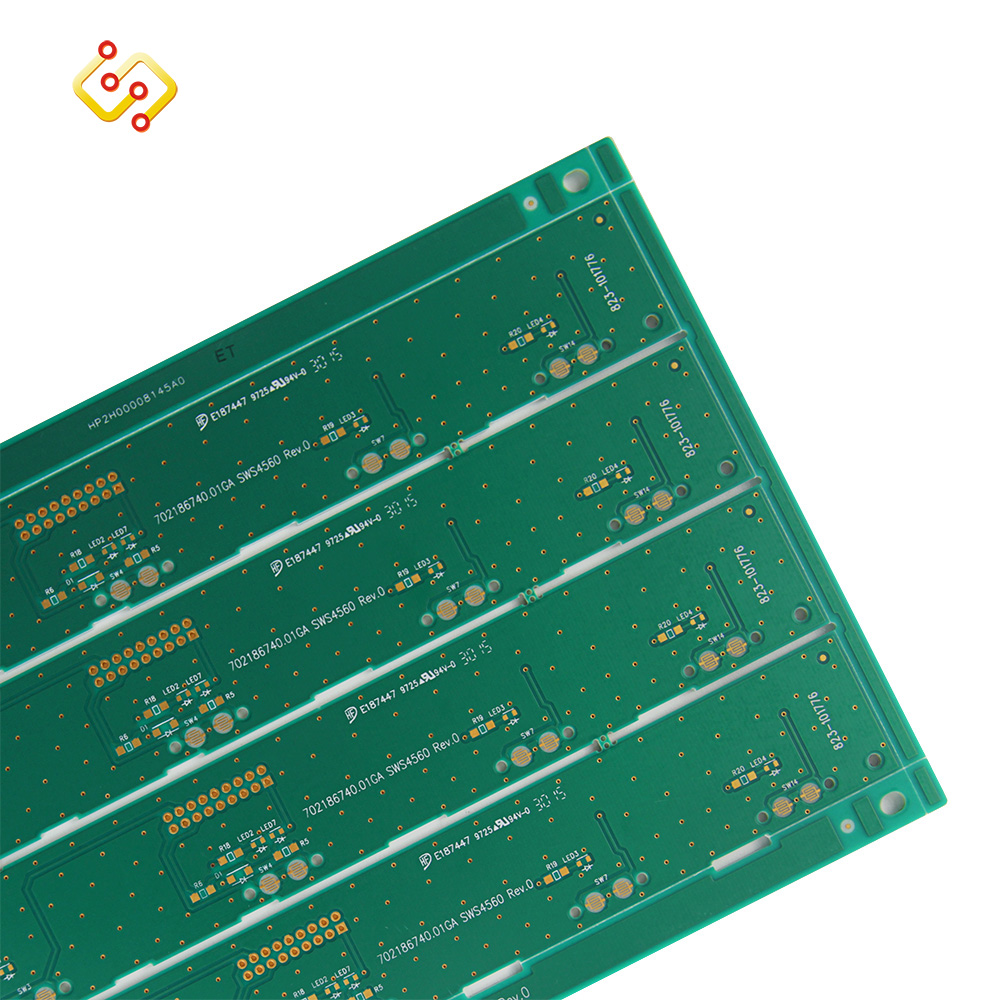

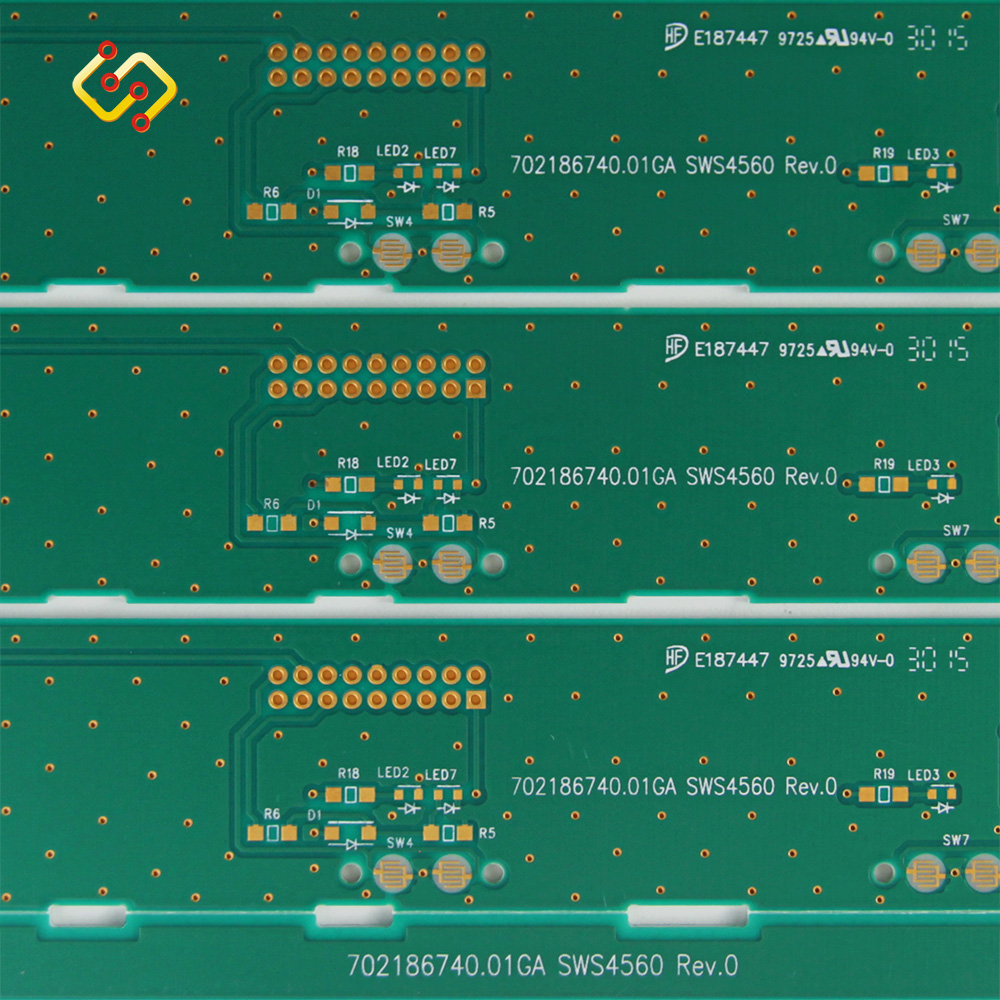

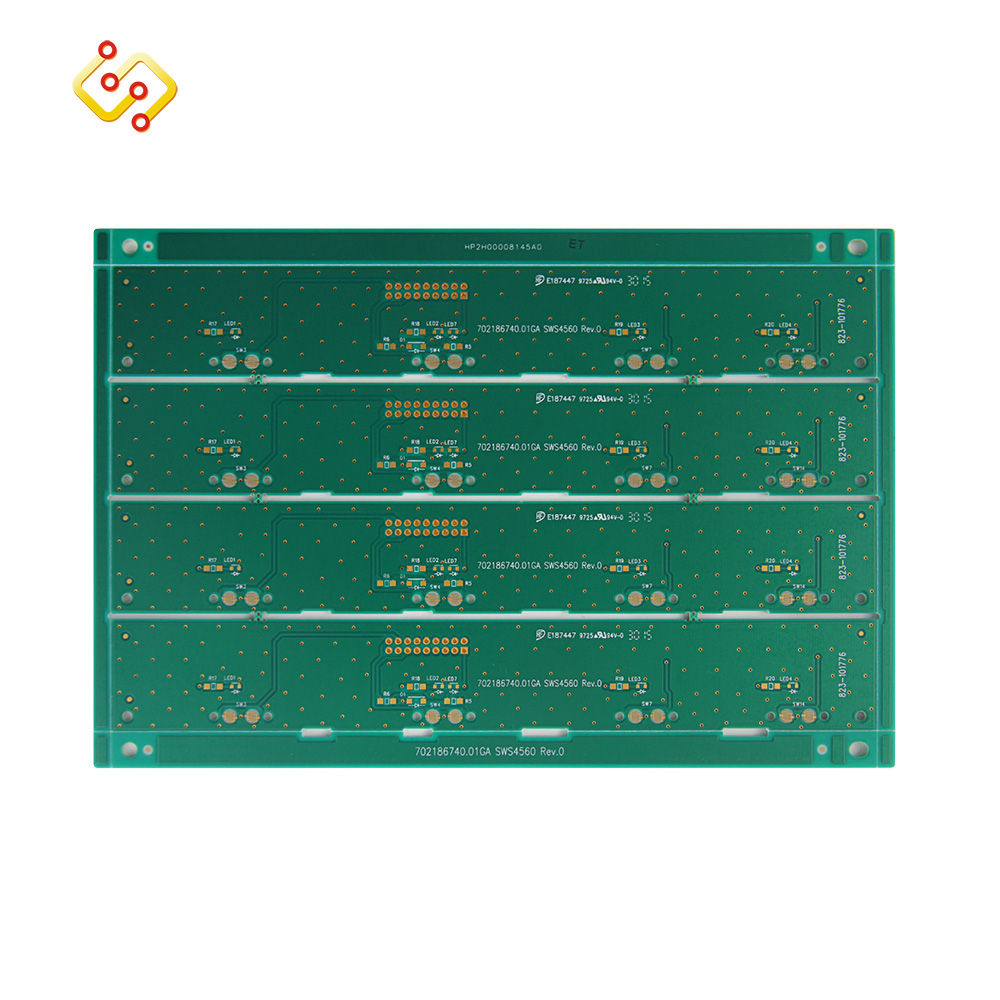

Welding Control Board PCB For Security System Rigid Circuit  Board.We provide specialist design solutions covering all aspects of PCB&PCBA layout embracing the following board technologies.

PCB Business：

Lead Time:7-10 days for 2L

                10-12 days for 4L

                12-15 days for over 6L

PCB Basic Specifications

Brand	LDJ
Type	BMS PCB
Material	FR4(High TG,Standard TG and Teflon TG) /CEM3 / Ceramic / Aluminum /High Frequency Plate / Teflon plate etc.

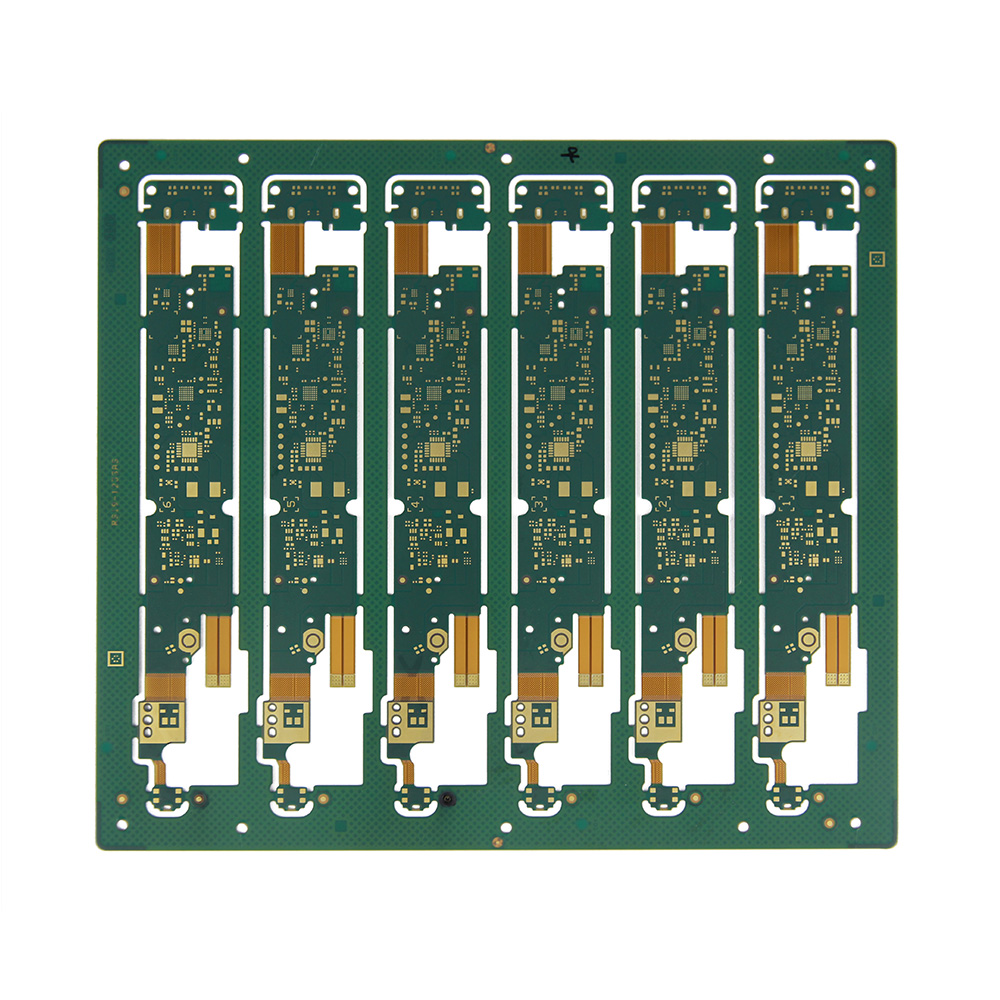

Number of layer	1-20 layers (include Rigid PCB,Flexible PCB and Rigid-Flexible PCB)
Board Thickness	0.2mm-6mm
Board Thickness Tolerance	5-10%
Profile Processing	CNC Milling /V-Cut / Mold Flushes
Copper Thickness	0.5oz-6oz
Copper Weight Tolerance	±0.15oz
Min Line Width	0.075mm
Min Line Space	0.075mm
Drill Hole Szie	0.15mm-6mm
Max Board Size	1200mm*600mm
Silk Screen Min Line Width	0.15mm
Anti-welds resin	Termosetting resin / Without the gloss resin / Photosensitive resin
Certification	REACH and RoHs / CQC / IATF16949 / ISO9001 / ISO14001 / ISO45001 / ISO13485 / UL
Surface Finish	Lead Free HASL / OSP /Immersion Gold / Immersion Tin / Immersion Silver / Plated Gold etc.
Solder Mask	Green / Black / White / Blue / Yellow / Red / Coffee etc.
Impedance Control	±10%
Test Service	100%

Related Products



PCB&PCBA file requite:

1.Gerber file or Schematic diagram of printed circuit board.

2.Material,Board thickness,Copper thickness and Surface finish of PCB

   (please write in Gerber file or send data to us.)

3.BOM (list of components)

4.Number of circuits you need.

Company Information

                                           ABOUT US

Huizhou Liandajin Electronic Co.,Ltd is a solutioner for high precision double-sided and multi-layer printed circuit board.

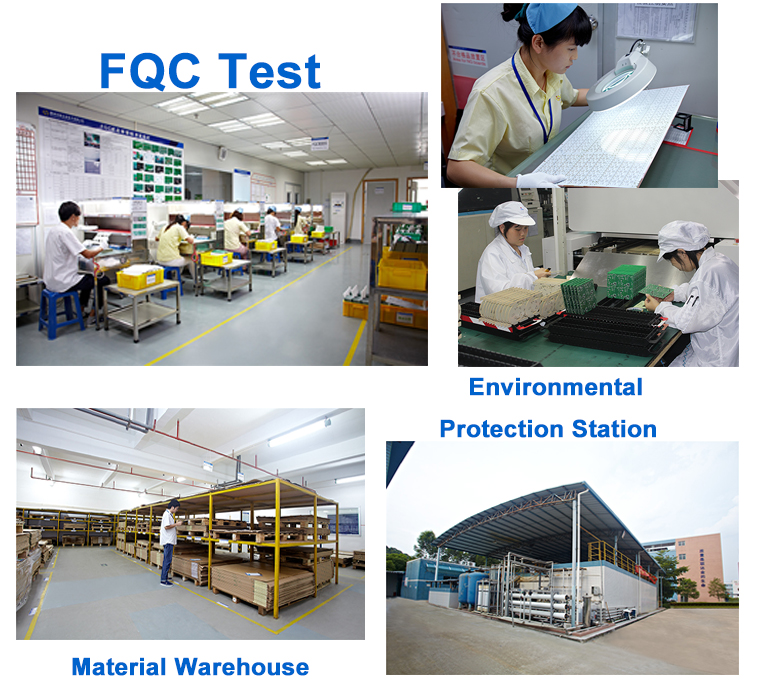

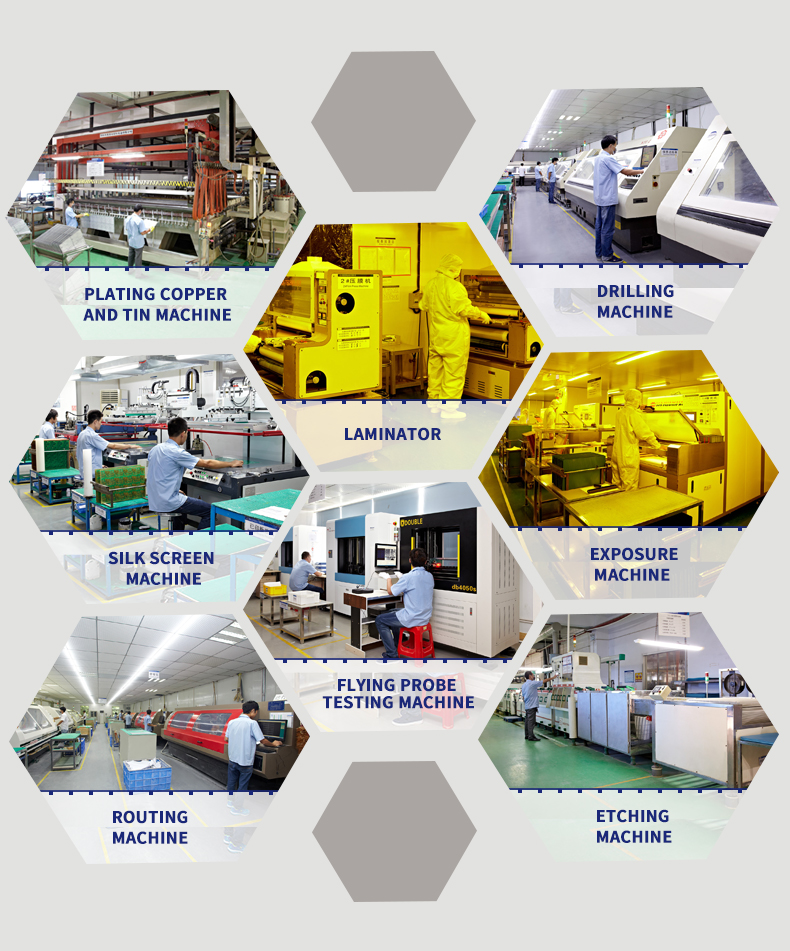

PCB manufacture workshop

LDJ has 15 years of PCB production experience.Our factory covers more than 20000m² and the output had reached 500000m² per month.We had mature production lines,professional production equipments and testing machines.

Founction Test

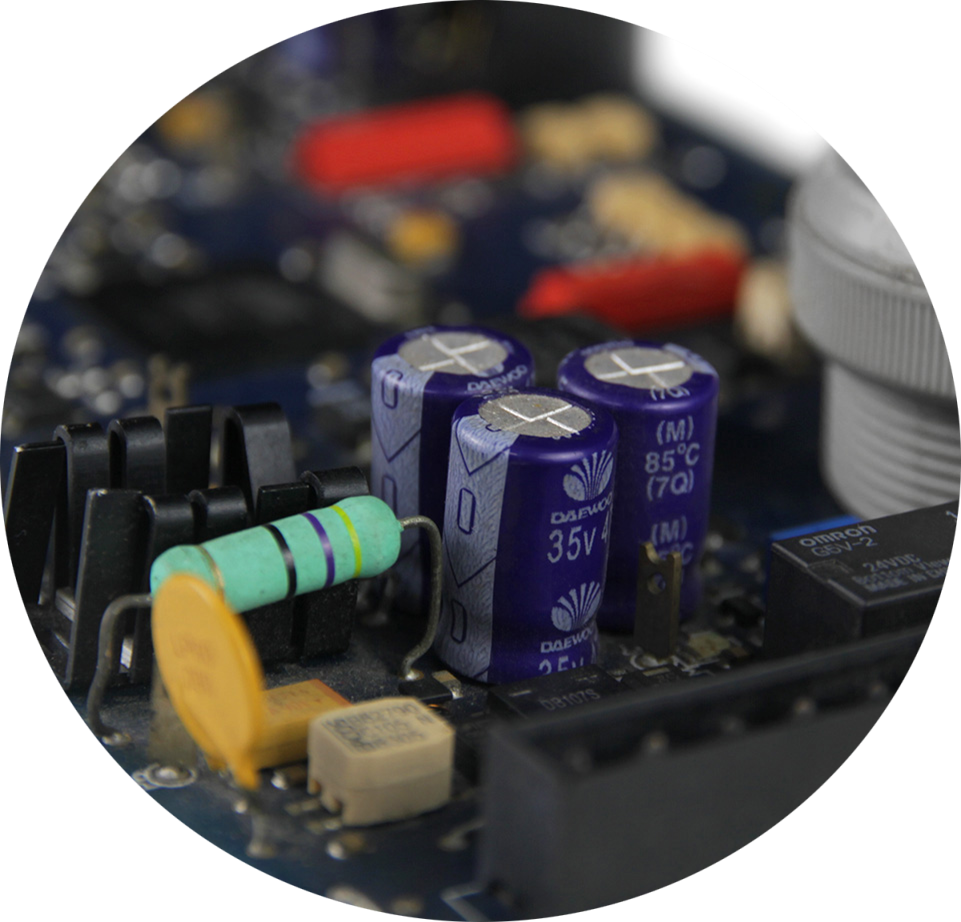

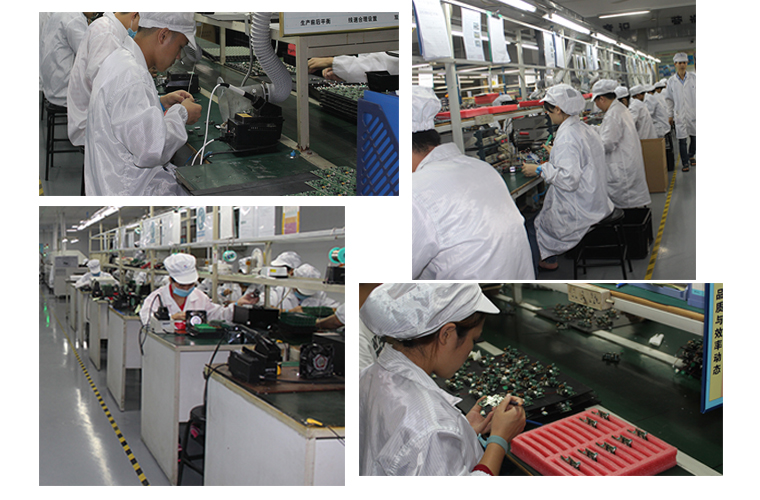

PCB Assembly

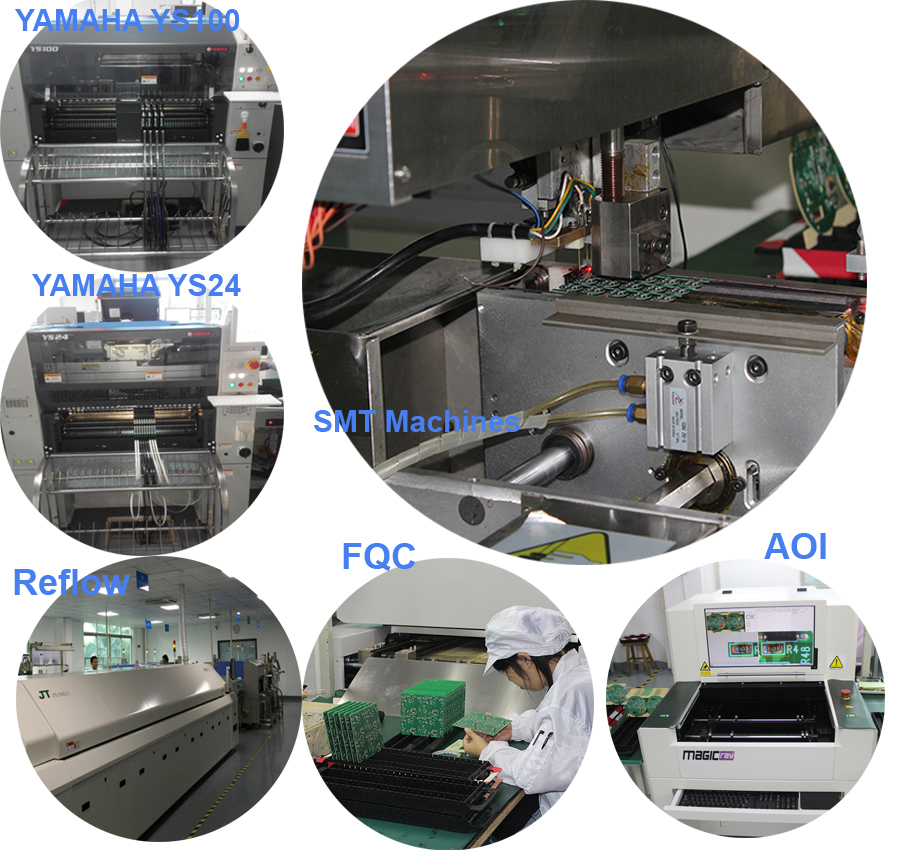

In 2015,the company has transferred from a single PCB manufacturer to a one-stop solutioner for PCBA and electronic products by resource integration and huge investment of SMT and X-Ray examing equipment.



 Functin Test

Our Services
