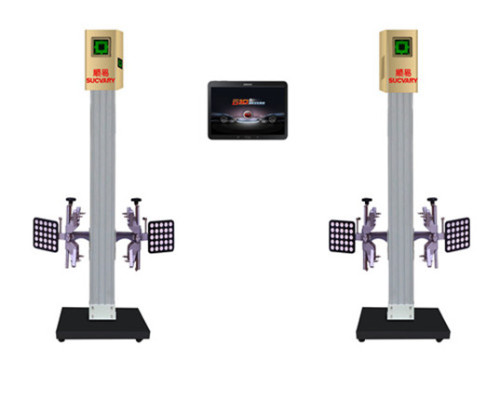

Wheel alignment portable aligner is smart alignment machine for tyre shops and car repair shops. This machien can do  wheel alignment and get results quickly. Mobile 3D Wheel Alignment support multi-screen data shown and multi-languages. Downloading our APP, You can operate wheel alignment portable aligner with a tablet or your cell phnoe with android system.





Advantages of Wheel Alignment Portable Aligner:



1.    Without limitation of space, Stable Mobile 3D Wheel Aligner  does not need to install.

2.    With 3 cameras, the reference plane is car body, so it can measure almost all kinds of vehicles.

3.     Two-Post Wheel Alignment supports varied operation platforms, point to point transmission by WiFi can shied interference.

4.  Supported by powerful cloud service, it can connect to IPAD, cell phone, computer and the Internet, supporting remote shunting operation and data upgrade.

5.    Four targets are crash resistant and can be exchanged. Fix wheel  claws without taking apart wheel hub cover.

6.     Measurement range is wide, and Wifi Wheel Alignment can also test wheel deviation besides all traditional parameters.

7.    The optional one point wheel clamps can be installed within four seconds.

8.  The base is movable, so Portable 3D Wheel Alignment can be used for more than one car lift.





Measurement Range and Accuracy of Wheel Alignment Portable Aligner:

References	Accuracy	range
Camber Angle	±0.01°	±8°
Caster Angle	±0.03°	±19°
Front SAI	±0.02°	±19°
Toe	±0.01°	±2°
Rear thrust angle	±0.02°	±2°
Rear Axle Deviation	±0.02°	±2°
Track Width Difference	±0.02°	±2°
Front setback	±0.02°	±2°
Rear setback	±0.02°	±2°
Track Width	±0.64cm	＜265cm
Wheelbase	±0.64cm	＜533cm
