Basic Info
| Model No. | wire mesh filter cloth |
|---|---|
| Brand Name | GT |
| place of origin | China |
| Material | Stainless Steel Wire |
| species | Wire Cloth, Weave Wire Mesh |
| application | Screen, Filters, Woven Wire Mesh |

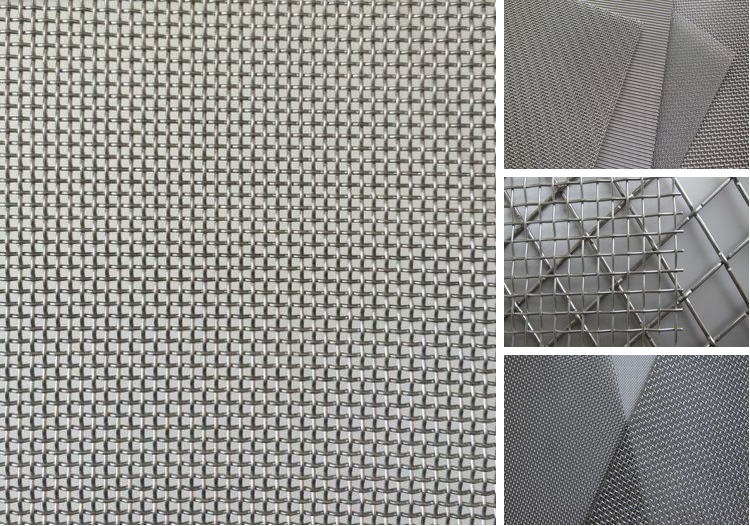

| Weaving style | Plain Weave, Twill Weave, Dutch Weave |

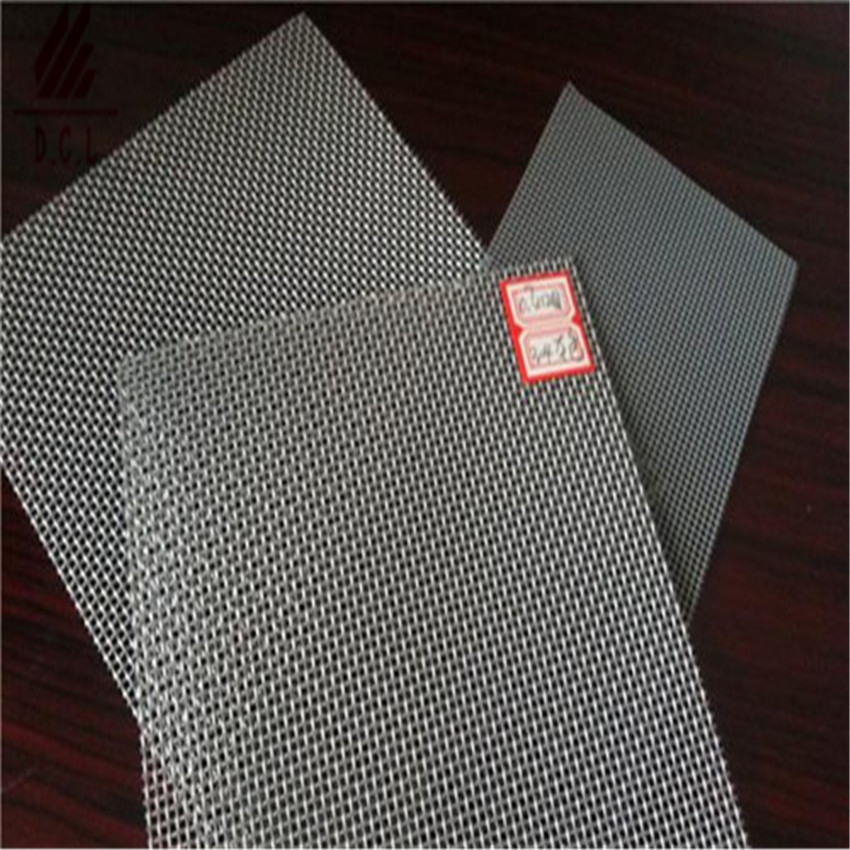

Product description
Plain weare specification:
| Mesh | Wire diameter | Aperture | Mesh | Wire Diameter | Aperture | |
| 16 | 0.50mm | 1.09mm | 32 | 0.24mm | 0.55mm | |
| 18 | 0.30mm | 1.11mm | 36 | 0.22mm | 0.49mm | |
| 20 | 0.40mm | 0.87mm | 40 | 0.20mm | 0.44mm | |
| 22 | 0.35mm | 0.80mm | 50 | 0.18mm | 0.33mm | |
| 24 | 0.30mm | 0.76mm | 60 | 0.16mm | 0.26mm | |
| 26 | 0.26mm | 0.72mm | 70 | 0.14mm | 0.223mm | |
| 28 | 0.24mm | 0.67mm | 80 | 0.12mm | 0.198mm | |
| 30 | 0.22mm | 0.63mm | 160 | 0.06mm | 0.100mm |

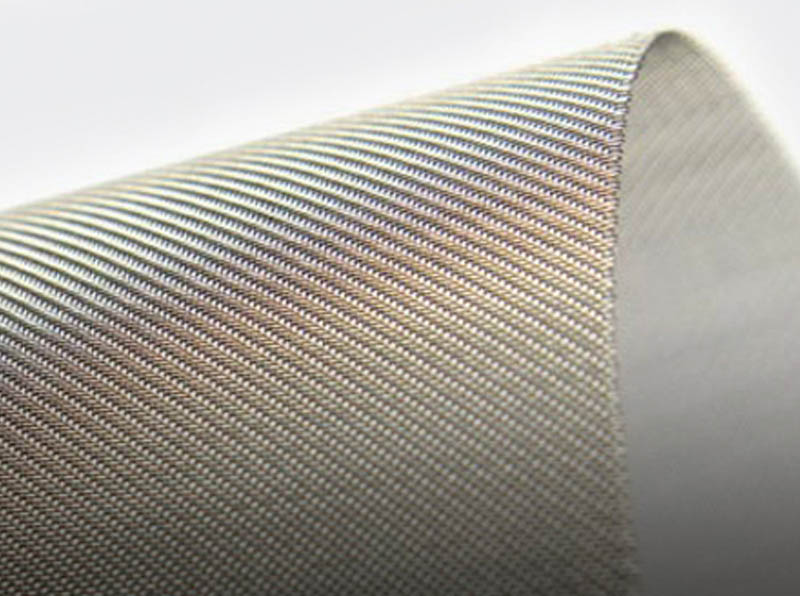

Dutch Weare specification:
|
Mesh/Inch WarpxWeft |
Wire Dia Warp x Weft |
Nominal Filtration Fineness |
Section Area % |
| 7x40 | 0.9x0.71mm | 347um | 14.3 |
| 12x64 | 0.56x0.4mm | 211um | 16 |
| 24x110 | 0.355x0.25mm | 97um | 11.3 |
| 30x150 | 0.25x0.18mm | 82um | 13.5 |
