Standard

IEC 60502

?

Application

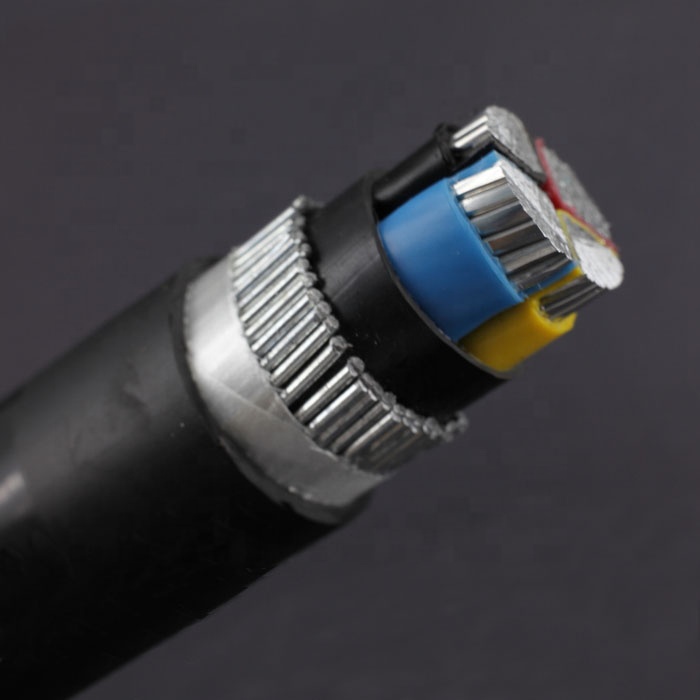

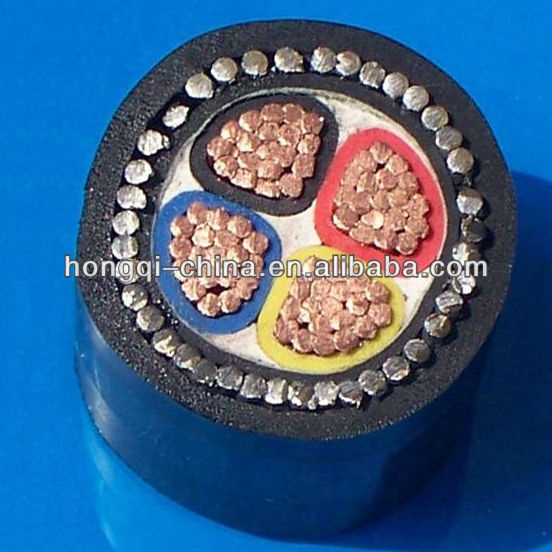

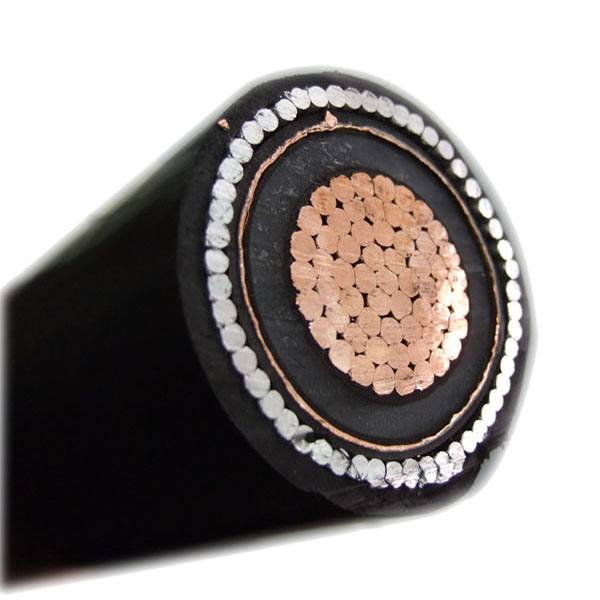

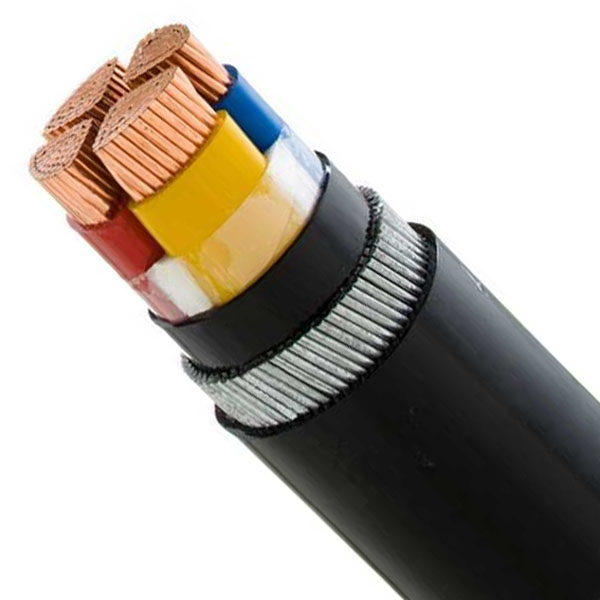

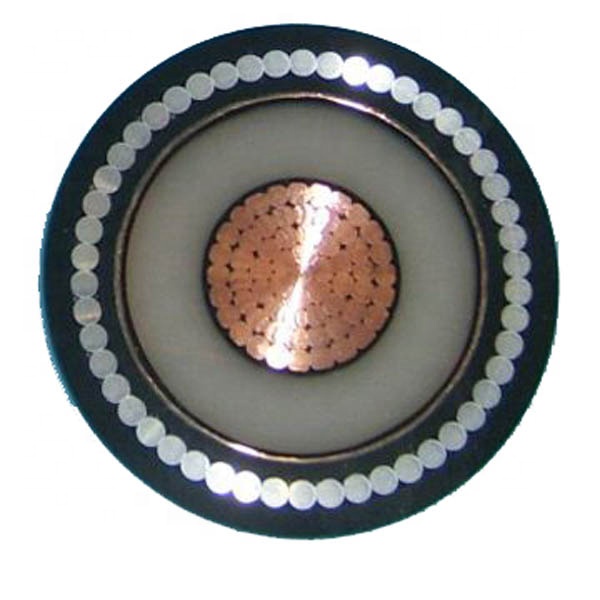

XLPE / PVC Insulation Copper Conductor Steel Armoured Power?Cable is used for fixed installations of rated voltages 1kV, such as distrubution networks or industrial installations. It can be installed in cable duct, trench or directly buried in earth. Steel tape or steel wire armor allows the cable to bear considerable pressures.

?

Product Description

1) Rated Voltage: 600/1000V

2) Max. working temperature: 90°c (XLPE insulation), 70°c (PVC insulation)

3) Max. temperature during short circuit (≤5S): 250°c (XLPE insulation), 160°c (PVC insulation)

4) Conductor: class 1, 2 plain or tinned copper

5) Shape of conductor: circular and sectional

6) Sectional area: 1.5 - 1200mm2

7) Insulation: XLPE or PVC

8) No. of cores: 1, 2, 3, 3+1, 3+2, 4, 4+1, 5

9) Armor: steel wire or steel tape

10) Oversheath: PVC

11) Min. beding radius: 15 times cable radius for single-core cables and 12 times for multi-core ones

12) Max conductor DC resistance at 20?°c

?
