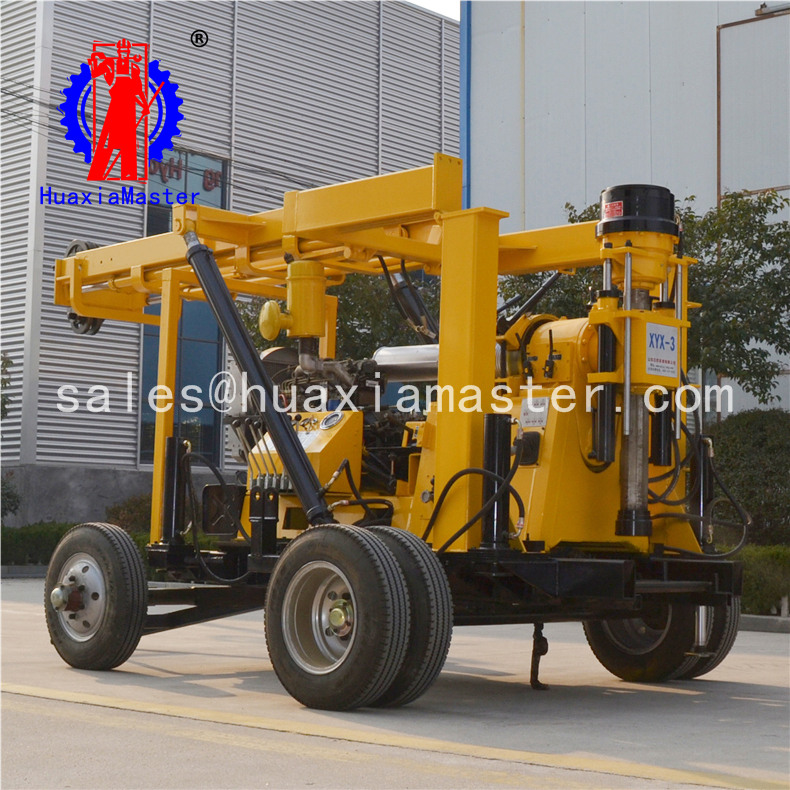

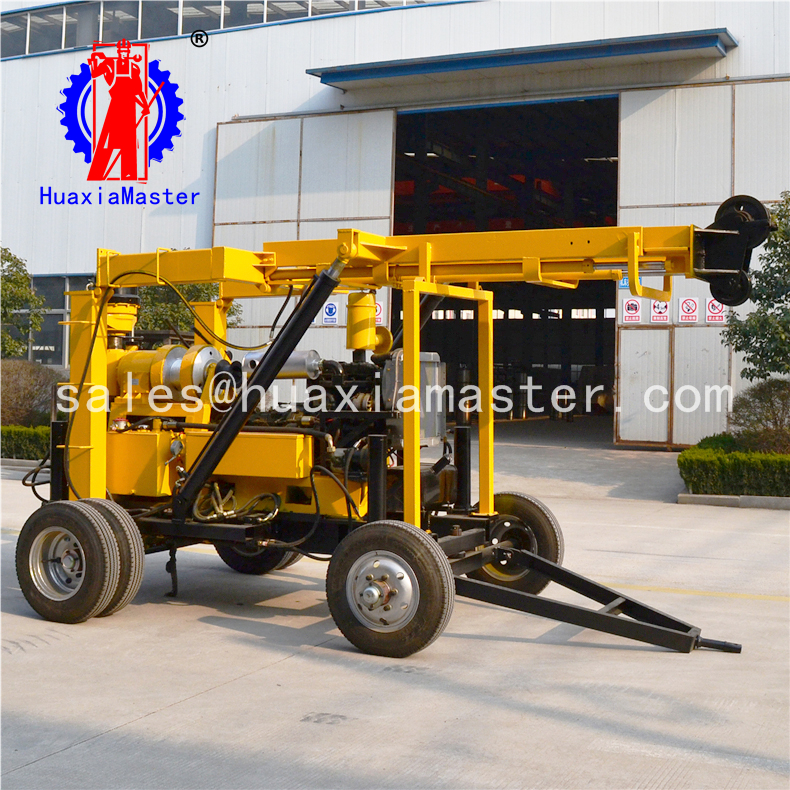

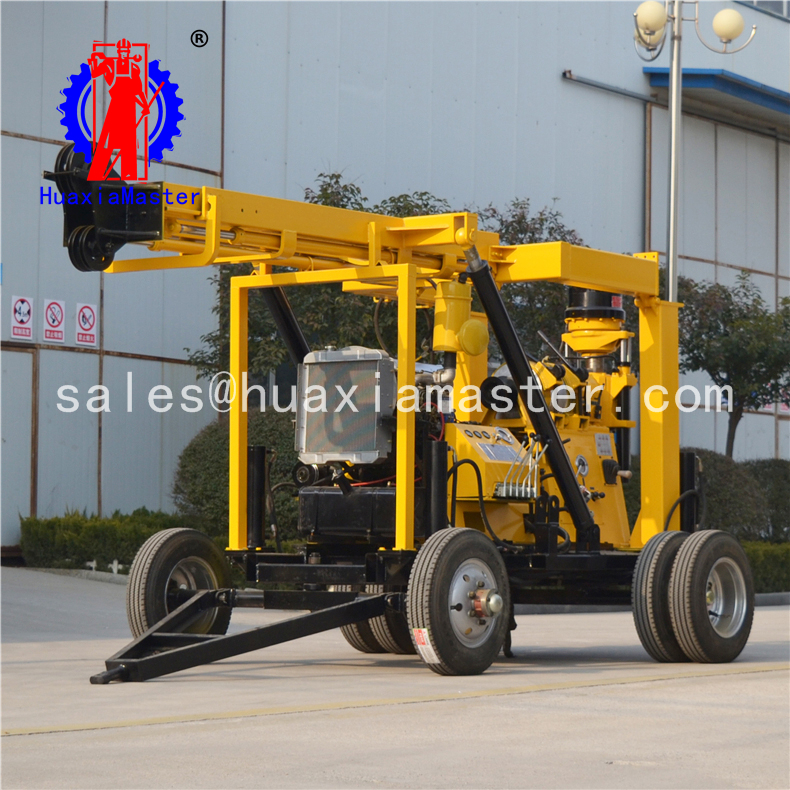

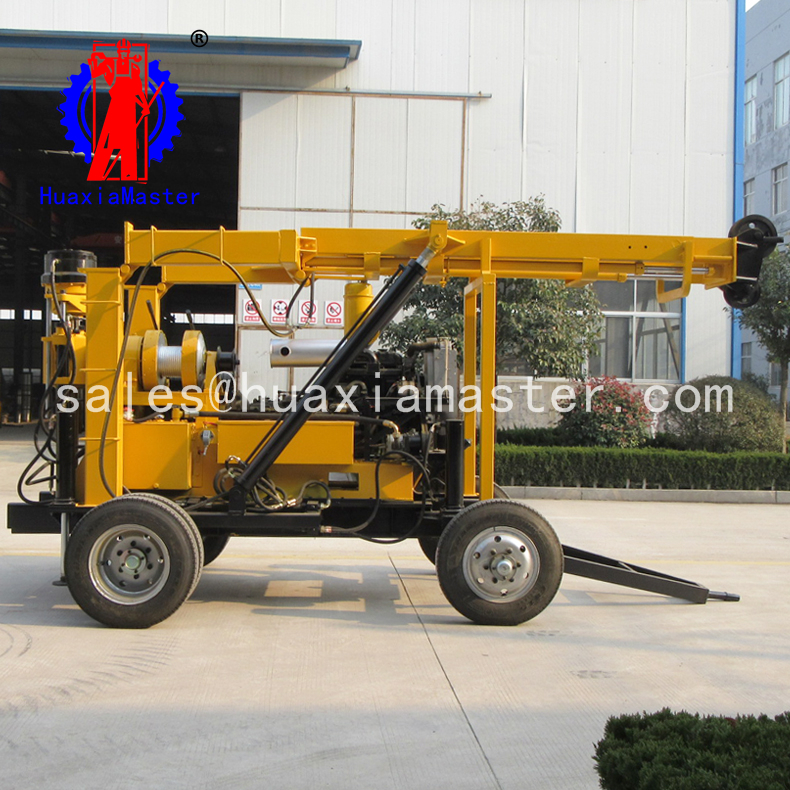

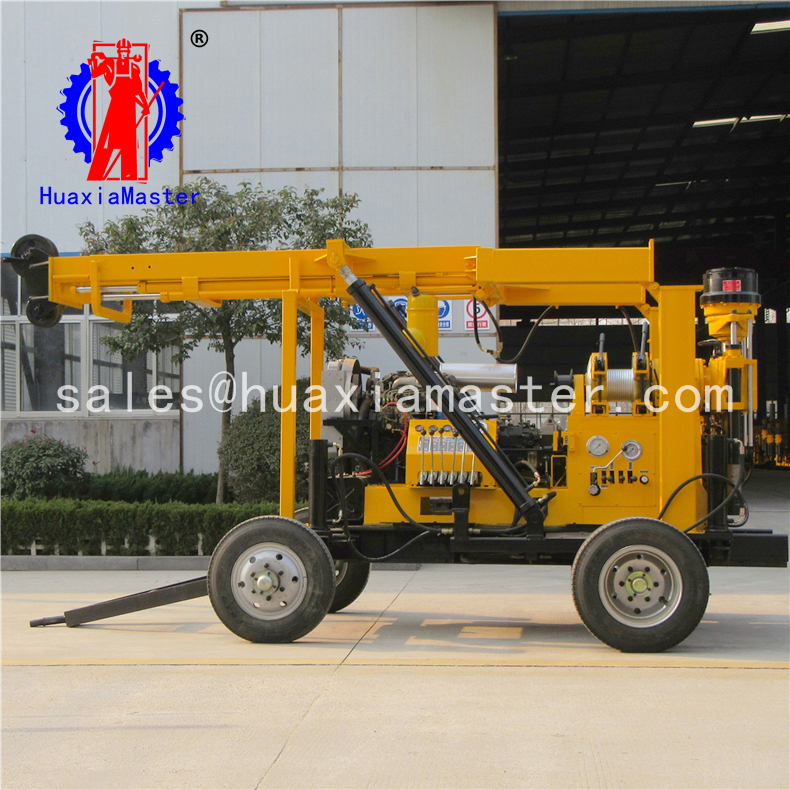

XYX-3 tractor mounted drilling rig oil trailer mounted water well drilling rig machinery
$2100.00
5 Set/Sets (MOQ)
$2100.00
5 Set/Sets (MOQ)
$2100.00
5 Set/Sets (MOQ)
Basic Info
| Model No. | XYX-3 |
|---|---|
| Brand Name | HuaXia master |
| Structure | Vertical Drilling Machine |
| Layout | Vertical |
| Controlling Mode | Artificial |
| Number of Shaft | 3 |
| Hole Diameter | >200mm |
Product description
1.Applications of XYX-3 hydraulic drilling rig
· The drilling rig is equipped with wheeled walking mechanism and hydraulic cylinder support, which is convenient for the whole machine to be relocated and easy to adjust the level of the drilling rig.
· Using the ball card holding mechanism to replace chuck,can implement non-stop down rod,convenient operation,safe and reliable.
· With oil pressure feeding mechanism to improve drilling efficiency
· The pressure gauge is provided with the pressure gauge of the bottom of the hole, so it is easy to master the hole in the hole.
· The lifting and falling tower is hydraulic operation, which is convenient and reliable.
· The diesel engine uses electric start to reduce the labor intensity of the worker.
2 The features of XYX-3 tricycle-drilling machine portable
· road and high-rise building foundation exploration
· all kinds of concrete structure inspection holes
· river embankments
· subgrade grouting holes
· drilling and direct grouting
· civil water well
· ground temperature central air conditioners.
3. Specifications of XYX-3 tricycle-drilling machine portable
|
Maximum opening diameter |
300 / 200 /150 / 75mm |
|
Max open hole caliber |
300mm |
|
Final hole diameter |
75mm |
|
Drill pipe |
60mm |
|
Borehole inclination |
90°-65° |
|
A vertical scroll of painting |
|
|
Vertical rotation speed of vertical axis 30-1050r/min |
|
|
Vertical reversal speed |
29-137r/min |
|
Vertical axis stroke |
560mm |
|
Diameter of shaft inner hole |
96mm |
|
Vertical axis lifting capacity |
60kn |
|
Main hoist (hydraulic drive) |
|
|
Single rope lifting speed |
0-45m/min |
|
Wire rope diameter |
14mm |
|
Band width |
90mm |
|
Drum diameter |
300mm |
|
Reel capacity |
30m |
|
Maximum lifting capacity of single rope |
40kn |
|
Auxiliary hoist (hydraulic drive) |
|
|
Drum diameter |
140mm |
|
Diameter of steel wire |
6mm |
|
Reel capacity |
450m |
|
Mud pump |
|
|
Mud pump |
BW-250 Horizontal three cylinder |
|
Flow |
250 l/min |
|
Working pressure |
7mpa |
|
Inlet diameter |
75mm |
|
Outlet diameter |
50mm |
|
Gear oil pump |
|
|
Double oil pump |
CBF-F63/25 |
|
Front-end flow pressure |
63 l/min 20mpa |
|
Backend flow pressure |
25 l/min 20mpa |
|
Rig power |
|
|
Diesel engine |
FAW Xichai 4 cylinder |
|
Electric machinery |
Y180L-4 22KW |
|
Wheeled chassis |
|
|
Bearing capacity of wheel chassis |
3.5t |
|
Wheel chassis length |
2.6m |
|
Wheel chassis width |
2m |
|
Wheel chassis height |
0.6m |
Due to continuous product improvement, please ask us for the latest data.
Due to continuous product improvement, please ask me for the latest data.
