ZPL630 Construction Passenger Hoist Lift
$1200.00
≥2 set
$1100.00
≥5 set
$1000.00
≥10 set
Color:
- Sky Blue
- Red
- Orange
Basic Info
| type | Suspended Platform |
|---|---|
| Warranty | 1 Year |
| After-sale Service | Online Technical Support, Free Spare Parts |
| Project Solution Capability | Others |
| Application | Other |
Product description

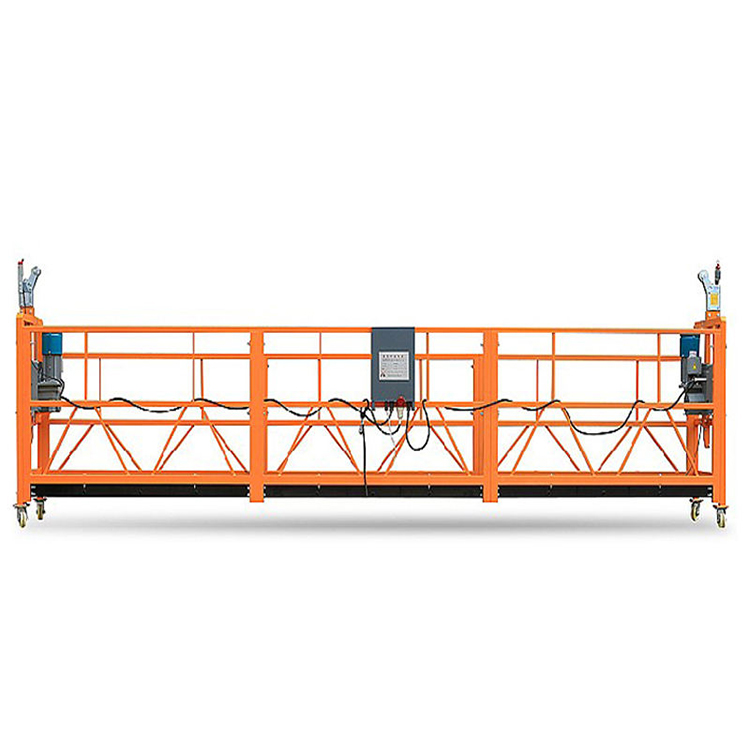

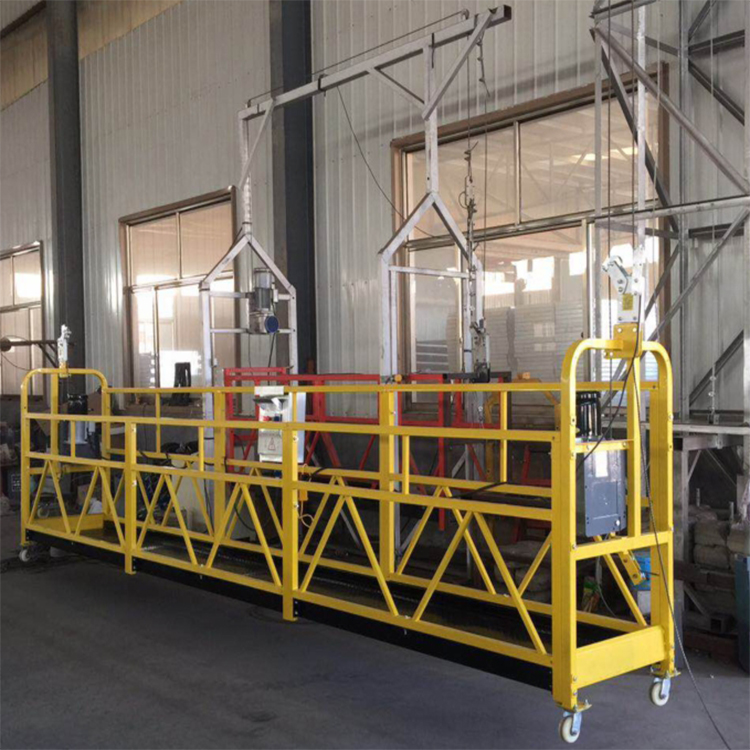

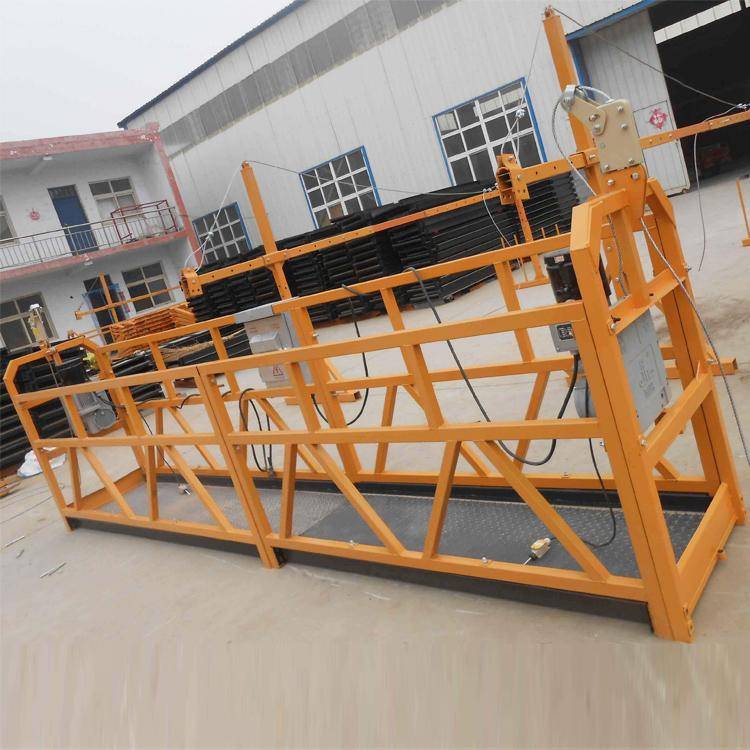

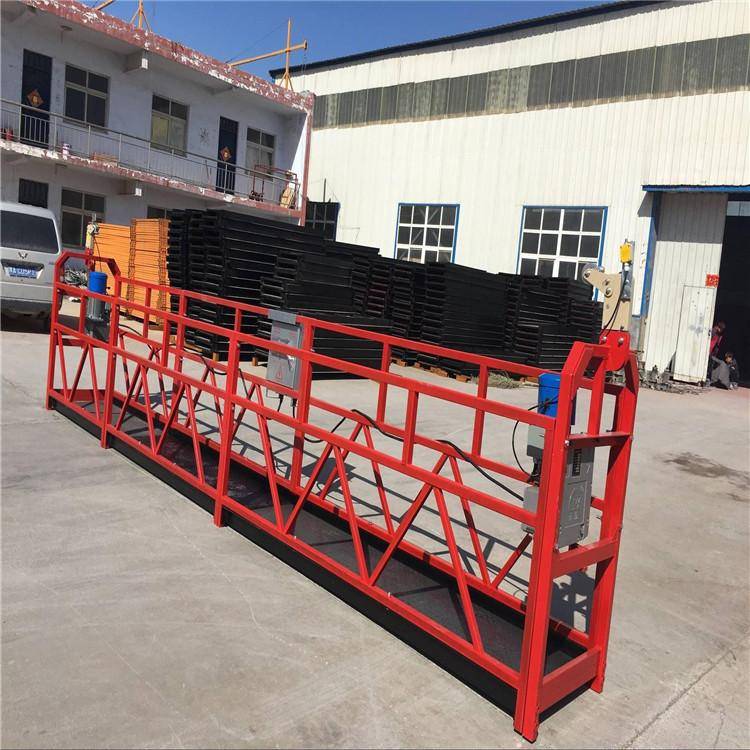

zlp630 suspended platform is the latest products developed by POWER,with the features like more stable than elevator when start/stop,which greatly enhance the security and the service life of hoist and steel wire rope.The product has won the National hightech patent certificate.

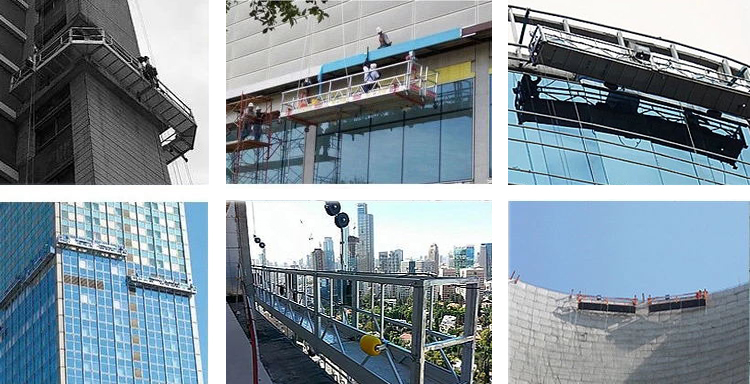

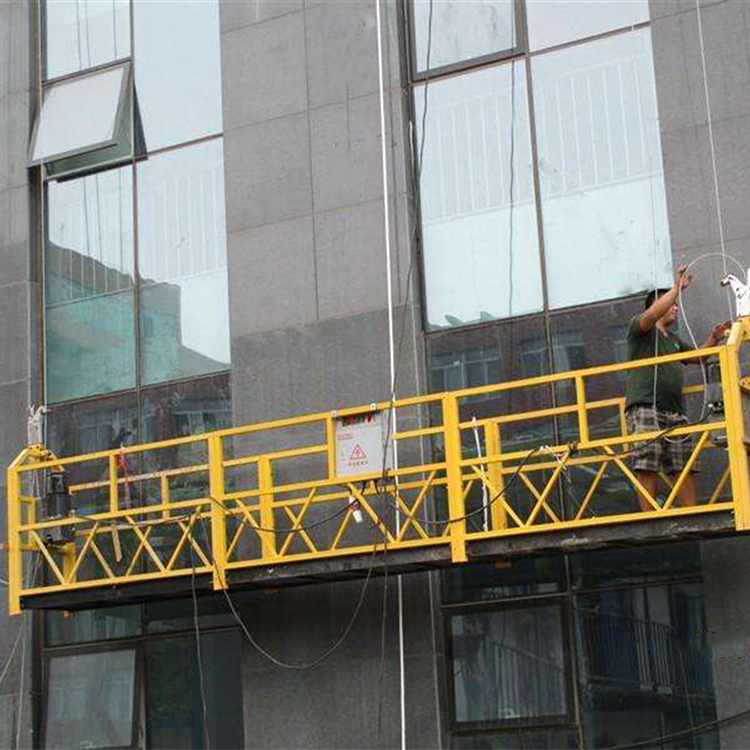

zlp suspended platform is a new decorating machinery, which can replace the traditional scaffold and is mainly used in decorating, cleaning and maintenance of external walls of high buildings, such as cement coating, wall brick coating, painting, glass installing, ship building and repairing, big vessels, bridges, dams, chimneys, etc. Using Balance suspended platform can reduce work intensity and raise work efficiency.
Name | Technical parameter | ||||||||
Model | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | |||||
Rated load | 500Kg | 630Kg | 800Kg | 1000Kg | |||||
Lifting speed | 9-11m/min | 9-11m/min | 8-10m/min | 8-10m/min | |||||
Platform Dimension | (2.5m*2)*0.69m*1.18m | (2m*3)*0.69m*1.18m | (2.5m*3)*0.69m*1.18m | (2.5m*4)*0.69m*1.18m | |||||
Lifting Height | 100 m/328ft | 100 m/328ft | 100 m/328ft | 100 m/328ft | |||||
Cable | 100 m/328ft | 100 m/328ft | 100 m/328ft | 100 m/328ft | |||||
Steel rope | D:8.3mm 4*31SW+FC-8.3 | D:8.3mm 4*31SW+FC-8.3 | D:8.3/8.6mm 4*31SW+FC-8.3/8.6 | D:8.6/9.1mm 4*31SW+FC-8.6/9.1 | |||||
Hoist | Power | 1.5KW | 1.5KW | 1.8KW | 2.2KW/3.0KW | ||||
Voltage(A) | 380V/220V/50HZ/ 3PHASE | 380V/220V/50HZ/ 3PHASE | 380V/220V/50HZ/ 3PHASE | 380V/220V/50HZ/ 3PHASE | |||||
Voltage(B) | 220V/60HZ/1PHASE | 220V/60HZ/1PHASE | 220V/60HZ/1PHASE | 220V/60HZ/1PHASE | |||||
Safety lock | Permissionforce of impact | LSB30:30KN | LSB30:30KN | LSB30:30KN | LSB30:30KN | ||||
Locking Cable Angle | 3°~8° | 3°~8° | 3°~8° | 3°~8° | |||||
Suspension mechanism | Front beam overhang | 1.12-1.7m/3.7-5.6ft | 1.12-1.7m/3.7-5.6ft | 1.12-1.7m/3.7-5.6ft | 1.12-1.7m/3.7-5.6ft | ||||
Counterweight | 1000kg | 1000kg | 1000kg | 1000kg | |||||
Working height | 0-200m/0-656ft | 0-200m/0-656ft | 0-200m/0-656ft | 0-200m/0-656ft | |||||

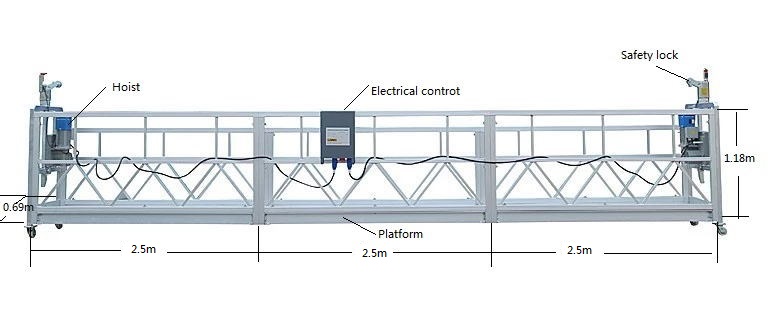

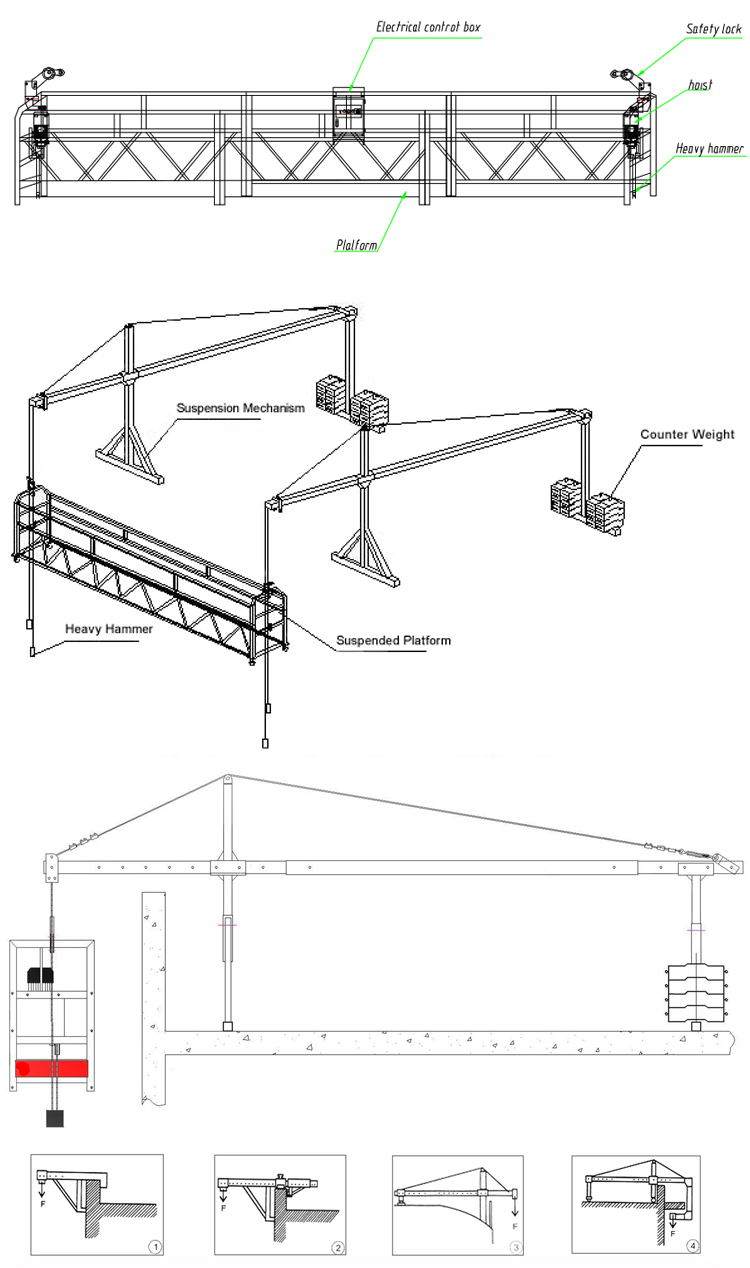

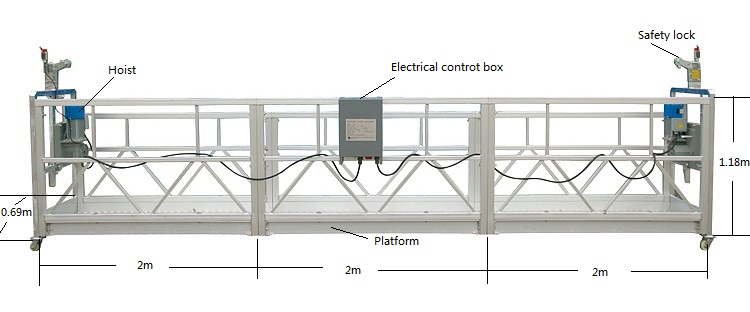

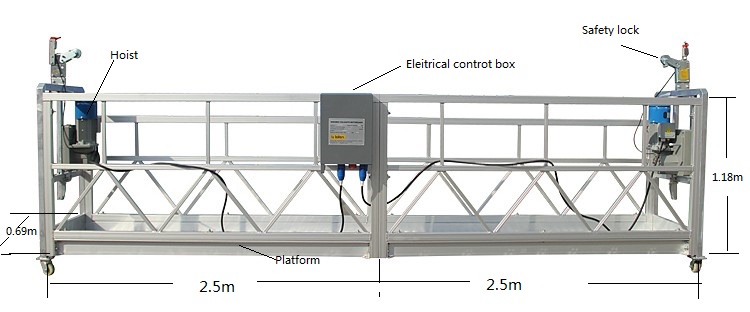

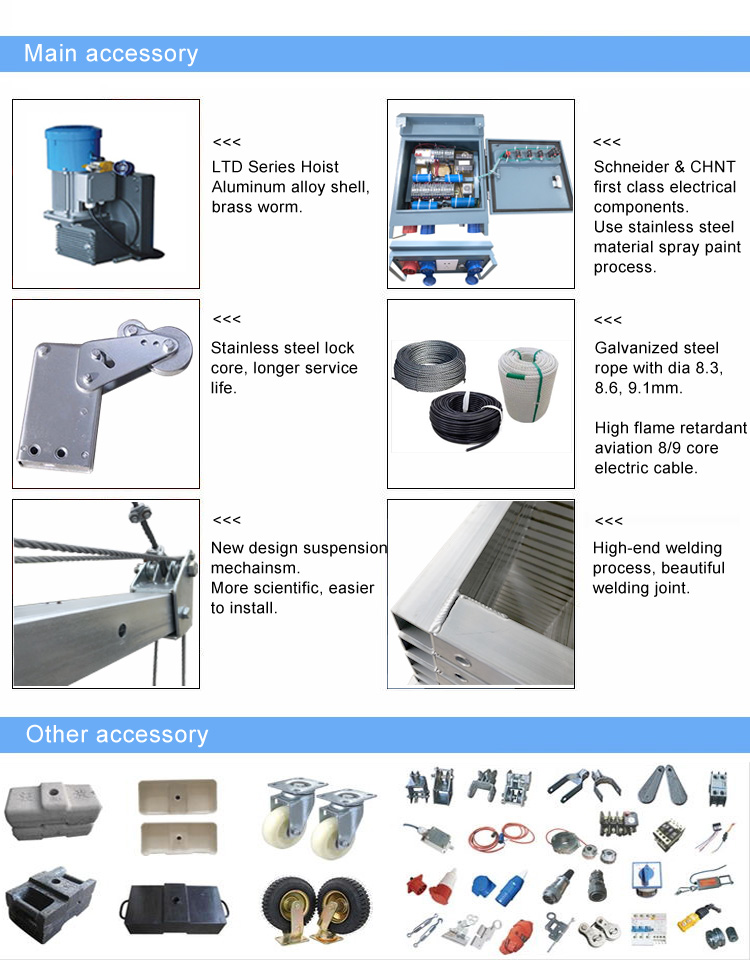

suspended platform is mainly conmposed by suspension mechanism, lifting hoist, safety lock, electric control box, lifting platform.
Its structure is reasonable and easy to operate. It can be make-up and break-out according to the actual need. The suspended platform is mainly used for refurbishment, decoration, cleaning and maintenance of high construction building
* Experienced packer and forklift
* Standard export packaging
* Professional freight forwarder partner
* 1*20' container 10 sets with counterweight
* 1*40' container 14 sets with counterweight
